Room Design with Aluminum: Square Interior Track Profile 14x35 mm, Innovative and Universal
On this page, you can customize the 14x35 mm interior track profile by selecting the desired length, adding optional accessories, and adding the configured product directly to your cart. This high-quality aluminum profile combines the elegant design of steel curtain rods with the functional advantages of a modern interior track system. The key benefit of this profile is its smooth and uninterrupted curtain glide. Thanks to its unique construction, the gliding track remains free, ensuring that the curtain moves effortlessly along the entire length – even in curved or multi-part systems.
With the right ceiling brackets, wall brackets, and end caps, we offer versatile mounting solutions for a wide range of room setups. The extremely sturdy and durable square aluminum profile is ideal for commercial use and larger curtain systems. Whether for hospitals, medical practices, fitness studios, or changing rooms – this interior track profile ensures secure and long-lasting installations.
The profile can be mounted on the ceiling or wall, and both methods can also be combined. Additionally, we offer custom-bent solutions tailored to your specific needs. Even with complex room dividers or windbreak curtains, the curtain glide remains smooth and unrestricted.
If you need a custom solution for room dividers, partition walls with curtains, changing room systems, or windbreak curtains, simply send us a sketch or technical drawing via email. We will promptly provide you with a custom, no-obligation quote. All custom solutions are manufactured as a single piece and delivered as a whole whenever possible.
Available lengths: Standard lengths up to 600 cm or custom-cut sizes.
Ordering the 14x35 mm Interior Track Profile in the Right Length
*If desired, please enter the number of centimeters to be cut in the "cut by:" field. We will then trim the profile to your specified length. For example: If you need a profile exactly 217 cm long, select 220 cm under "length" and enter "3 cm" in the "cut by:" field. Profile sections will not be shipped.
* Parcel Service Shipping: Profiles up to 260 cm are delivered in one piece. Profiles longer than 260 cm are divided as follows: - Up to 520 cm: divided in the middle - Over 520 cm: divided into thirds (1/3 + 1/3 + 1/3) A connecting adapter is always included. A bracket should be installed at the connection point.
* Freight Shipping: Profiles longer than 260 cm and up to 400 cm are delivered in one piece. Profiles longer than 520 cm and up to 600 cm are divided in the middle.
* Profiles longer than 400 cm and up to 600 cm in one piece – Price on request.
Track Connector for Square Aluminum Curtain Track 14x35 mm
If the curtain track needs to be divided due to shipping or construction reasons, our high-quality track connectors provide the perfect solution for a stable and secure connection of aluminum curtain tracks. These connectors ensure a smooth and uninterrupted glide of curtains, even in curved track systems.
For our sturdy square curtain track 14x35 mm, we offer special connectors with flat nuts that enable a reliable and long-lasting fixation.
Color Options for Our Square Interior Track Profile 14x35 mm
Our 14x35 mm interior track profiles are made from high-quality aluminum and are available in the following finishes: Brushed Stainless Steel and Glossy White. Matching accessories such as ceiling brackets, wall brackets, wall mounts, and end caps are also available in these colors. You can also mix and match colors, for example, combining stainless steel with white. Customize your curtain track to suit your preferences and needs.
End Caps for Square Interior Track Profiles 14x35 mm
Our range includes high-quality aluminum end caps for square 14x35 mm interior track profiles, available in two colors: Brushed Stainless Steel and Glossy White. The end caps are inserted into the mounting track of the profile and secured with a set screw for a stable and secure fit.
Simply select the desired end cap from the available options in our configurator. The image shows aluminum end caps for the 14x35 mm profile in both color variants. If you prefer, you can also place your order without end caps to use alternative mounting solutions such as wall mounts, curves, or pass-through corners.
Discover our wide range of mounting solutions and give your curtain systems the perfect finish!
Gliders for Square Interior Track Profiles 14x35 mm

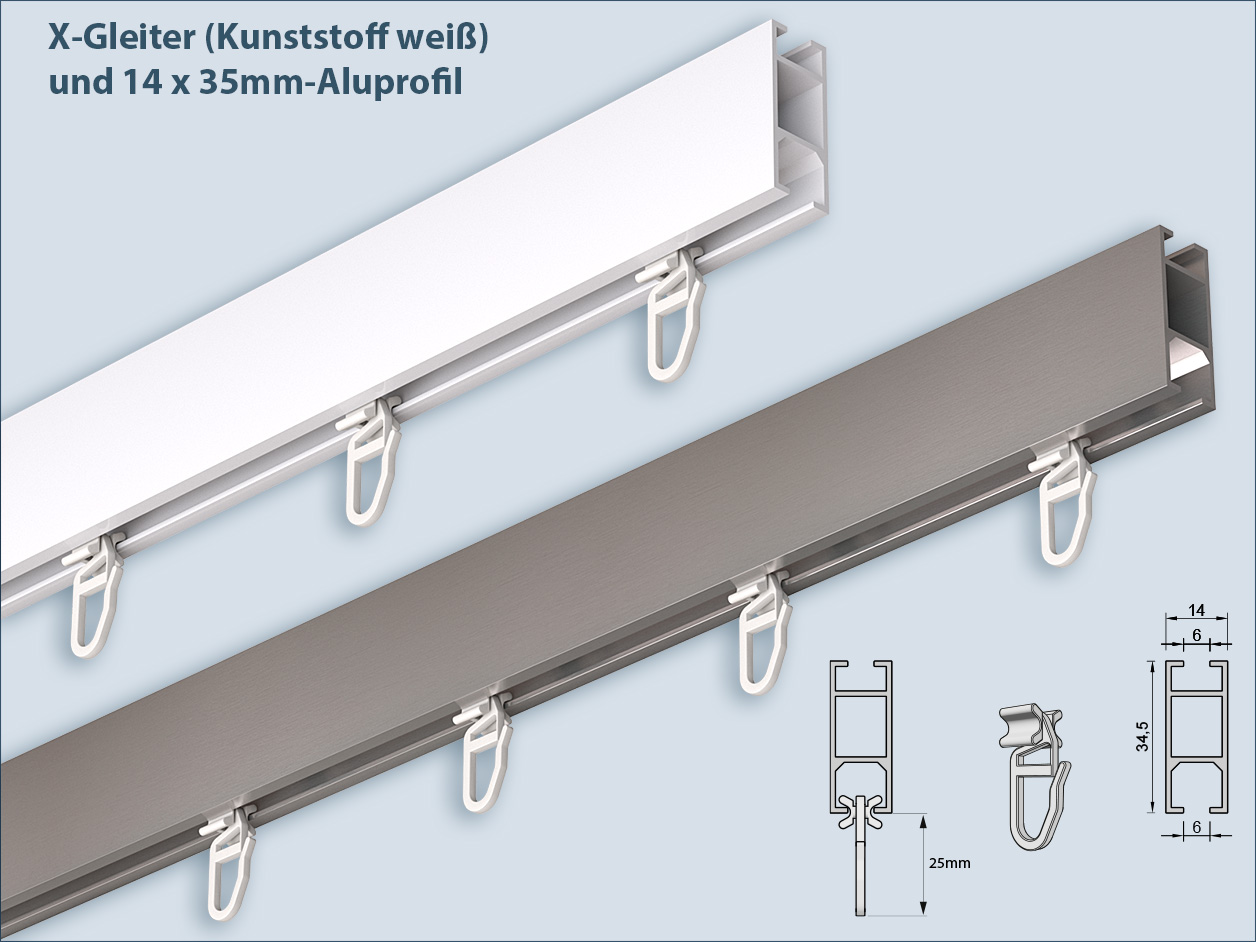

X-Gliders for Square Interior Track Profiles 14x35 mm
X-Gliders for square interior track profiles: The standard curtain glider with pleat hooks is made entirely of white plastic. It is inserted sideways into the track and ensures smooth curtain movement. Thanks to its sturdy construction, it is ideal for light to medium-weight curtains and ensures even pleating.

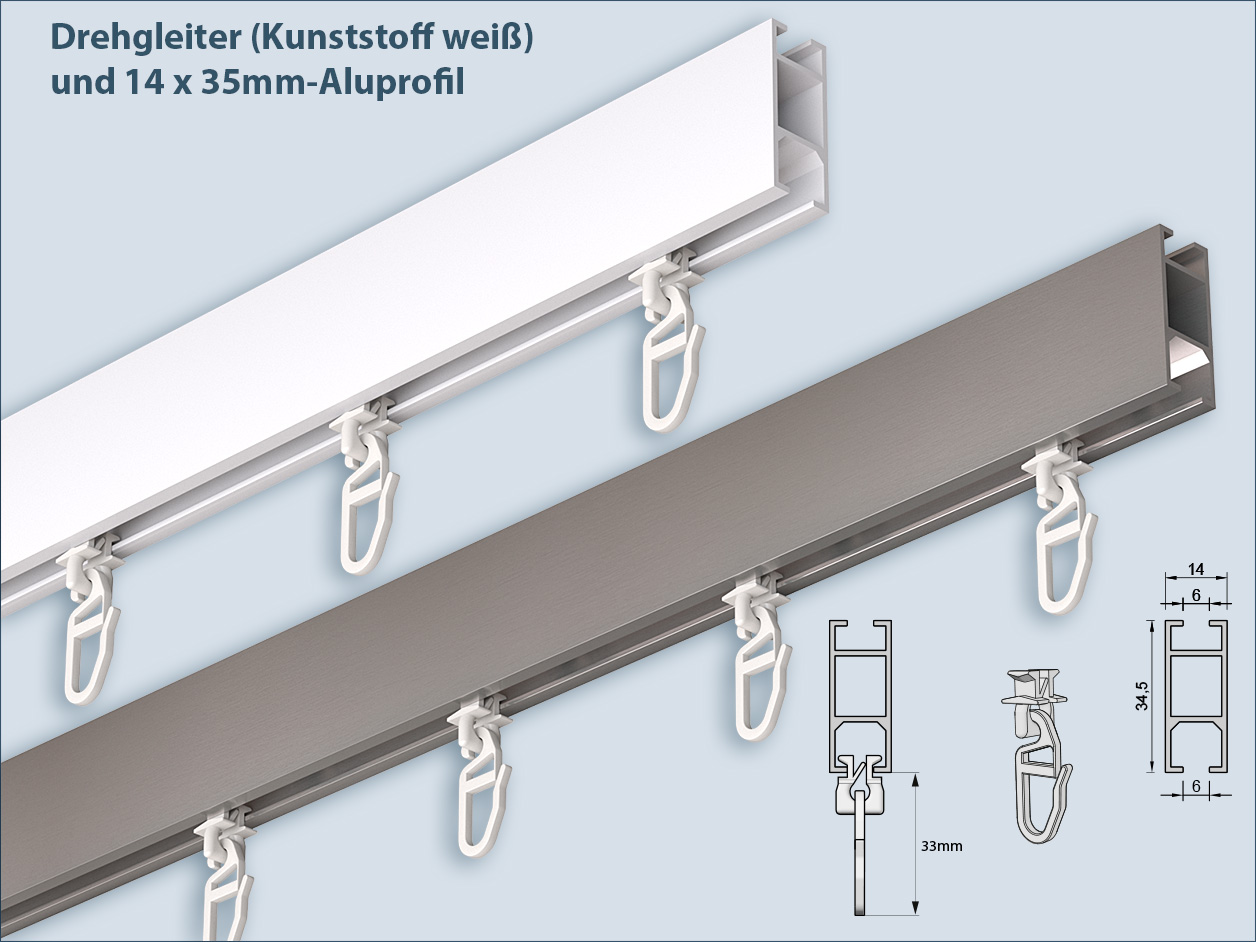

Swivel Gliders for Square Interior Track Profiles 14x35 mm
Swivel Gliders, plastic gliders for interior track curtain rods, insertable and removable on square aluminum profiles: The comfort curtain glider with an overclip hook is made of white plastic and can be inserted or removed at any point in the interior track system.

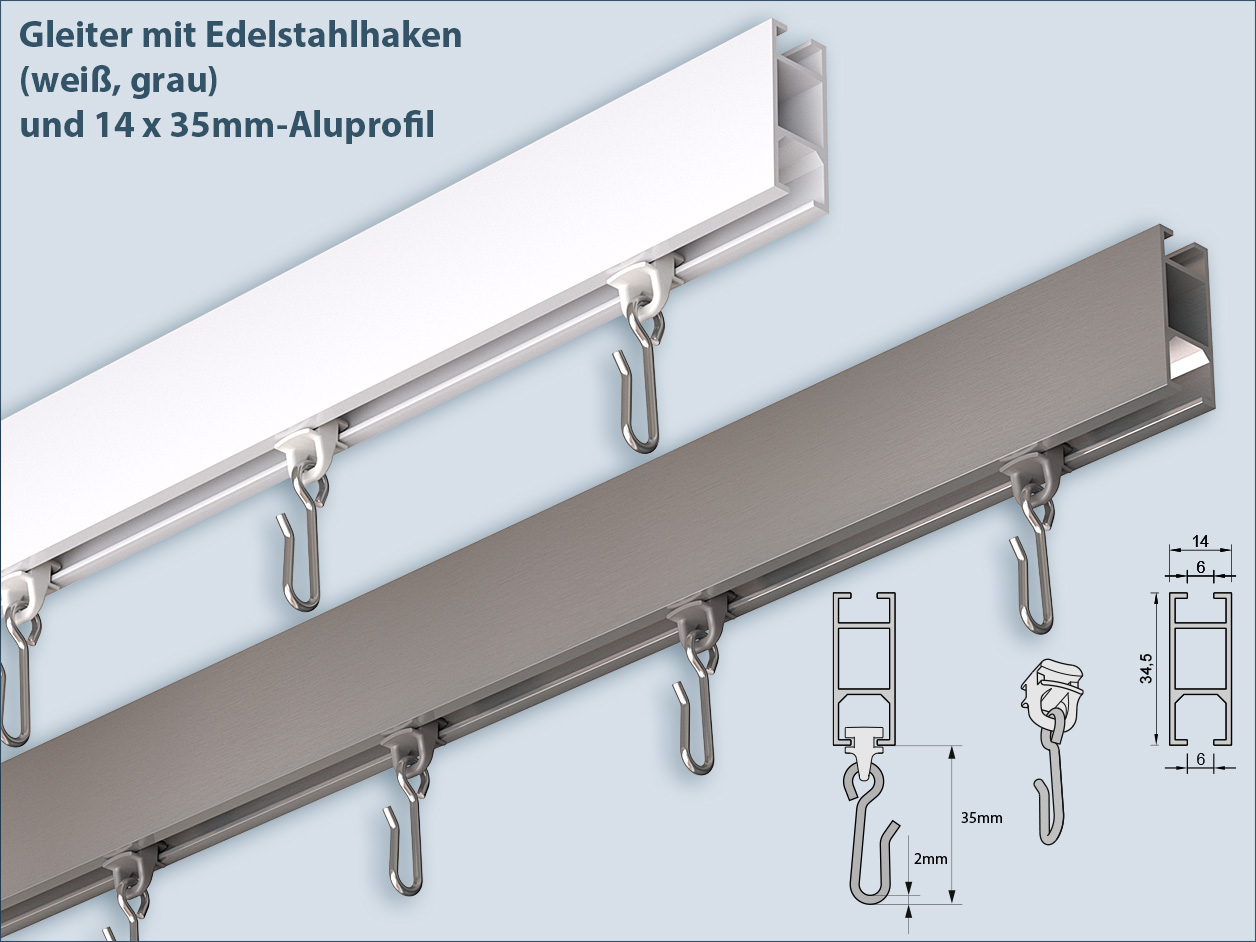

Gliders with Stainless Steel Hooks for Square Interior Track Profiles 14x35 mm
Smooth-running, extremely stable gliders with stainless steel hooks for square aluminum interior track profiles: These highly stable (up to 1.5 kg each) and exceptionally smooth gliders are equipped with high-quality stainless steel hooks. They are ideal for heavy curtains and drapes, such as for changing rooms, room dividers, and use in wet and outdoor areas. They are particularly practical as windbreak curtains or weather protection curtains for terraces or balconies.

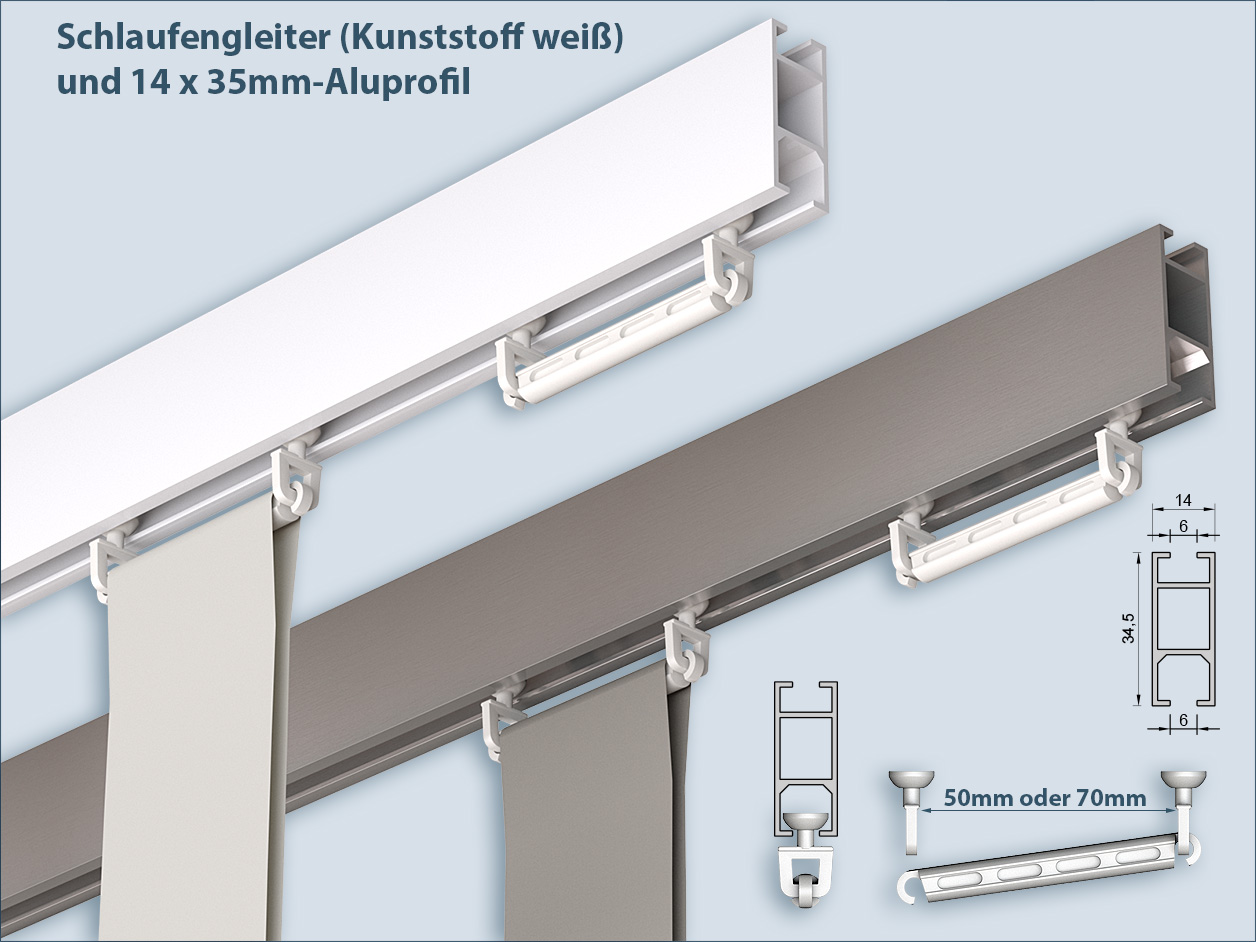

Loop Gliders for Square Interior Track Profiles 14x35 mm
Loop Gliders for loop curtains, compatible with square aluminum interior track profiles: The loop glider is specifically designed for loop curtains and is made entirely of white plastic. Its semi-circular shape ensures excellent gliding performance in all our interior track systems.
Niche Mounting, Wall-to-Wall Installation: Wall Mounts for 14x35 mm Profiles
Our wall mounts for 14x35 mm profiles provide an ideal solution for mounting curtain rods in niches. Made from high-quality aluminum, they are available in two variants: anodized aluminum wall mounts in brushed stainless steel and glossy white powder-coated aluminum wall mounts. These track holders enable stable and reliable wall-to-wall mounting for curtain rods, drapery rods, changing rooms, and room dividers, seamlessly blending into any room design.
With our wall mount system, you can conveniently prepare the entire curtain rod on the floor and then mount it in the niche. Installation is quick and easy:
- The wall mounts are securely attached to the wall using the included screws and wall plugs.
- At both ends of the curtain track, the flat nut is inserted into the mounting track.
- The track is slid between the wall mounts and secured with profile screws.
Thanks to this mounting method, the interior track sits firmly and securely in the niche.
Our aluminum wall mounts are available in brushed stainless steel and glossy white, offering an elegant and durable mounting solution.
Ceiling Brackets for Aluminum Tracks with Interior Track – Ideal for Single and Dual-Track Mounting Systems

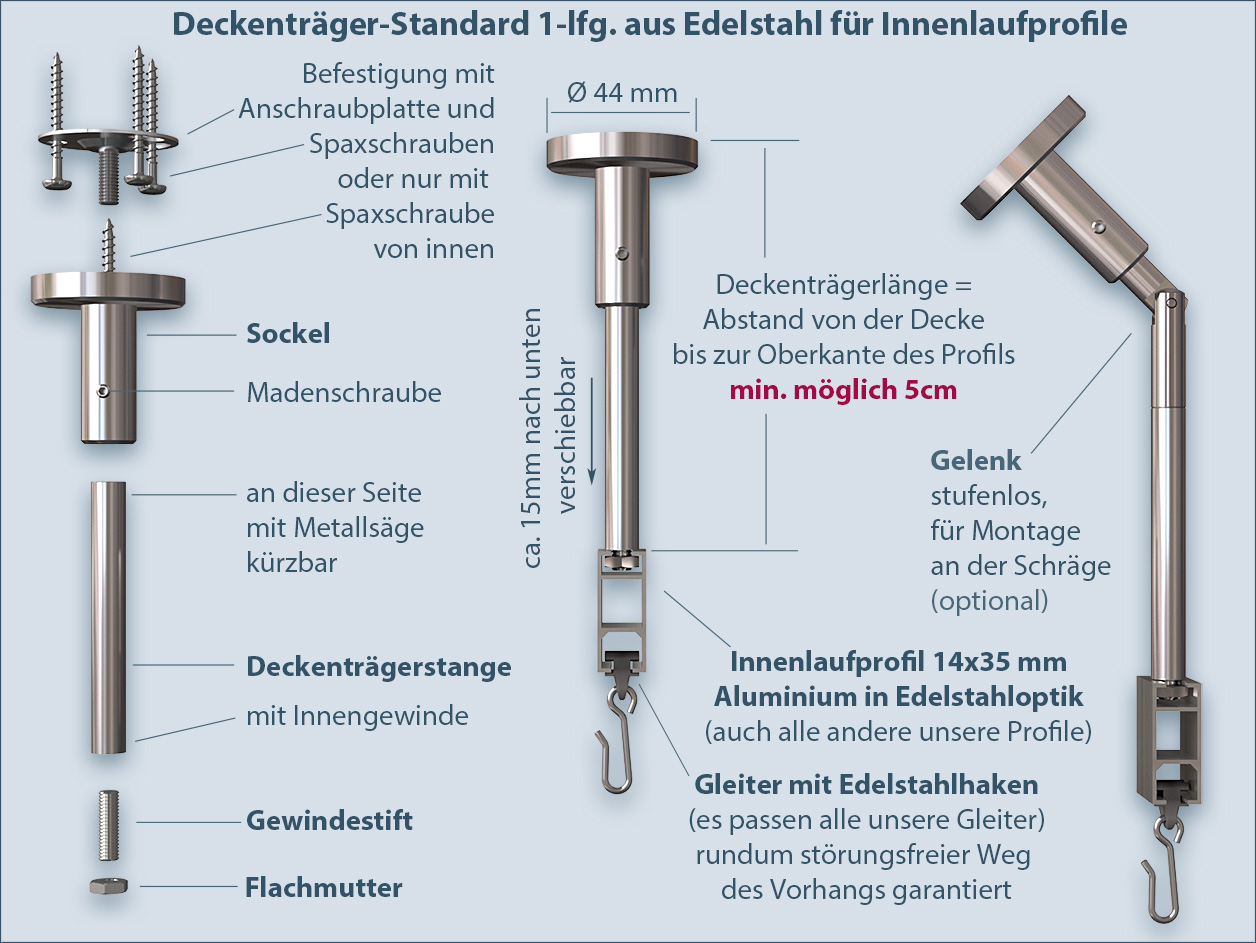

Single-Track Ceiling Brackets in Stainless Steel for 14x35 mm Aluminum Profiles: Assembly and Installation Instructions
Our stainless steel ceiling brackets provide a stable and flexible mounting solution for interior track curtain rods. Thanks to their high-quality construction, they are ideal for both residential and commercial applications.
Installation Instructions:
- Mount the base plates on the ceiling, aligned with the desired position of the curtain track. The mounting can be done using either a mounting plate or directly with a self-tapping screw.
- Insert the flat nut, attached to the threaded rod, into the mounting track of the profile and align it with the installed base plates.
- Screw the ceiling bracket rods onto the threaded rods, slide the entire assembly toward the ceiling, and insert the rods into the base plates.
- Secure the brackets by tightening the set screws in the base plates – note that fine height adjustment of up to 2 cm is possible.
If a smaller distance between the track and ceiling is desired, the ceiling bracket rod can be shortened with a metal saw. The minimum distance is approximately 50 mm.

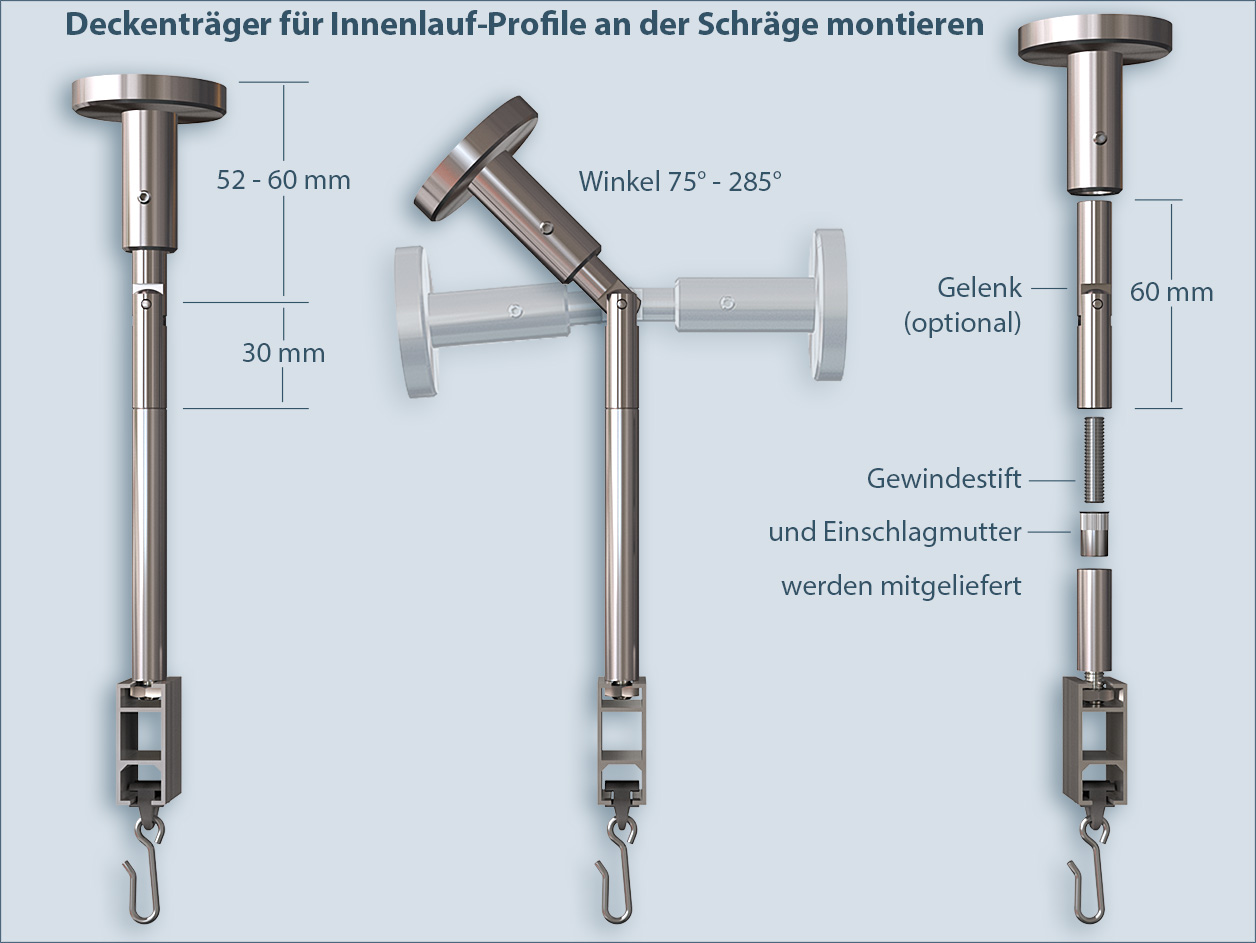

Ceiling Brackets for Sloped Ceilings or Walls
For installation on sloped ceilings or walls, we recommend using a hinge for 10 mm rods. Installation is as follows:
- The hinge is attached to one end of the ceiling bracket rod using the included threaded rod and insert nut.
- The other end of the hinge is inserted into the base plate and secured with a set screw.
Thanks to this flexible mounting option, the ceiling bracket can be individually adjusted to the slope. Additionally, brackets with and without hinges can be combined – ideal for curtain rods that connect to a sloped wall on one side.

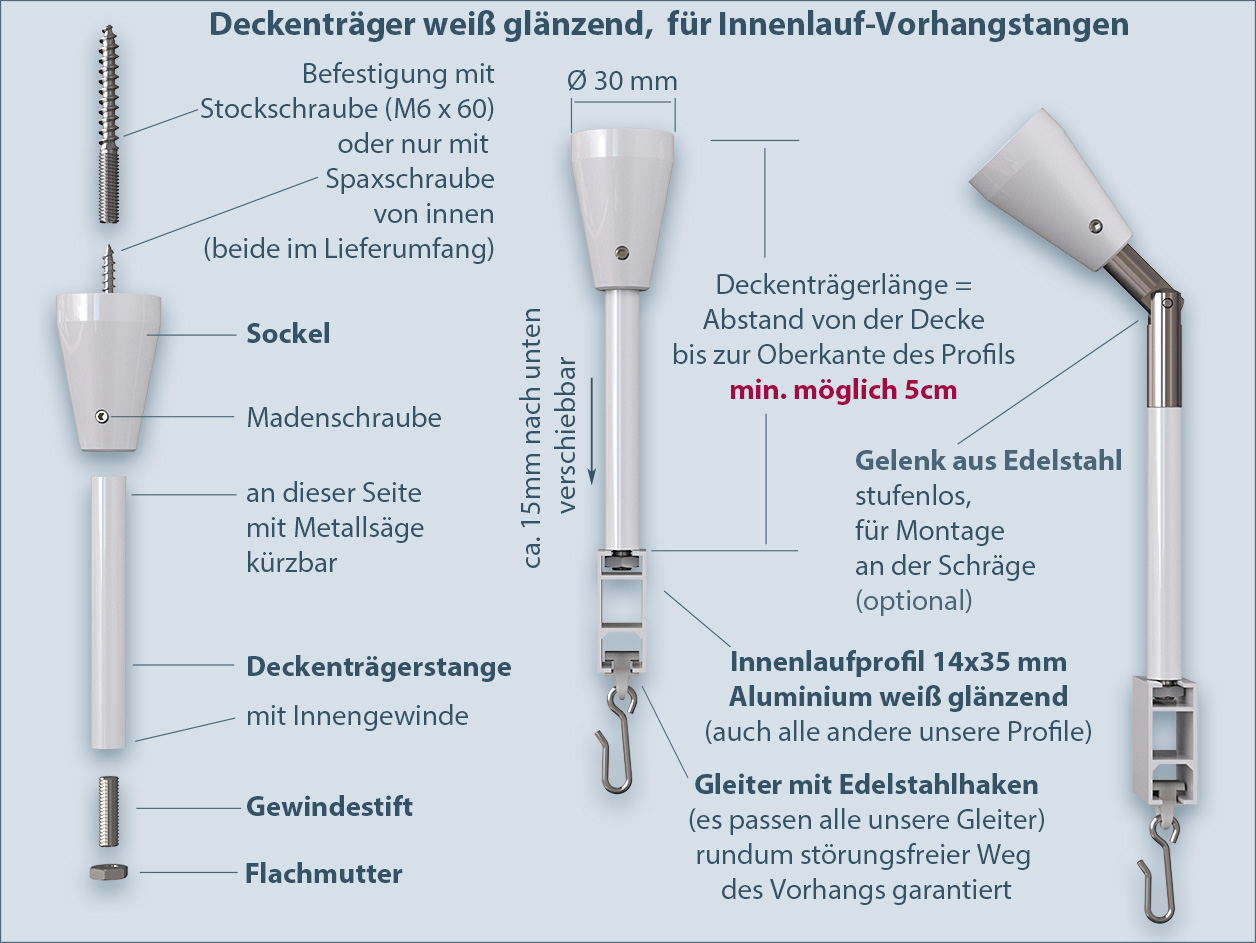

Interior Track Mounting System for Ceiling Installation 'Standard' Single-Track, Glossy White Aluminum
Our single-track ceiling brackets made of high-quality, glossy white aluminum offer an elegant and stable solution for mounting interior track curtain rods. They allow flexible positioning along the track and ensure secure and durable ceiling mounting.
Installation Instructions:
- First, attach the base plates to the ceiling – aligned with the length of the curtain track. The mounting can be done using either a lag screw or directly with a self-tapping screw.
- Insert the flat nut, attached to the threaded rod, into the mounting track of the profile and align it with the installed base plates.
- Screw the ceiling bracket rods onto the threaded rods, slide the entire assembly toward the ceiling, and insert the rods into the base plates.
- Tighten the set screws gently to secure the brackets – allowing for slight adjustments.
The ceiling brackets allow for height adjustment of up to 2 cm, ensuring the curtain track is perfectly level. If a smaller distance between the track and ceiling is desired, the ceiling bracket rod can be shortened with a metal saw. The minimum distance is approximately 50 mm.
Interior Track Mounting System for Ceiling Installation "Standard", Dual-Track, Material: Stainless Steel V2A
Our dual-track ceiling brackets made of high-quality stainless steel V2A provide a stable and flexible mounting solution for interior track curtain rods. They ensure secure ceiling installation and are suitable for both residential and commercial applications.
Installation Instructions:
- Mount the base plates on the ceiling, aligned with the desired position of the curtain rod. The mounting can be done using either a mounting plate or directly with a self-tapping screw.
- Insert the flat nut into the mounting track of the profile and position it to match the installed base plates.
- Screw the ceiling bracket rods with the dual-track rail holders onto the flat nut.
- Slide the entire assembly toward the ceiling and insert the ceiling bracket rods into the base plates.
- Secure the brackets by gently tightening the set screws. The brackets are height-adjustable and can be fine-tuned by up to 2 cm to ensure perfect horizontal alignment.
If a smaller distance between the track and ceiling is desired, the ceiling bracket rod can be shortened with a metal saw. The minimum distance is approximately 50 mm.

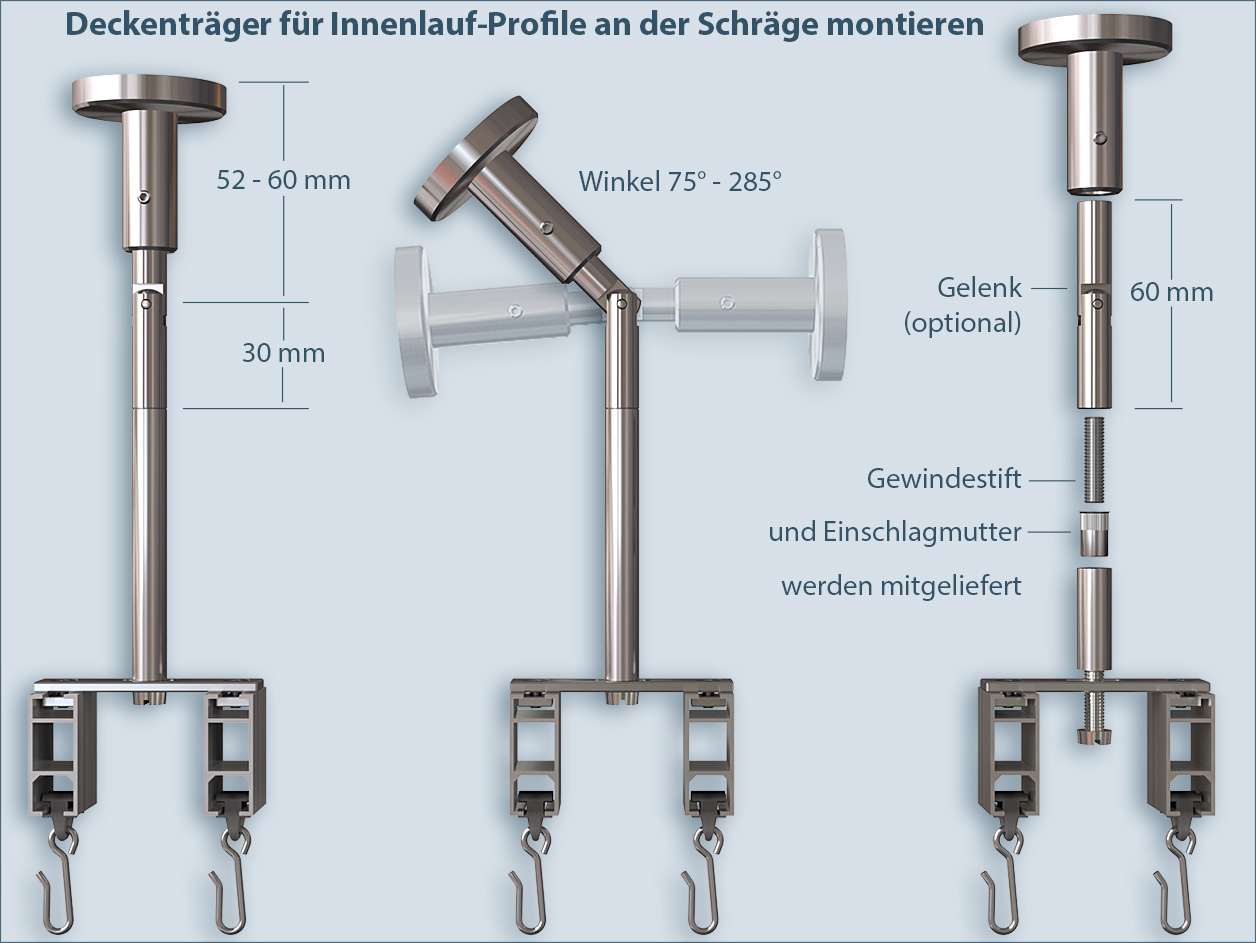

Installation on Sloped Ceilings or Walls
For installation on sloped ceilings or walls, we offer special hinges for 10 mm rods. Installation is as follows:
- The hinge is attached to one end of the ceiling bracket rod using the included threaded rod and insert nut.
- The other end of the hinge is inserted into the base plate and secured with a set screw.
Thanks to this flexible mounting option, the ceiling bracket can be individually adjusted to the desired angle. Additionally, brackets with and without hinges can be combined, for example, if the curtain rod ends at a sloped wall.

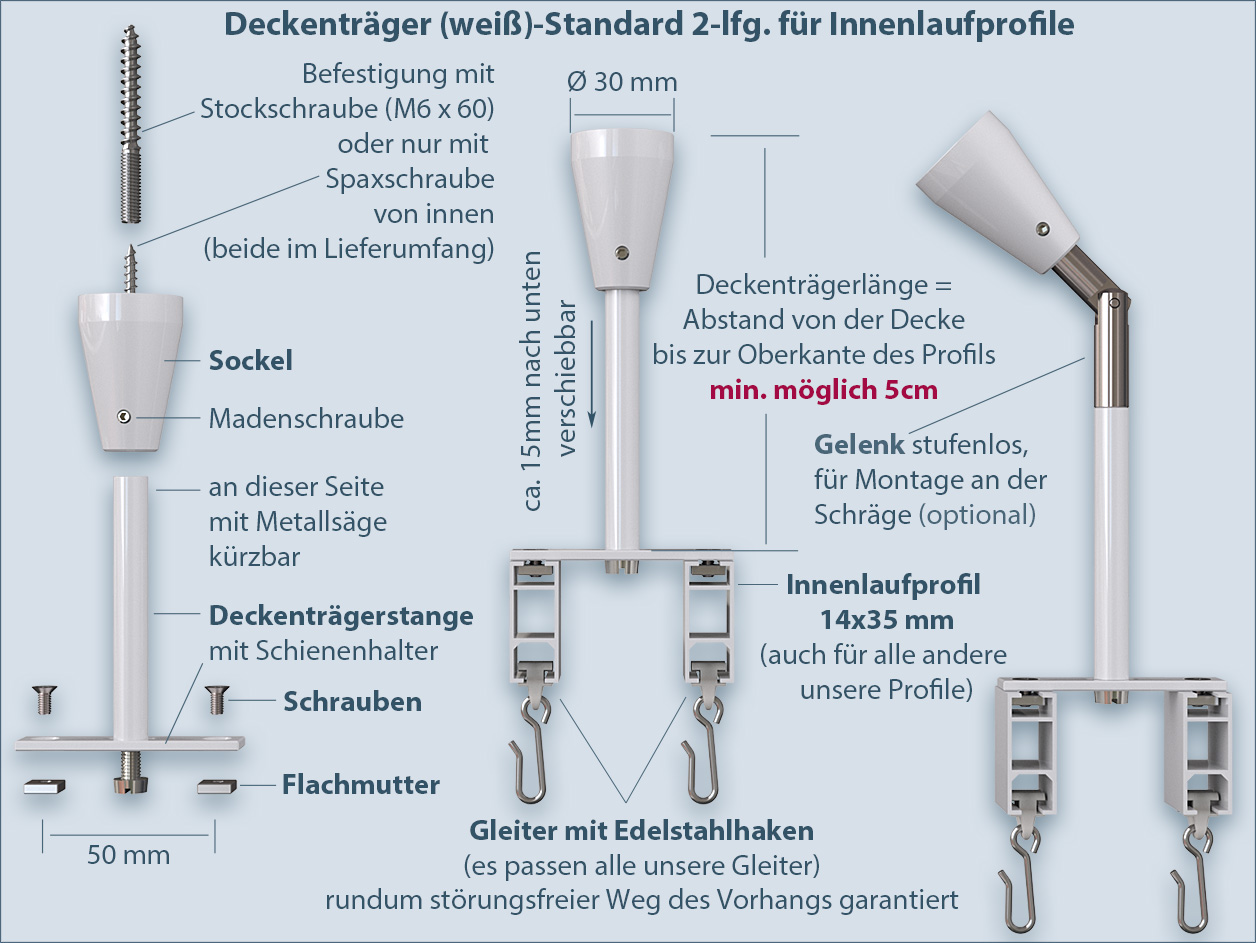

Interior Track Mounting System for Ceiling Installation "Standard", Dual-Track, Glossy White Aluminum
Our dual-track ceiling bracket system "Standard" is also available in high-quality glossy white aluminum, perfectly matching our white interior tracks. It provides a stable and elegant solution for ceiling-mounted curtain rods and allows flexible placement of the brackets along the track.
Installation Instructions:
- Mount the base plates on the ceiling, adjusted to the desired length of the curtain rod. The mounting can be done using either a lag screw or directly with a self-tapping screw.
- Insert the flat nut into the mounting track of the profile and align it with the installed base plates.
- Screw the ceiling bracket rods with the dual-track rail holders onto the flat nut.
- Slide the entire assembly toward the ceiling and insert the ceiling bracket rods into the base plates.
- Secure the brackets by gently tightening the set screws. The height adjustment of up to 2 cm ensures precise horizontal alignment.
If a smaller distance between the rod and ceiling is desired, the ceiling bracket rod can be shortened with a metal saw. The minimum distance is approximately 50 mm.

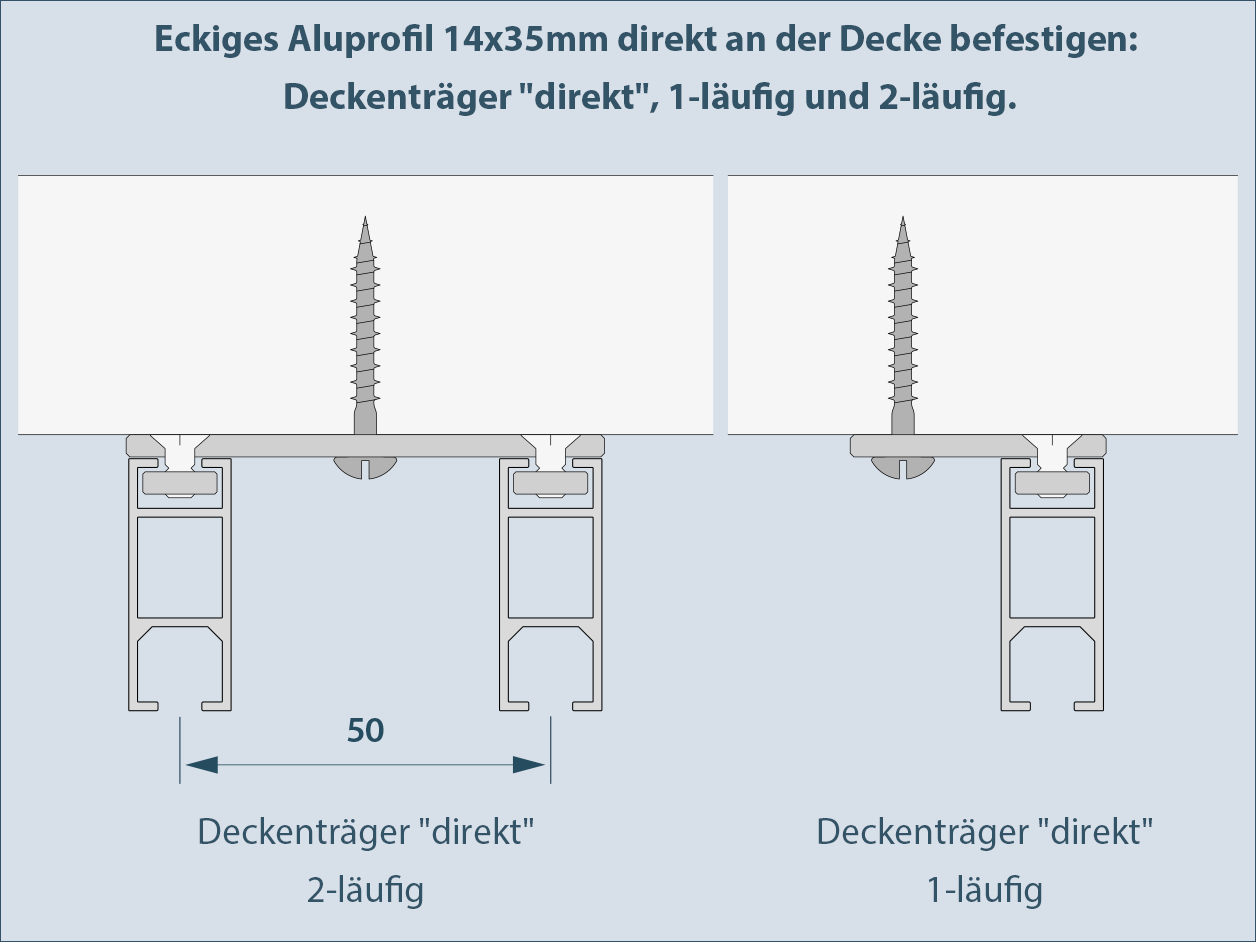

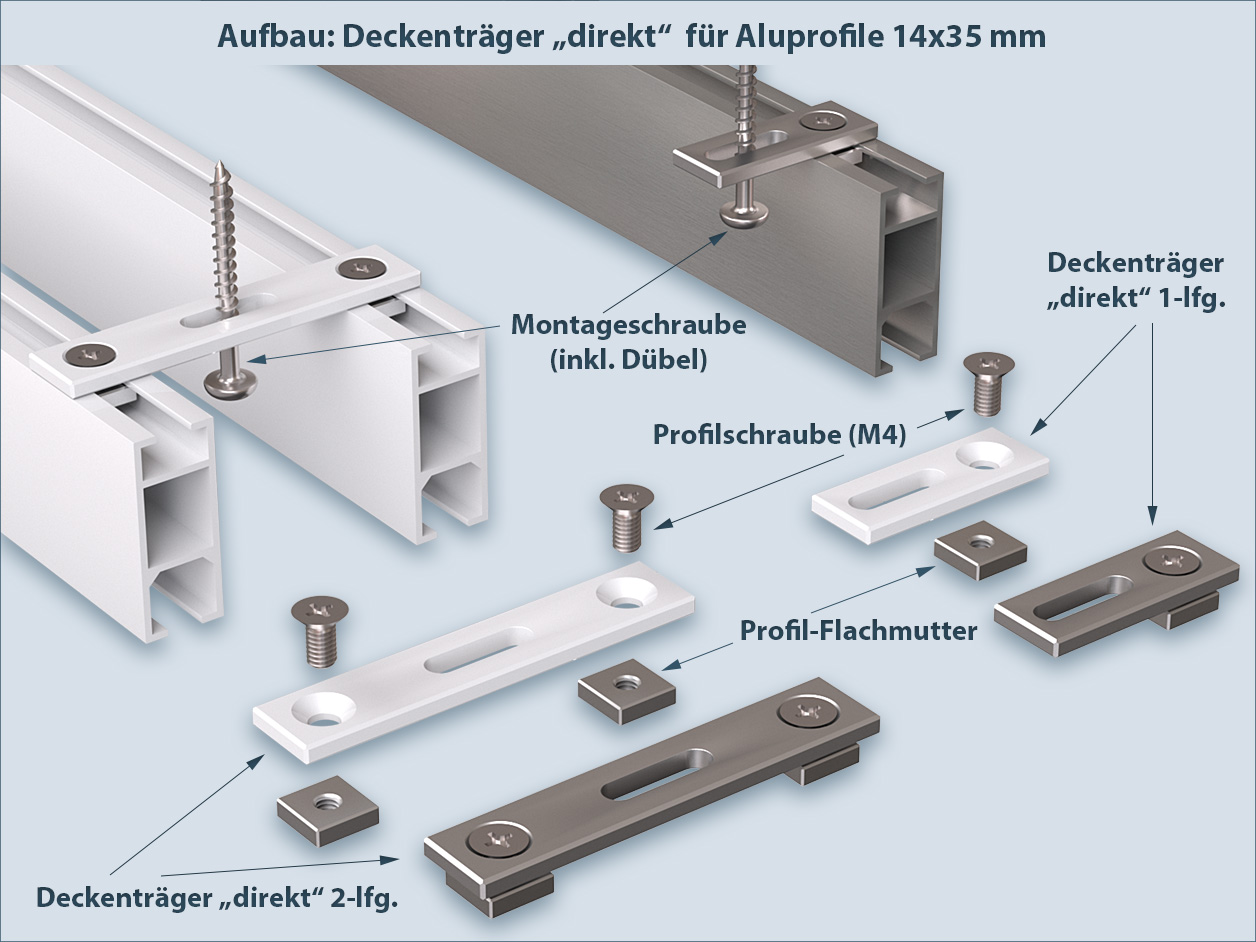

Direct Ceiling Mounting: "Direct" Ceiling Brackets, Single and Dual-Track, for 14x35 mm Interior Track Profiles
Our direct ceiling brackets for ceiling mounting provide an exceptionally stable and load-bearing solution for curtain tracks, room dividers, and aluminum curtain systems. They are ideal for corner and bay window solutions and are available in both single-track and dual-track configurations.
The robust "Direct" mounting system allows for space-saving installation without additional brackets and is particularly suitable for heavy curtains and drapes. Thanks to the continuous interior track system, curtains can be moved seamlessly – perfect for corner windows, bay windows, or room dividers. The ceiling brackets are available in white powder-coated or brushed aluminum finishes.
Wall Bracket "Sleek" Single-Track for Interior Track Curtain Rods – System and Installation Instructions
The Sleek wall bracket is an elegant mounting solution for our interior track profiles, especially for the square 14x35 mm profile. It is available in two variants: glossy white and brushed stainless steel. The modern angle bracket system ensures concealed mounting without visible screws and allows flexible placement of the curtain rod.
Thanks to its unique design, the wall distance can be adjusted by sliding the profile within the bracket. The sturdy construction guarantees secure and stable mounting. For our 14x35 mm profile, we recommend a maximum bracket spacing of approximately 220 cm.
Installation Instructions:
- Attach the mounting plate to the wall using screws and wall plugs.
- Slide the Sleek bracket onto the mounting plate and tighten the fixing screw to secure the bracket.
- Insert the interior track profile into the bracket and secure it with square nuts (flat nuts) and profile screws.
Bracket Variants – Short and Long
The Sleek wall bracket is available in two versions:
- Sleek Wall Bracket Short: For smaller wall distances.
- Sleek Wall Bracket Long: Allows larger wall distances and is particularly suitable for deep window sills or radiators.
Please refer to the technical drawings for exact measurements and spacing.
Sleek Wall Bracket Dual-Track – Usage, Mounting System, and Installation Instructions
The dual-track Sleek wall brackets provide an elegant and functional solution for mounting two interior track profiles parallel to the wall. This allows for multi-layered window decorations with multiple curtains or drapes.
Flexible Adjustment Options:
- Thanks to the well-thought-out bracket design, both the wall distance and the track spacing can be adjusted flexibly.
- There are two variants: Sleek Wall Bracket Short and Sleek Wall Bracket Long. The longer version allows for larger wall and track distances.
- Available in brushed stainless steel and glossy white, matching the entire profile accessory range.
Installation Instructions:
- Installation is the same as for the single-track brackets.
- Each bracket comes with 2 profile screws and 2 square nuts, making it easy to mount both interior track profiles.
- Please refer to the technical drawings for detailed measurements and spacing options.
Features
Designation* | Internal curtain rod made of aluminum, square shape, 14x35mm, bendable. |
Material | High-quality aluminum, anodized |
Surface |
|
Compatible |
|
Dimensions | approx. 14mm wide, approx 35mm high, see drawing |
Mounting |
|
Extras | Recommended accessory: Ceiling mounts, wall mounts, end caps, all our runners with hooks |
Scope of Delivery | Inner profile in selected length, if specified, shortened, without further accessories |
