Base plate for bar supports: examples of use and fastening system

Article for decoration of Stahldeko: Base disc made of brass for Stahldeko support systems. Suitable for all brass rod carriers. Fastening with bolts (as shown) or with a mounting plate, drilled holes and screws are covered with a base plate. Beams are rotated onto the base disc. For self-assembly of curtain rods and decorative trimmings.

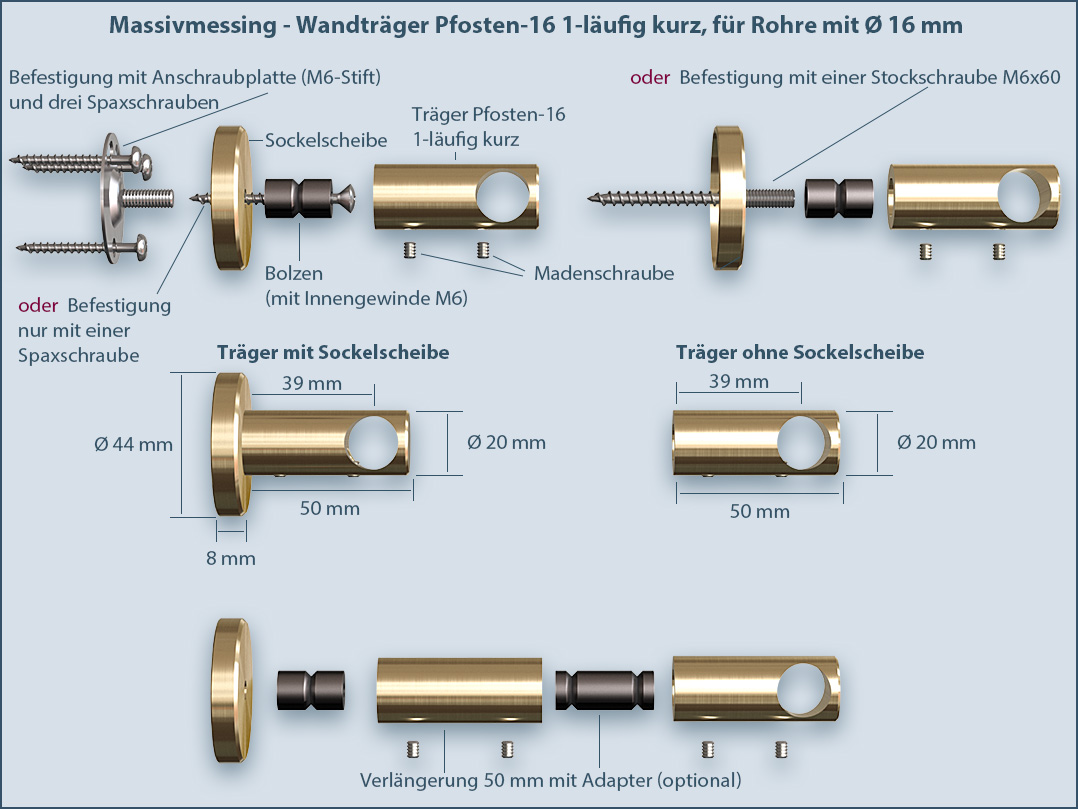

Curtain rod fastening system for mounting on the wall post 16 1-track or 1-track short.

With this wall bracket system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. You can place the wall brackets on the curtain rod absolutely freely.
First attach the base plate to the wall with bolts. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the brass supports (along with the tube) onto the studs and tighten the support grub screws (not too tight).
Then place the tube as desired and fix it with carrier grub screws.
Of course it is also possible to extend the brass wall bracket (optional). We also offer a 50mm standard extension made of solid brass for the 16-post carrier system. You connect the extension and the carrier with an adapter.

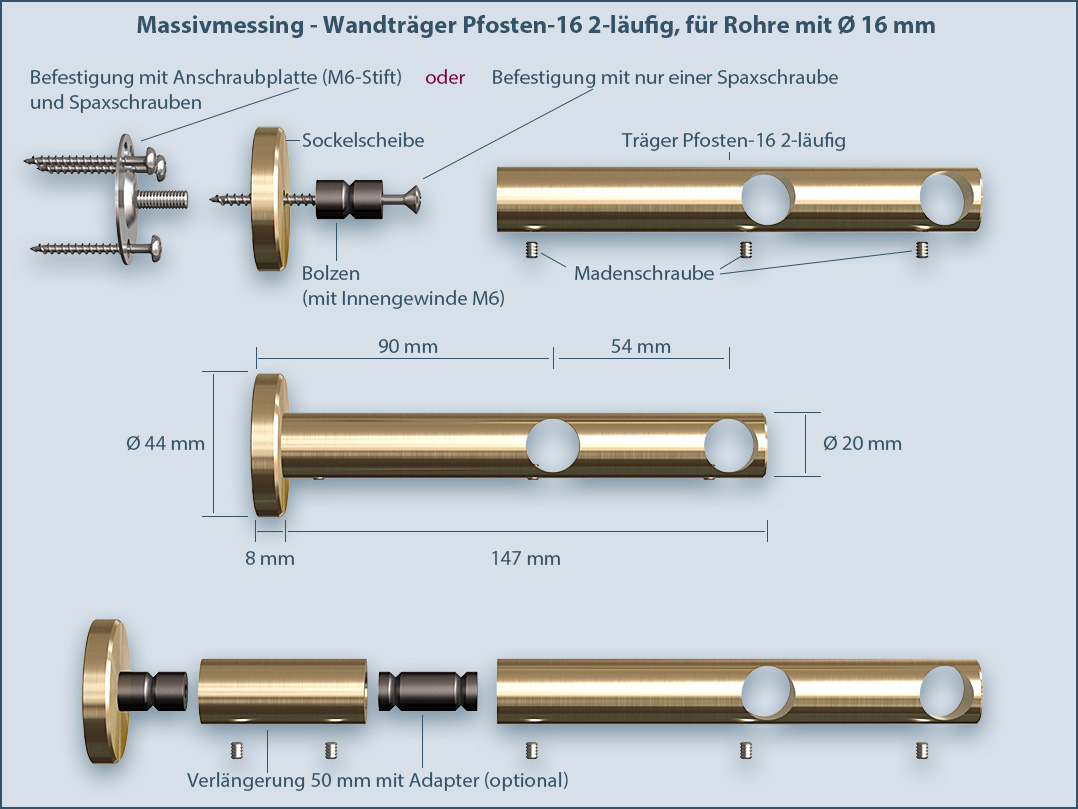

Curtain rod fastening system for wall mounting Post 16, 2-track.

With this wall bracket system, you can easily decorate the curtains on the floor, then mount the completely decorated rod on the wall. You can place the wall brackets on the rod absolutely freely.
First attach the base plate to the wall with bolts. You can either attach the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the brass supports (along with the tubes) onto the studs and tighten the support grub screws (not too tight).
Then place the tubes in the desired length and fix them with support grub screws.
Of course it is also possible to extend the brass wall bracket (optional). We also offer a 50mm standard extension made of solid brass for the 16-post carrier system. You connect the extension and the carrier with an adapter.
