Pole support post 16: examples of use and fastening system

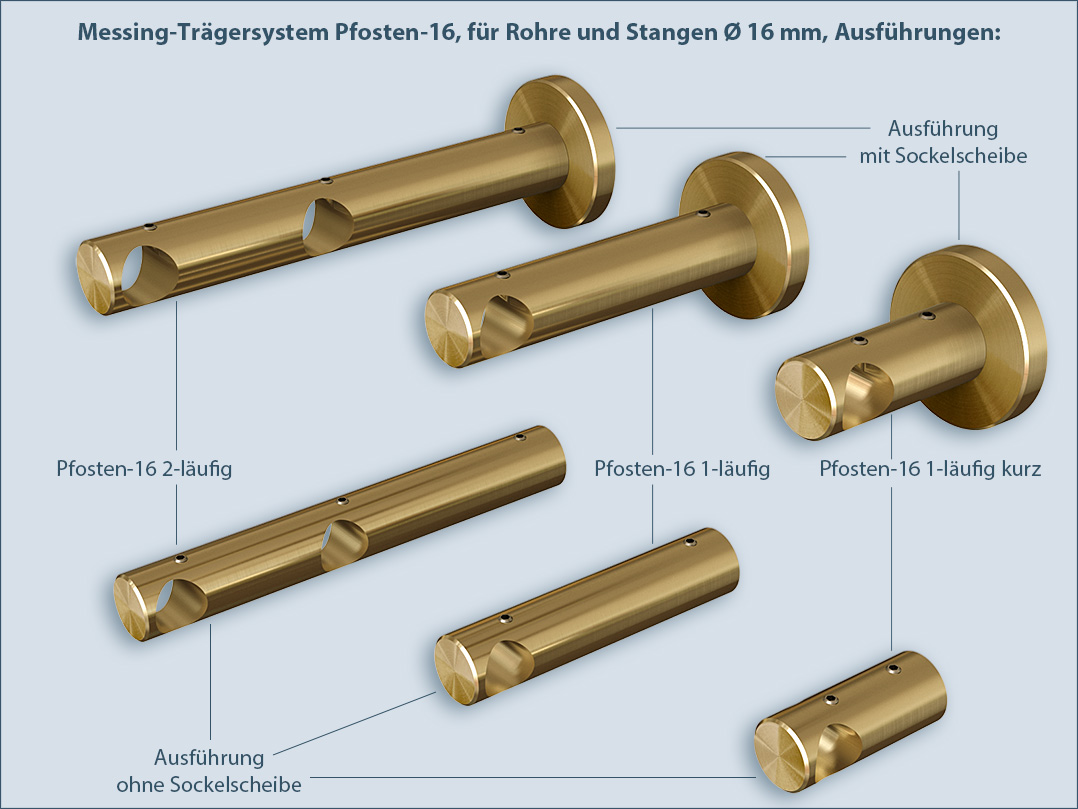

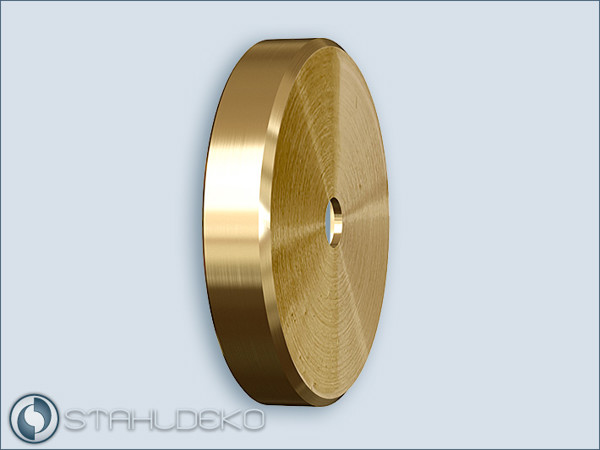

Designer accessory from Stahldeko: closed rod support made of brass for all rods and tubes with Ø 16mm. Available as 1-line. or 2-line Carrier. Fastening with the bolt and Spax screw, boreholes and screws are covered with a base washer (sold separately). The tube is pushed in from the side and secured with a grub screw. With this carrier system, you can easily carry out the fabric decoration on the floor, then attach the completely decorated rod to the wall or ceiling (only one-way). With the help of the extensions (sold separately) you can vary the distance to the wall in 50mm increments.

Curtain rod fastening system for mounting on the wall post 16 1-track or 1-track short.

With this wall bracket system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. You can place the wall brackets on the curtain rod absolutely freely.
First attach the base plate to the wall with bolts. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the brass supports (along with the tube) onto the studs and tighten the support grub screws (not too tight).
Then place the tube as desired and fix it with carrier grub screws.

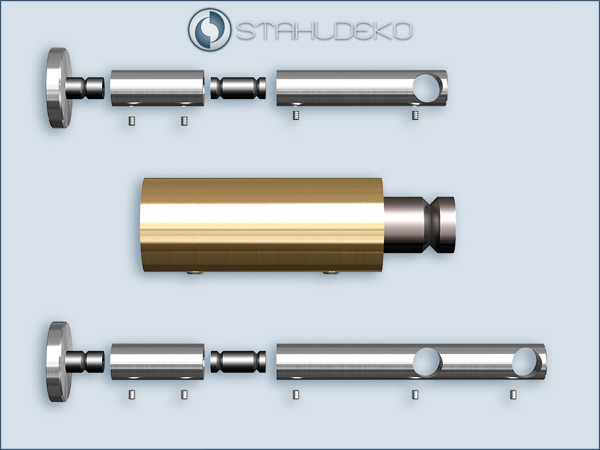

Of course it is also possible to extend the brass wall bracket (optional). We also offer a 50mm standard extension made of solid brass for the 16-post carrier system. You connect the extension and the carrier with an adapter.

Curtain rod fastening system for wall mounting Post 16, 2-track.

With this wall bracket system, you can easily decorate the curtains on the floor, then mount the completely decorated rod on the wall. You can place the wall brackets on the rod absolutely freely.
First attach the base plate to the wall with bolts. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the brass supports (along with the tubes) onto the studs and tighten the support grub screws (not too tight).
Then place the tubes in the desired length and fix them with support grub screws.
Of course it is also possible to extend the brass wall bracket (optional). We also offer a 50mm standard extension made of solid brass for the 16-post carrier system. You connect the extension and the carrier with an adapter.
