Rod carrier Primo 28, for tubes and rods Ø 28 mm, stainless steel V2A: application examples and fastening system

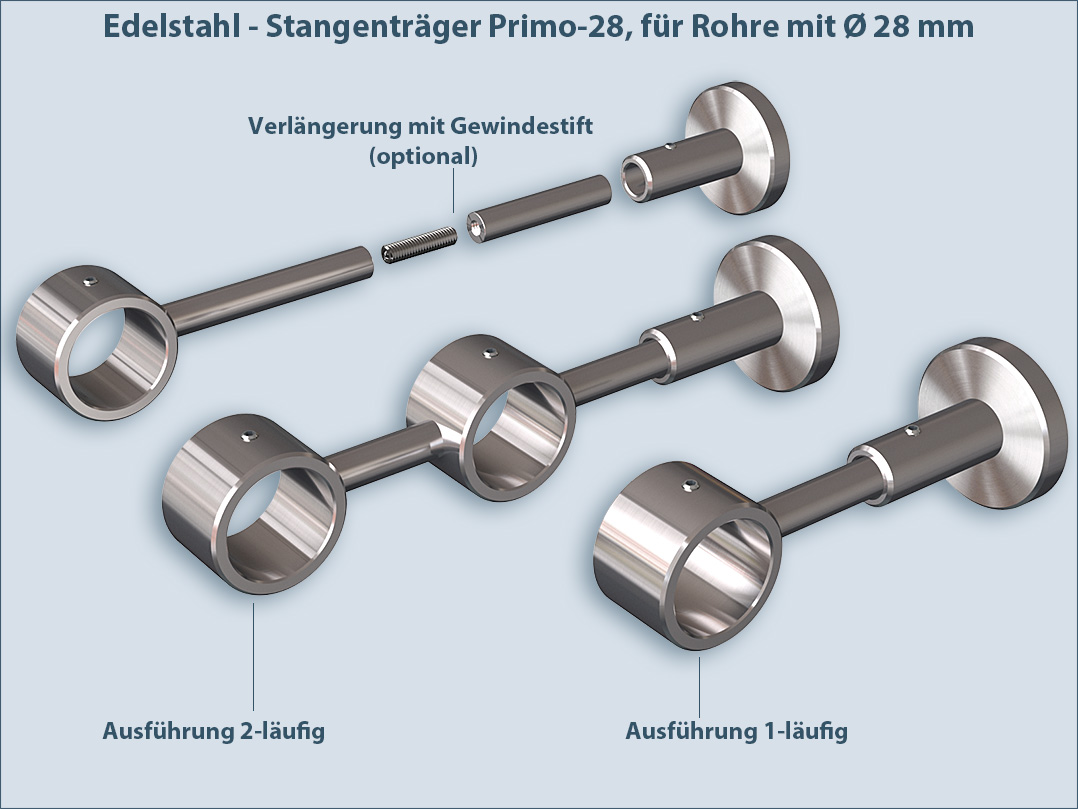

Decorations with steel decoration: closed rod support made of stainless steel V2A for all rods and tubes with Ø 28mm. Available as 1-line. or 2-line Carrier. Fastening with screw-on plate, boreholes and screws are covered with base. The carrier is inserted into the base and secured with a grub screw. The rod is pushed in from the side and secured with a grub screw. With this support system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall or ceiling (single rail only).

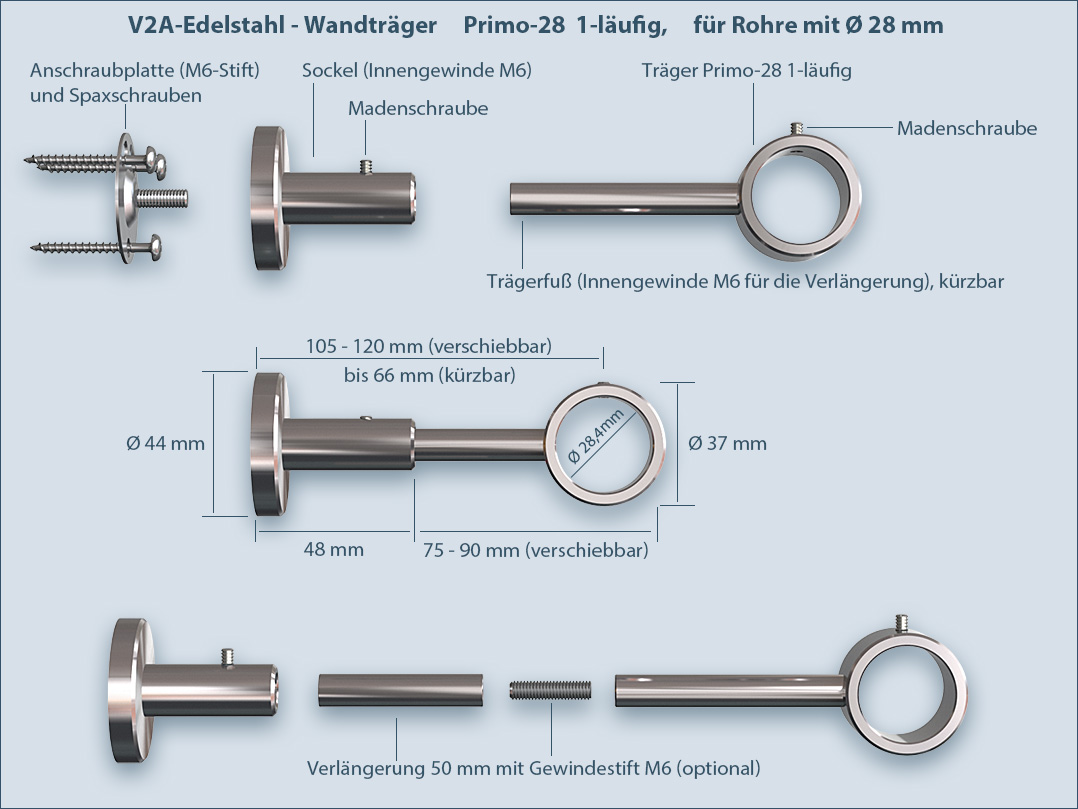

Curtain rod holder Fastening system Installation instructions Primo-28 1-track.

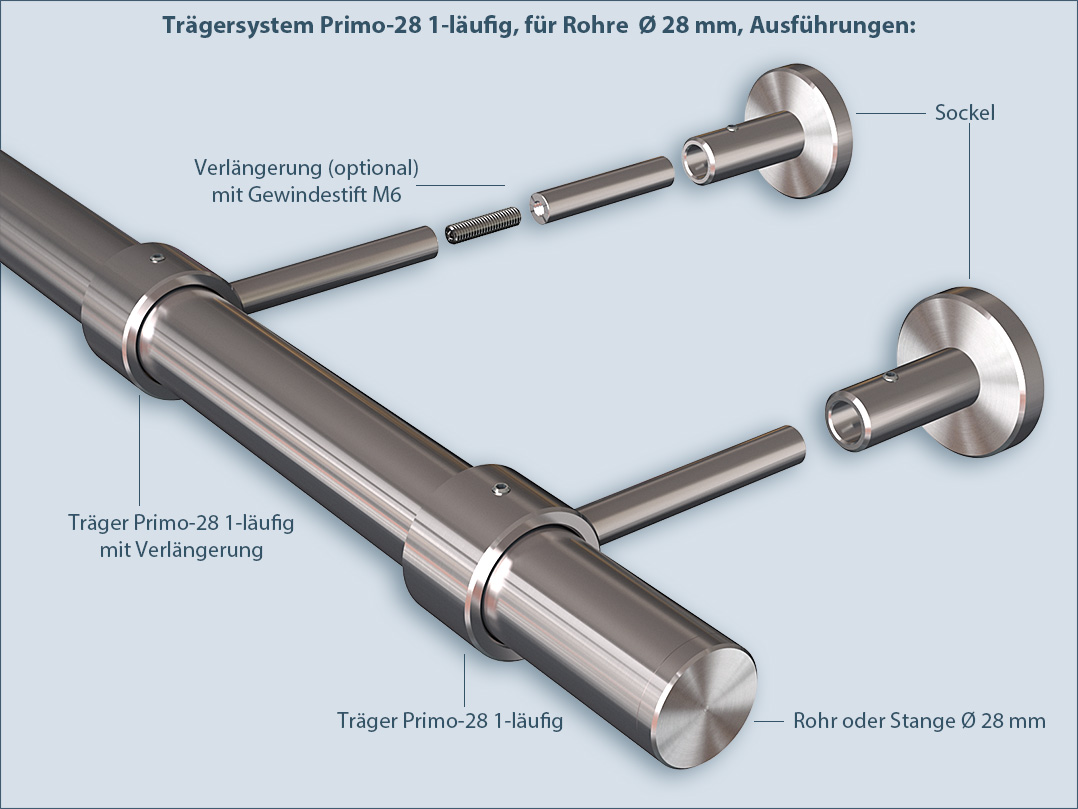

With this support system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. You can place the brackets on the curtain rod absolutely freely. First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with Spax screws. After that, attach the rod holders (along with the tube) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the tube in the supports and fix it with support grub screws. You can adjust the length of the support in the base by approx. 15mm and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is approx. 66mm. Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.

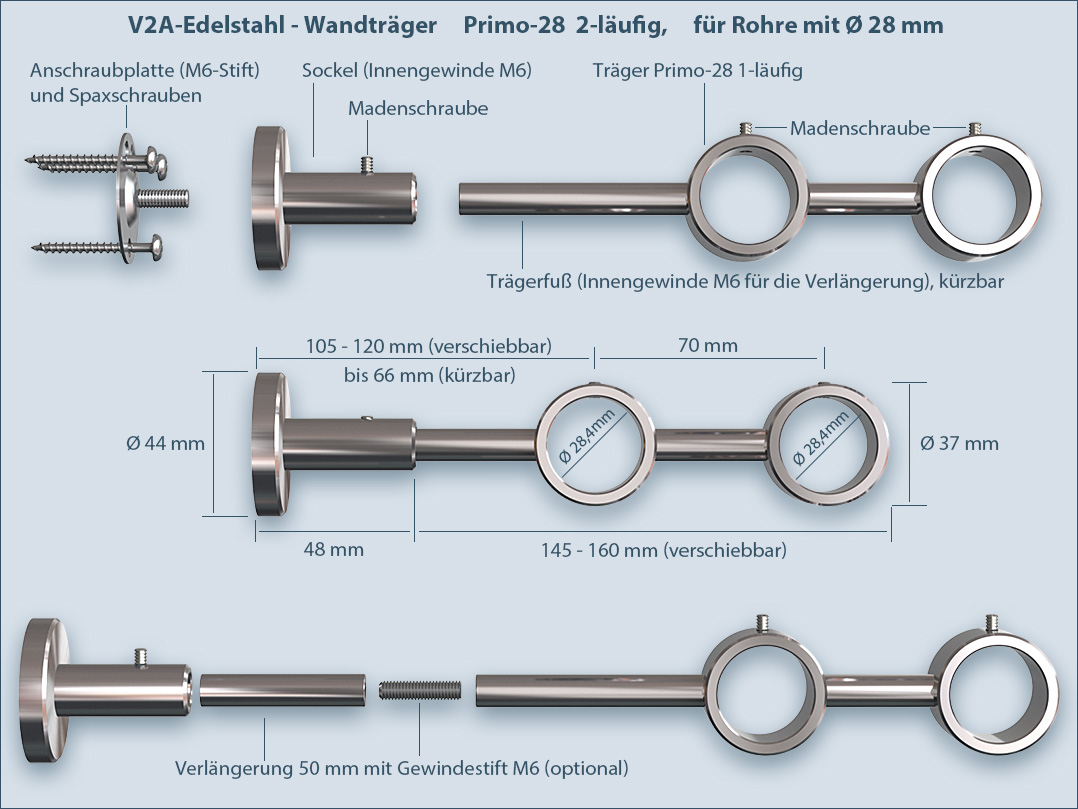

Rod bracket Wall bracket: Fastening system for wall mounting Primo-28 2-track.

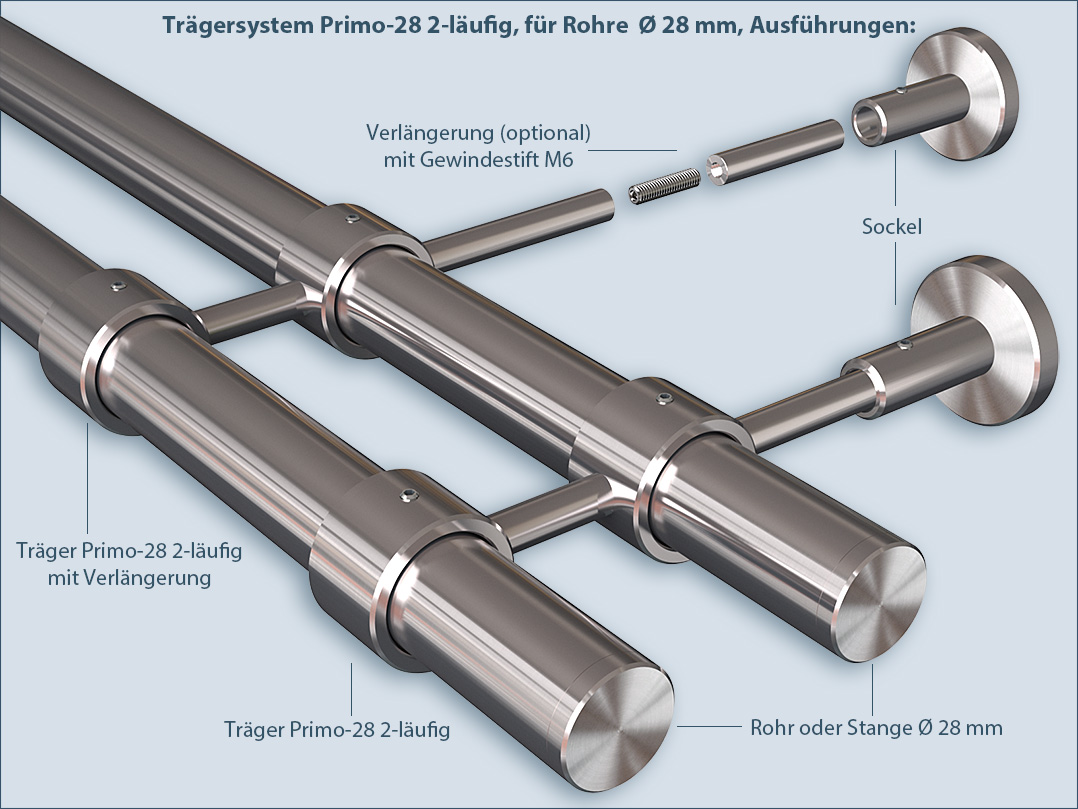

With this wall bracket system, you can easily decorate the floor and then mount the completely decorated pole on the wall. You can place the wall brackets on the rod absolutely freely.
First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with Spax screws. After that, attach the rod holders (along with the tubes) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the tubes in the rod supports and fix them with support grub screws. You can adjust the length of the holders in the base by approx. 15mm and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is approx. 66mm (first run). Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.
