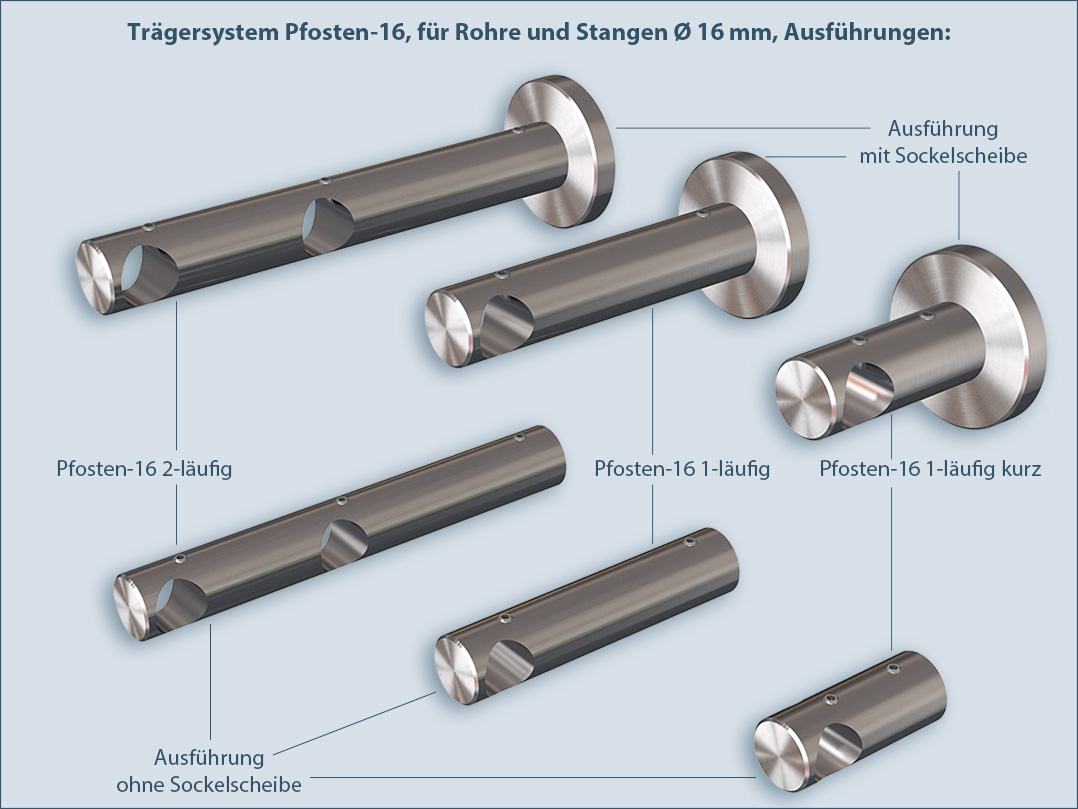

Pole support Pole 16 in stainless steel: examples of use and fastening system

Steel design accessories from Stahldeko: closed rod support made of stainless steel for all rods and tubes with Ø 16mm. Available as 1-line. or 2-line Carrier. Fastening with the bolt and Spax screw, boreholes and screws are covered with a base washer (sold separately). The rod is pushed in from the side and secured with a grub screw. With this carrier system, you can easily decorate the curtain on the floor, then attach the completely decorated rod to the wall or ceiling (only one-way). With the help of the extensions (sold separately) you can vary the distance to the wall in 50mm increments.

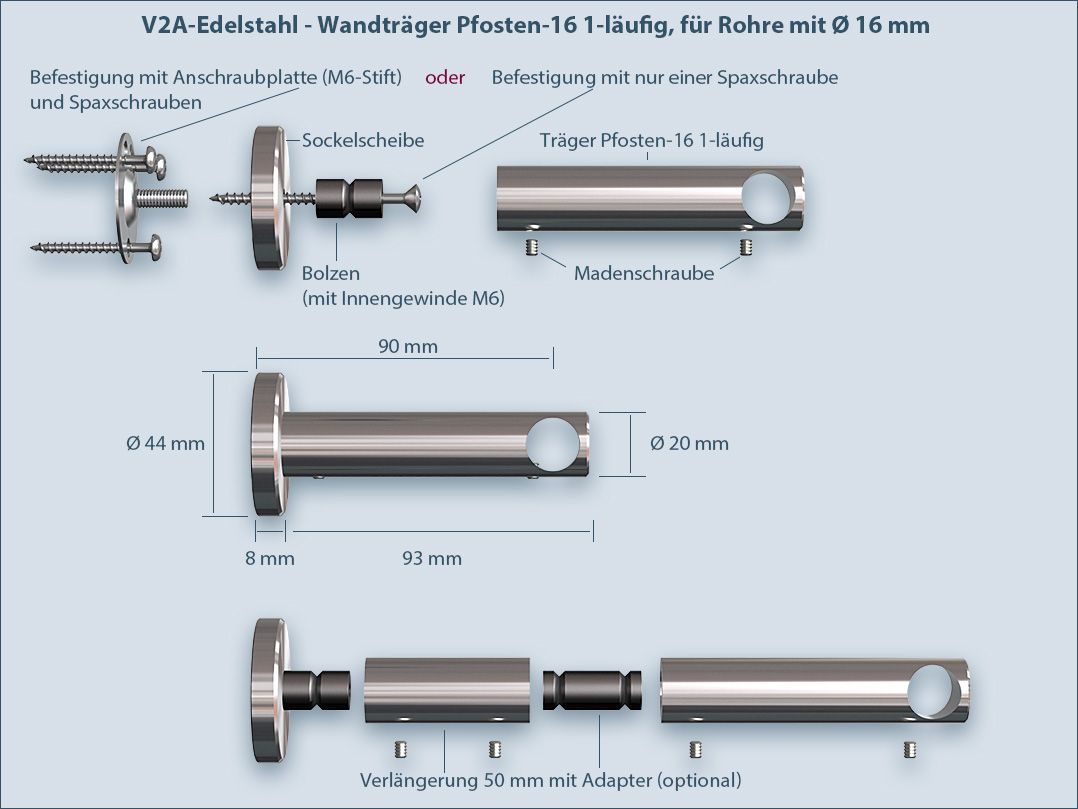

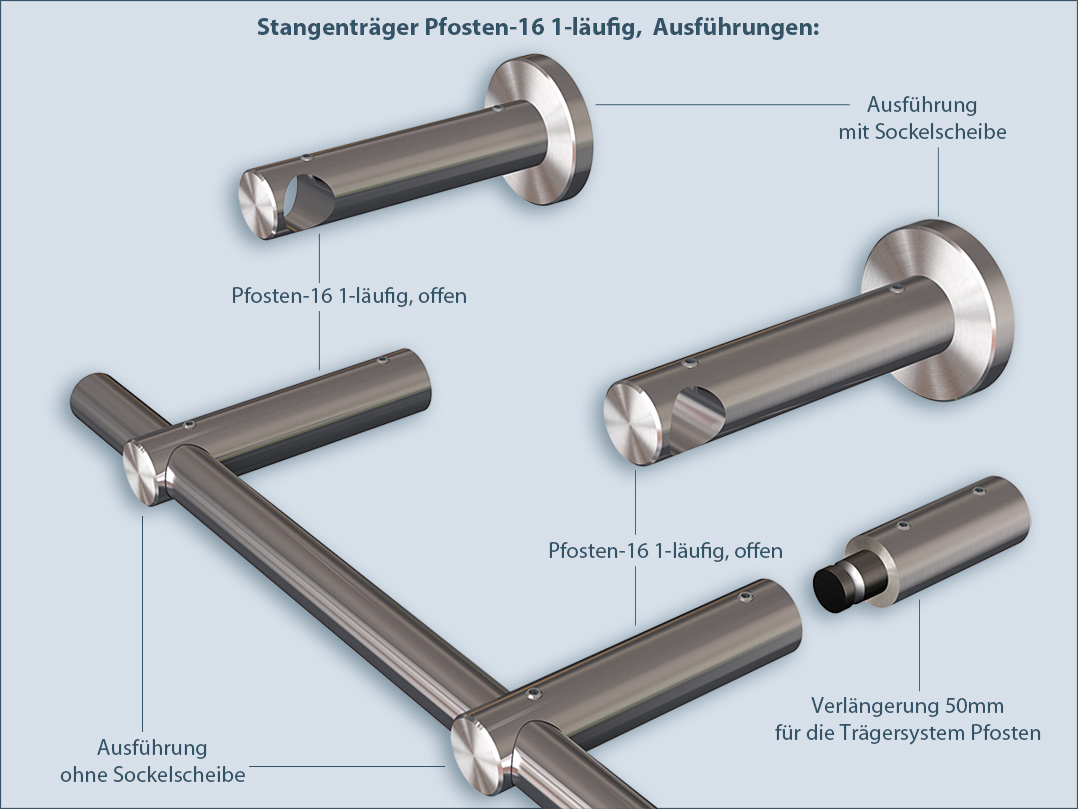

Curtain rod holder Fastening system Assembly instructions Pfosten-16 1-track.

With this wall bracket system, you can easily decorate the curtains on the floor, then mount the completely decorated rod on the wall. You can place the wall brackets on the curtain rod absolutely freely.
First attach the base plate to the wall with bolts. You can either attach the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the stainless steel supports (along with the tube) onto the studs and tighten the support grub screws (not too tight).
Of course it is also possible to extend the stainless steel wall bracket (optional). We also offer a 50mm standard extension made of solid stainless steel for the 16-post carrier system. You connect the extension and the carrier with an adapter.

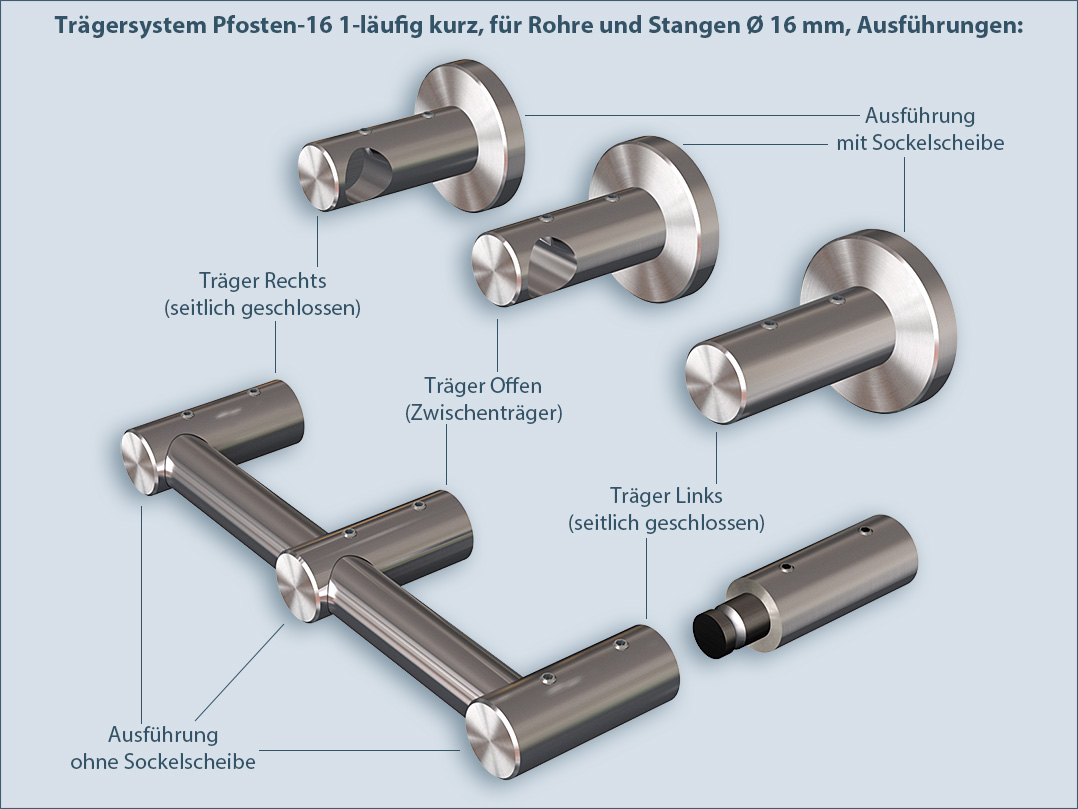

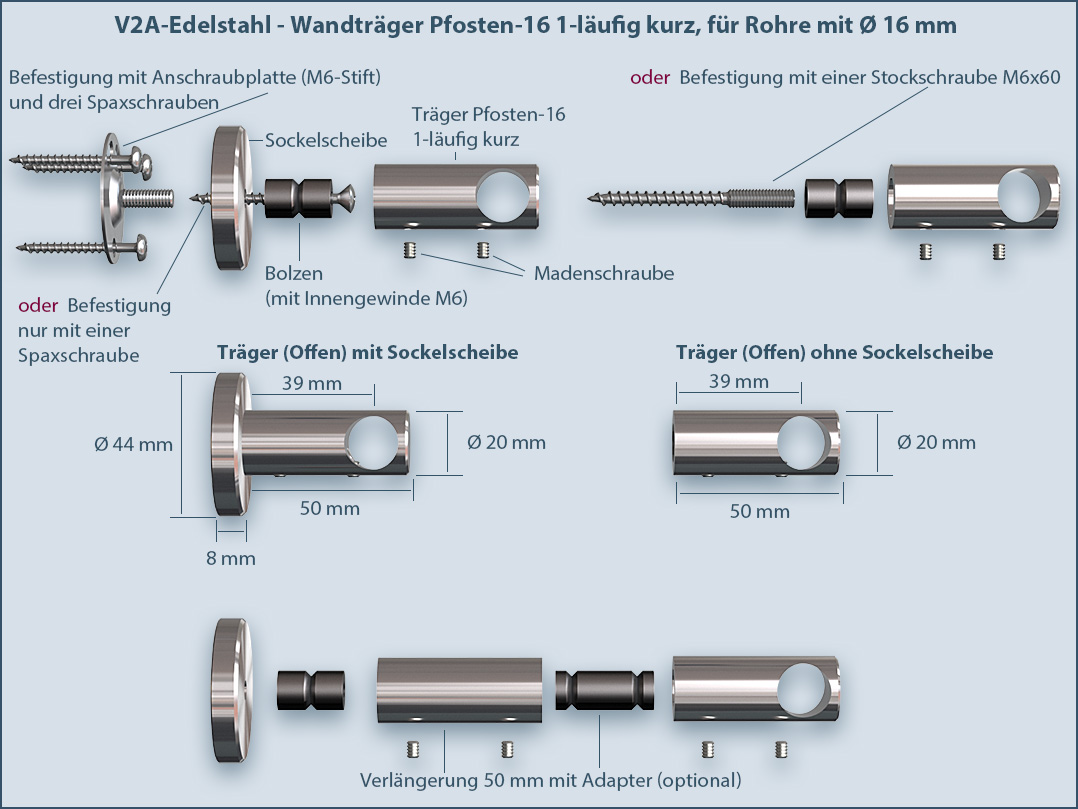

Wall bracket rod bracket Fastening and assembly instructions for post 16, 1-track, short.

With this bracket system, you can easily decorate on the floor, then attach the completely decorated rod to the wall. You can place the brackets on the pole absolutely freely.
First attach the base plate to the wall with bolts. You can either attach the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the stainless steel supports (along with the tube) onto the studs and tighten the support grub screws (not too tight).
Of course it is also possible to extend the bracket (optional). We also offer a 50mm extension made of stainless steel for the post support system. You connect the extension and the carrier with an adapter.

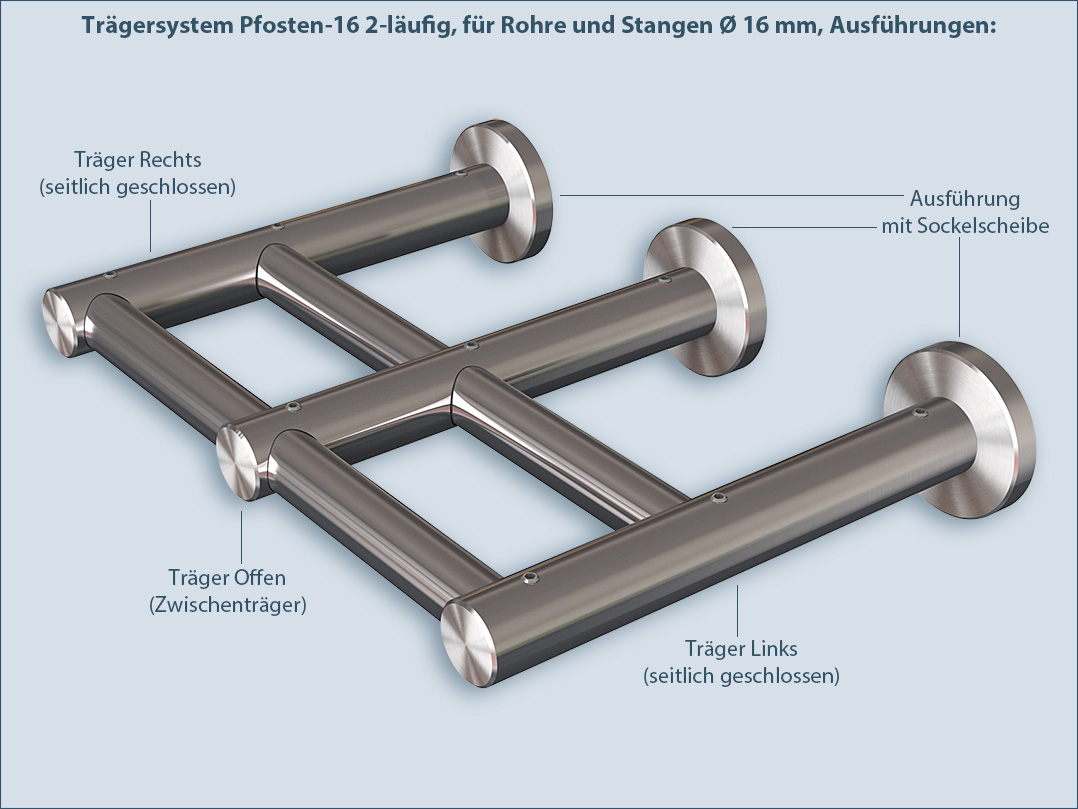

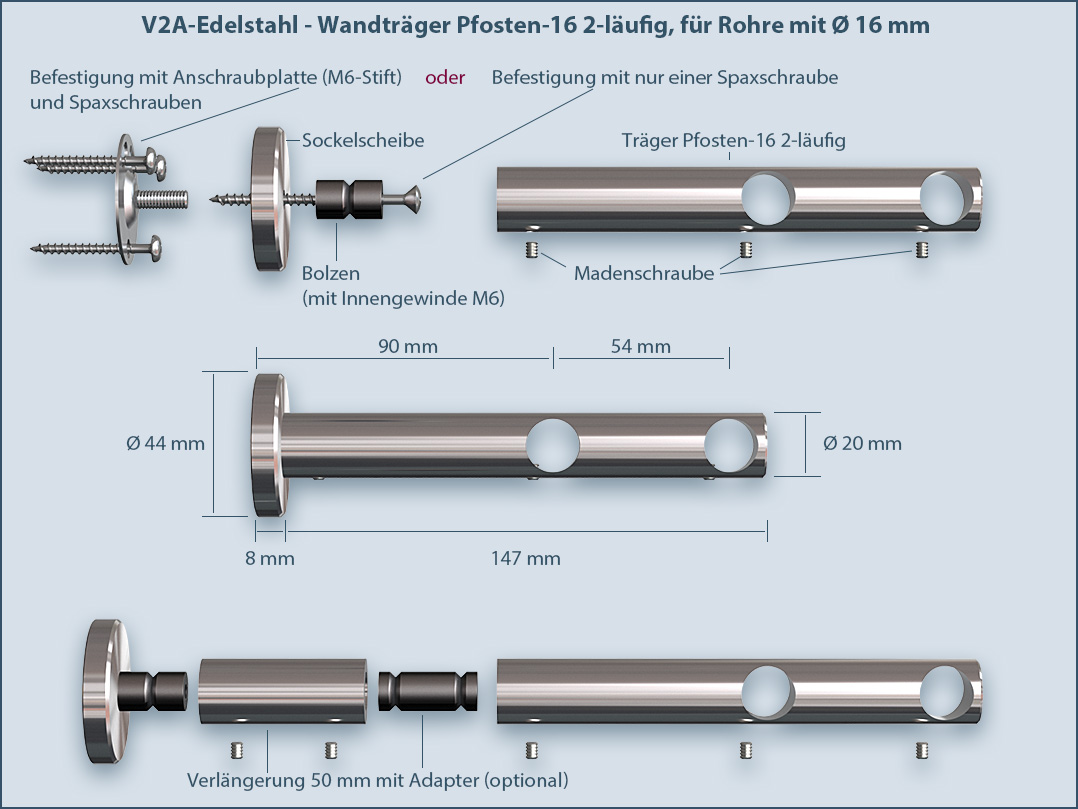

Rod wall bracket Wall bracket: Fastening system for wall mounting post 16, 2-track.

With this wall bracket system, you can easily decorate the floor and then mount the completely decorated pole on the wall. You can place the wall brackets on the rod absolutely freely.
First attach the base plate to the wall with bolts. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw.
Then slide the supports (along with the tubes) onto the studs and tighten the support grub screws (not too tight).
Of course, it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension made of V2A stainless steel for the post support system. You connect the extension and the carrier with an adapter.
