Description

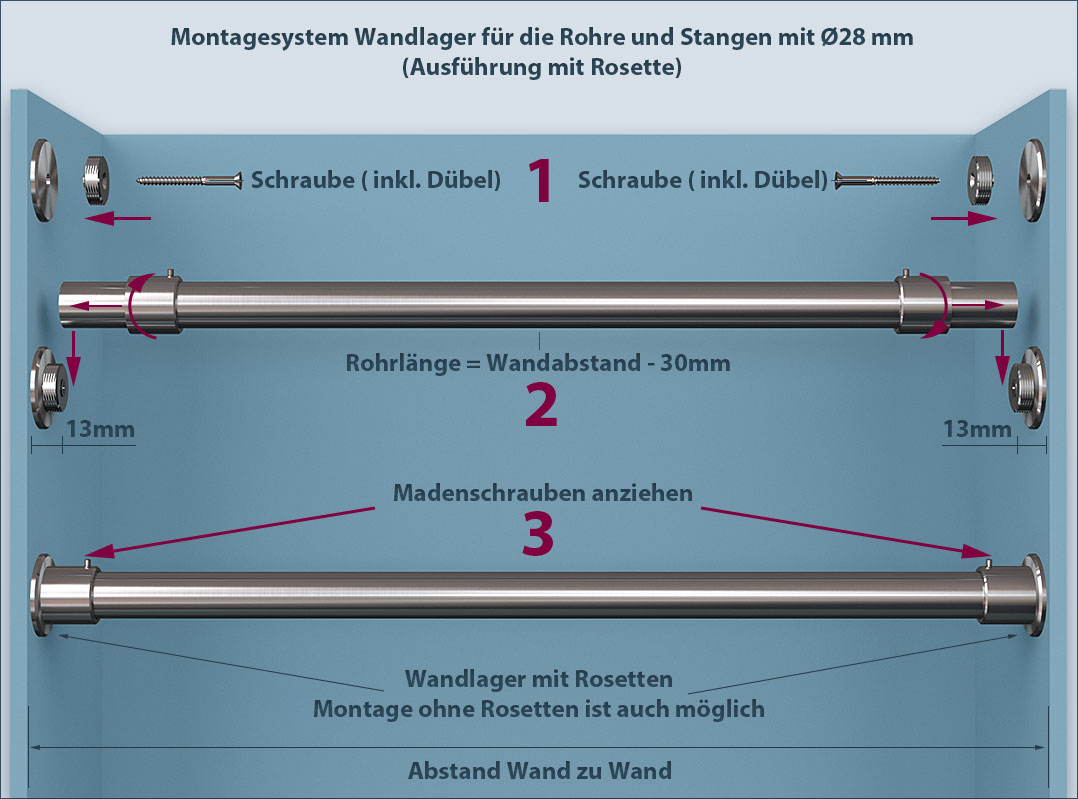

Wandlager-28 mounting system: Fasten poles and tubes in a niche from wall to wall.

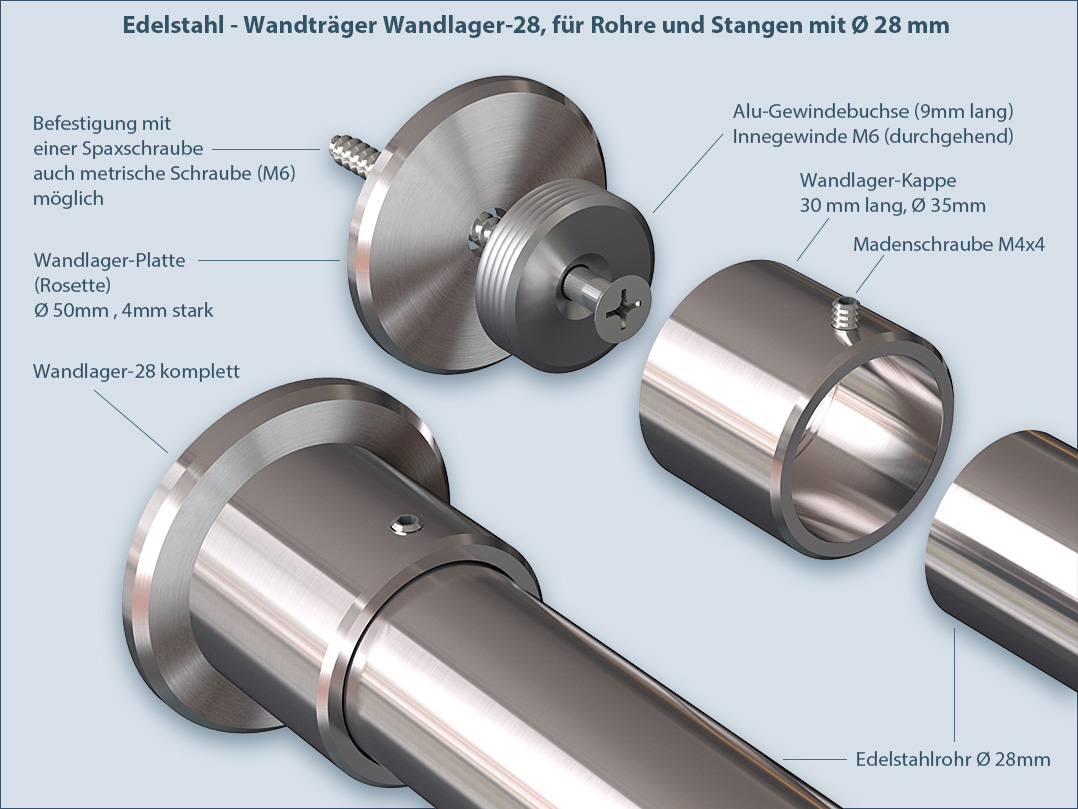

Decoration accessories from Stahldeko: closed rod support made of stainless steel for all rods and tubes with Ø 28mm. Suitable for 1-line or 2-line decorative trimmings. This support is recommended for wall to wall decorations. Fastening with a Spax screw. The tube is pushed through the wall bearing cap, the cap is screwed onto the threaded bolt and the rod is fixed with a grub screw. With this support system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. With the help of the intermediate support, for example Primo-28 or Sont-28 (available separately), you can make decorations with rods of any length
Due to its very good stability properties, it is particularly well suited for clothes rails and cloakroom rails, railings and handrails, curtain rails and curtain rails with heavy curtains, vestibules and room partitions, towel rails and towel rails.

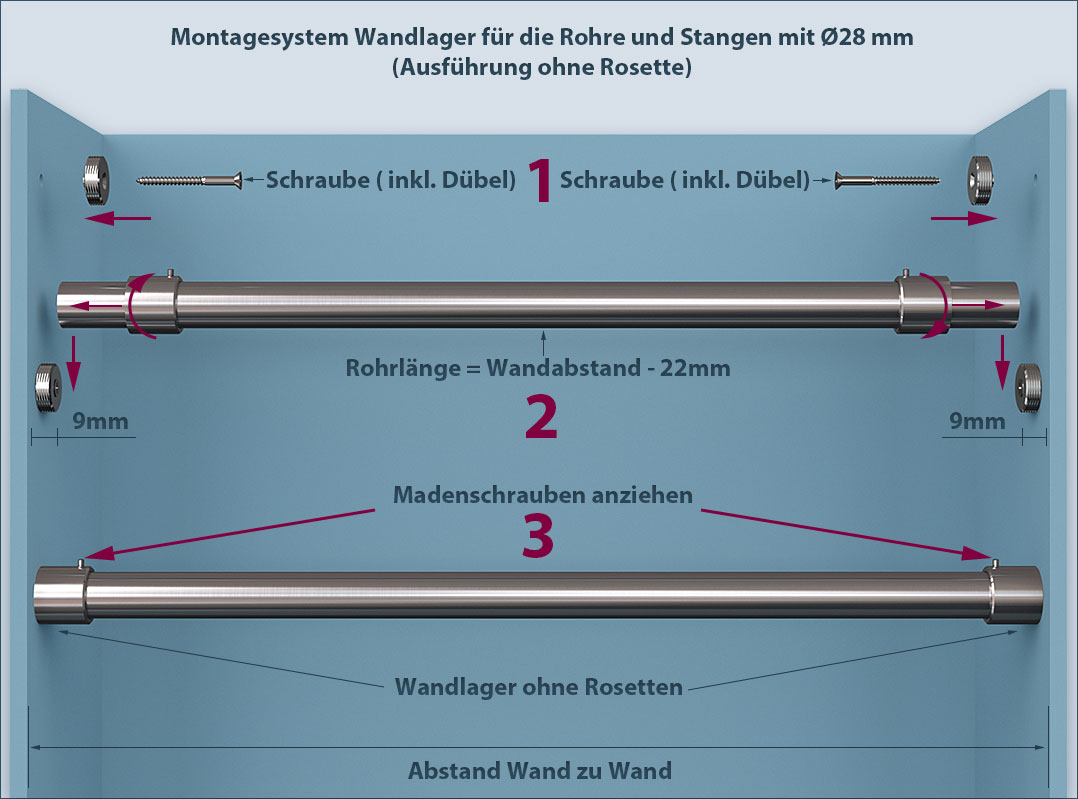

Installation without wall bearing plates (rosettes)
If desired, you can also mount the wall brackets without rosettes. We only recommend this type of attachment for hard surfaces such as stone, hardwood or tiles.

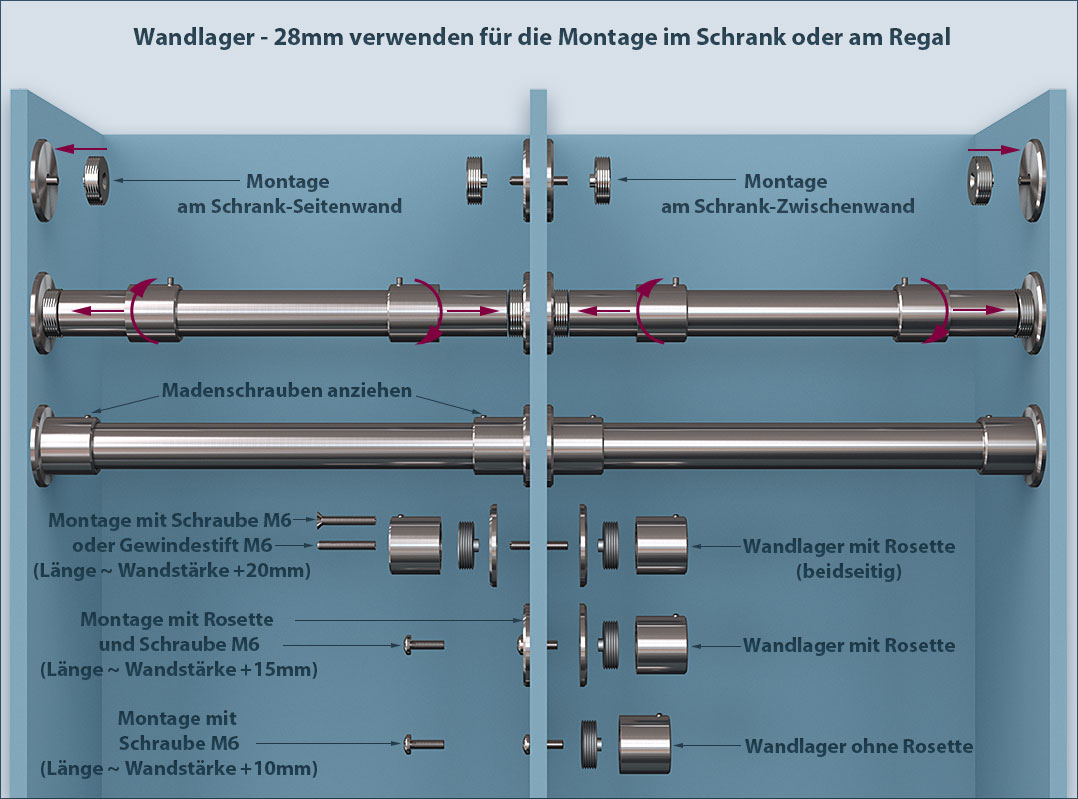

Fasten rod holder wall bearing-28mm in the cupboard or on the shelf
Besides wall mounting in a niche, you can also use our wall storage brackets in a closet or on a shelf to mount the clothes rail or wardrobe rail on side walls or partitions. You can use metric screws with the M6 thread (not included).

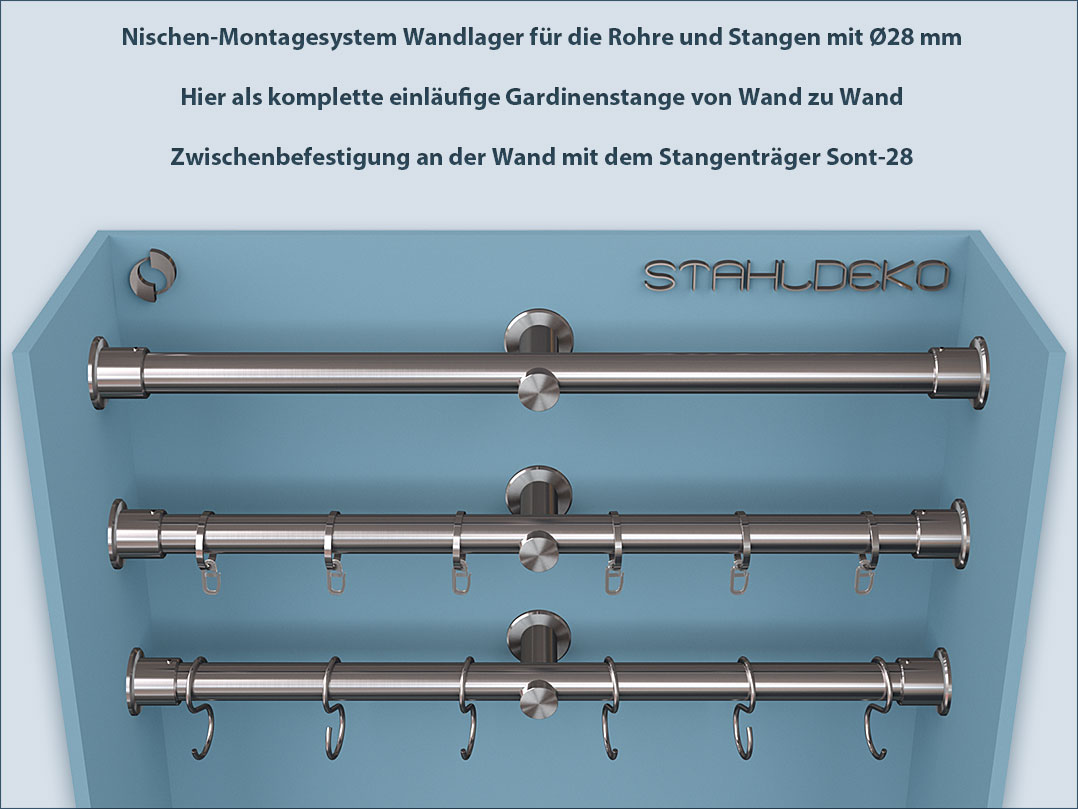

Example of use: curtain rod wall bearing 28 inlet, with or without rings, steel hooks, Sont-28 intermediate support system.
Niche mounting system wall bracket, single-track for tubes and rods with Ø28 mm. Here as a complete single-track curtain rod from wall to wall. Intermediate fixing to the wall with the Sont-28 bar support.

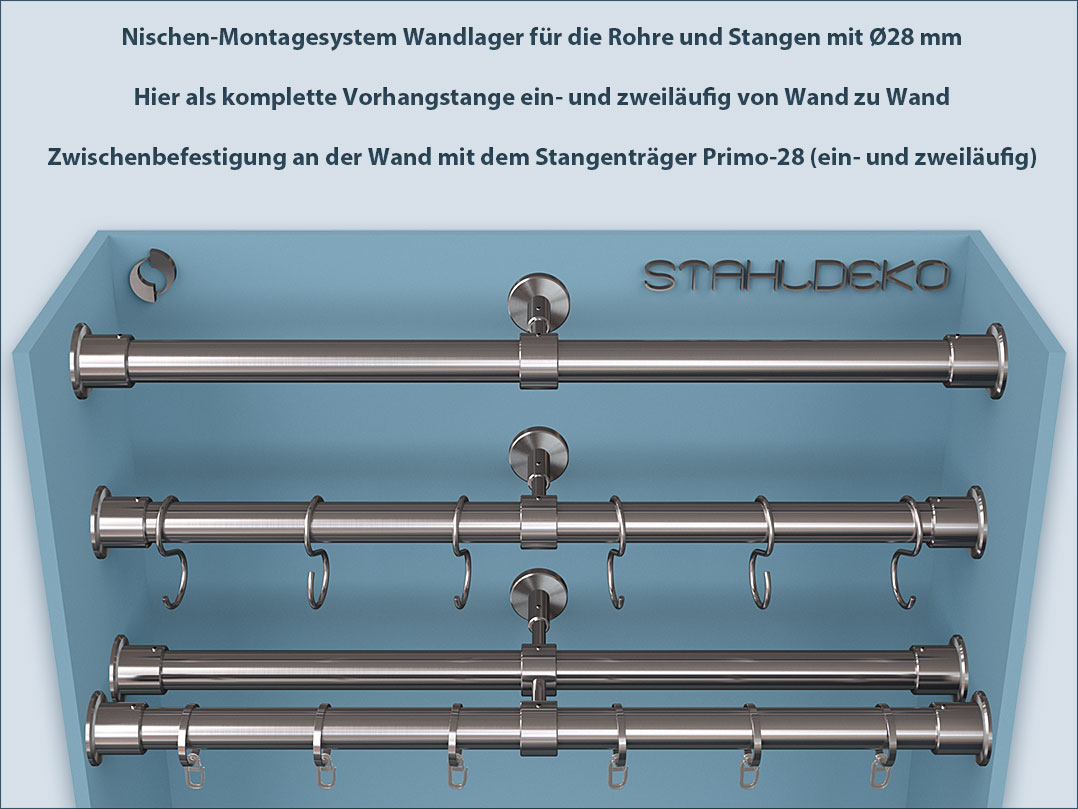

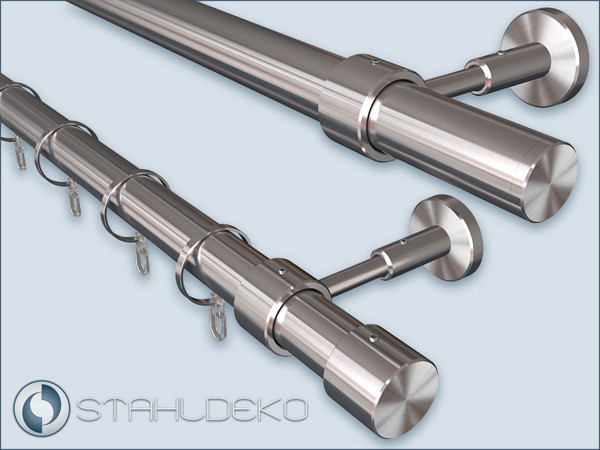

Example of use: Curtain rail Wandlager 28 single-track and double-track, with or without rings and hooks, intermediate support Primo-28 single-track and double-track.

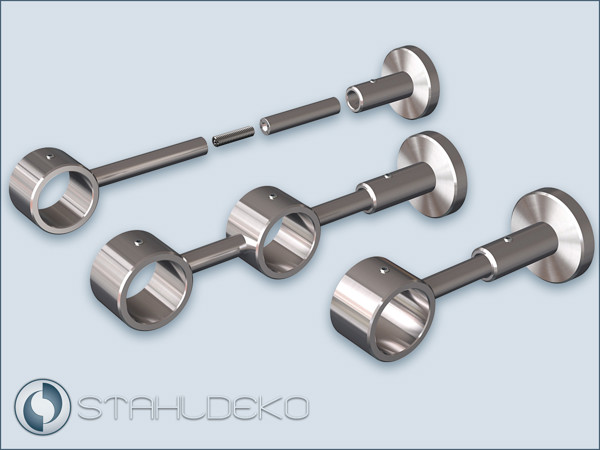

Niche mounting system wall brackets for tubes and rods with Ø28 mm. Here as a complete curtain rod, one and two rails from wall to wall. Intermediate attachment to the wall with the rod support Primo-28 (single and double rail)
Features
Designation* | Rod bracket wall mount 28, stainless steel V2A. |
Material |
|
Processing | High-precision processing with CNC automatic lathes |
Surface |
|
Compatible | for curtain rods with the pipe Ø28mm |
Dimensions | 30mm Long, Ø35mm, Wall Bracket Plate Ø50mm, Cut tube by 15mm/ per 1 piece Wall Bracket |
Mounting |
|

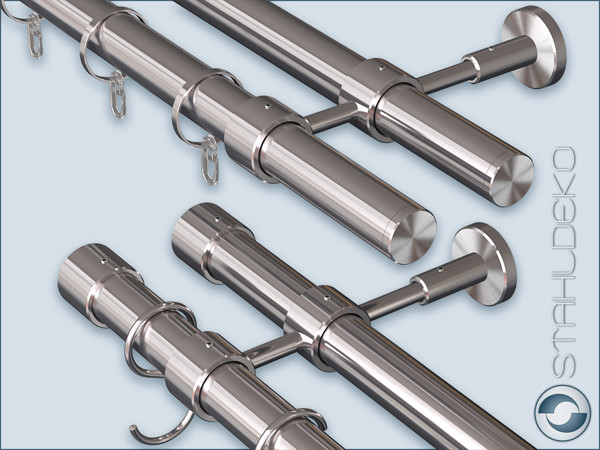

Extras | Recommended accessory: Intermediate bracket Primo-28 |
