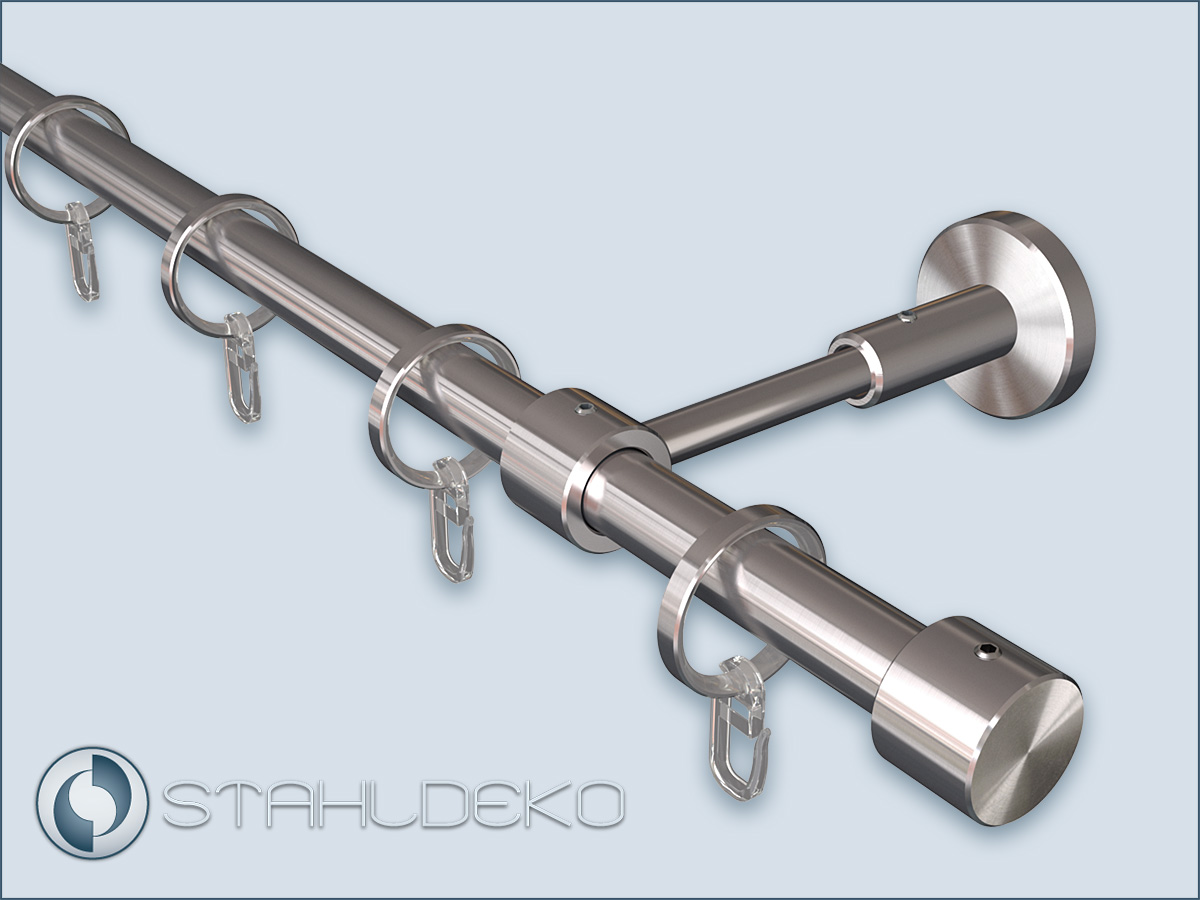

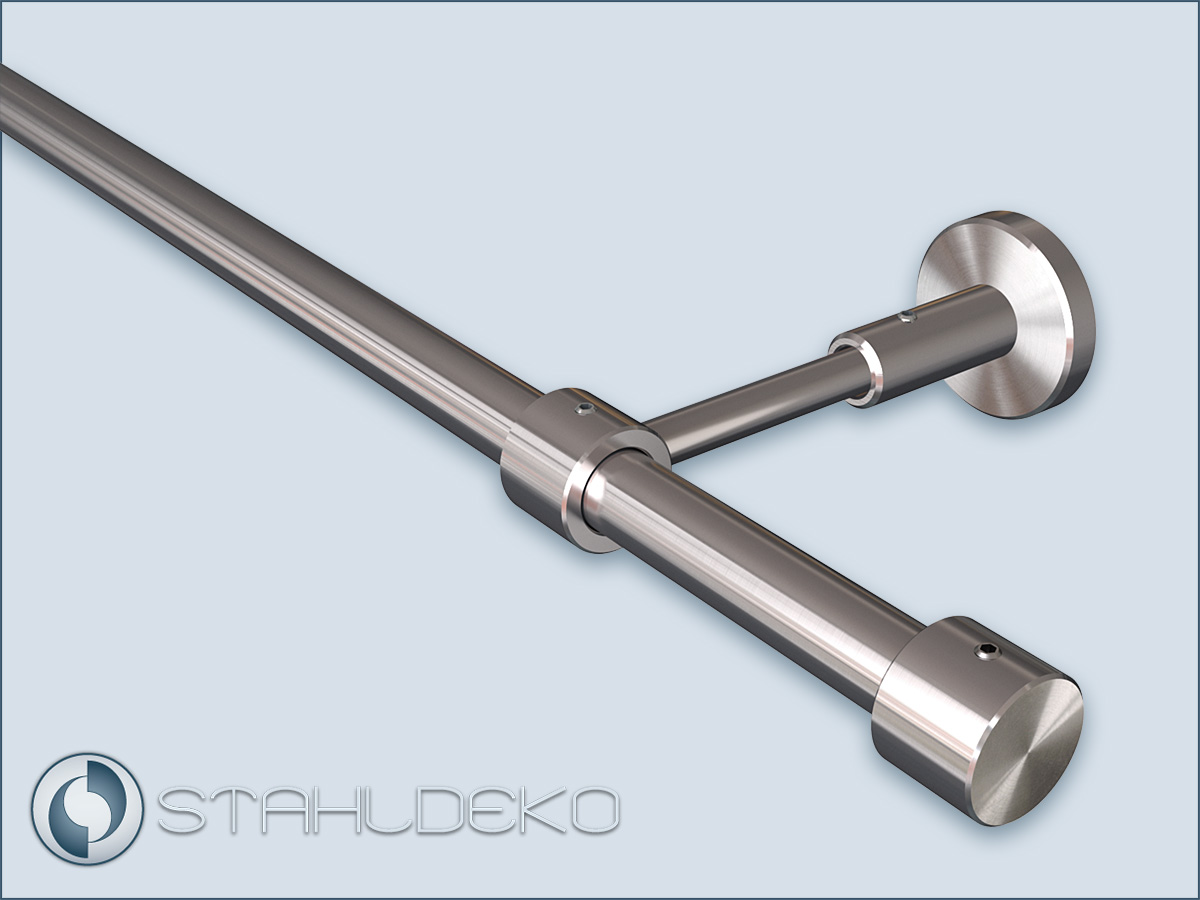

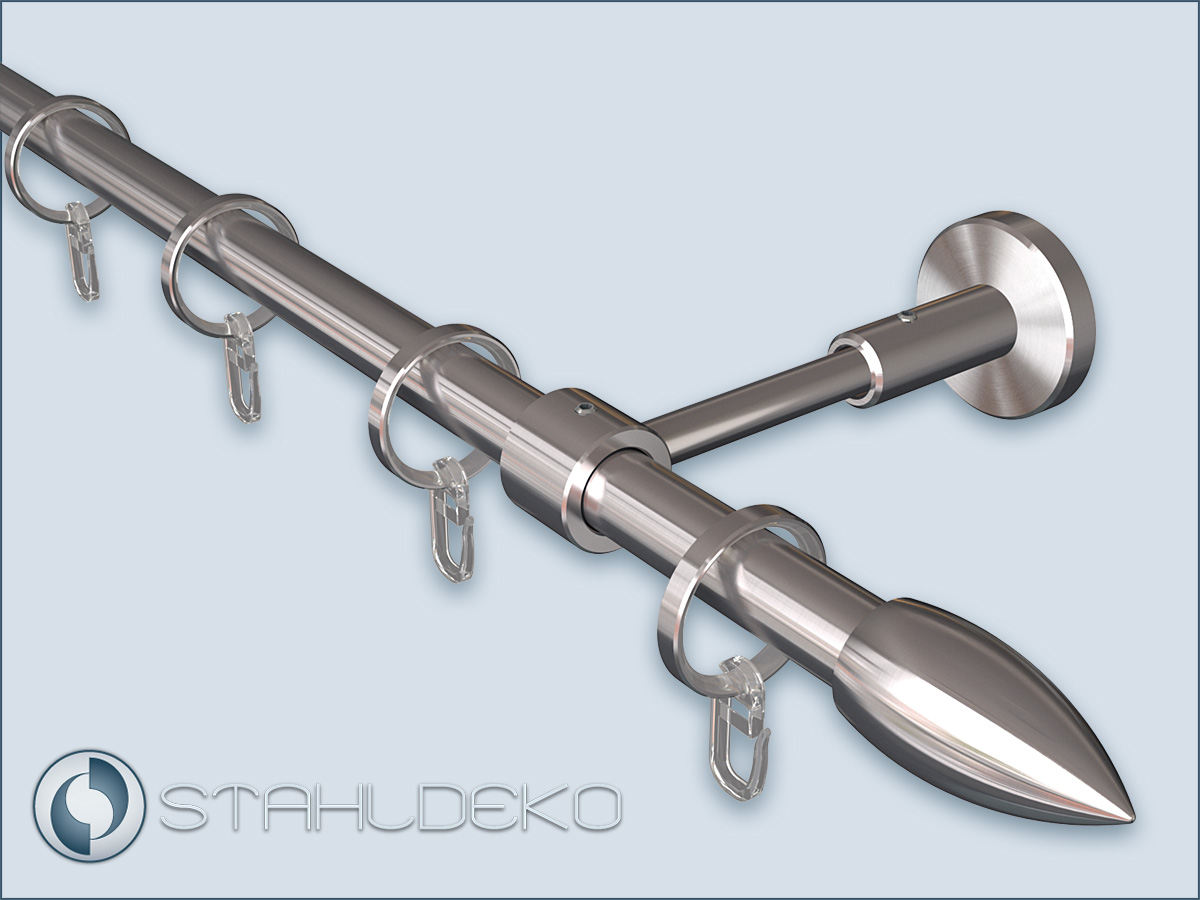

Stainless steel curtain rod Primo-16, end pieces, rings, hooks of your choice.

Classic style set with a round tube made of stainless steel for wall mounting and ceiling mounting. With the round tube curtain sets, the curtains are attached to the rod with curtain rings or curtain hooks or loops or eyelets. This variant is the most commonly used version for attaching curtains and blinds when decorating windows.
You order a complete curtain rod consisting of:
1 pc. tube Ø 16mm made of stainless steel, the beautiful and silky matt look is absolutely suitable for our wall brackets and end buttons made of stainless steel. Lengths of up to 600 cm in one piece are also possible on request.
2 pcs., 3 pcs. or 5 pcs. (depending on the ordered length) rod support Primo-16 with the base, material is solid stainless steel DIN WNR 1.4301 satin-polished, incl. fastening material.
2 end pieces (of your choice), the version with only one end piece or without end pieces is also possible.
Desired number of curtain rings or stainless steel hooks, we recommend at least 10 rings or hooks per 1 meter of curtain width.
*Custom-made products on request, apart from straight curtain rods, we also bend all our style sets in any other shape, made absolutely according to your needs and space situation.

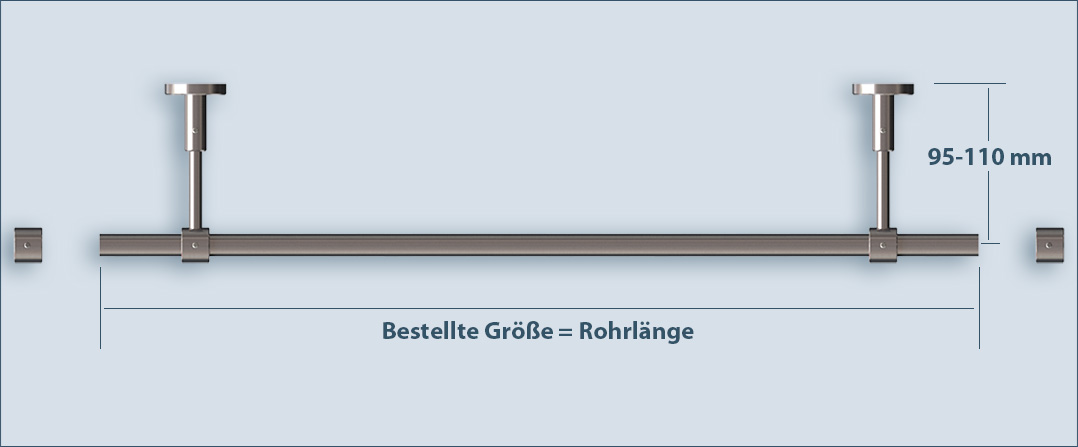

Order the correct style set length.

Ordered size is the tube length without end pieces.
*If desired, please enter the number in cm in the field "shorten by:". then we will cut the tube to the right length for you. For example: If you need a pipe of exactly 257cm, then under "pipe length" please select - 260cm, and in the field "cut by:" enter the number "3 cm". Sections are not sent.
* Parcel service shipping:
The round tubes up to 260cm are always delivered in one piece.
The pipe is divided as follows from a length of more than 260cm:
up to 520cm divided in the middle
from a length over 520cm 1/3 + 1/3 + 1/3 divided
A connection adapter is always included. A holder is to be attached to the connection point.
* Freight forwarding:
The tubes longer than 260cm and up to 400cm are delivered in one piece.
The tubes longer than 520cm and up to 600cm are divided in the middle
* Curtain rods longer than 400cm and up to 600cm in one piece - price on request.

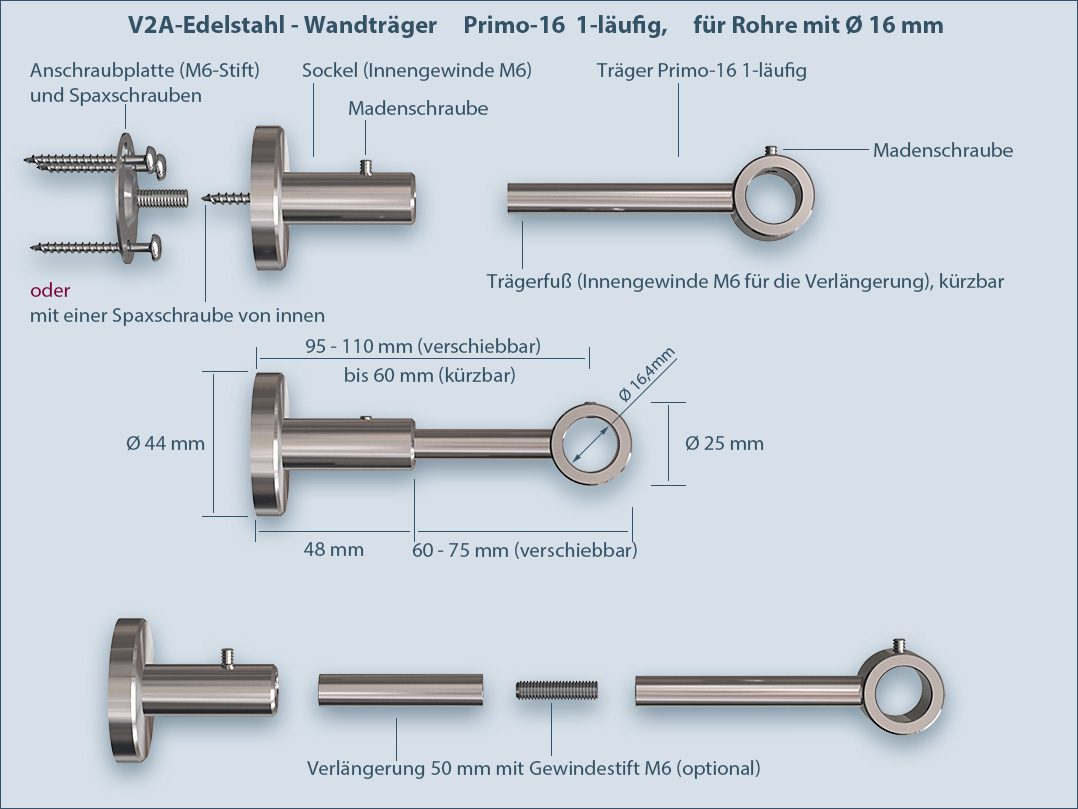

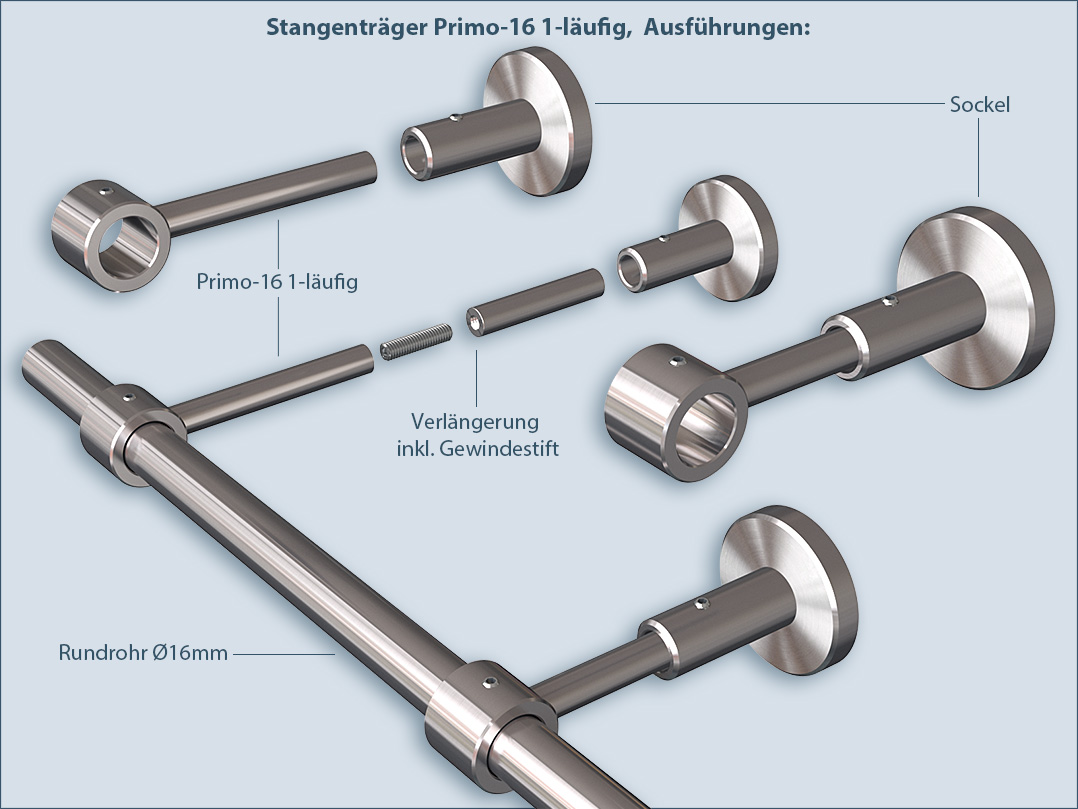

Rod holder Primo-16 single-track for curtain rods and drapery rods, fastening system and assembly instructions

With this bracket system, you can easily decorate the curtains on the floor, then attach the completely decorated curtain rod to the wall. You can place the straps on the curtain rod absolutely freely. First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly from the inside with a Spax screw. After that, attach the rod supports (along with the tube) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the rod in the holders and fix them with carrier grub screws. You can move the holder in the base about 15mm in length and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is approx. 60mm. Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.

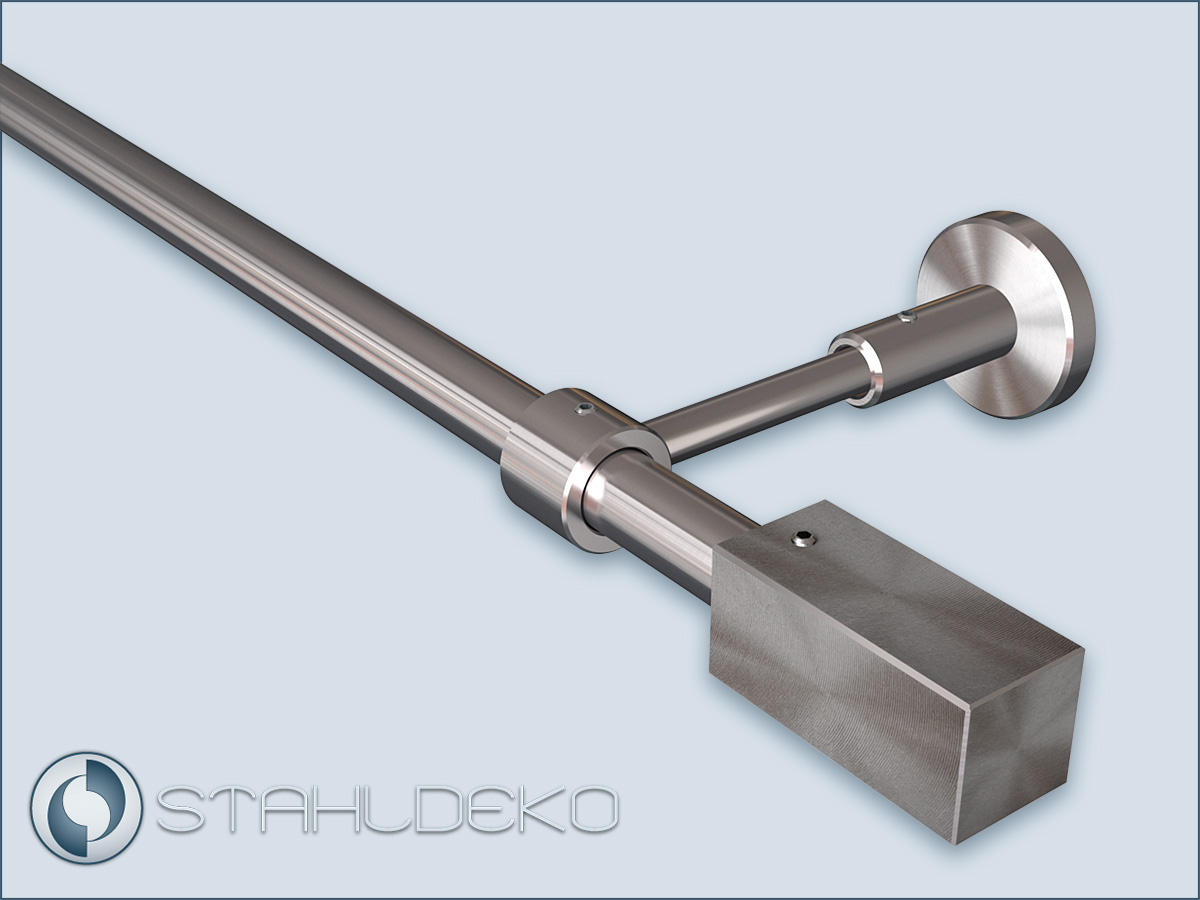

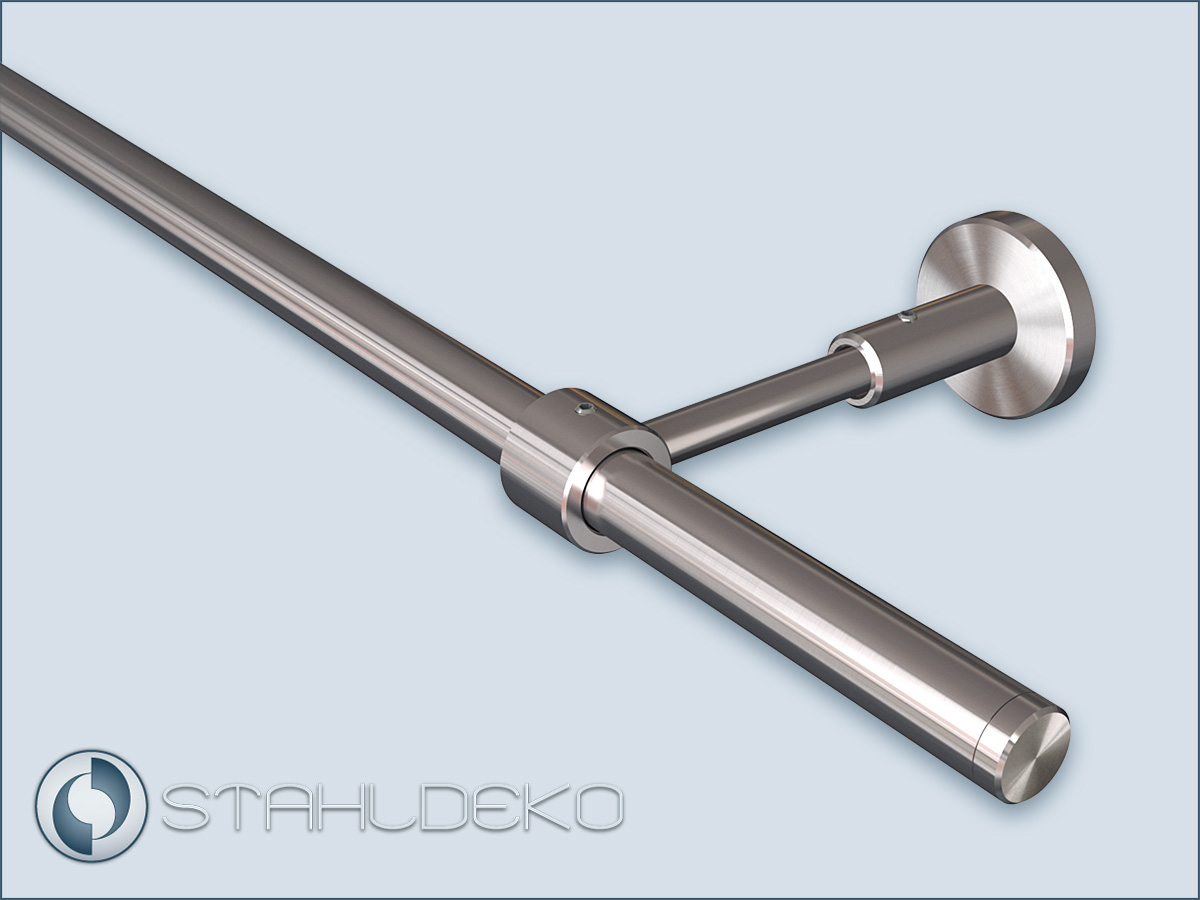

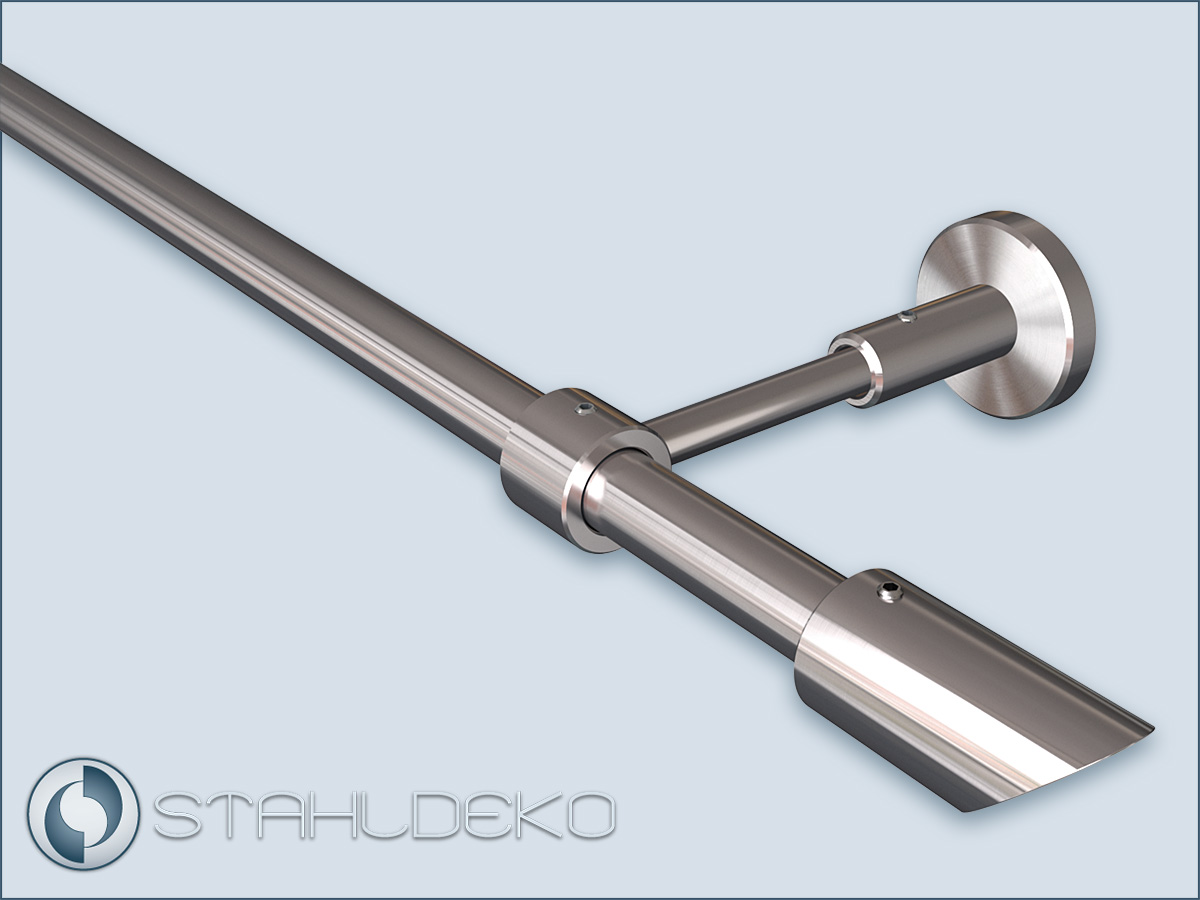

Order desired end pieces made of stainless steel V2A for curtain rail Primo-16 1-track.

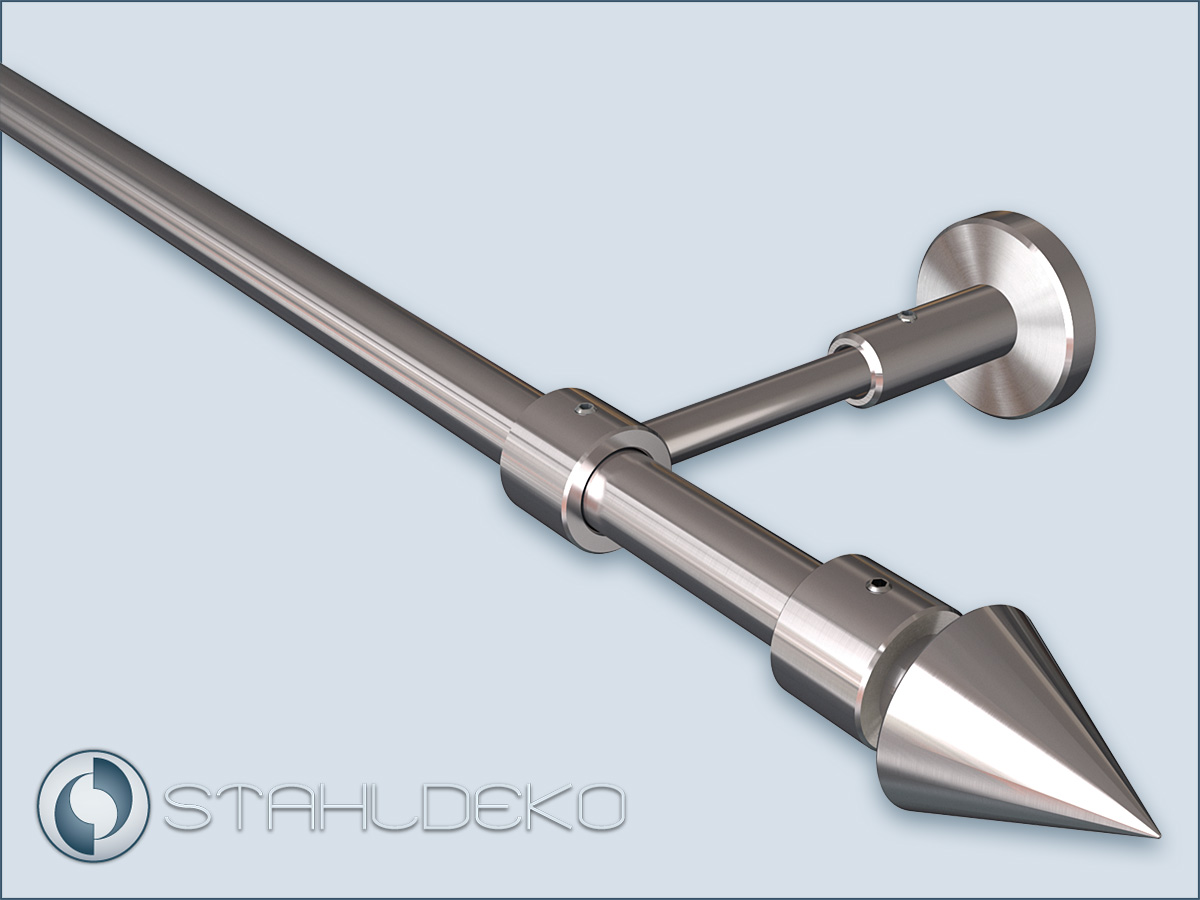

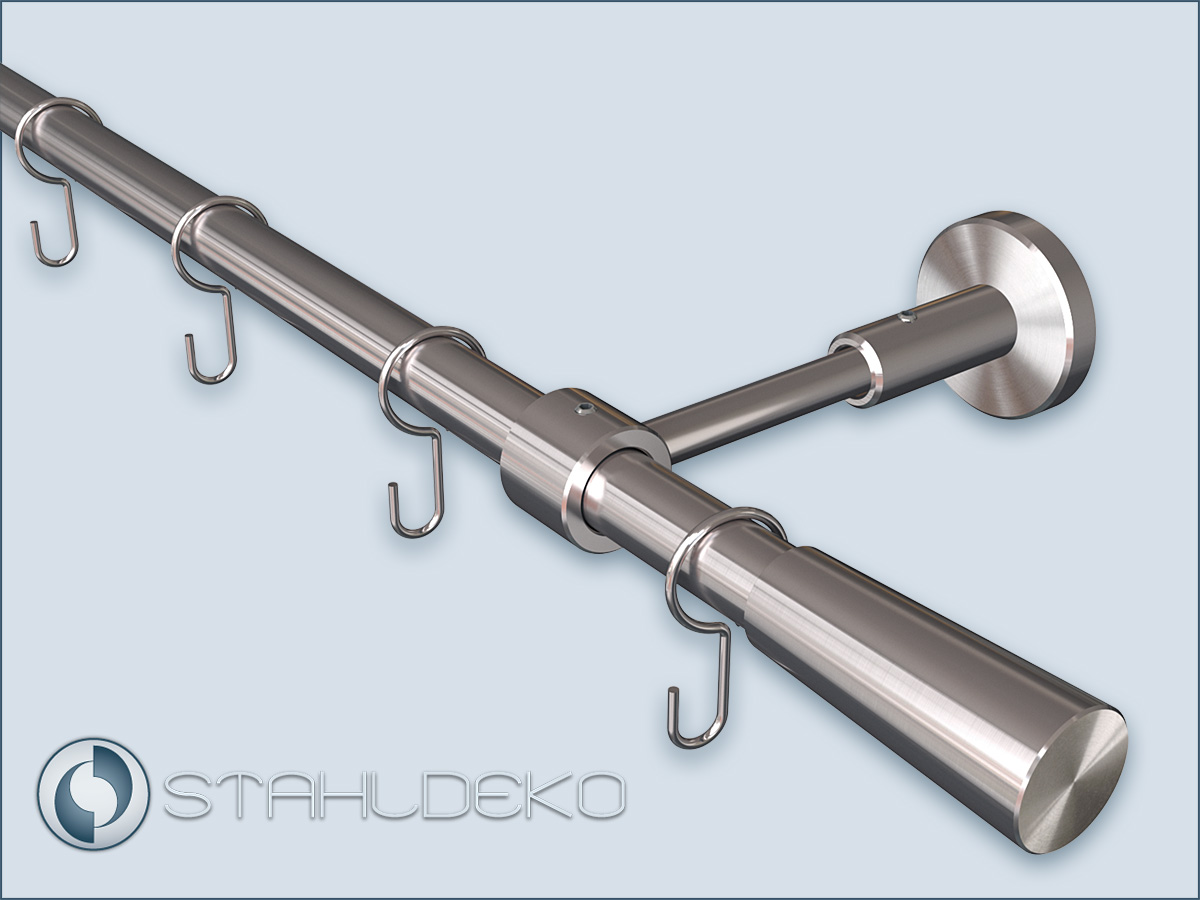

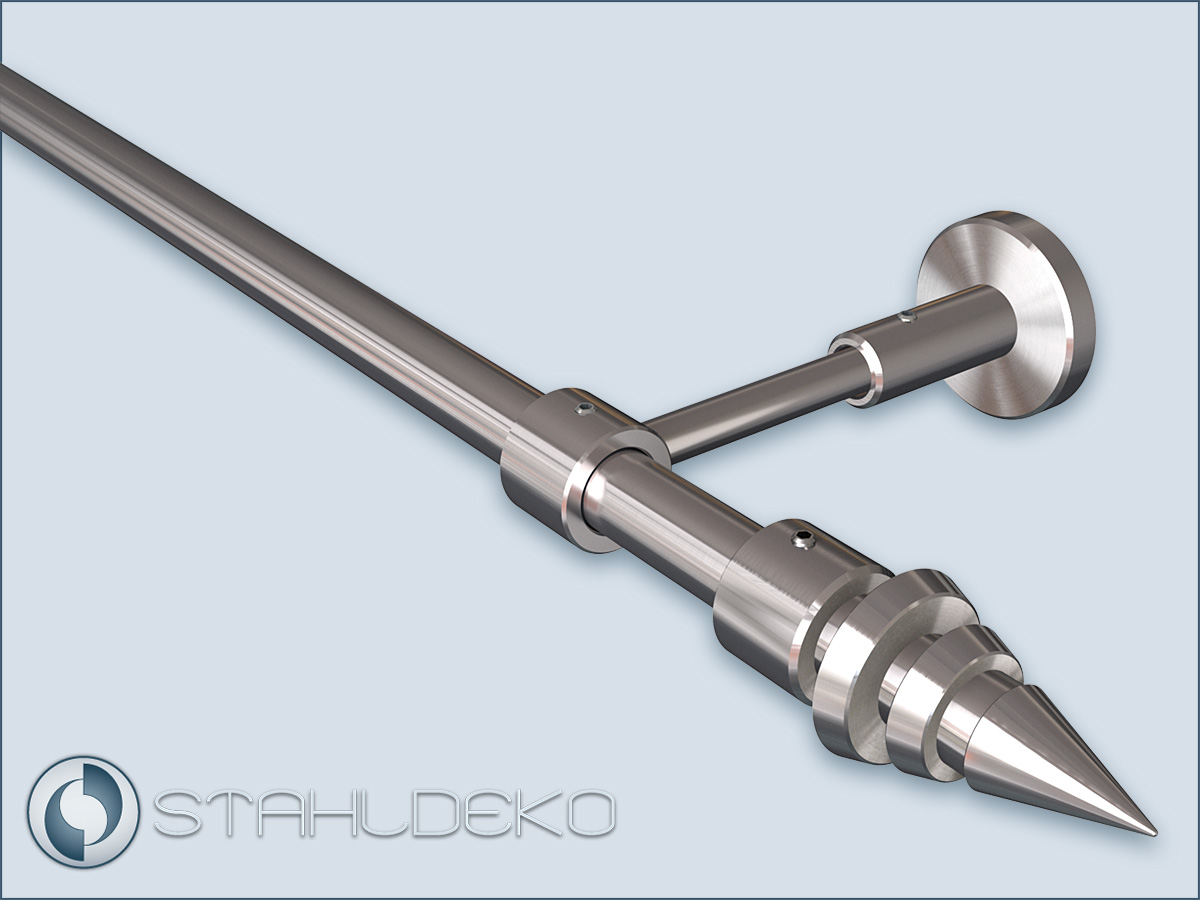

We have different end pieces for our 16mm stainless steel tubes. Simply select the desired end piece in the corresponding field. In the pictures you can see our range of end pieces and end knobs for stainless steel tubes with a diameter of 16mm. Of course, you can also order the version without end pieces, for example to use a joint connector for bay windows or a wall bracket at this point.

Connect the tube ends with a joint to create a bay window curtain rod, for example.

If you need an L-shape or U-shape curtain rod for your room, if you want to create a trapezoidal curtain set for your bay window, then you can use our stainless steel articulated connectors for the 16mm diameter tubes. These joints are inserted into the pipe ends instead of the end pieces, so you can easily achieve any angle from 75° to 285°.
To compose an L-shape curtain rod, order: 1 pc rod with 2 pcs end pieces + 1 pc rod without end pieces but with 1 pc joint
To compose a U-shape or a 3-side trapezoidal curtain rod, order: 2 pcs. curtain rod with 1 pc. end piece + 1 pc. curtain rod without end pieces but with 2 pcs. joints
Do you need help putting it together? Write to us or call us.

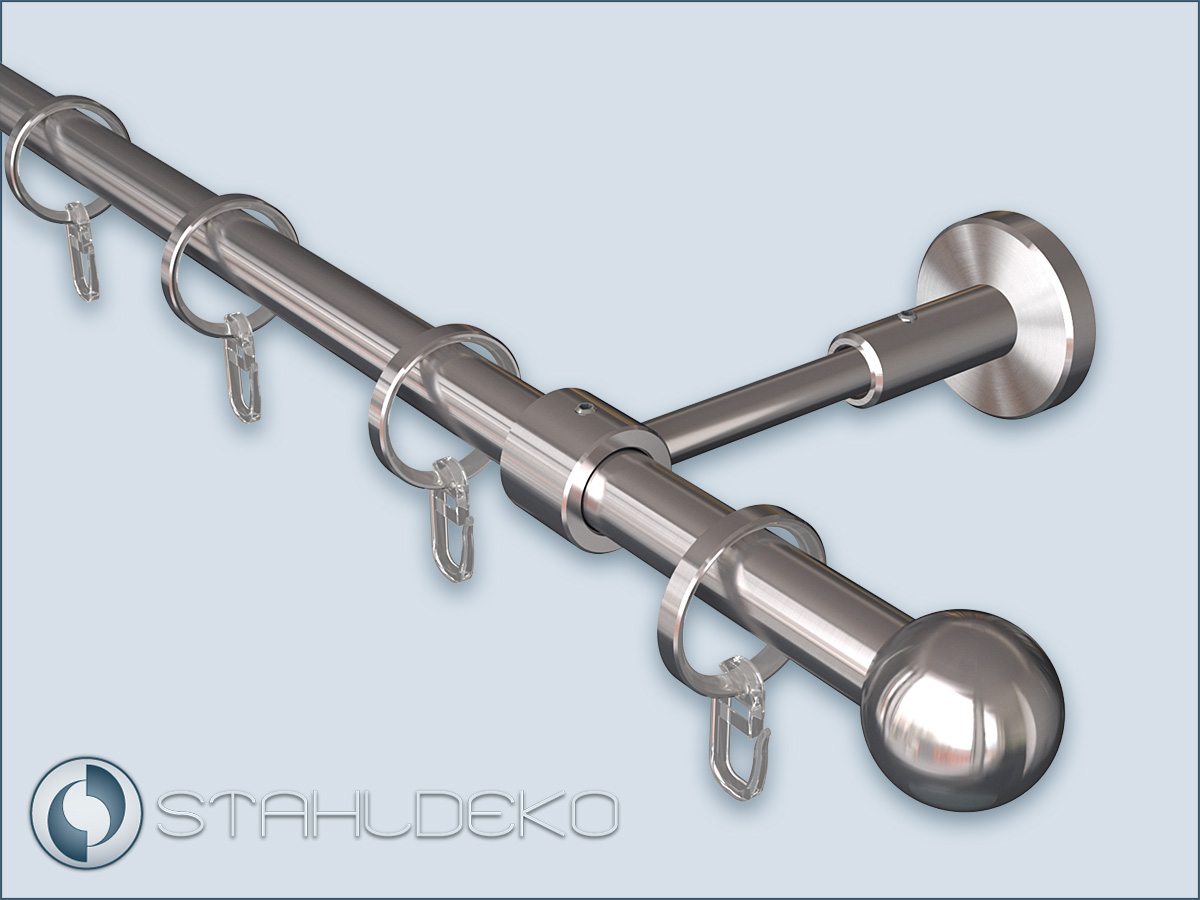

Order curtain rings made of stainless steel for curtain rod Primo-16.

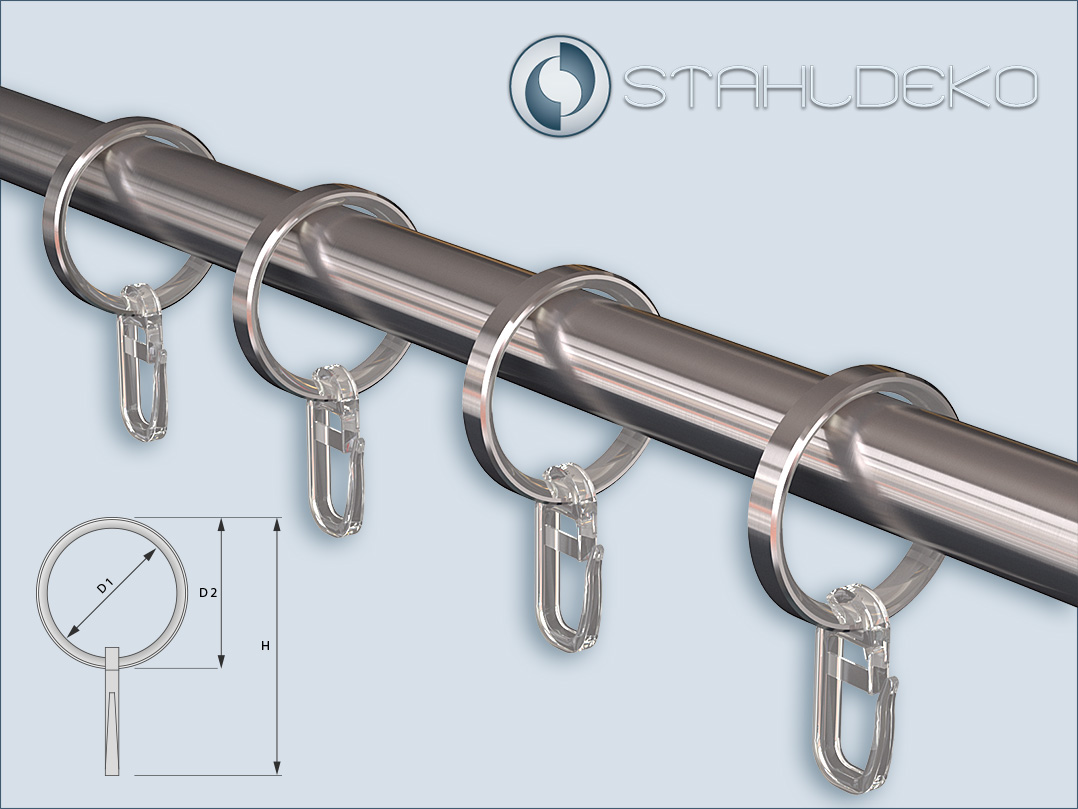

You can use our stainless steel rings to attach curtains to a curtain rod with a round tube. These curtain rings are made of stainless steel with a plastic insert for quiet sliding of the curtains. All rings are supplied with clip-on hooks (folding hooks) made of plastic (transparent).
Please refer to the drawing for the dimensions:
D1 = 30mm
D2 = 37mm
H = 62mm

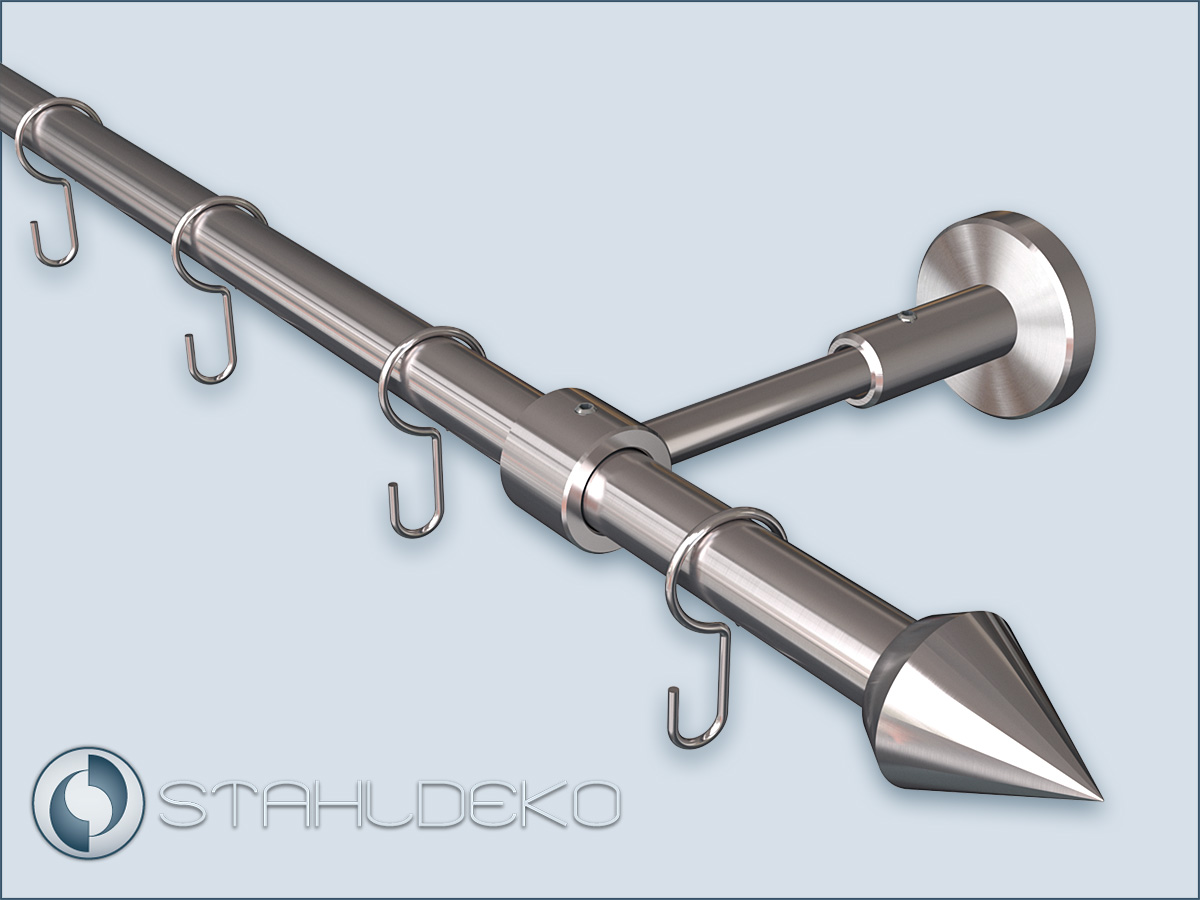

Curtain hooks made of steel, nickel-plated, for curtain rods with a diameter of 16mm.

You can use our nickel-plated steel hooks to attach curtains to the Primo-16 curtain rod.
Please refer to the drawing for the dimensions.

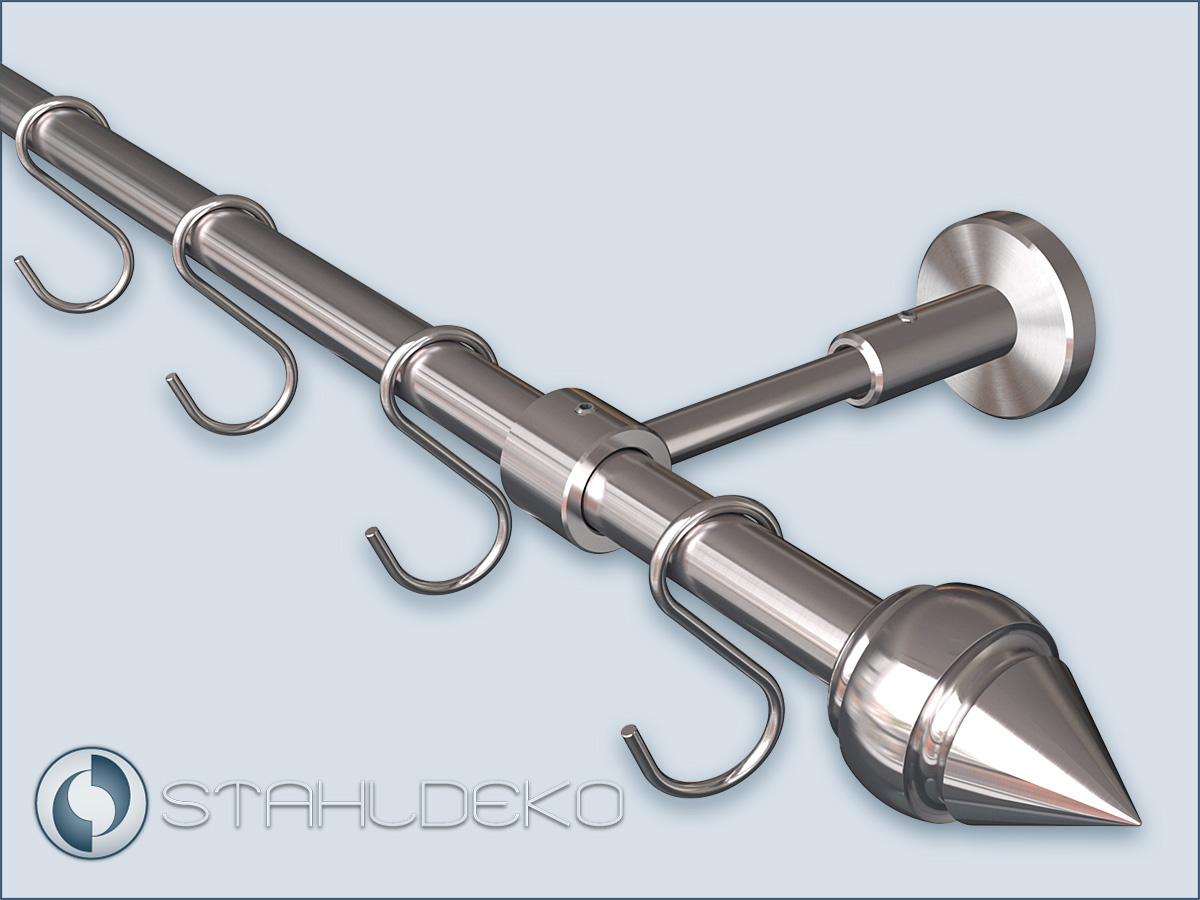

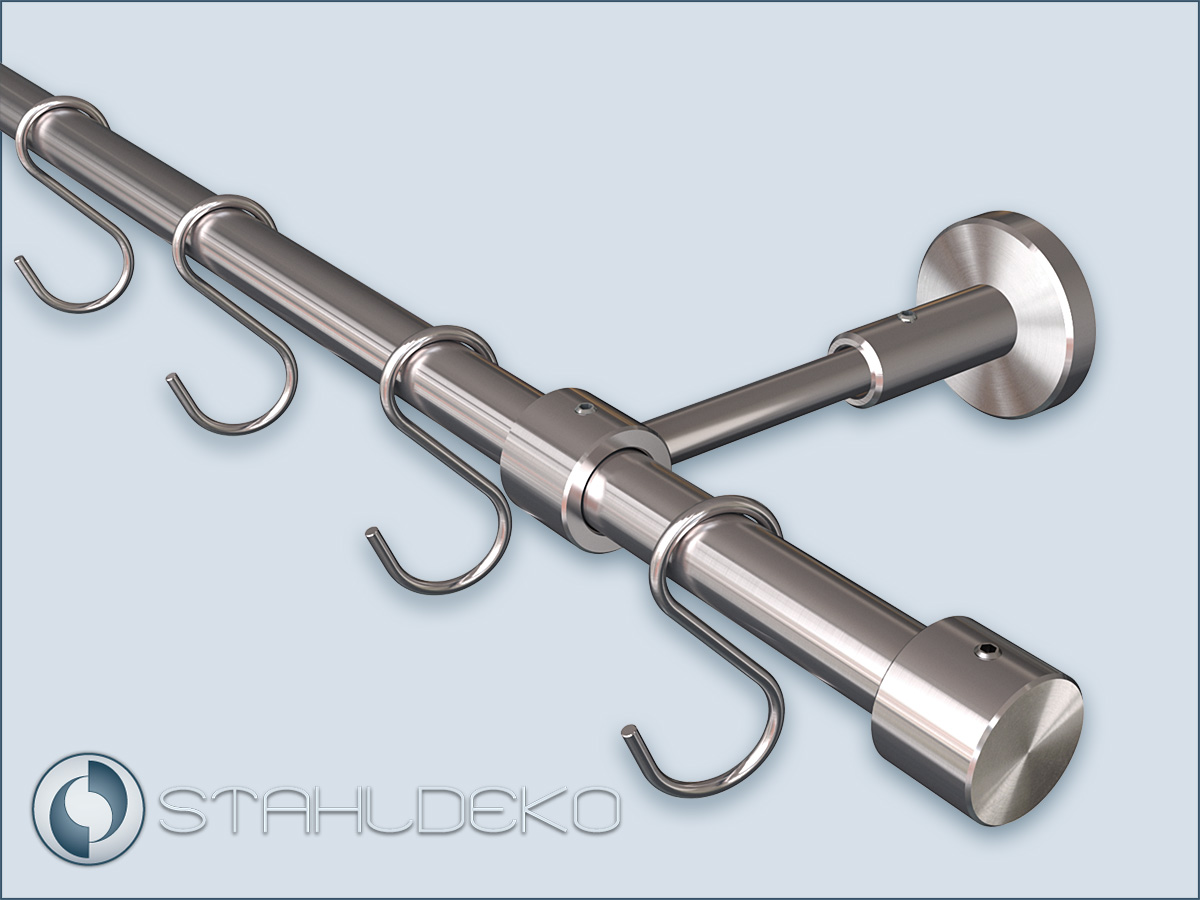

Hook S-shape for rods and tubes with a diameter of 16mm, material stainless steel.

Hook S-shape made of V2A stainless steel, very stable and robust, but at the same time very smooth-running, bent from 3mm stainless steel wire, ends are punched. For indoor and outdoor use as a curtain hook. Easy attachment and detachment to 16mm rods by "clamp system with 15mm opening"
Please refer to the drawing for the dimensions.

Product Information: Stainless Steel Ring Hook for 16mm Pipes

The V2A stainless steel ring hook is characterized by high stability and smooth mobility. Manufactured from 3mm thick stainless steel wire with precisely stamped ends, it features a closed form that ensures increased security against theft. Suitable for commercial use both indoors and outdoors. Please refer to the attached technical drawing for detailed dimensions.
