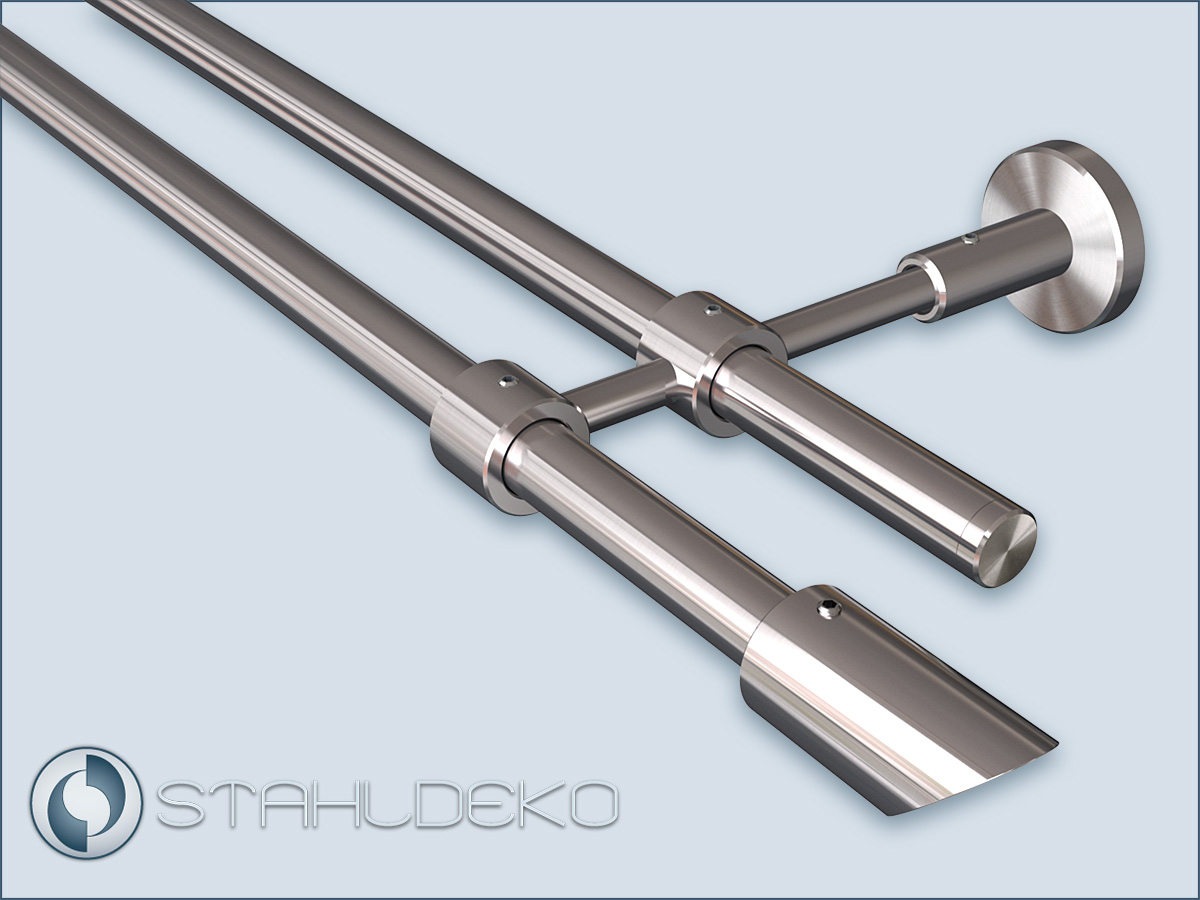

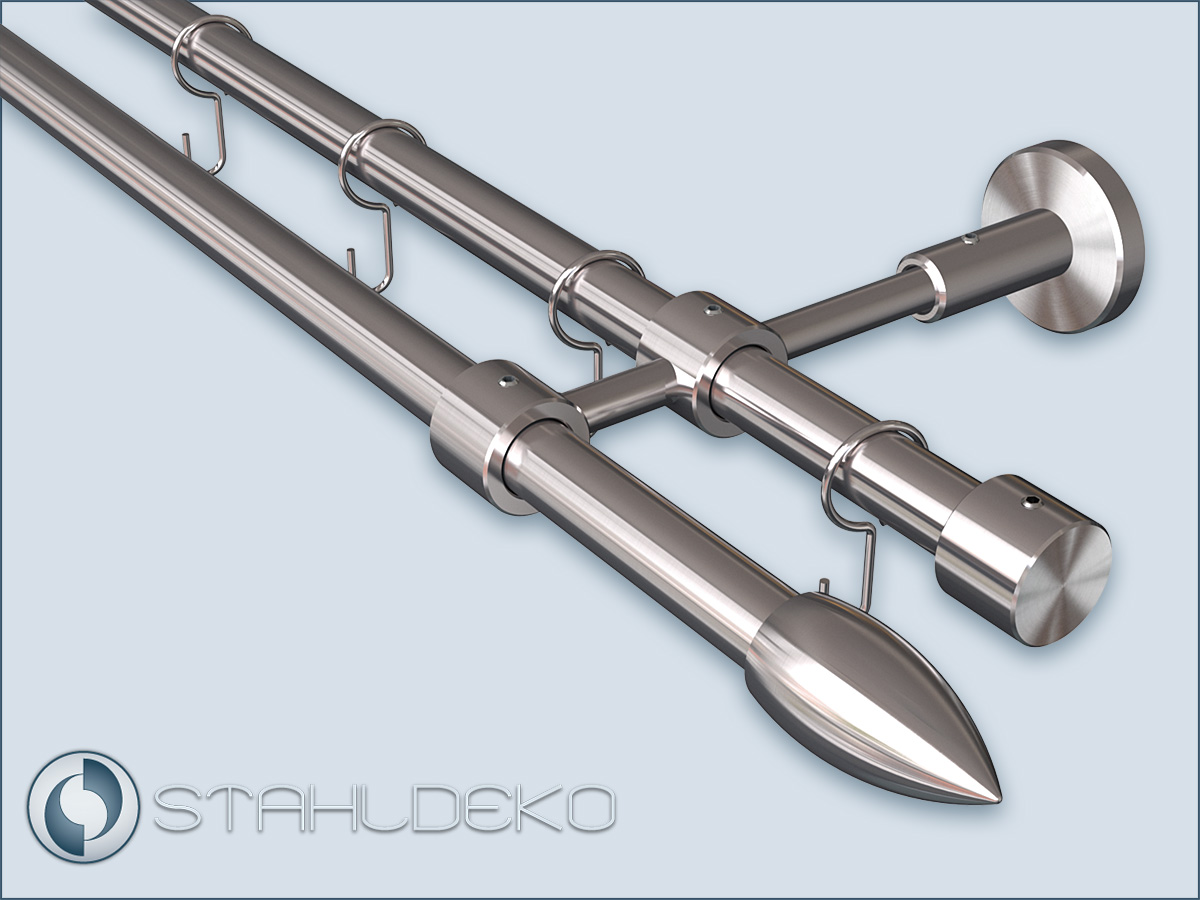

Configure your individual double-barreled curtain rod Primo-16 according to your taste.

The designer curtain rod is equipped with two tubes and is intended for wall mounting. The Primo-16 bracket system was specially developed for convenient assembly of curtain and curtain rods and is designed as a double-barreled bracket for tubes with a diameter of 16 mm. Constructed from solid stainless steel, the rod holders not only offer stability, but also a simple and modern look that suits many different room styles. The Primo-16 two-track set is very popular and is ideal for attaching curtains in living and business premises. Round tube curtain rods are usually used with rings, hooks, loops or eyelets to attach the curtains to the rod. This variant is the most common way of attaching curtains when decorating windows.
You order a complete curtain rod, which consists of the following components:
2 pieces of tube with a diameter of 16 mm in a noble and satin-polished look, suitable for the holders and end buttons. Lengths of up to 600 cm are available in one piece on request.
You will also receive 2, 3 or 5 rod supports Primo-16 double-barreled with base disc, made of solid stainless steel DIN WNR 1.4301 with a satin finish. Fastening material is included in the scope of delivery, the number of holders depends on the length of the rod ordered.
You also have the option of ordering 4 finials of your choice or the style set without finials.
We advise you to order the desired number of curtain rings or curtain hooks, with a minimum of 10 per 1 meter of curtain width.
*Custom-made products on request, except straight curtain rods, we also bend all our curtain sets in any other shape, made absolutely according to your needs and space situation.

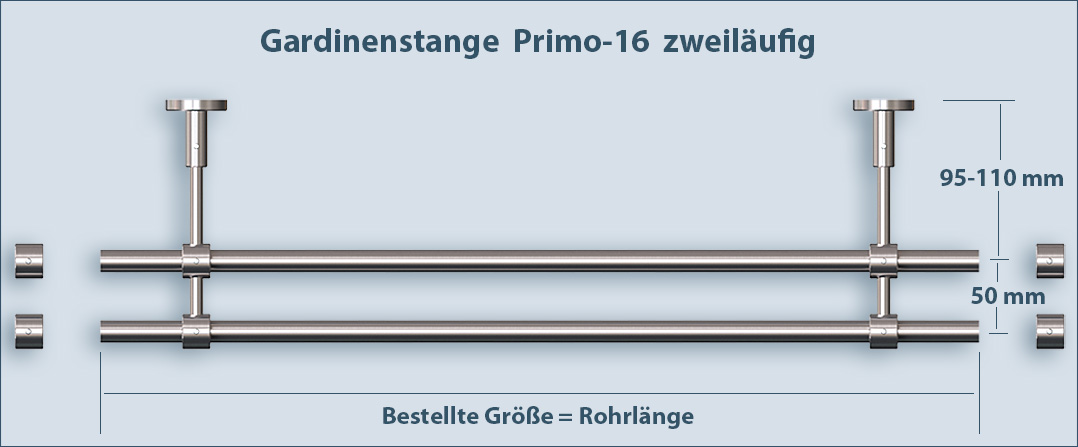

Correctly measure the modern 2-barrel rod Primo-16 made of stainless steel and order the right length.

To order the correct length, please measure the area where the rod is to be fitted and add a few inches to ensure adequate curtain overlap.
The ordered size is the tube length without end pieces.
*If desired, please enter the desired length in cm in the field "cut by:" and we will cut the tube accordingly. Example: If you need a tube of exactly 257cm, please select "Length: 260cm" and enter the number "3cm" in the "Shorten by:" field. Sections are not supplied.
* Parcel service shipping::
The round tubes up to 260cm are always delivered in one piece.
The pipe is divided as follows from a length of 260cm:
Divided in the middle up to 520cm.
Divided into 1/3 + 1/3 + 1/3 from a length of 520 cm.
A connection adapter is included. A support should be attached to the junction.
* Freight forwarding:
The tubes longer than 260cm and up to 400cm are delivered in one piece.
The tubes longer than 520cm and up to 600cm are divided in the middle.
*Curtain rods longer than 400cm and up to 600cm in one piece - price on request.

Two-track holder for curtain rods with 16mm diameter tubes: fastening system for wall mounting

With this wall bracket system, you can easily decorate the floor, then mount the completely decorated curtain rod on the wall. You can place the wall brackets on the rod absolutely freely.
First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with a Spax screw. After that, attach the pole mount (along with the tubes) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the tubes in the rod supports and fix them with support grub screws. You can adjust the length of the holders in the base by approx. 15mm and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is about 60mm (first run). Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.

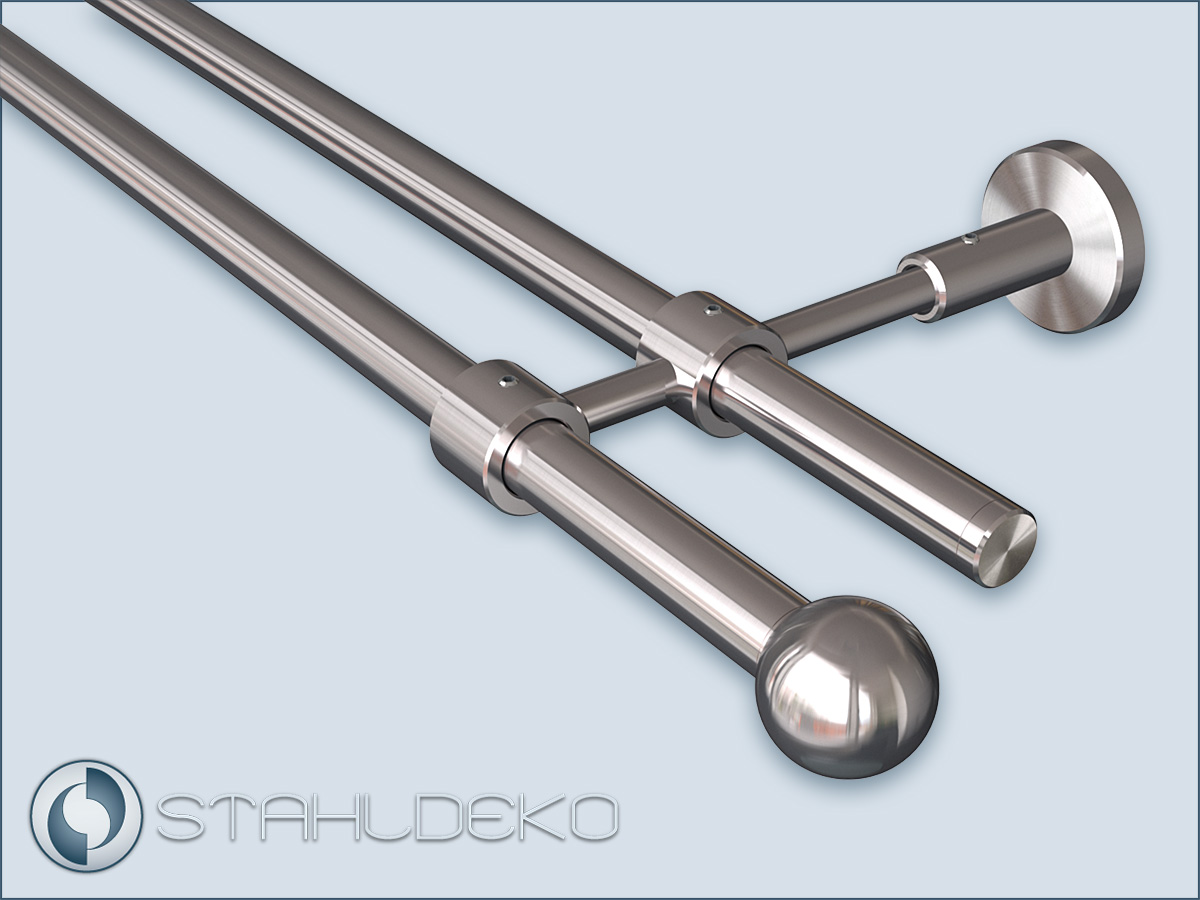

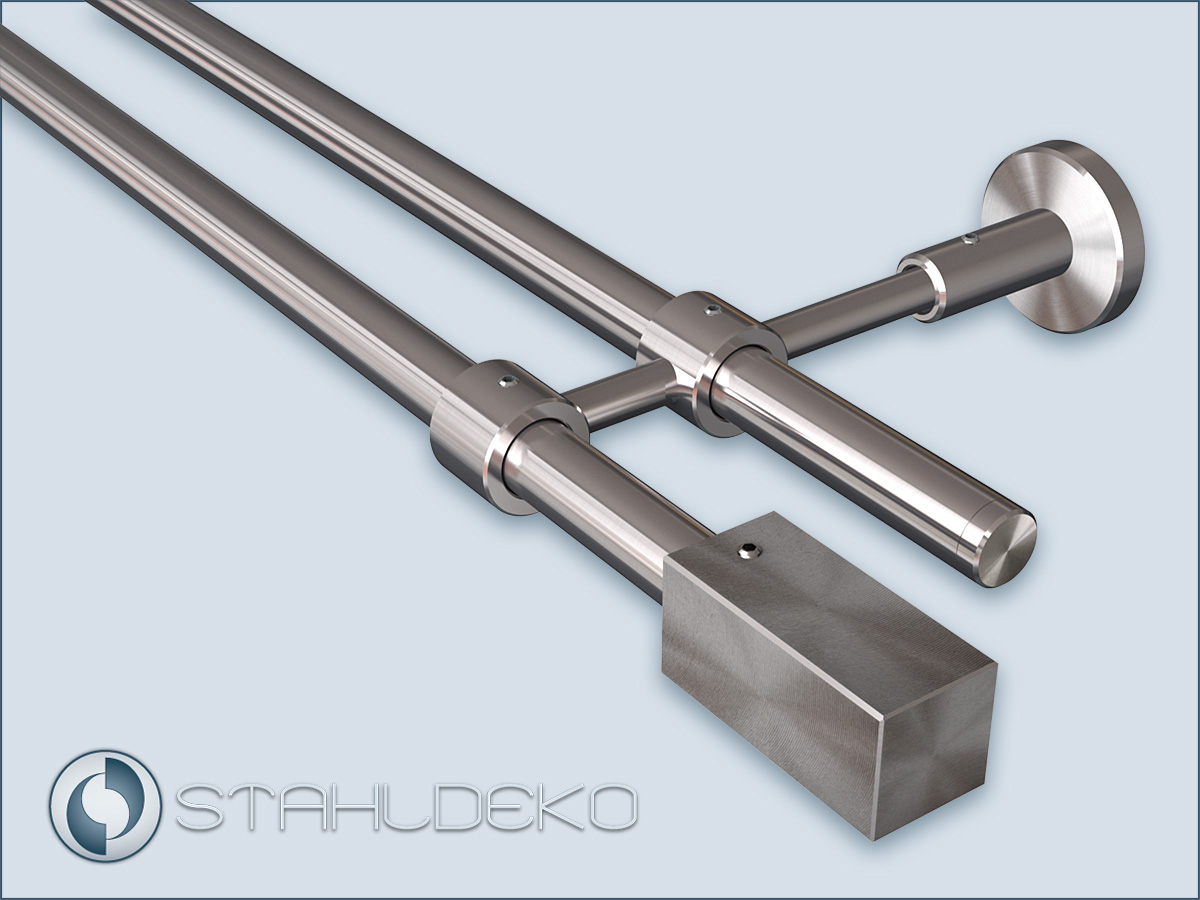

Order the desired stainless steel end pieces for the 2-track curtain rail Primo-16.

We offer various end pieces for our 16mm stainless steel tubes. To select the desired end piece, simply click on the corresponding field. The images show our range of end fittings and end knobs for 16mm diameter stainless steel tubing. Of course, you can also order the version without end pieces, for example to use a joint connector for bay windows or a wall bracket at this point.

Connect tube ends with a joint, for example to put together a bay window curtain rod.

To assemble a bay window curtain rod you can simply connect the tubes with a joint to put the rods together. In this way you can flexibly attach the bars to the walls and create a tailor-made solution for your window.
If you need an L-shape or U-shape curtain rod for your room, or want to make a trapezoidal curtain rod for your bay window, you can use our connecting joints to connect 20mm diameter tubes. These corner joints are inserted into the tube ends so that you can easily and continuously adjust angles between 75° and 285°.
UTo compose an L-shaped curtain rod, order: 1 pc. curtain rod with 4 end pieces + 1 pc. curtain rod without end pieces but with 2 joints.
To compose a U-shaped or a 3-sided trapezoidal curtain rod, order: 2 curtain rods each with 2 end pieces + 1 curtain rod without end pieces but with 4 joint connectors.
Need help configuring? Contact us via email or phone.

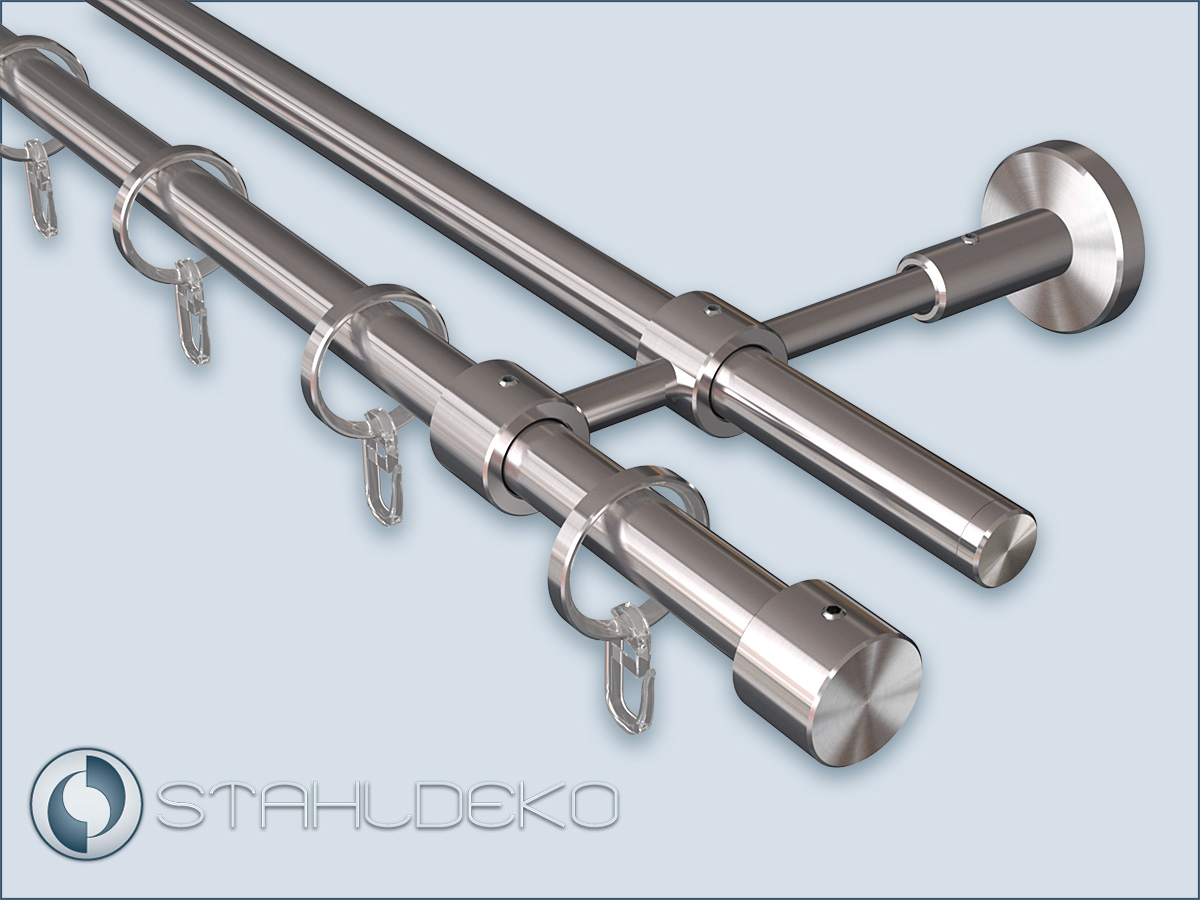

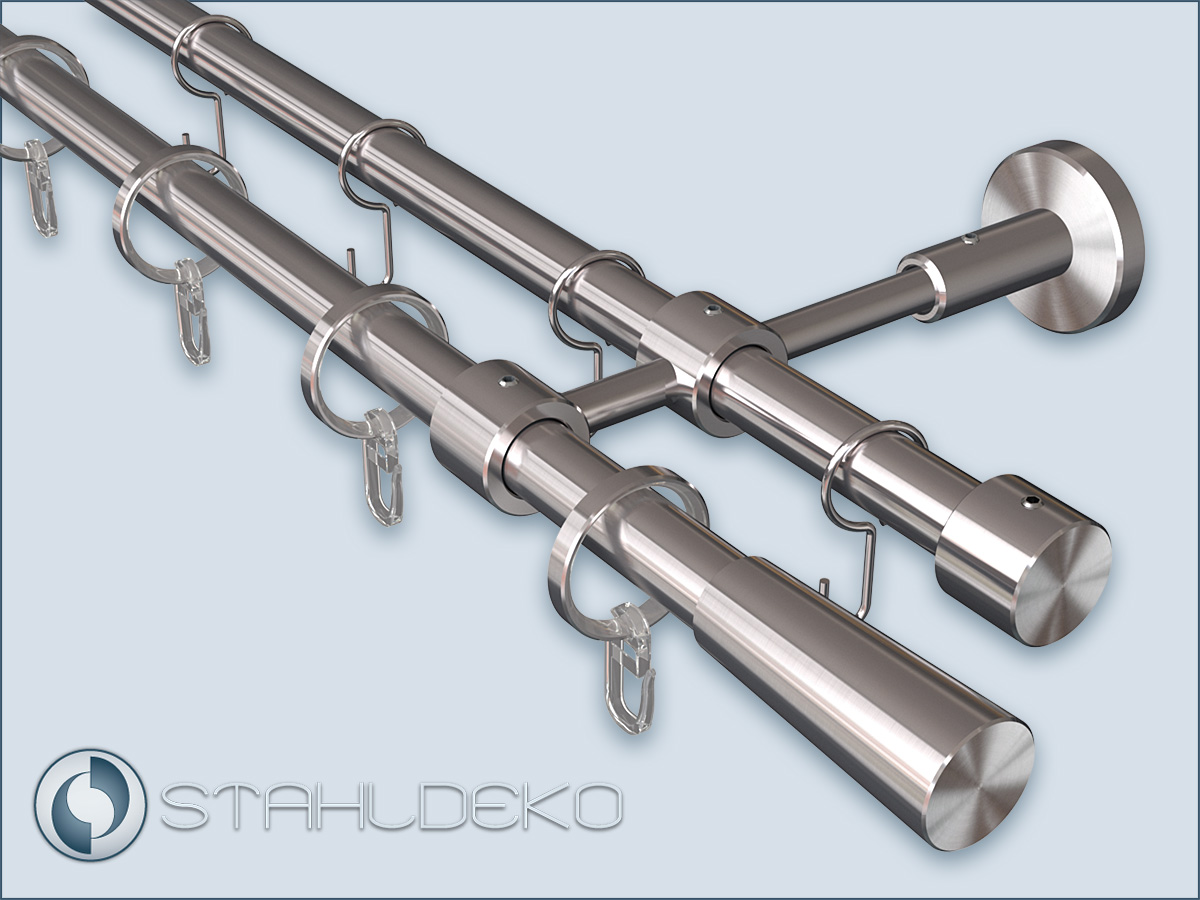

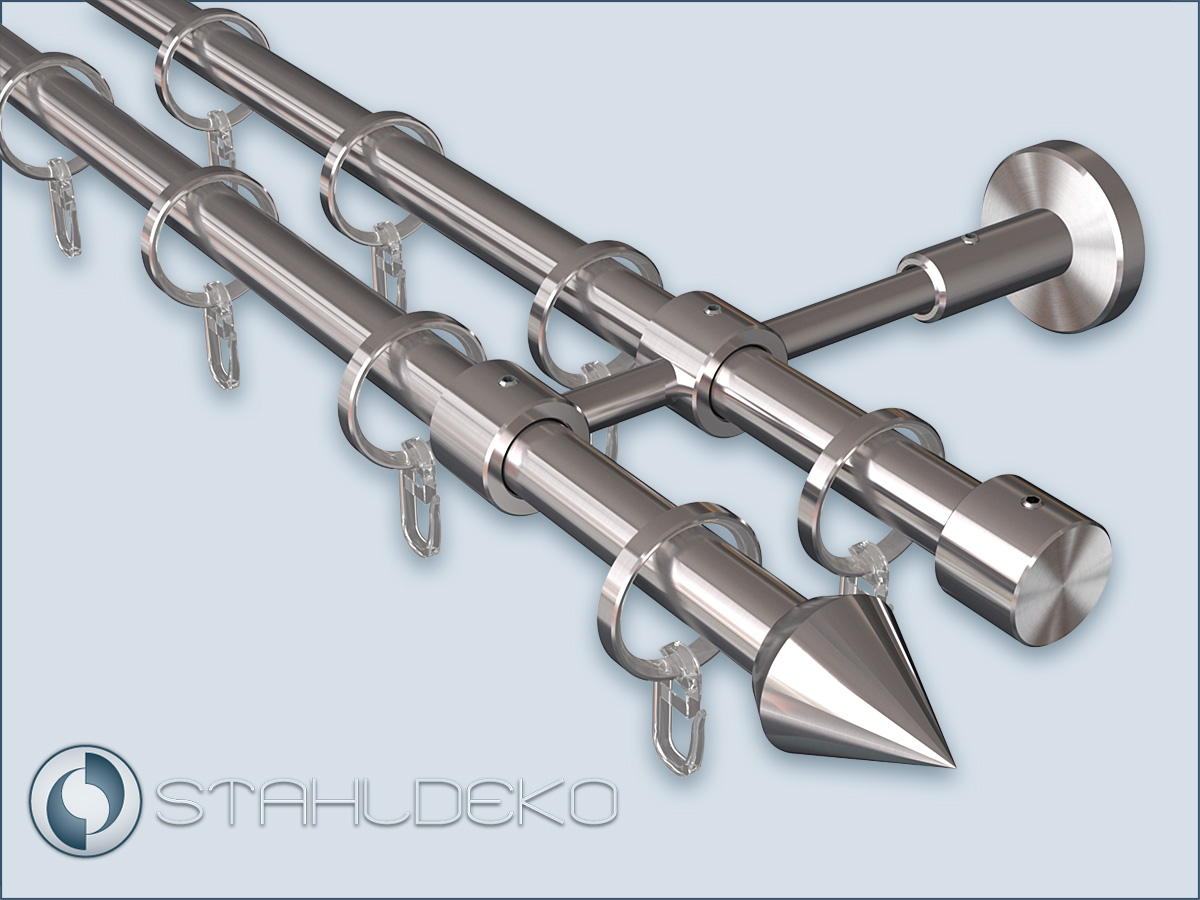

Also order rings made of stainless steel for the double-track curtain rod Primo-16.

You can use our stainless steel rings to attach curtains to a curtain rod with a round tube. These curtain rings are made of stainless steel and have a plastic insert that allows the curtains to slide quietly. All rings are supplied with clip-on hooks (puckering hooks) made of clear plastic. We recommend at least 1 piece ring per 10cm finished curtain.
Please refer to the drawing for the dimensions:
D1 = 30mm
D2 = 37mm
H = 62mm

Order curtain hooks made of steel, nickel-plated, for 16mm curtain sets.

You can use our nickel-plated steel hooks to attach the curtains to the Primo-16 double-track curtain rod.
Please refer to the drawing for the dimensions.

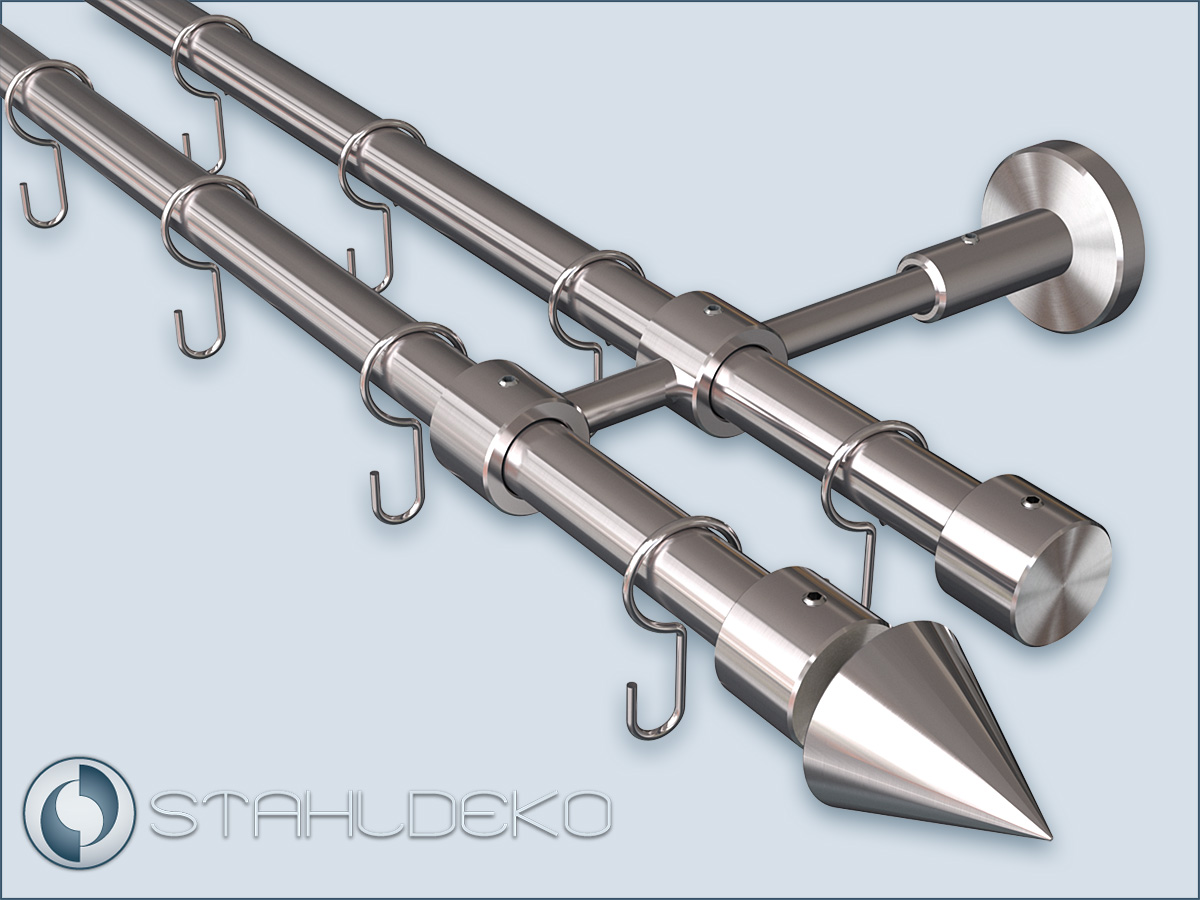

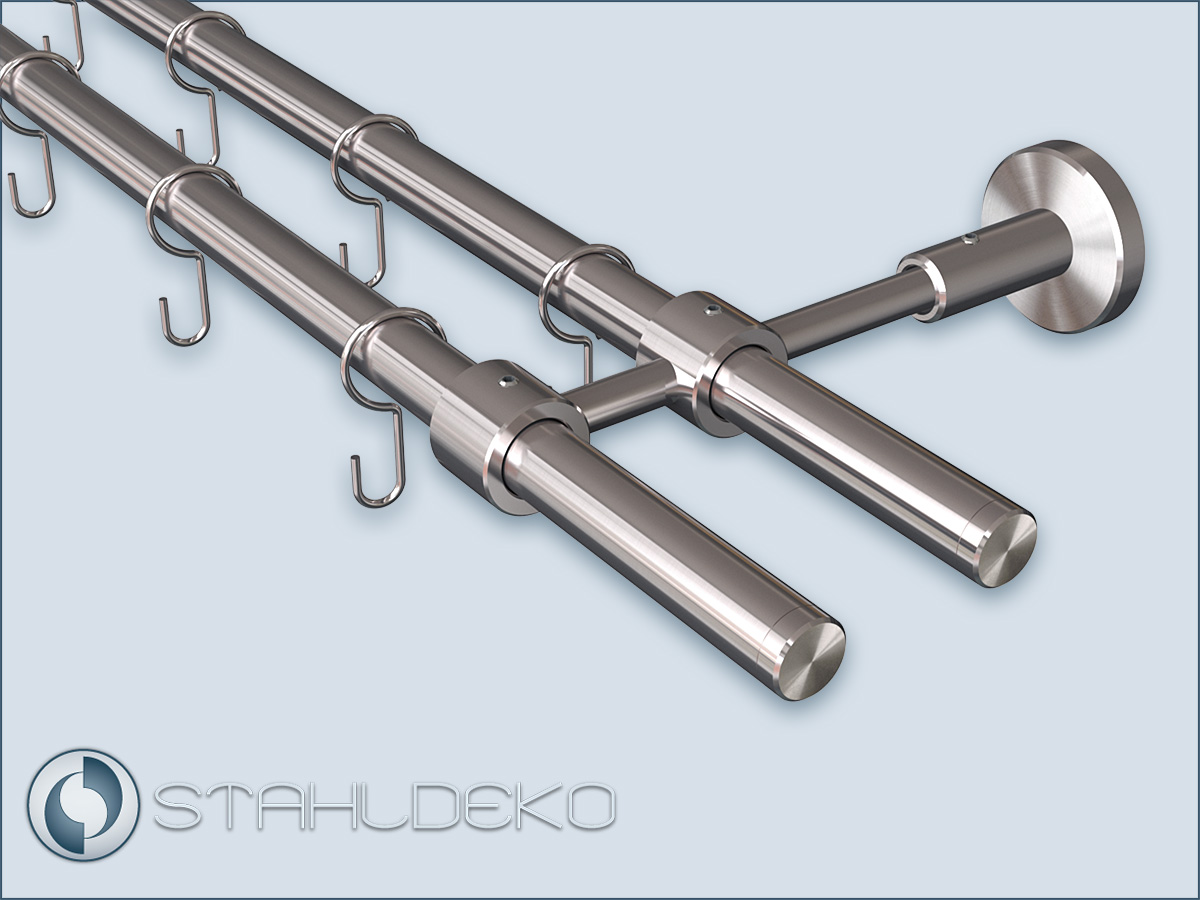

S-shaped curtain hooks made of stainless steel for curtain rods and tubes with a diameter of 16mm.

S-shaped curtain hooks made of V2A stainless steel, extremely robust and durable, but at the same time very smooth-running. The hooks are bent from 3mm stainless steel wire and the ends are stamped. They are suitable for use as curtain hooks indoors and outdoors. Thanks to the clamping system with 15mm opening, they can be easily attached and removed from a 16mm rod.
Please refer to the drawing for the dimensions.

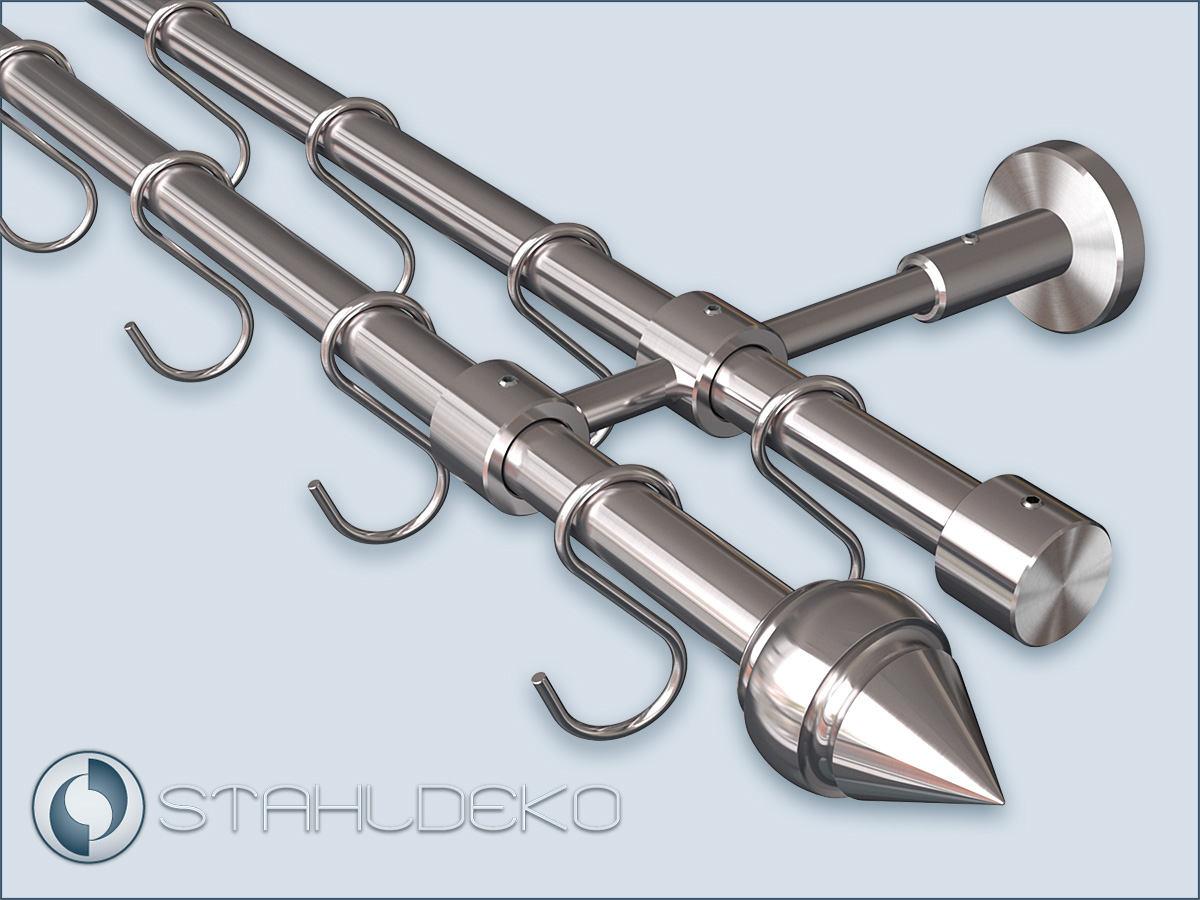

Product Information: Stainless Steel Ring Hook for 16mm Pipes

The V2A stainless steel ring hook is characterized by high stability and smooth mobility. Manufactured from 3mm thick stainless steel wire with precisely stamped ends, it features a closed form that ensures increased security against theft. Suitable for commercial use both indoors and outdoors. Please refer to the attached technical drawing for detailed dimensions.
