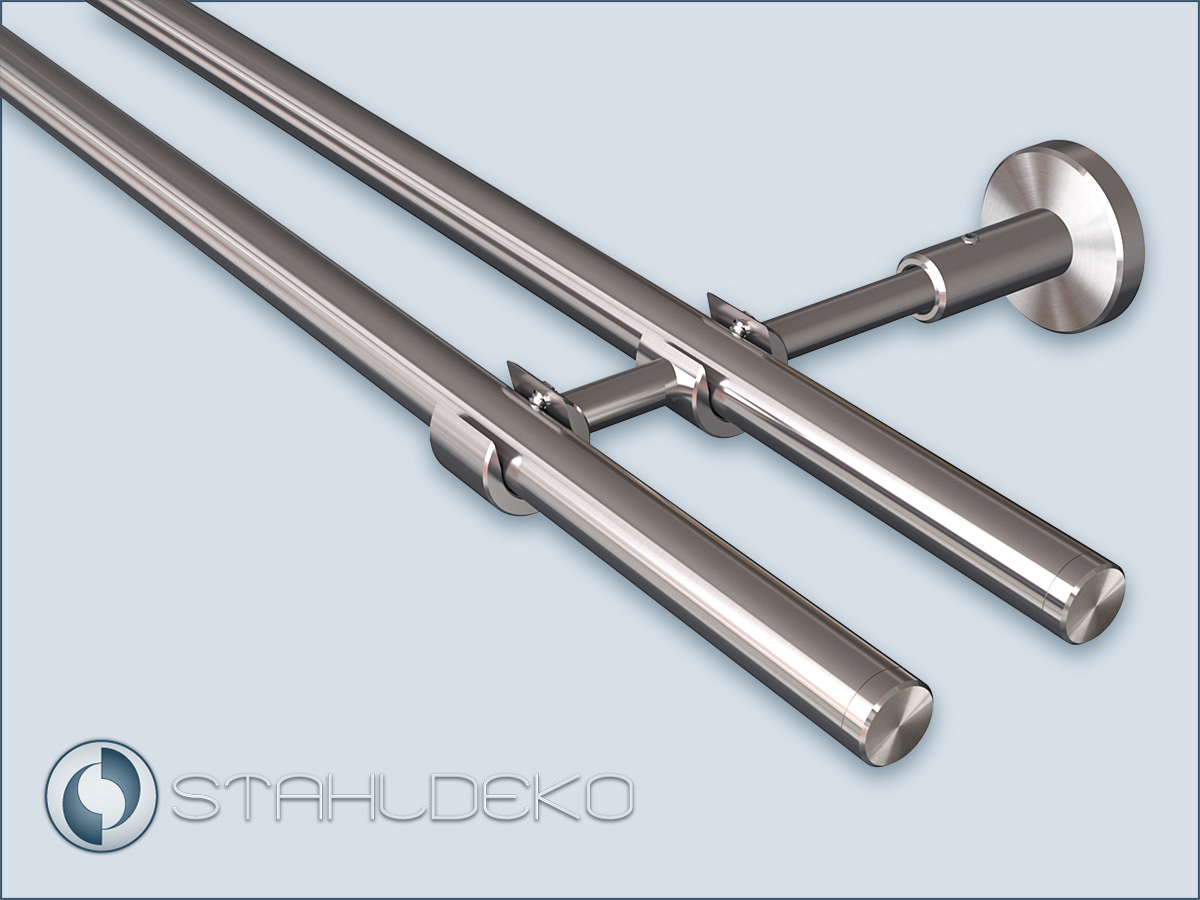

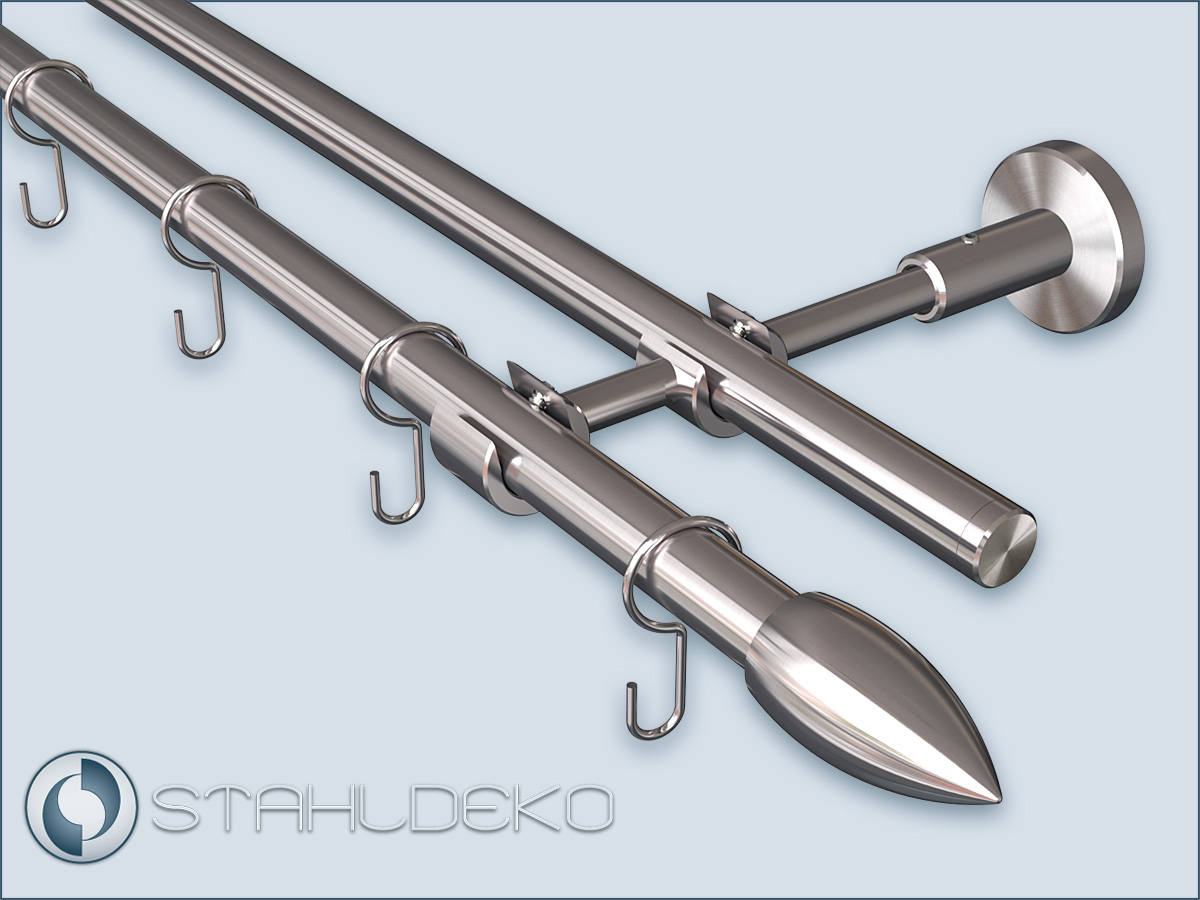

Combine the Top-16 double-barreled stainless steel bar in a modern design as you wish.

Our simple and elegant style set has two rods and is intended for wall mounting. The Top-16 bracket system was specially developed for the convenient attachment of curtain rods and is designed as a double-barreled bracket for 16mm rods. Manufactured from solid stainless steel, the brackets offer not only stability but also a modern and understated look that suits different room styles. The Top-16 two-track solution enjoys great popularity and is ideal for installing curtains in residential and commercial premises. Round tube curtain rods are commonly used with curtain rings, curtain hooks, fabric loops or metal grommets to attach the curtains to the rod. This type of attachment is the most common method of decorating windows.
You are ordering a complete curtain rod, which consists of the following components:
2 pieces of tube with a diameter of 16 mm in a noble and satin-polished look, suitable for the holders and end buttons. Lengths of up to 600 cm are available in one piece on request.
You will also receive 2, 3 or 5 double-barreled Top-16 rod supports with a base disc, made of solid stainless steel DIN WNR 1.4301 with a satin finish. Fastening material is included in the scope of delivery, the number of holders depends on the length of the rod ordered.
You also have the option of ordering 4 finials of your choice or the style set without finials.
We advise you to order the desired number of curtain rings or curtain hooks, with a minimum of 10 per 1 meter of curtain width.
*Custom-made products on request, except straight curtain rods, we also bend all our curtain sets in any other shape, made absolutely according to your needs and space situation.

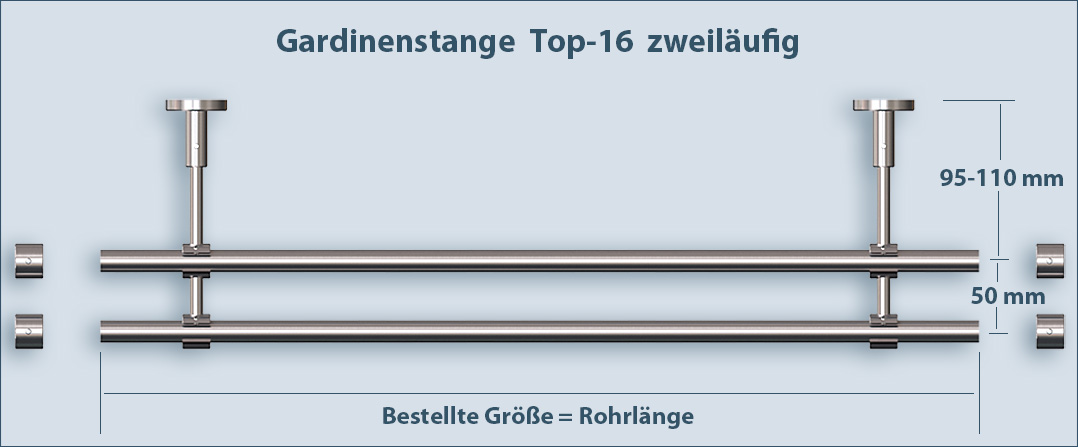

Simple 2-track curtain rod Top-16: Take the right measurements and buy the right tube length.

If you are looking to purchase a Top-16 2-track curtain rod, it is important to properly measure your windows and curtains in order to purchase the appropriate length of rod. It is advisable to measure the width of the window and the desired overlap of the curtains to determine the length of the tube for the curtain rod. Make sure the tube is not too short or too long to ensure a perfect look and stable hanging of your curtains. By correctly measuring your curtain rod and purchasing the correct length of tube, you can ensure that your window decoration looks perfect and stays put.
The ordered size is the tube length without end pieces.
*If desired, please enter the desired length in cm in the field "cut by:" and we will cut the tube accordingly. Example: If you need a tube of exactly 230cm, please select "Length: 240cm" and enter the number "10cm" in the "Shorten by:" field. Sections are not supplied.
* Parcel service shipping::
The round tubes up to 260cm are always delivered in one piece.
The pipe is divided as follows from a length of more than 260cm:
Divided in the middle up to 520cm.
Divided into 1/3 + 1/3 + 1/3 from a length of 520 cm.
A connection adapter is included. A support should be attached to the junction.
* Freight forwarding:
The tubes longer than 260cm and up to 400cm are delivered in one piece.
The tubes longer than 520cm and up to 600cm are divided in the middle.
*Curtain rods longer than 400cm and up to 600cm in one piece - price on request.

Bracket Top-16mm two-track for wall mounting: use, mounting system, assembly instructions

You can position the wall brackets for the curtain rod absolutely freely. First mount the bases on the wall. The bases can be fastened either with a screw-on plate or directly with a spax screw. Then slide the carrier foot into the base and tighten the grub screw on the bases, but not too tight. You can also place the Top wall bracket with the openings facing down. Even in this position, the tubes or aluminum profiles are held firmly with the grub screws. Insert the aluminum inner running profiles or round stainless steel tubes into the carrier openings and fix them with the carrier grub screws. You can adjust the length of the rod mount in the base by approximately 1.5 cm to change the distance between the rods and the wall. If you want a smaller distance from the pole to the wall, you can shorten the support foot with a hacksaw. The minimum possible distance is about 60 mm. Of course it is also possible to extend the rod carrier (optional). We also offer a 50 mm standard extension for the top bracket system. You simply screw the extension to the carrier foot with a set screw. We can also make special lengths of extensions - just ask.

Also order the desired stainless steel ends for the double-barreled style set Top-16.

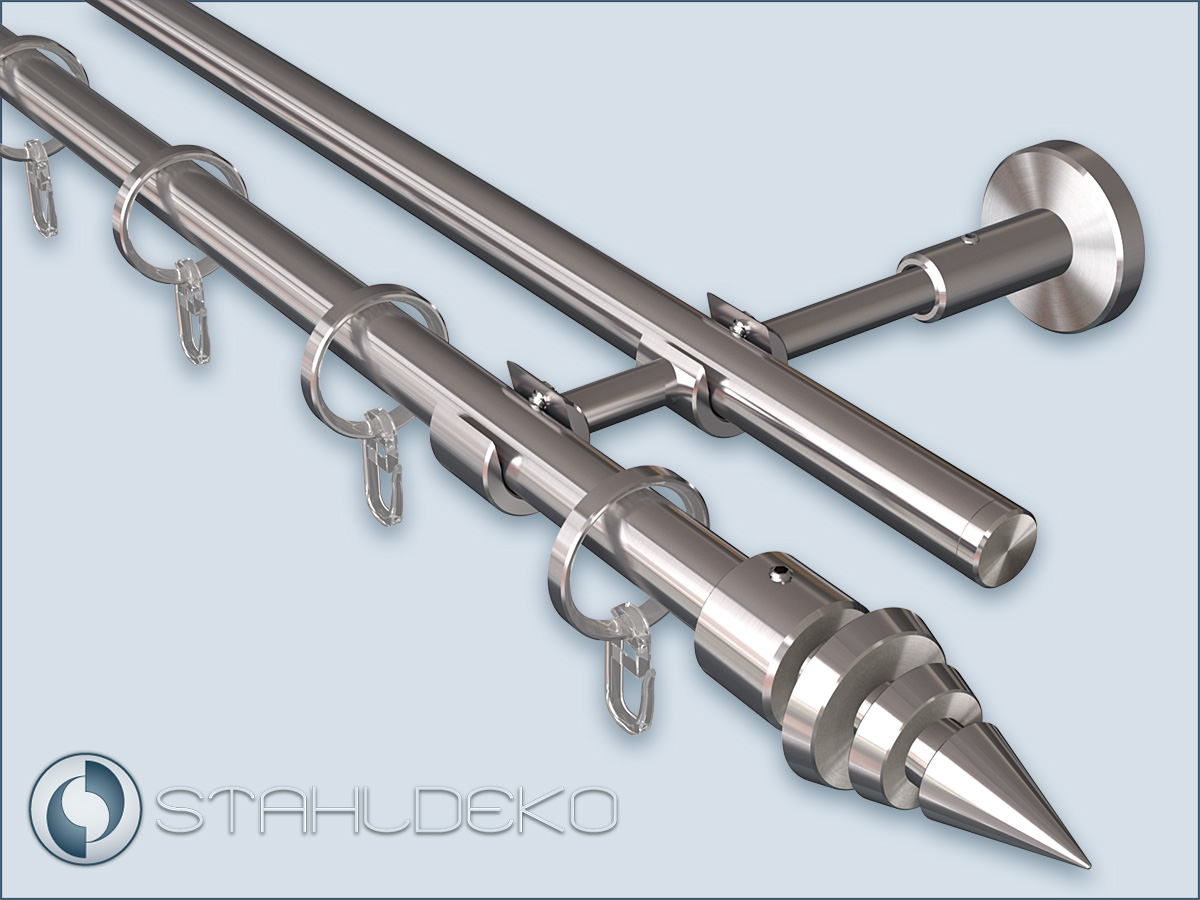

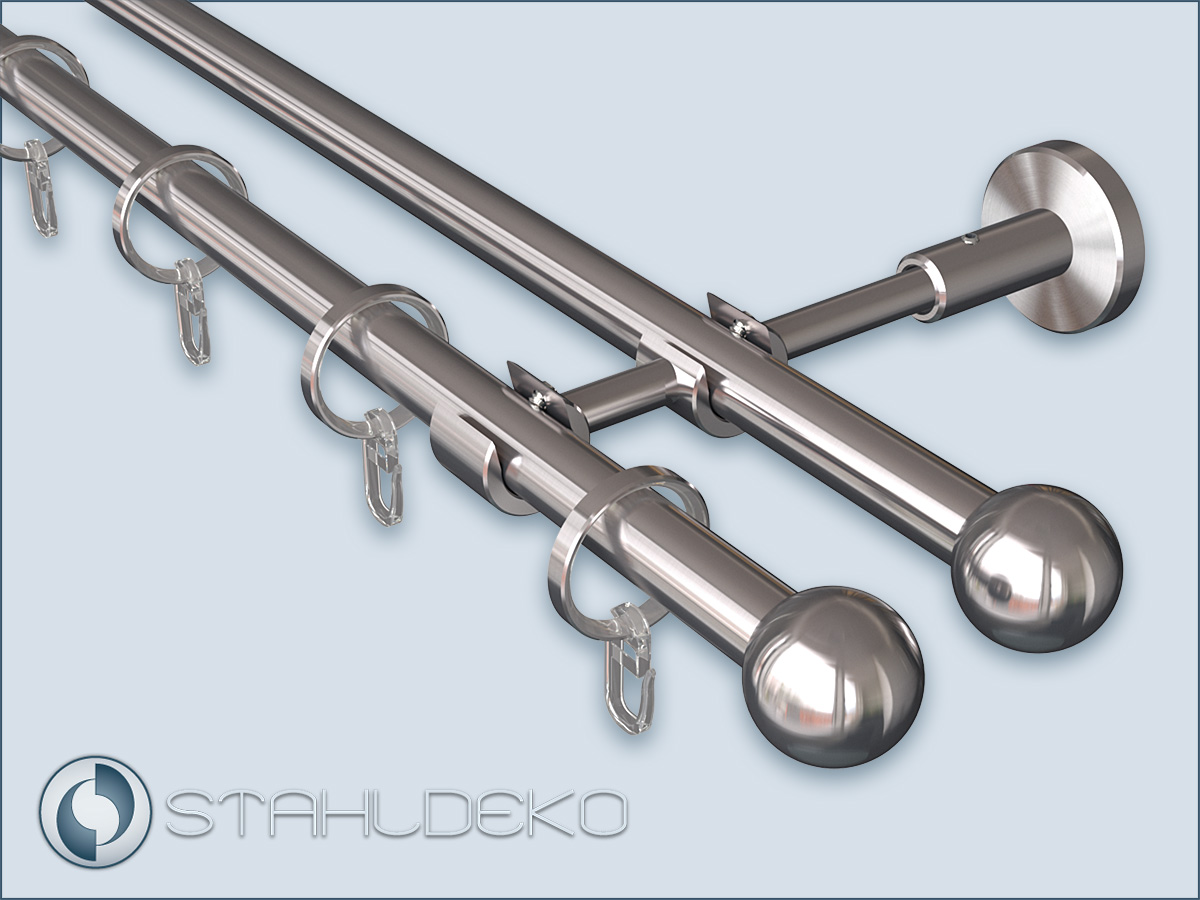

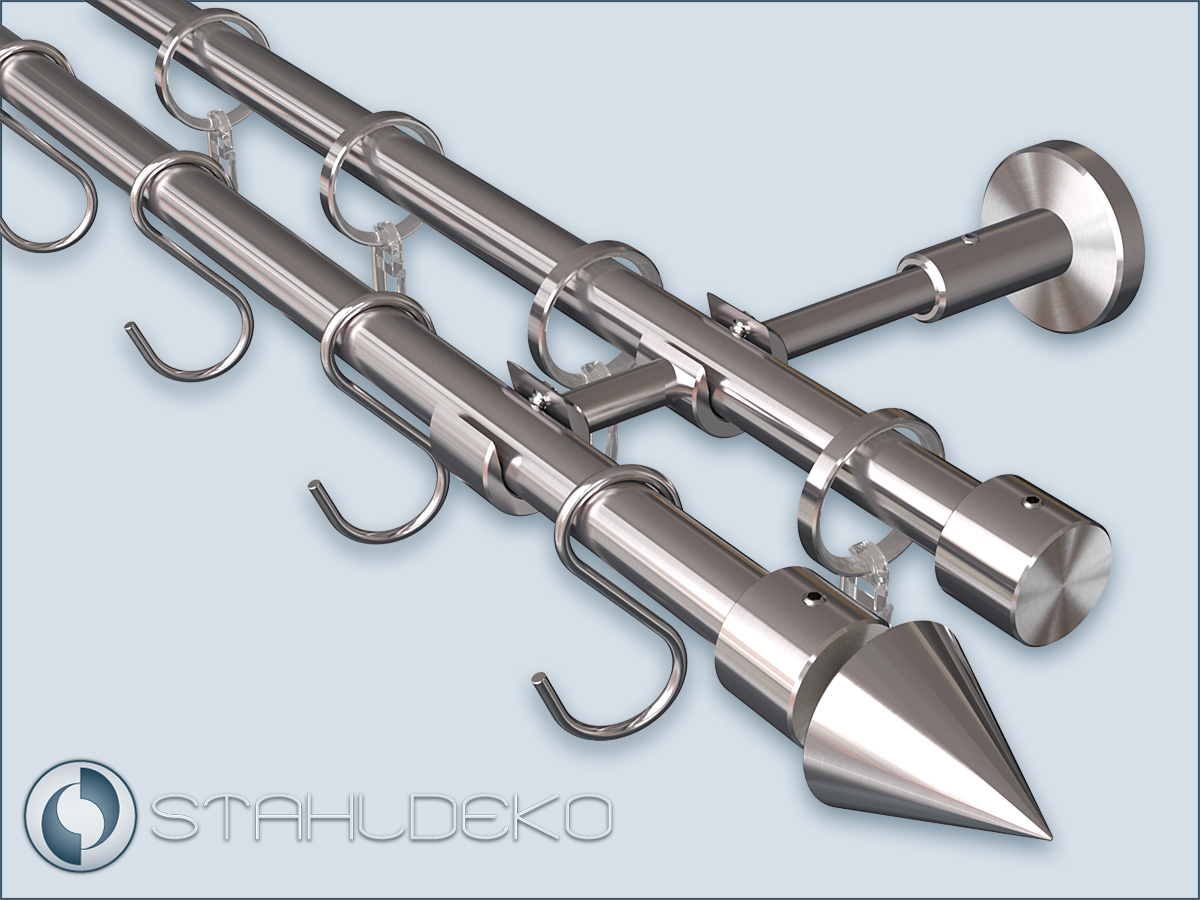

We offer various end pieces for our 16mm diameter stainless steel tubes. To select the right end piece, simply click on the corresponding field. The images show our range of end fittings and end knobs for stainless steel tubing. You also have the option of ordering the rods without end pieces, for example to use a joint connector for a bay window or a wall bearing at this point.

To create an angled curtain rod, you can connect tubes with bay window joints.

To assemble a bay window curtain rod you can simply connect the tubes with a joint to put the rods together. In this way you can flexibly attach the bars to the walls and create a tailor-made solution for your window.
If you need an L-shape or U-shape curtain rod for your room, or want to make a trapezoidal curtain rod for your bay window, you can use our connecting joints to connect 20mm diameter tubes. These corner joints are inserted into the pipe ends so that you can easily and continuously adjust angles between 75° and 285°.
To compose an L-shaped curtain rod, order: 1 pc. curtain rod with 4 end pieces + 1 pc. curtain rod without end pieces but with 2 joints.
To compose a U-shaped or a 3-sided trapezoidal curtain rod, order: 2 curtain rods each with 2 end pieces + 1 curtain rod without end pieces but with 4 joint connectors.
Need help configuring? Contact us via email or phone.

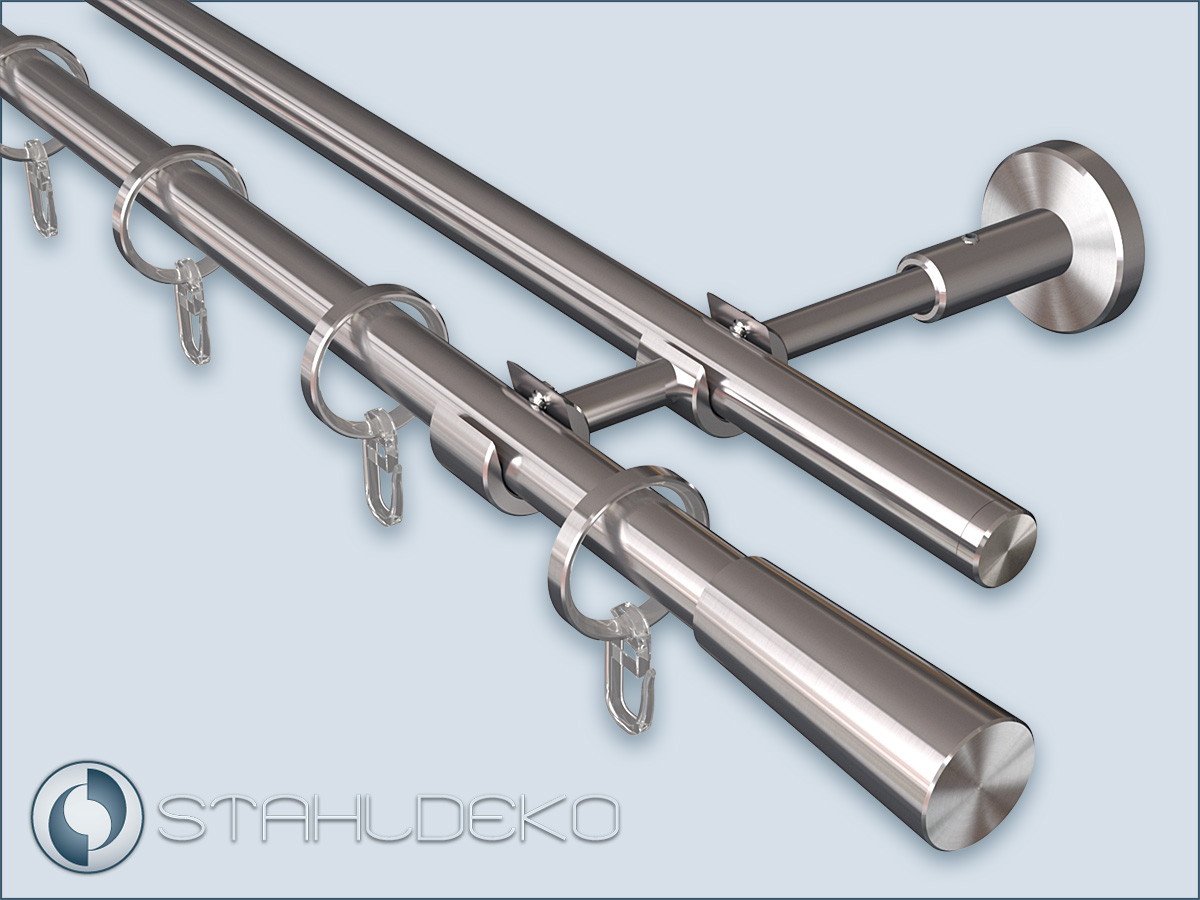

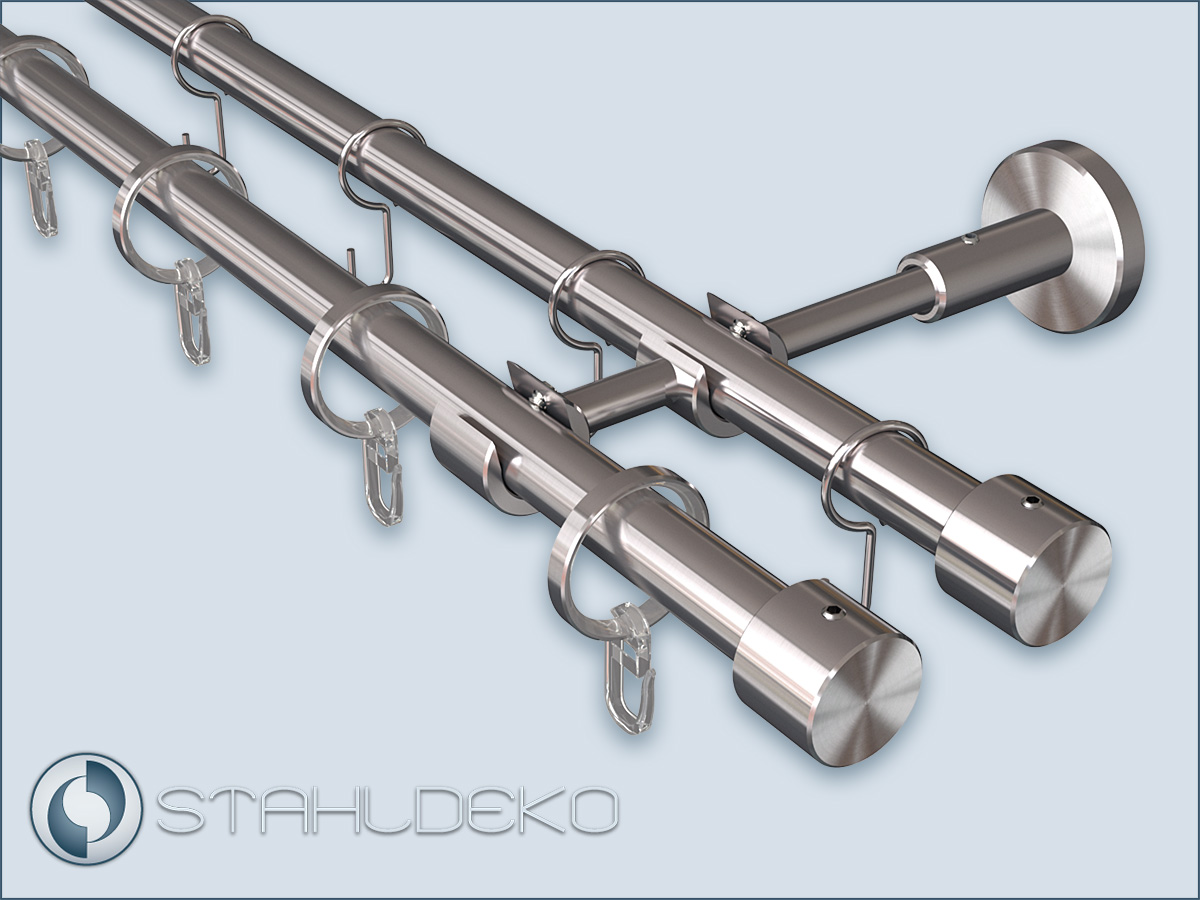

Also order stainless steel rings for the Top-16 double-track curtain rod.

We offer stainless steel rings for attaching curtains to a round tube curtain rod. These curtain rings are made of high-quality stainless steel and are equipped with a plastic insert that allows the curtains to slide silently. All rings are supplied with clip-on hooks (puckering hooks) made of clear plastic. We recommend using at least one ring per 10cm of finished curtain.
Please refer to the drawing for the dimensions:
D1 = 30mm
D2 = 37mm
H = 62mm

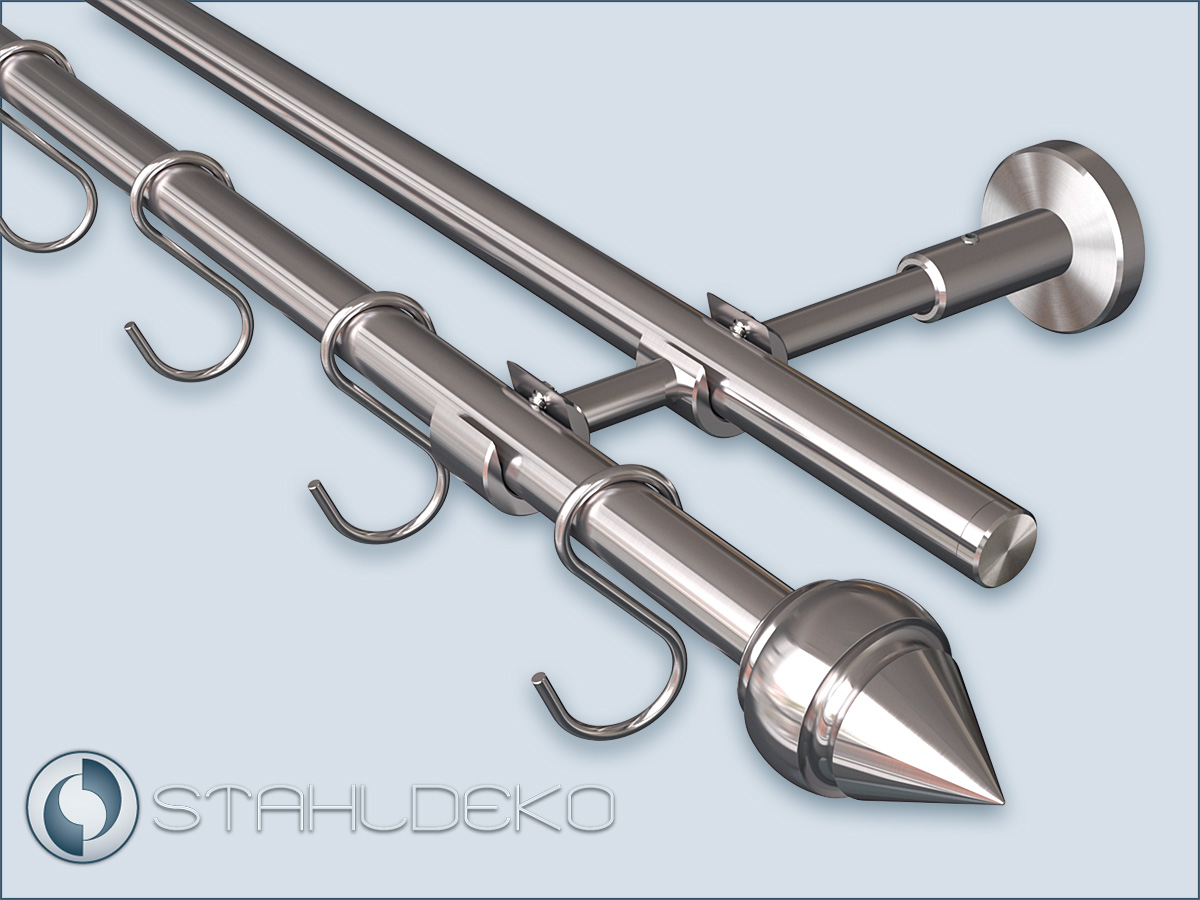

Order curtain hooks made of steel, nickel-plated, for 16mm curtain sets.

You can use our nickel-plated steel hooks to attach the curtains to the Top-16 double-track curtain rod.
Please refer to the drawing for the dimensions.

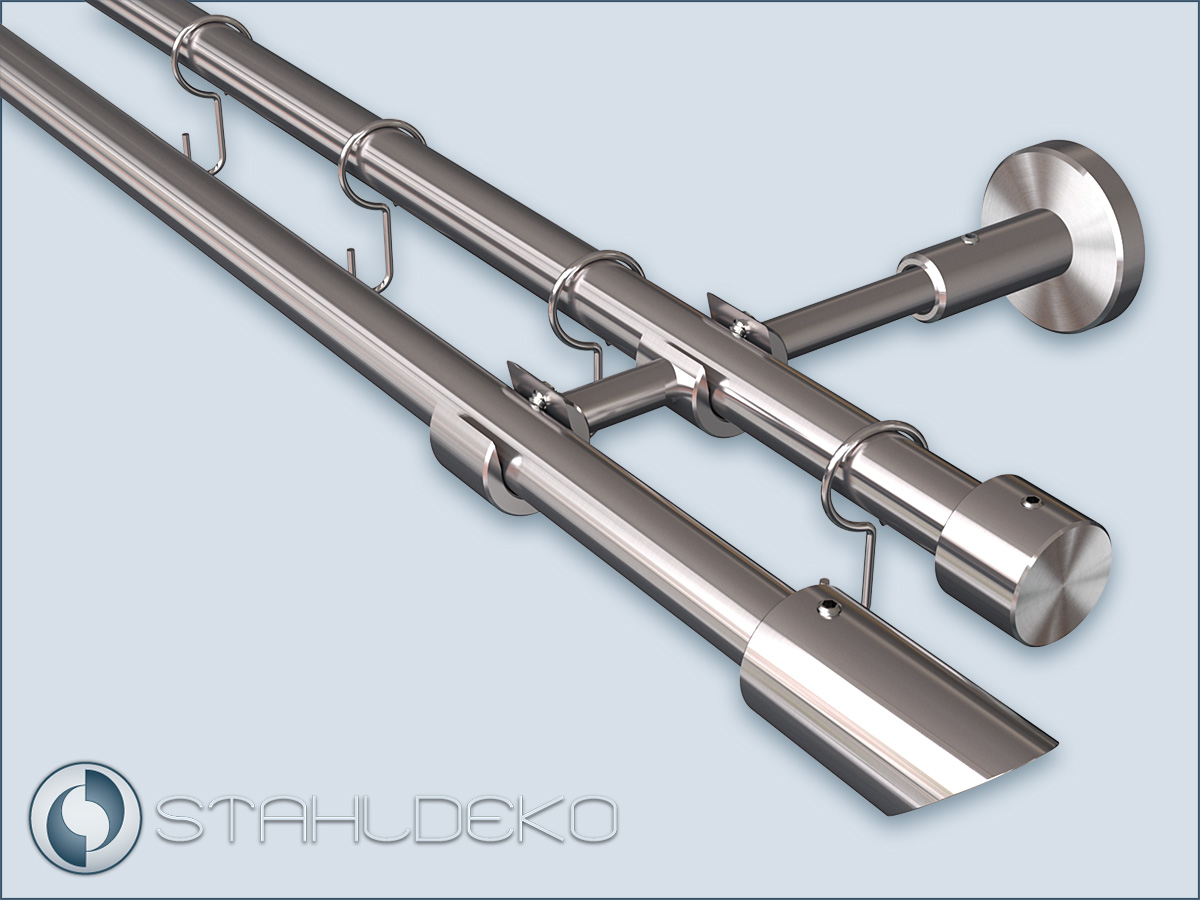

Curtain hook S-shape made of stainless steel for curtain rods and tubes with a diameter of 16mm.

Our S-shaped curtain hooks made of V2A stainless steel are extremely robust and durable, but very smooth-running. The hooks are bent from 3mm stainless steel wire and stamped at the ends. They can be used both indoors and outdoors. Thanks to the clamping system with a 15mm opening, they can be easily attached to and removed from a 16mm rod.
The exact dimensions can be found in the drawing.

Product Information: Stainless Steel Ring Hook for 16mm Pipes

The V2A stainless steel ring hook is characterized by high stability and smooth mobility. Manufactured from 3mm thick stainless steel wire with precisely stamped ends, it features a closed form that ensures increased security against theft. Suitable for commercial use both indoors and outdoors. Please refer to the attached technical drawing for detailed dimensions.
