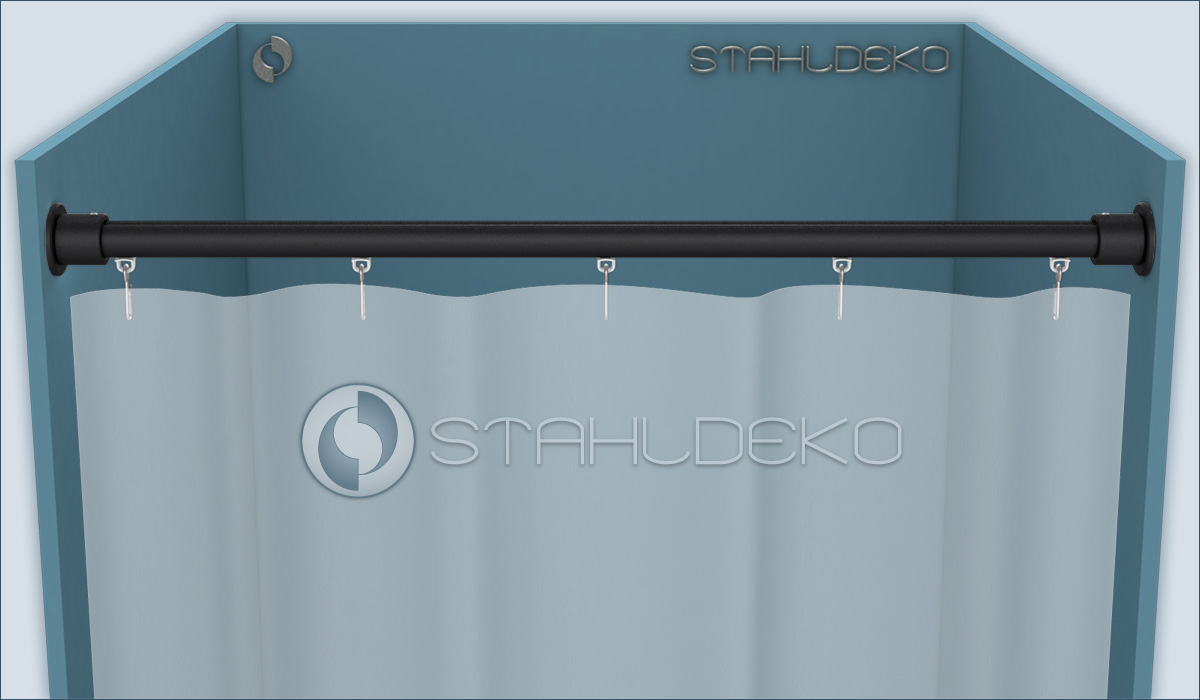

Straight interior shower curtain rail with aluminum profile Ø 20mm.
You can use our straight shower curtain rods for a shower tray, bathtub or a floor-level shower area in the bathroom. An advantage of the rails with an inner profile is the possibility to move the shower curtain absolutely freely along the entire length of the shower rail. If you choose the version with ceiling attachment, the ceiling brackets are installed in the upper run (fixing run) of the inner run profile and always keep the lower run (glider run) free, thus guaranteeing an all-round trouble-free path for the shower curtain. Our straight shower rods are therefore ideally suited to set up a barrier-free shower area in the bathroom.

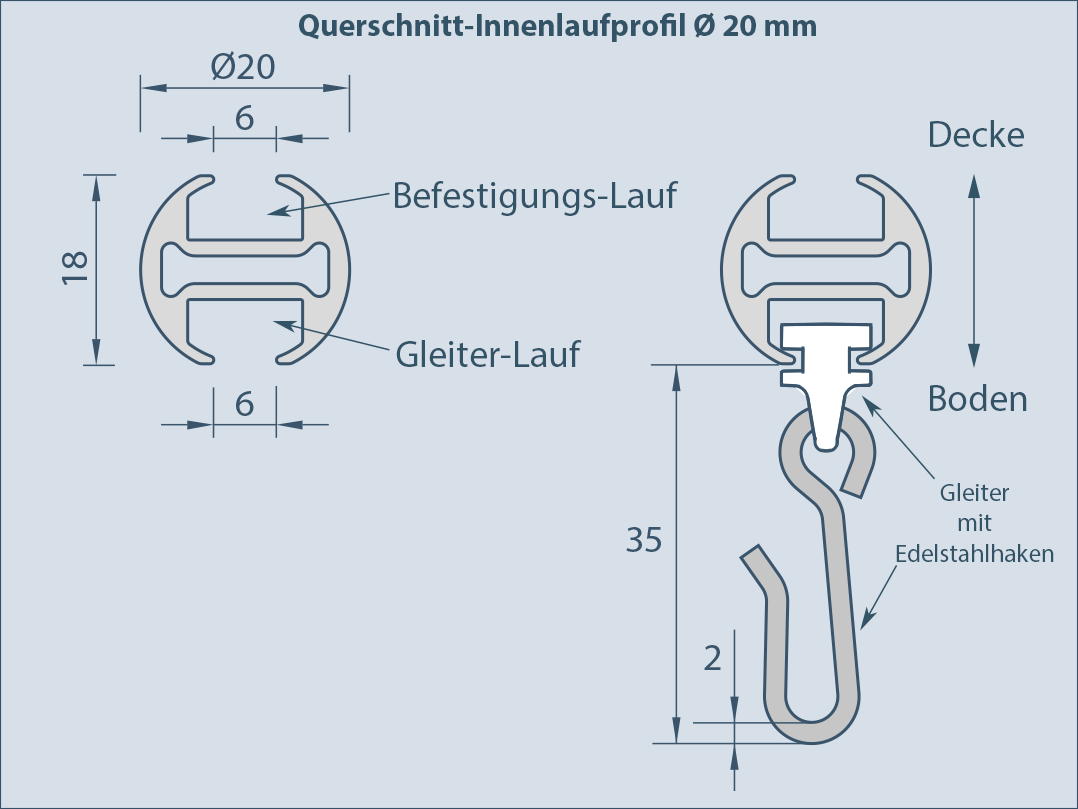

Complete curtain rod, with inner rail profile Ø 20mm made of aluminium, the anodized surface in stainless steel look, black or white powder-coated absolutely matches our brackets and end pieces, slider rail width 6mm. The rod is always made in one piece, all-round trouble-free travel of the shower curtain is guaranteed, including curtain gliders with stainless steel hooks.
*Custom-made products on request, we can make our poles in any other shape, absolutely curved according to your needs and space situation.

Order the right size and design of shower curtain rod.
The ordered size is always the total length of all parts of the shower rod, or when installing between two walls is a clear dimension. You can order the bar up to 260cm in length.
Important for cuts!The pole is manufactured and delivered in one piece, but the pole ends can always be shortened. So it is always possible to realize the right size. We can do the shortening for you or you can shorten the rod yourself during assembly. If you want us to shorten the shower rod, please enter the desired dimensions in the field "exact distance from wall to wall, or total length (cm)" (Sections are not included!).
For example, you have a distance of 162cm from the wall, you order the size 180cm and enter the following in the field: "Distance from the wall is 162cm", then we will cut the shower curtain rod to fit before delivery.

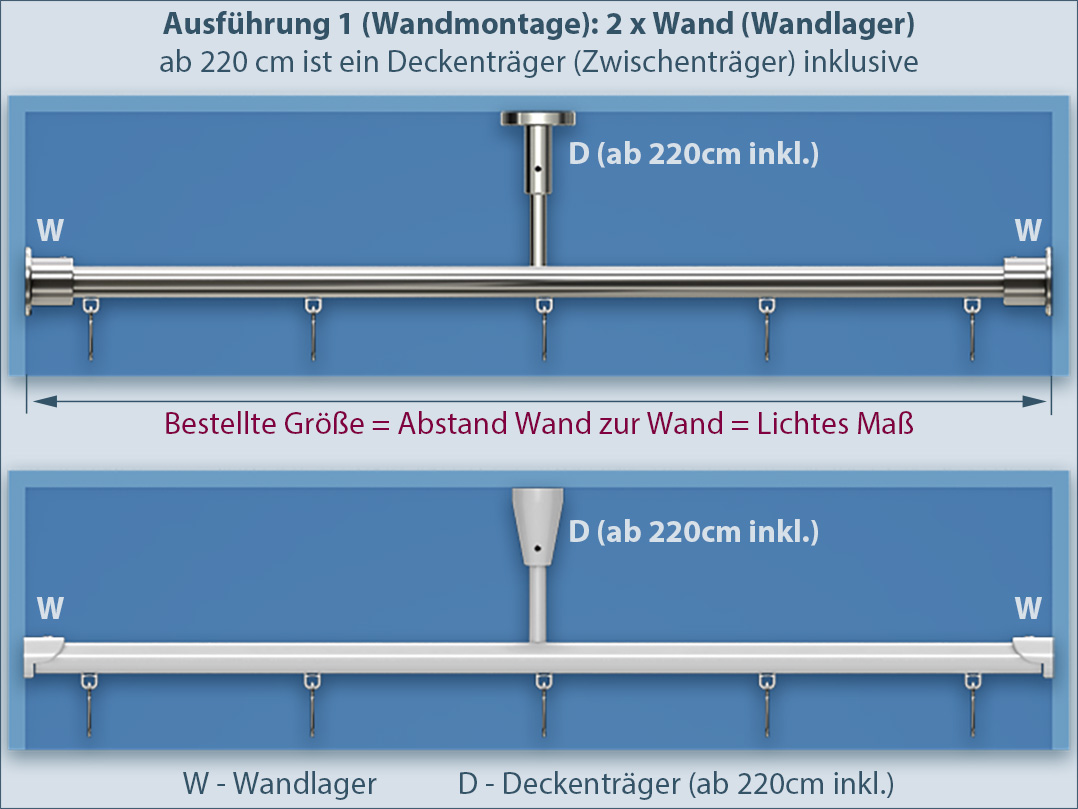

Version 1 (wall mounting): 2 x wall mounting (wall bracket) and if you order the sizes 220 or 260 cm, 1 x ceiling mounting (ceiling support) is also included as an intermediate support.

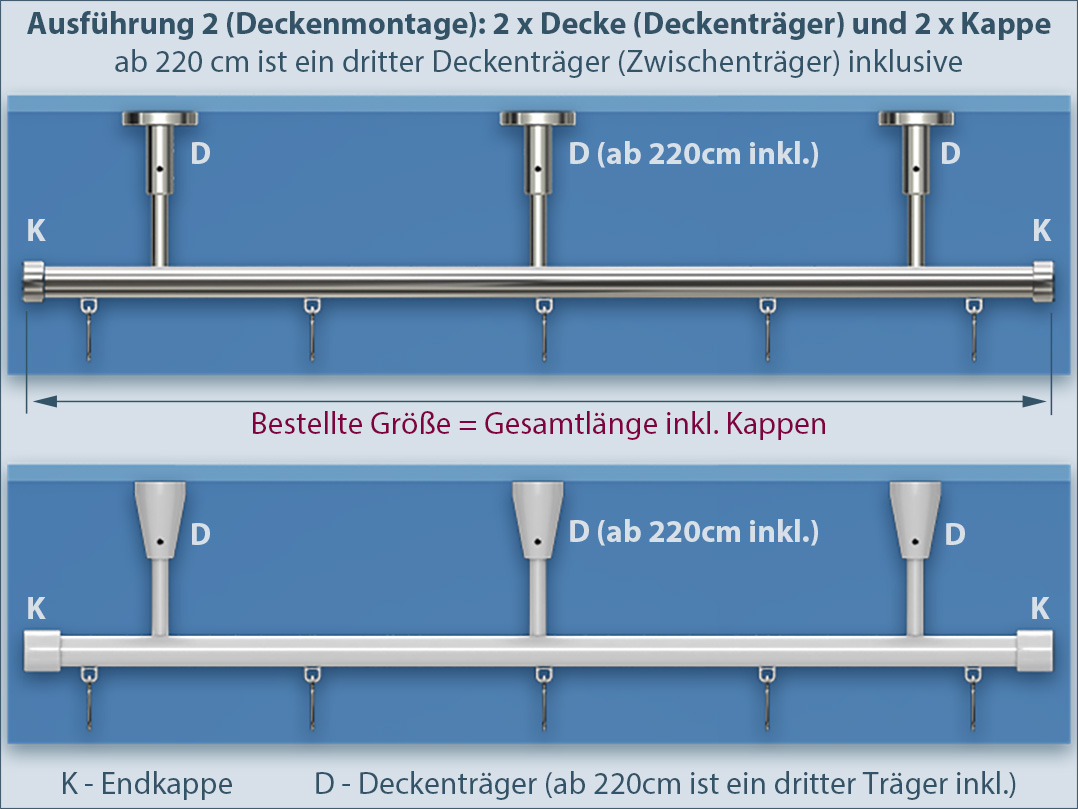

Version 2 (ceiling mounting only): 2 x ceiling mounting (ceiling support) and 2 x end caps (for rod ends) and if you order the sizes 220 or 260 cm, a third ceiling mounting (ceiling support) is also included as an intermediate support.

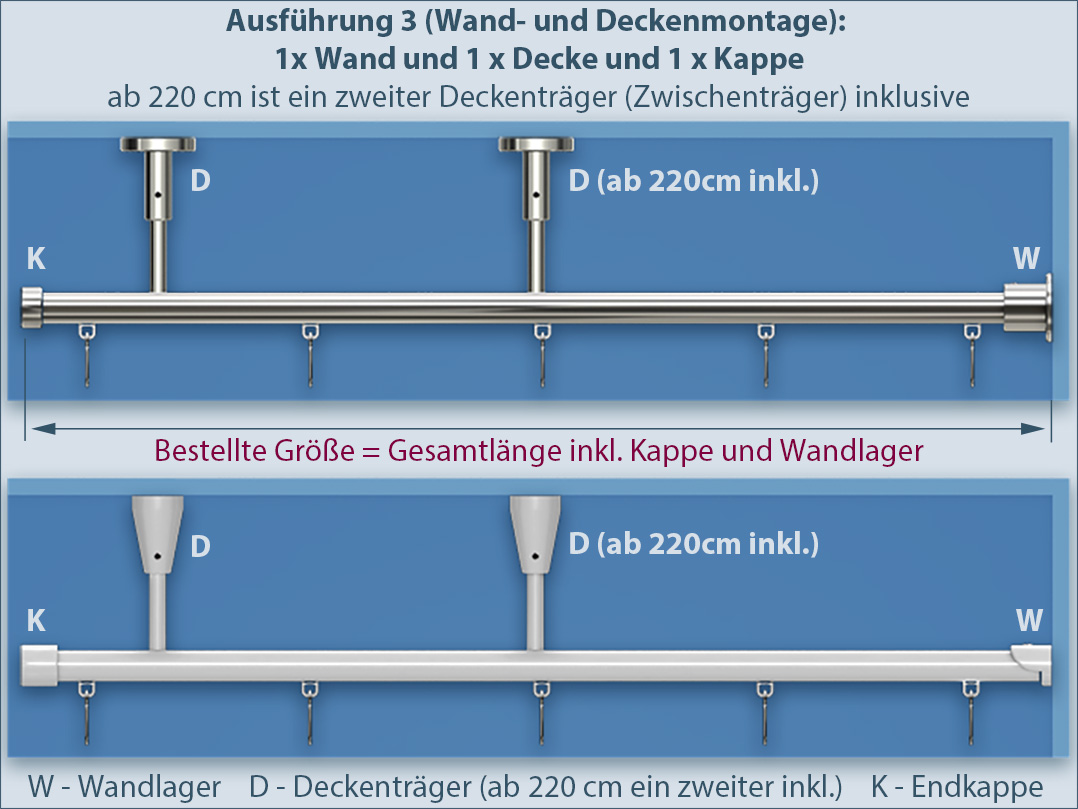

Version 3 (wall and ceiling mounting): 1 x wall mounting (wall bracket) and 1 x ceiling mounting (ceiling support) and 1 x end cap (for rod end), if you order the sizes 220 or 260 cm, a second ceiling mounting (ceiling support) is also included as an intermediate support .

Shower curtain rod colors.
Our shower curtain rods are made from an aluminum inner profile Ø 20mm. You can choose the following surfaces: stainless steel look, glossy white, matt black and glossy black. The accessories - the ceiling brackets, the wall brackets and the end caps can, of course, be ordered in suitable materials such as stainless steel V2A, aluminum white gloss or aluminum black satin finish. Of course it is also possible to combine the colors, e.g. B: Stainless Steel/White, Black/White or Stainless Steel/Black

Material stainless steel V2A: Wall brackets, end caps and ceiling supports made of stainless steel.
Straight shower rail with inner rail profile Ø 20mm made of aluminium, anodised in stainless steel look, is absolutely suitable for our brackets and end pieces made of stainless steel V2A.

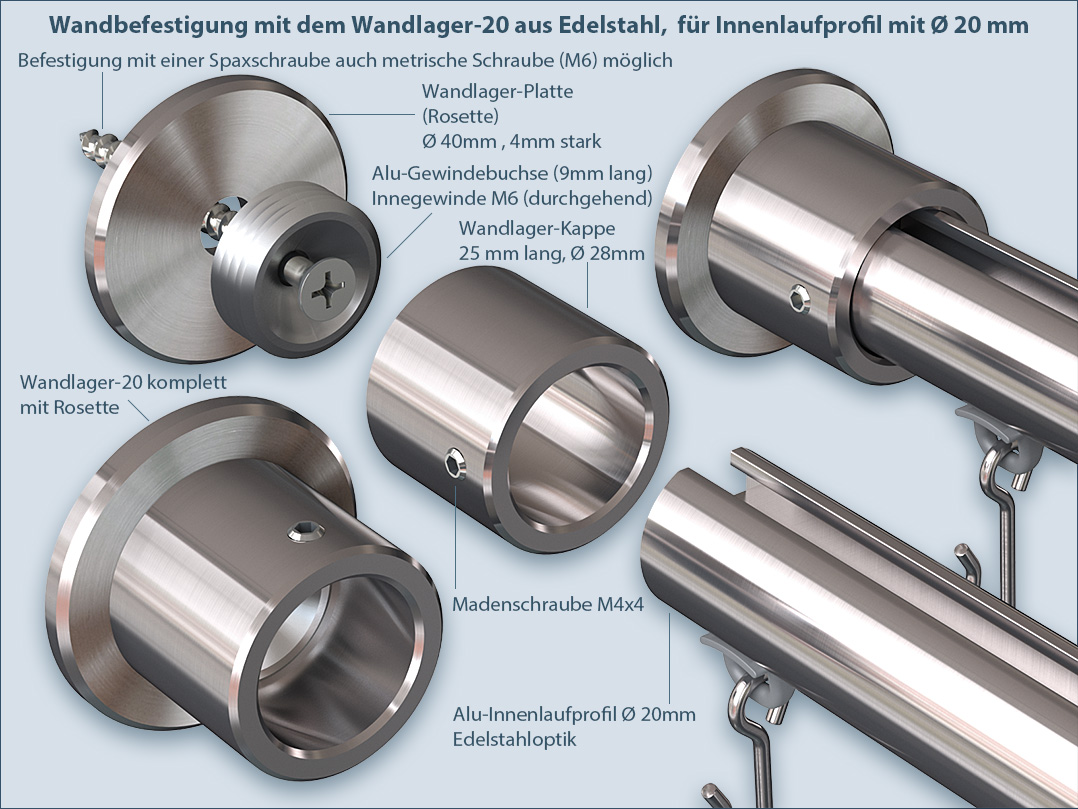

Wall mounting with wall bracket made of stainless steel V2A:

First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

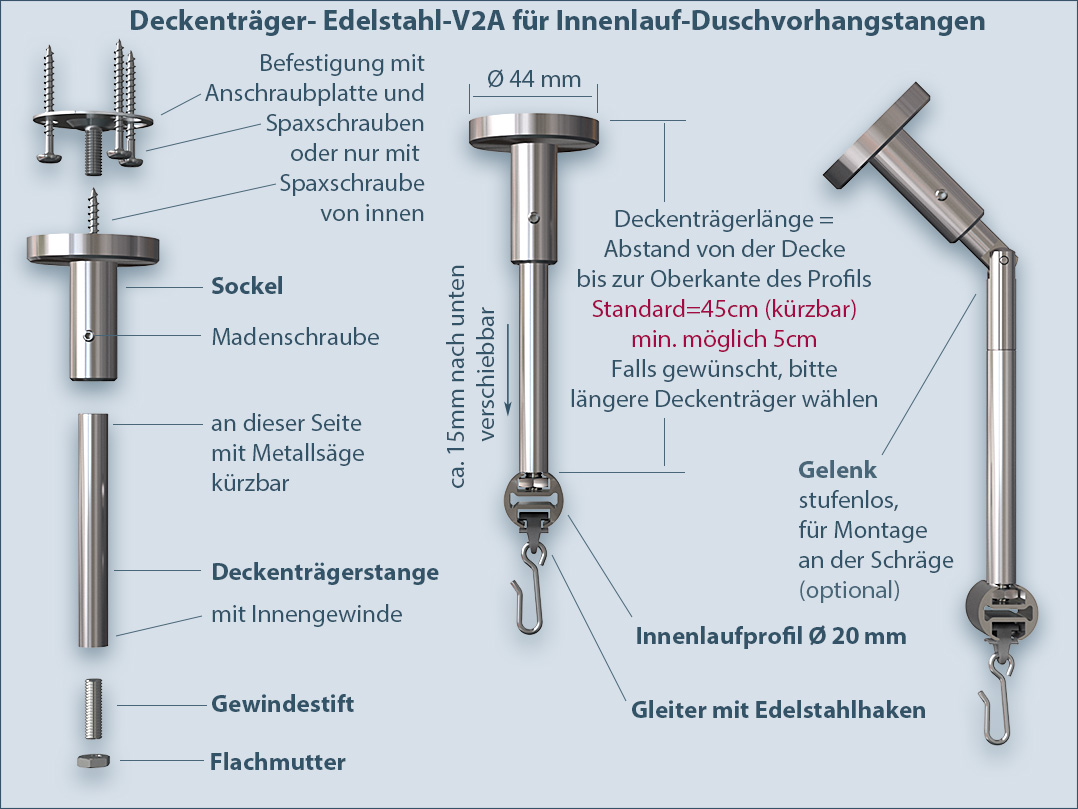

Ceiling mounting with the ceiling bracket made of stainless steel V2A:

You can place the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base using a screw-on plate or screw it on directly with a spax screw. Then slide the flat nut attached to the threaded pin into the fastening run of the aluminum profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the base. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

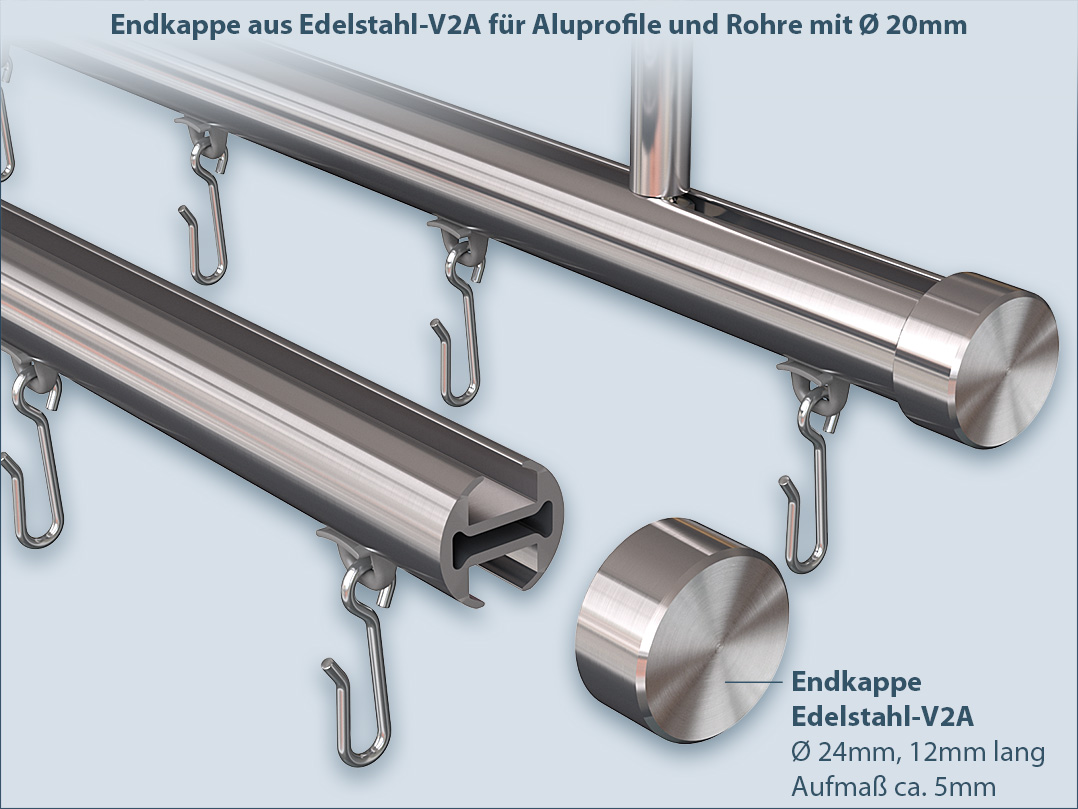

Close rod ends with end caps made of stainless steel V2A:

The cap is simply placed on the aluminum profile. The conical bore ensures a very secure hold, but also ensures that the cap can be removed without any problems.

Material aluminum white glossy: Wall brackets, end caps and ceiling supports made of aluminum powder-coated glossy white.
Straight shower curtain rod with inner profile Ø 20mm made of aluminium, the white powder-coated surface absolutely matches our brackets and end pieces.
Wall mounting with wall brackets made of aluminum glossy white:

This aluminum support allows stable wall mounting of inner rail rods perpendicular to the wall. First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

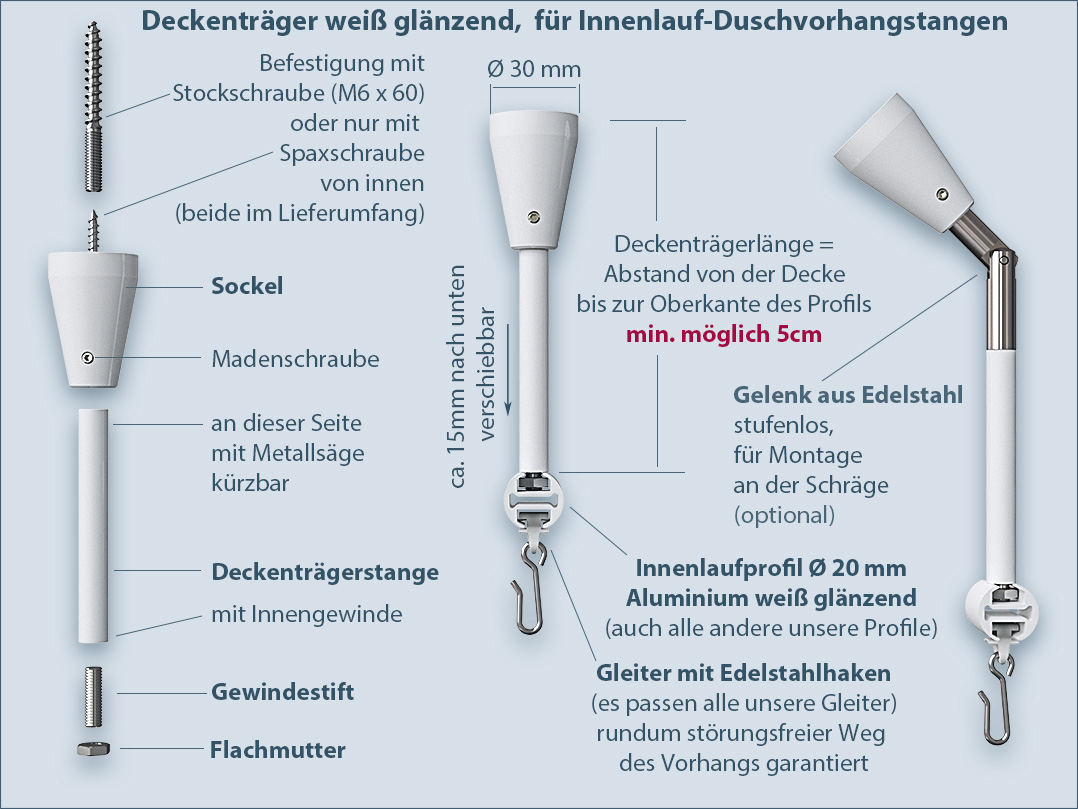

Ceiling attachment with the ceiling support white powder-coated:

You can position the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base with a hanger bolt or screw it directly with a spax screw. Then slide the flat nut fastened on the threaded pin into the fastening barrel of the profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the socket. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

Closing rod end with end cap made of aluminum white glossy:

The cap is simply placed on the aluminum profile. The conical inner shape of the cap ensures a very secure hold, but also ensures that the cap can be removed without any problems.

Material aluminium-black satin finish: Wall brackets, end caps and ceiling supports made of aluminum black matte powder-coated.
Straight shower curtain rod with inner profile Ø 20mm made of aluminium, the black surface absolutely matches our brackets and end pieces.
Wall mounting with wall brackets made of aluminum black satin finish:

This aluminum support allows stable wall mounting of inner rails perpendicular to the wall. First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

Ceiling attachment with the ceiling support, black powder-coated:

You can position the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base with a hanger bolt or screw it directly with a spax screw. Then slide the flat nut fastened on the threaded pin into the fastening barrel of the profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the socket. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

Close rod end with end cap made of aluminum black satin finish:

The cap is simply placed on the aluminum profile. The conical inner shape of the cap ensures a very secure hold, but also ensures that the cap can be removed without any problems.

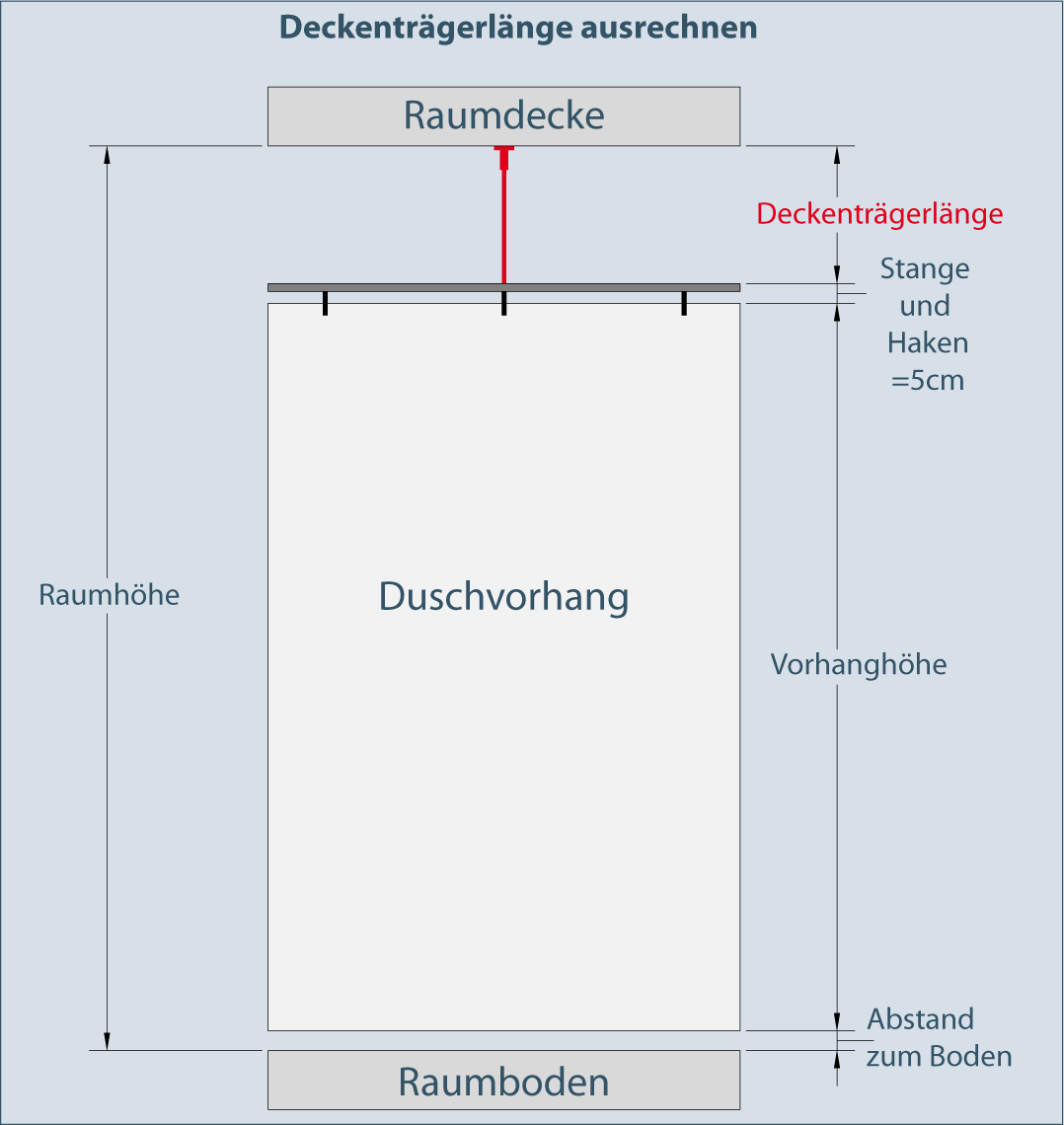

ceiling beam length.
Ceiling support length = room height - curtain height - distance to the floor - rod and hook (5cm)

You can also shorten the ceiling support yourself with a hacksaw. Standard ceiling support length for our shower curtain rods=45cm. Min. possible ceiling support length = 5cm. You can also move the ceiling support approx. 1.5 cm down. We can also supply longer ceiling supports, please select under "longer ceiling supports".

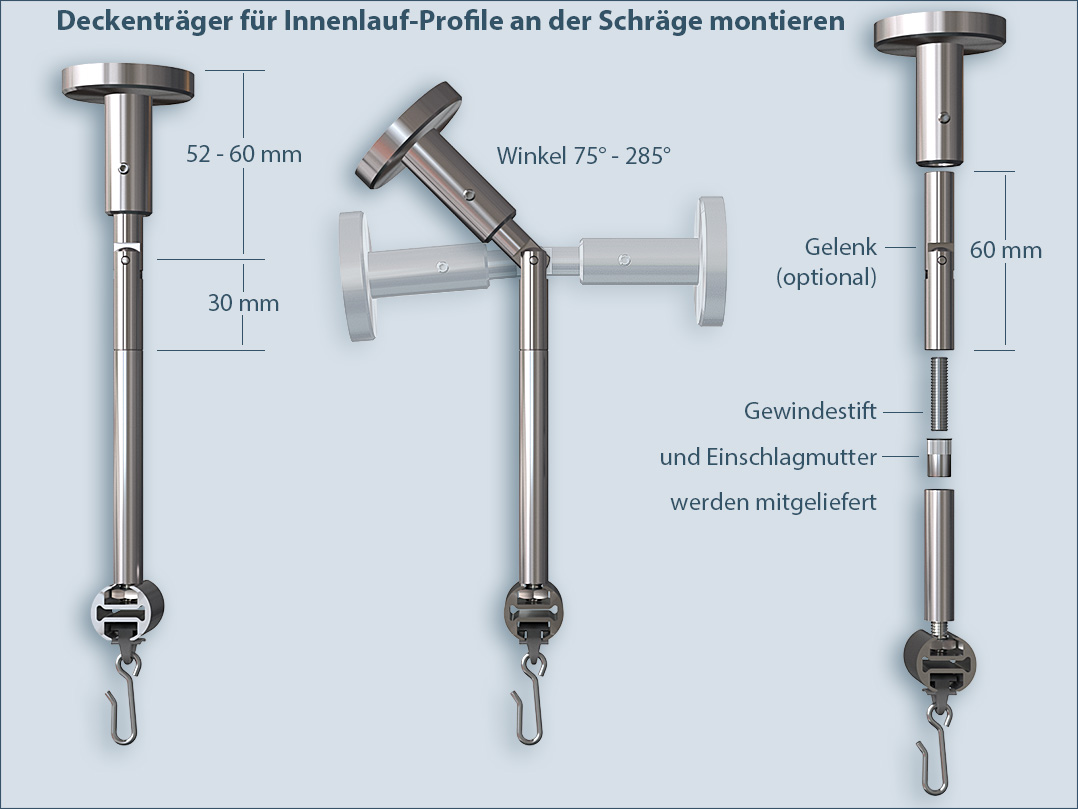

Attach shower curtain rods to a sloping roof or a sloping wall.

If you want to attach the shower rail to a sloping roof, you can order the joints for ceiling brackets. First screw this joint to one side of the ceiling support rod (a set screw and a drive-in nut are supplied), then push the other side of the joint into the base and fix it with a base grub screw. So you can easily mount the ceiling support on the wall or roof slope at any angle. You can, of course, combine the ceiling supports with and without a joint on a shower rail, for example if the rail closes on a sloping wall at the side.

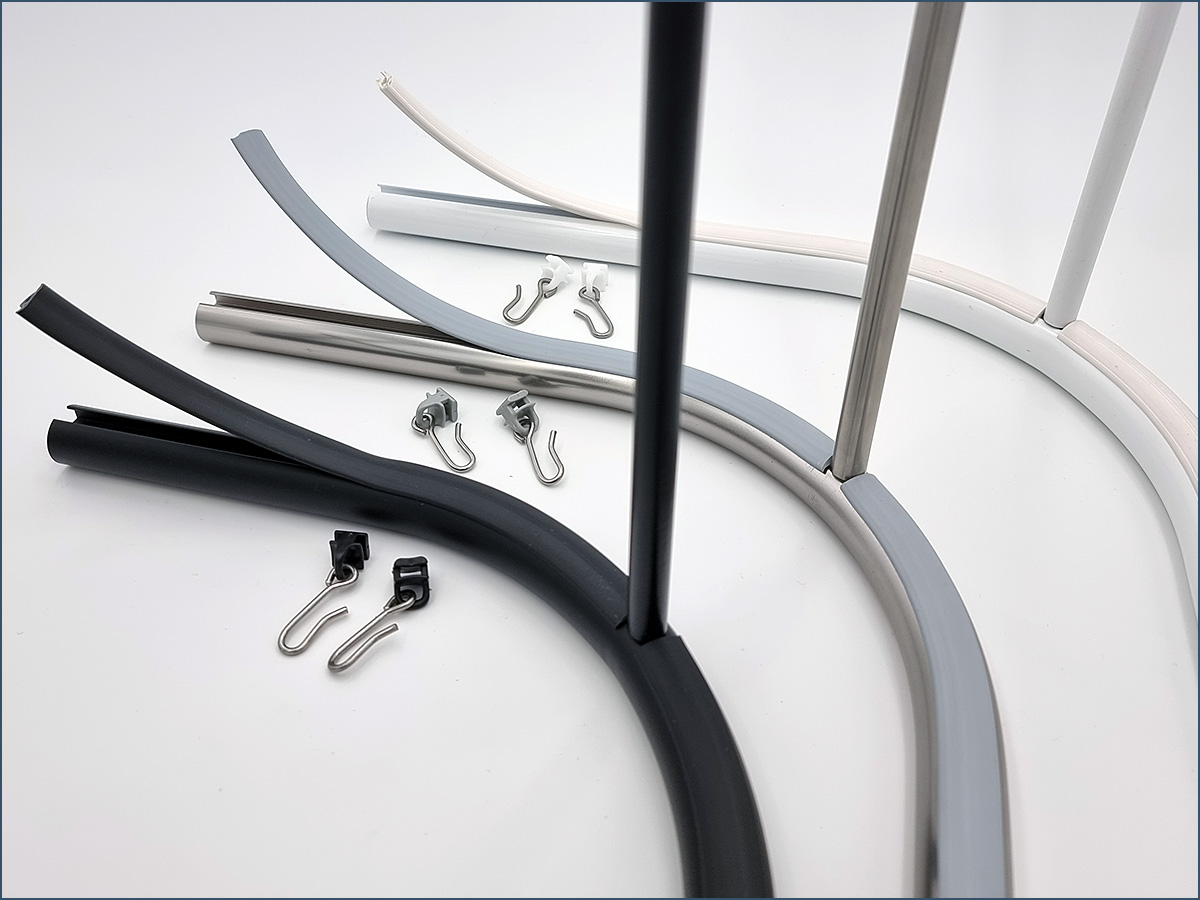

Rubber cover against dirt and dust, for fixing barrel, white, black or light grey.

Elastic rubber band, which you can quickly and easily shorten to the desired length with conventional scissors. Then you can simply press the cover strip into the fastening run of the aluminum profile. This way the water, dirt and dust can no longer accumulate in the upper barrel.

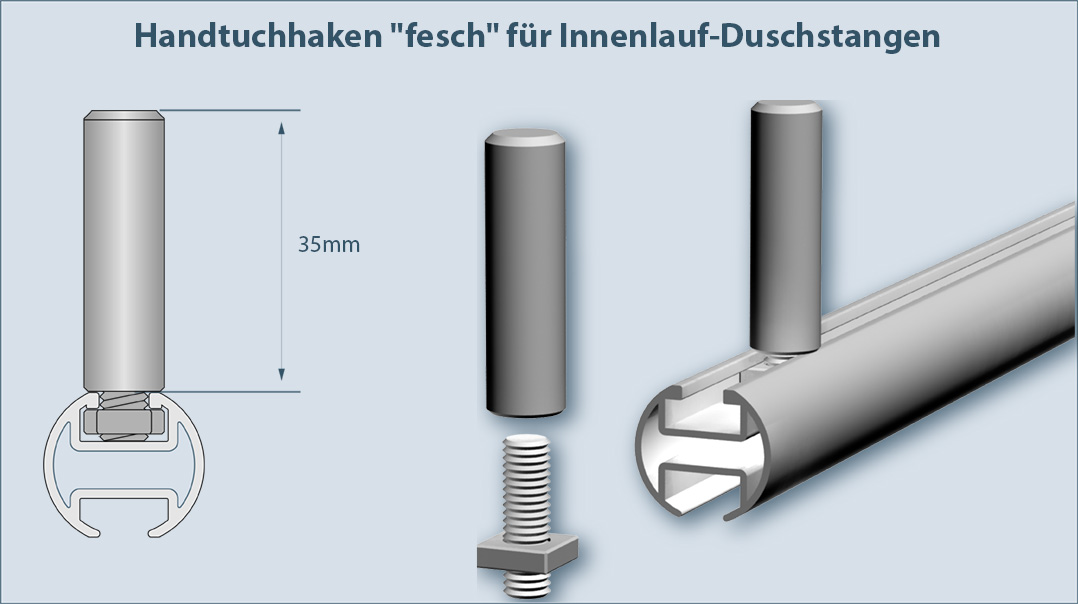

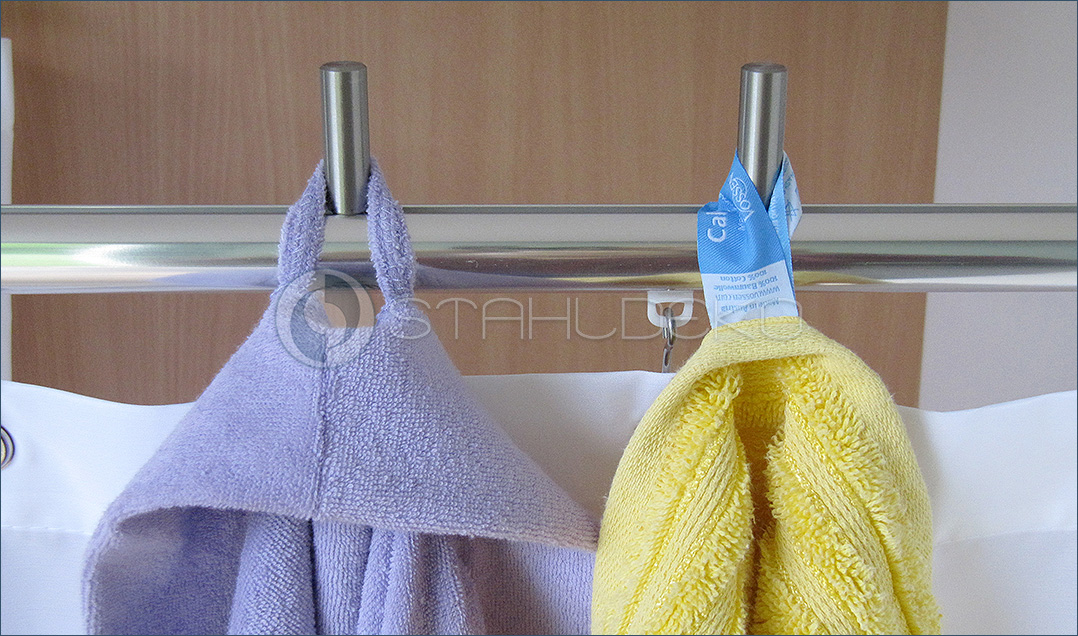

Robe hook or towel hook "snazzy", for inside running shower curtain rods.

So your bathrobe and towel are always ready to hand when showering. Simply mount these robe hooks in the mounting rail of our inner rail shower rods. These bath towel hooks are made of V2A stainless steel and are absolutely suitable for wet areas. At the same time, the hooks are very flexible and can be attached anywhere on the pole. Simply slide the grub screw with flat nut to the desired position and turn the hook. The stainless steel hook is very robust, but also elegant, attractive and chic, just smart! The hook fits perfectly with our shower curtain rods. This combination looks very classy and guarantees an all-round trouble-free movement of the curtain, even if a bath towel or bathrobe is hanging on the rod. You can also use the shower curtain rail as a towel rail. The dimensions and fastening system can be found in the drawing.
