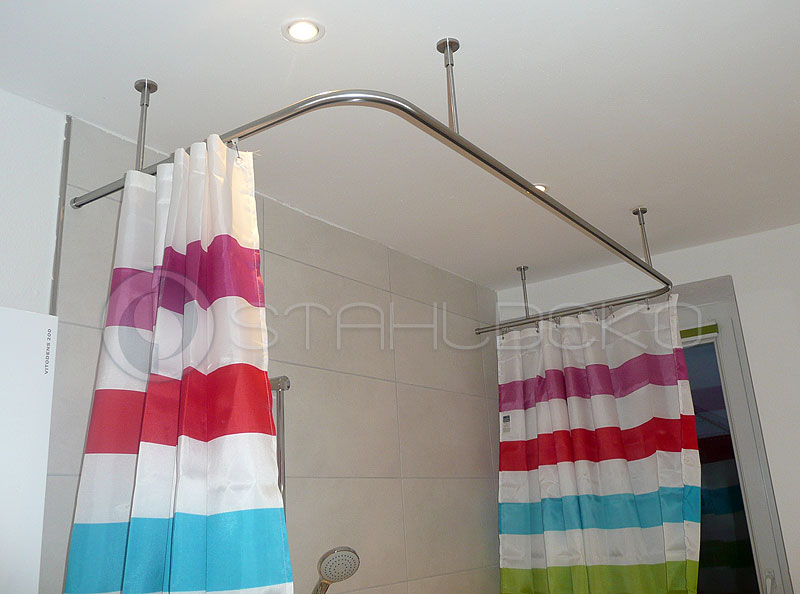

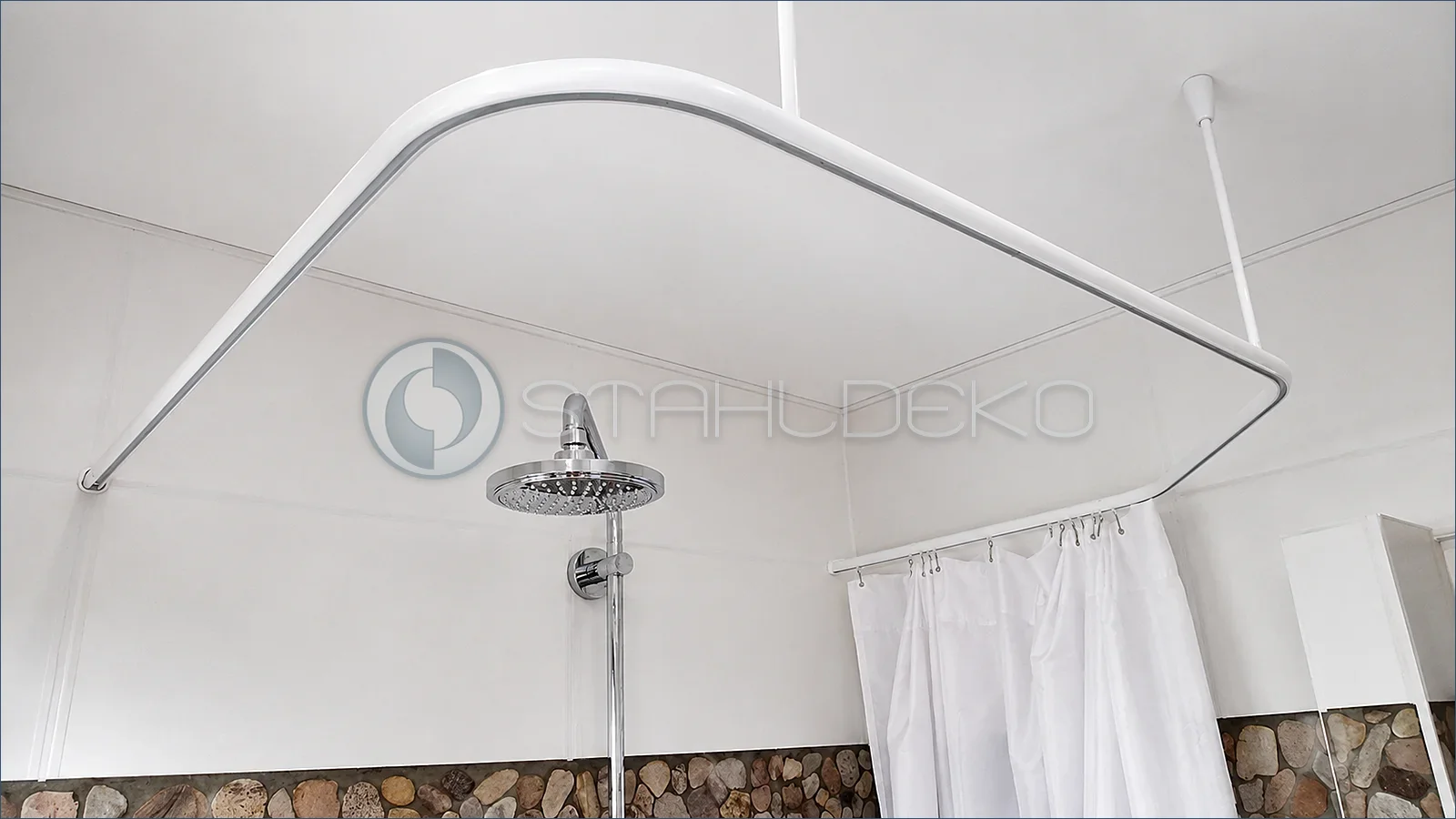

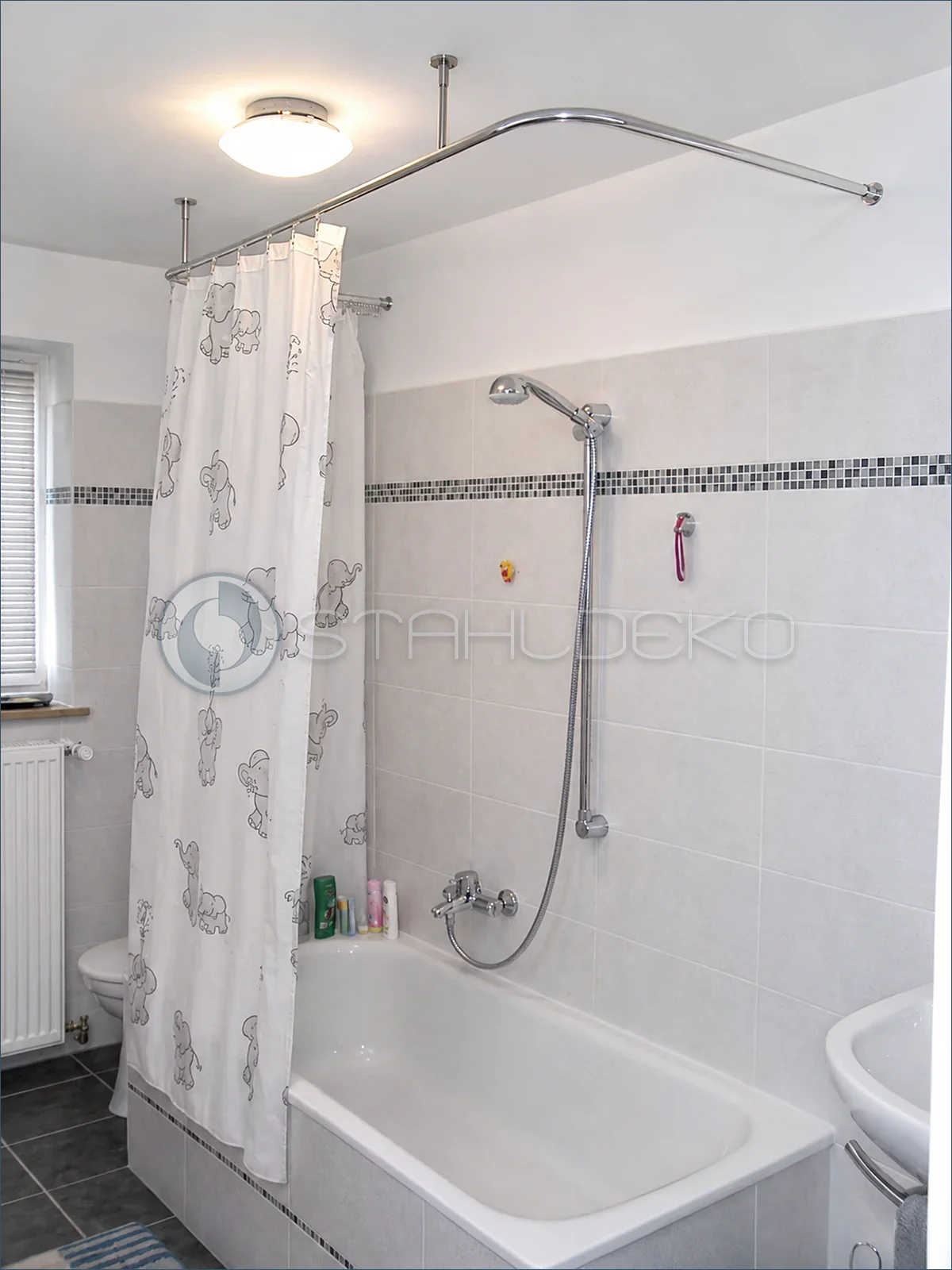

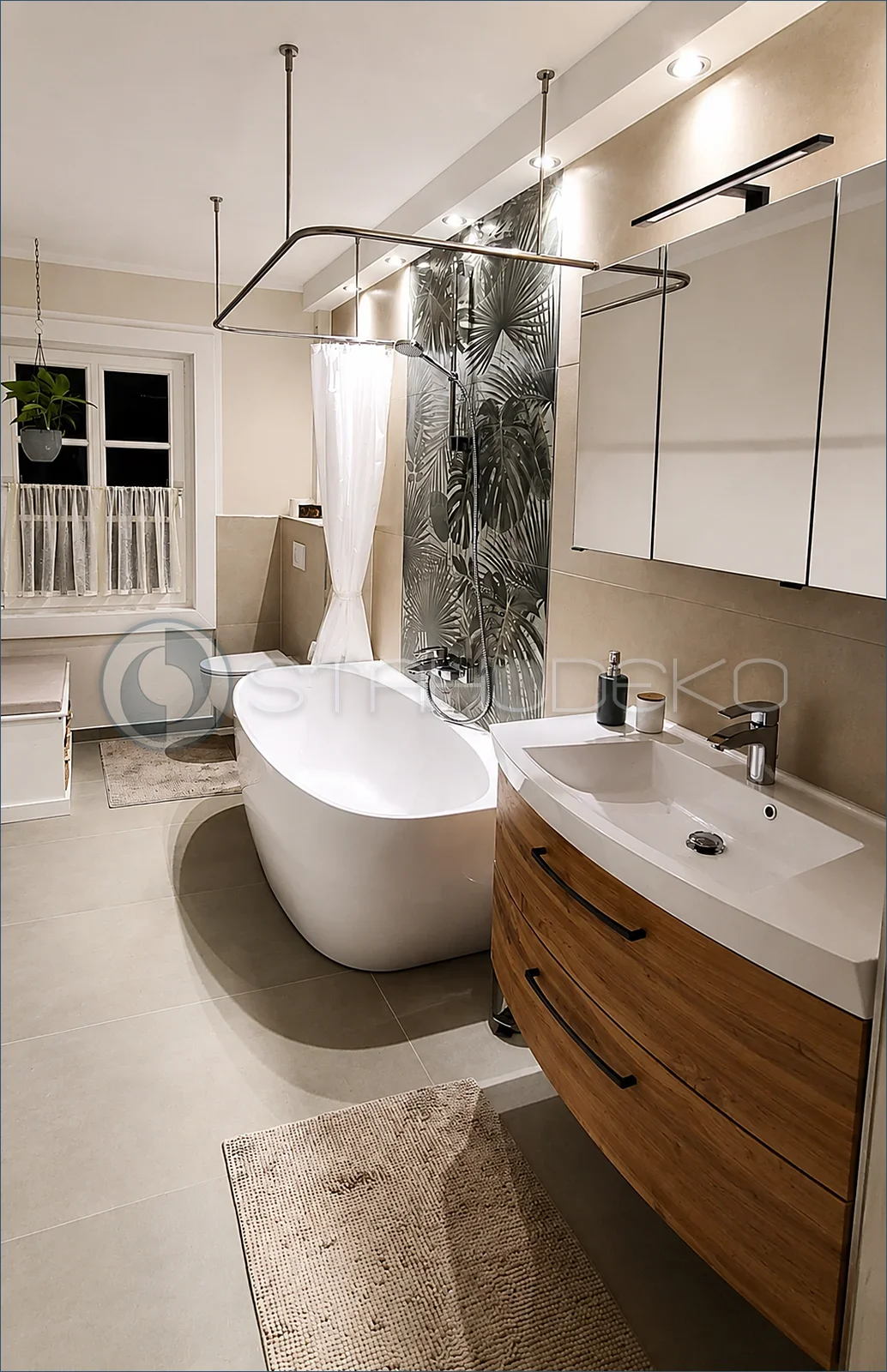

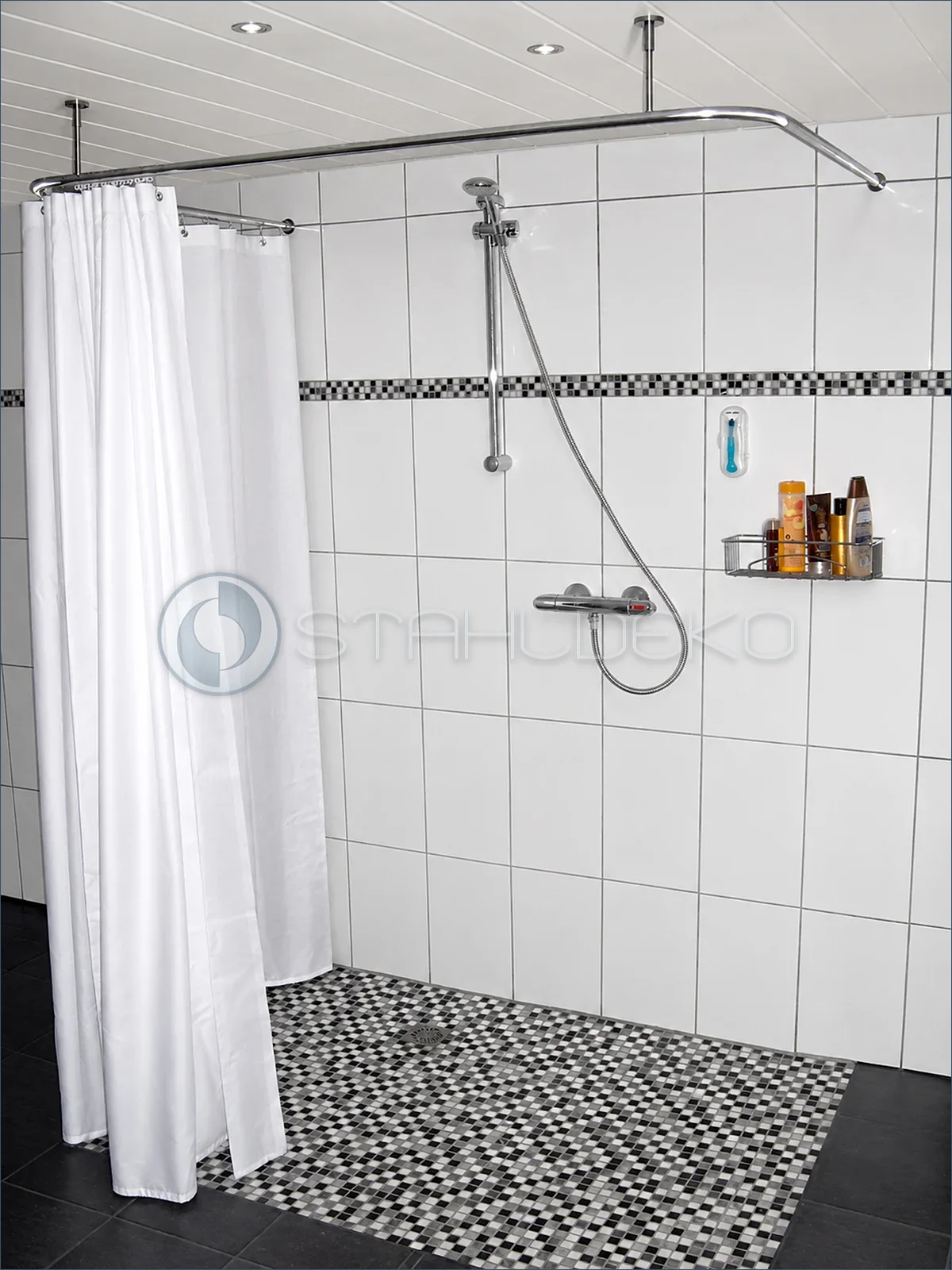

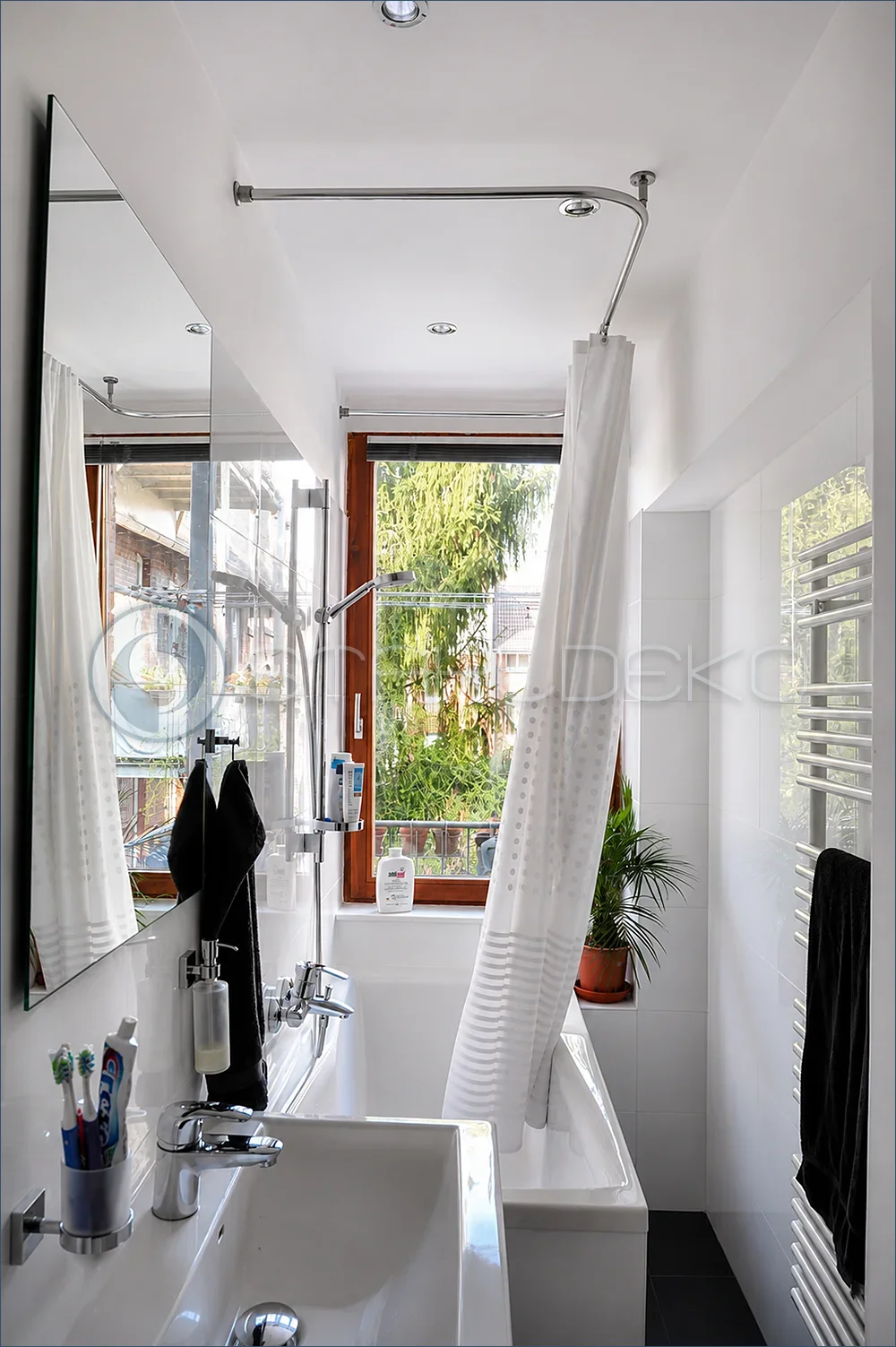

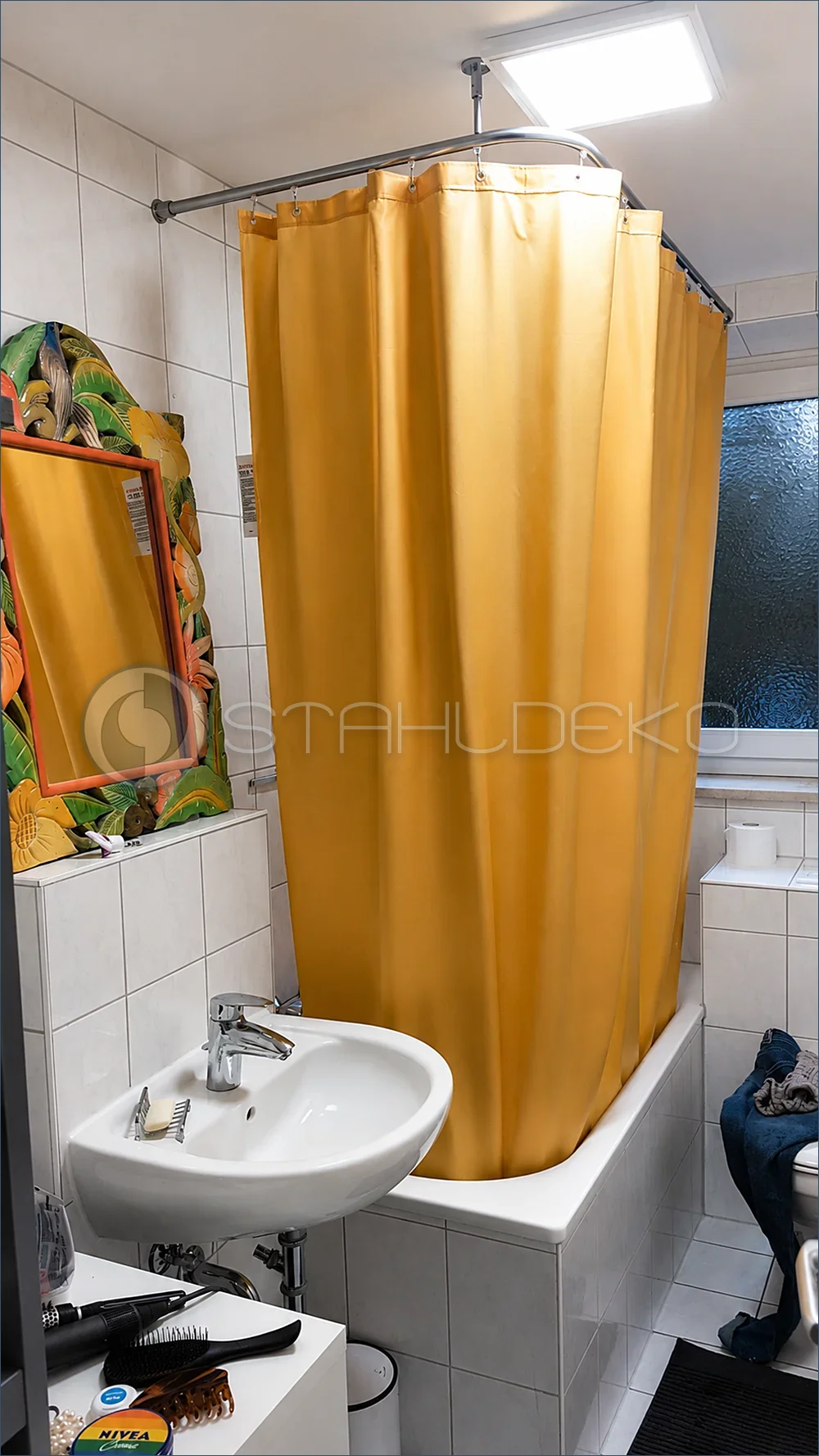

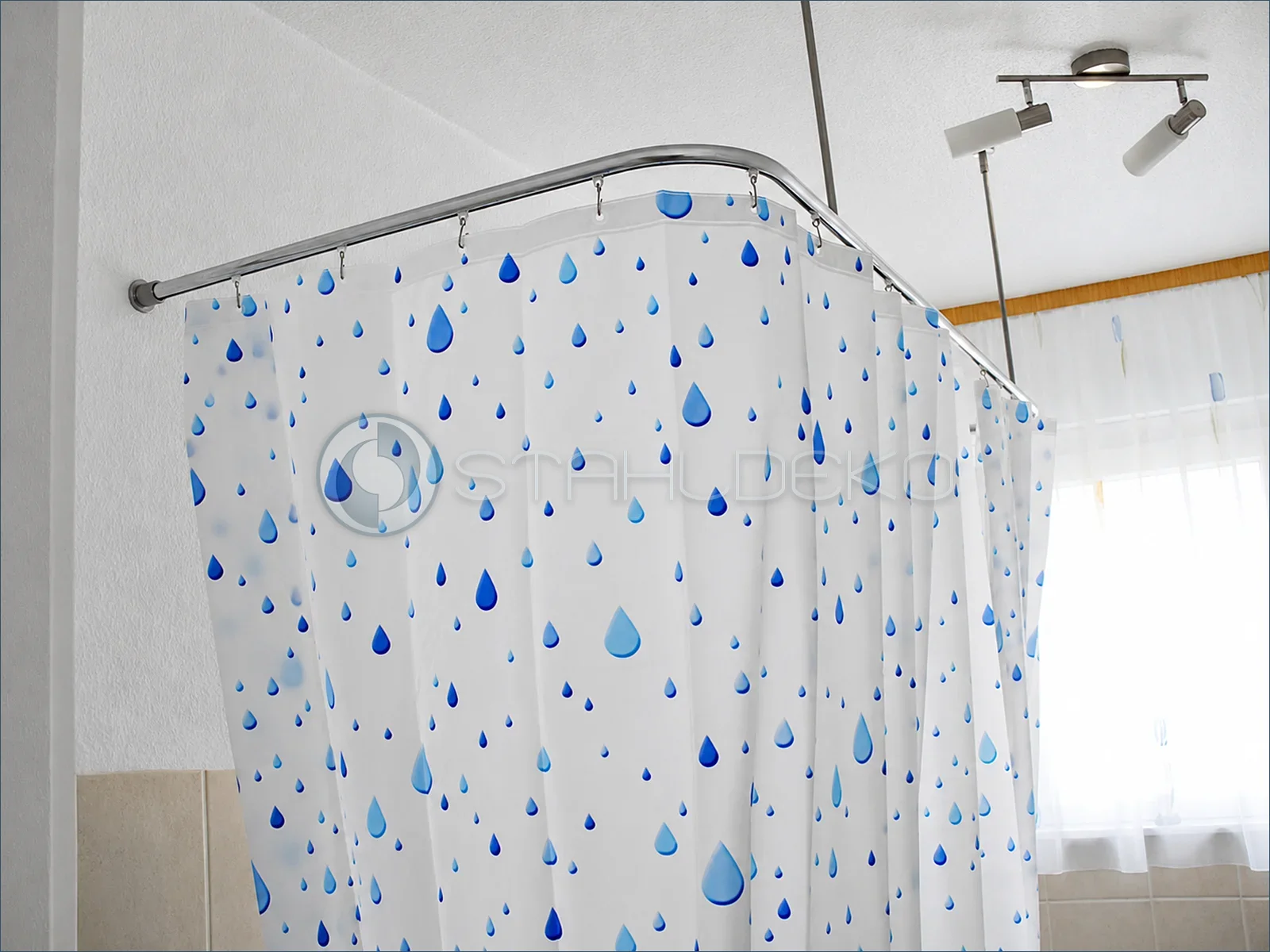

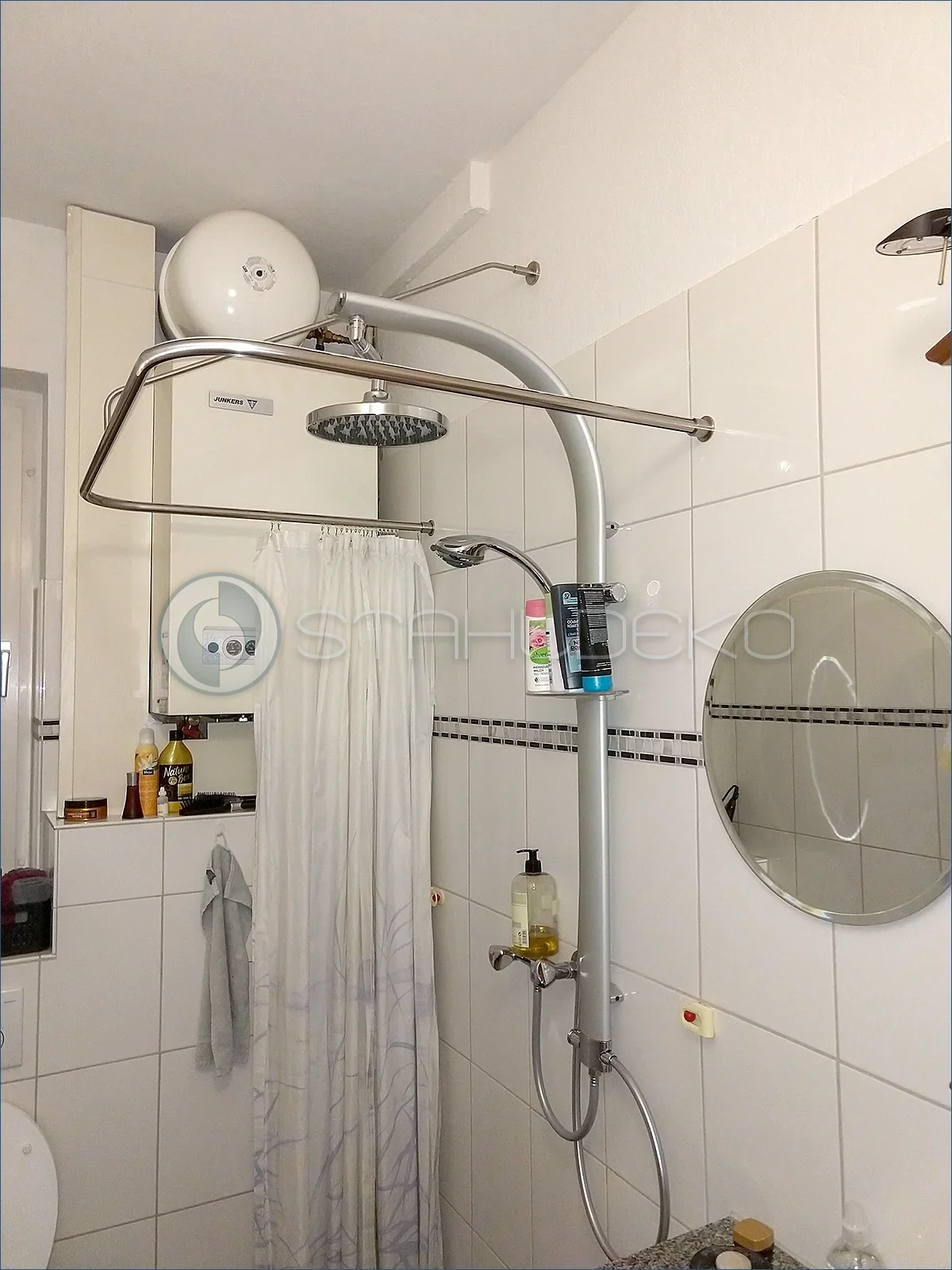

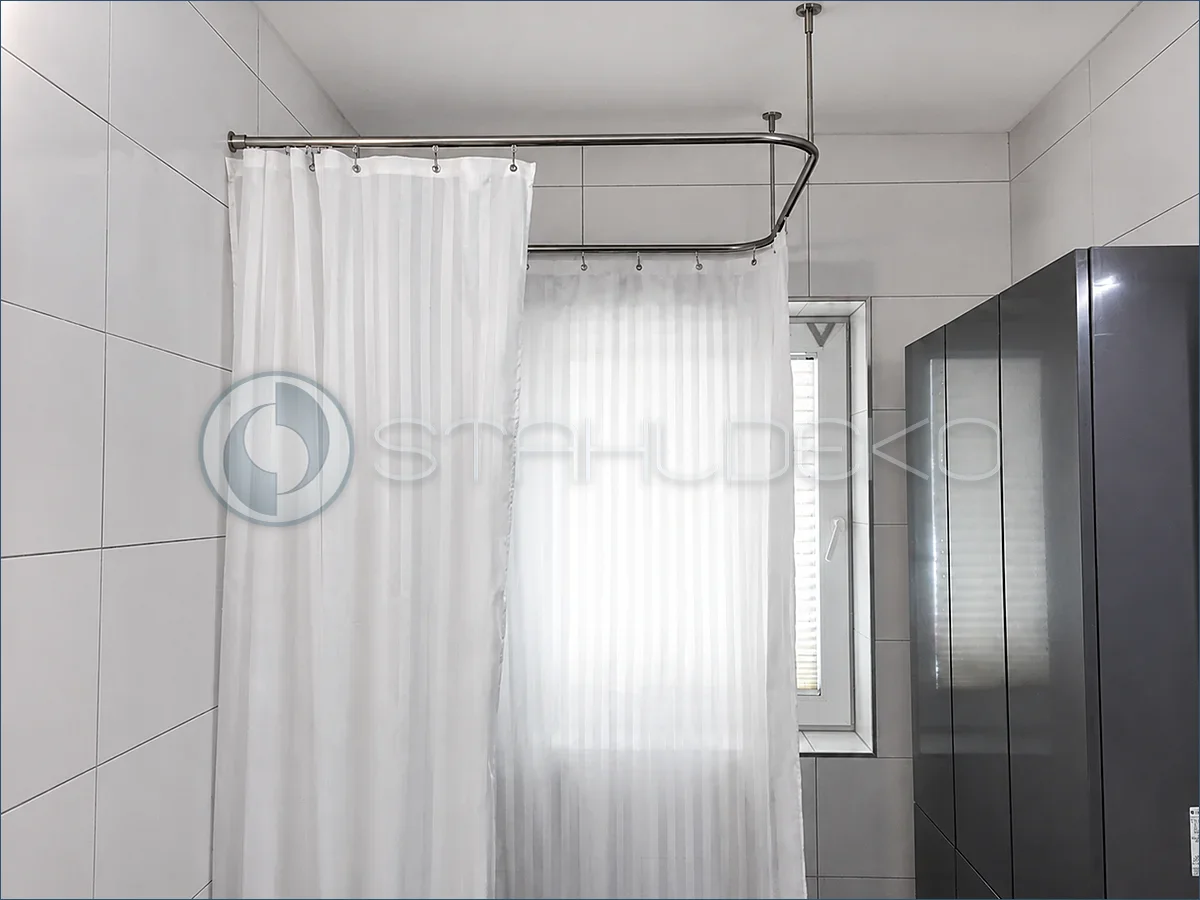

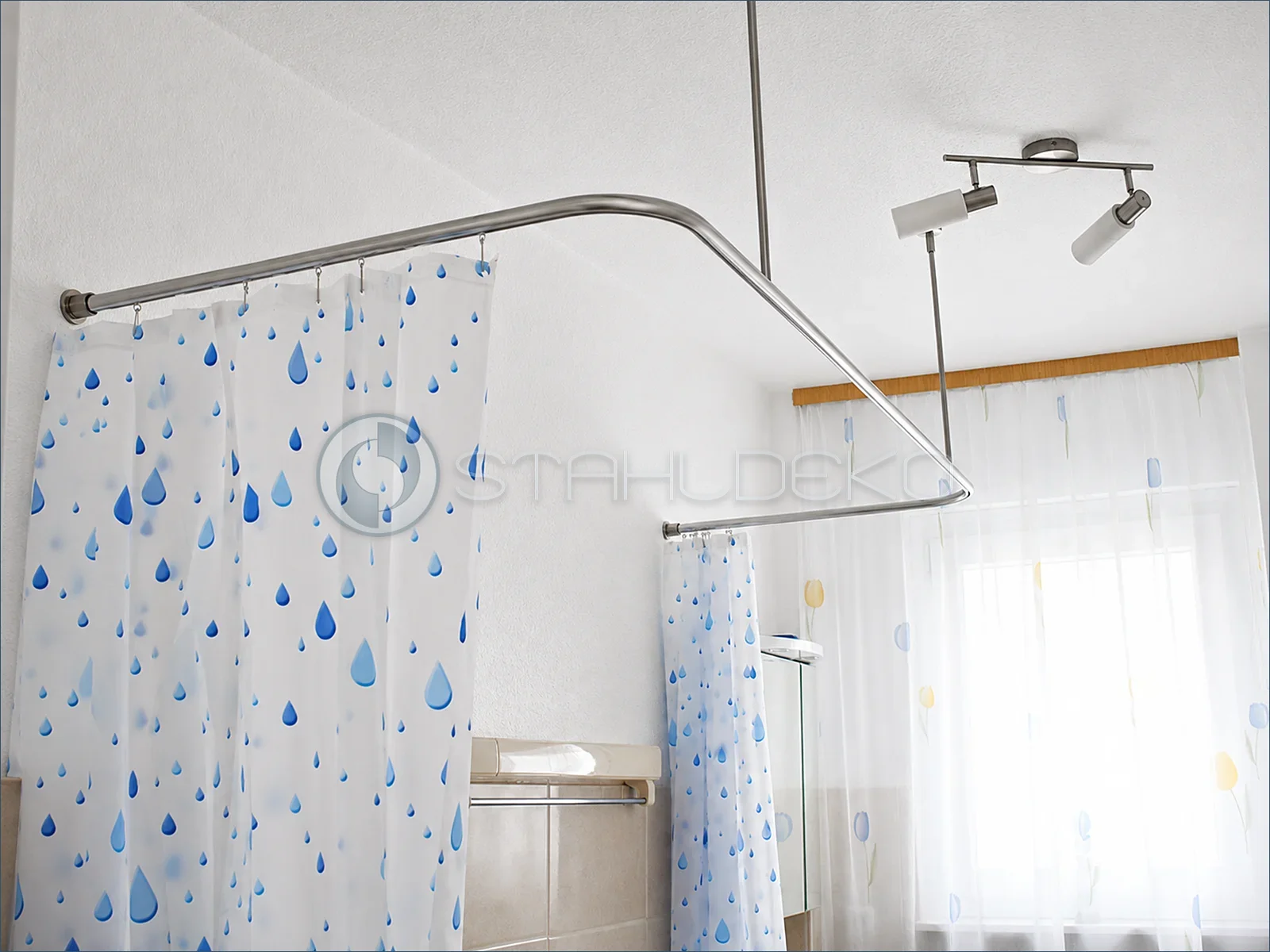

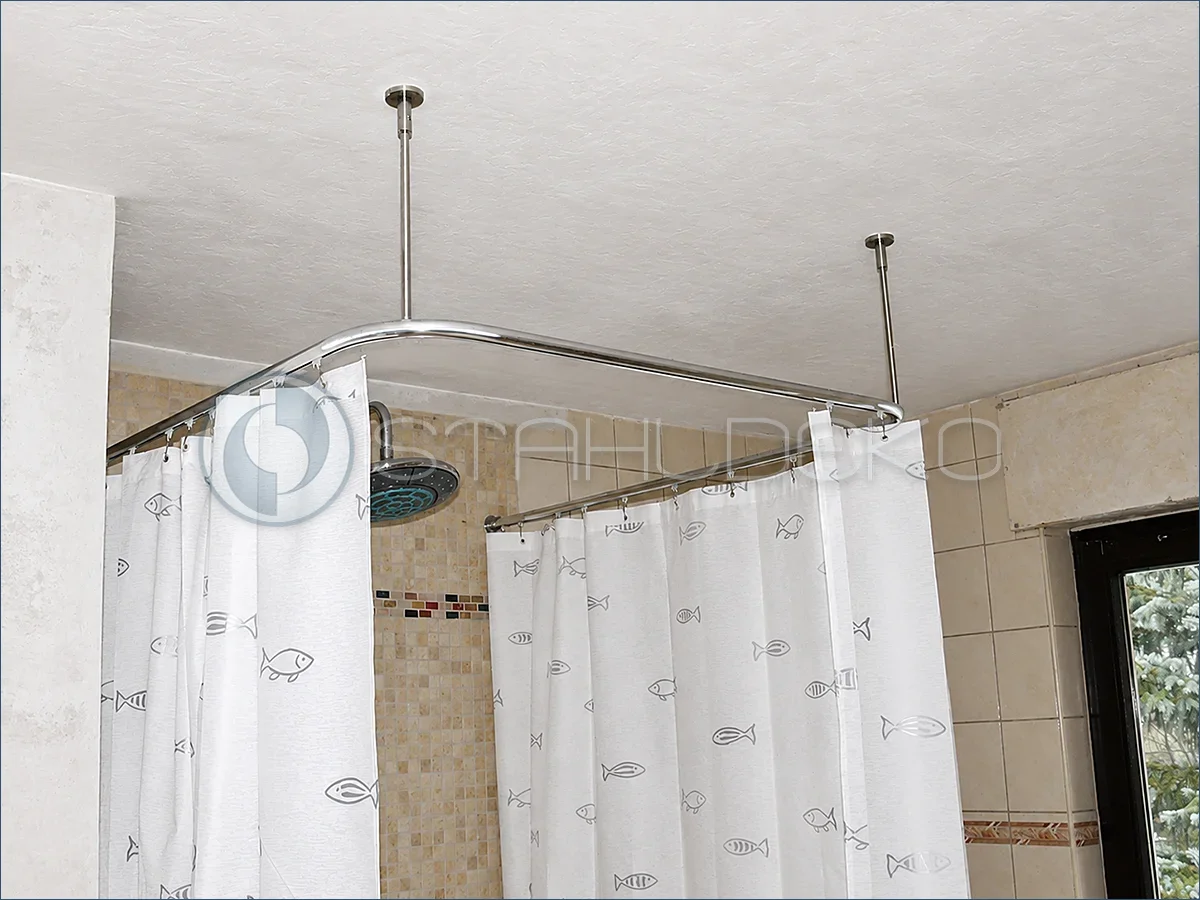

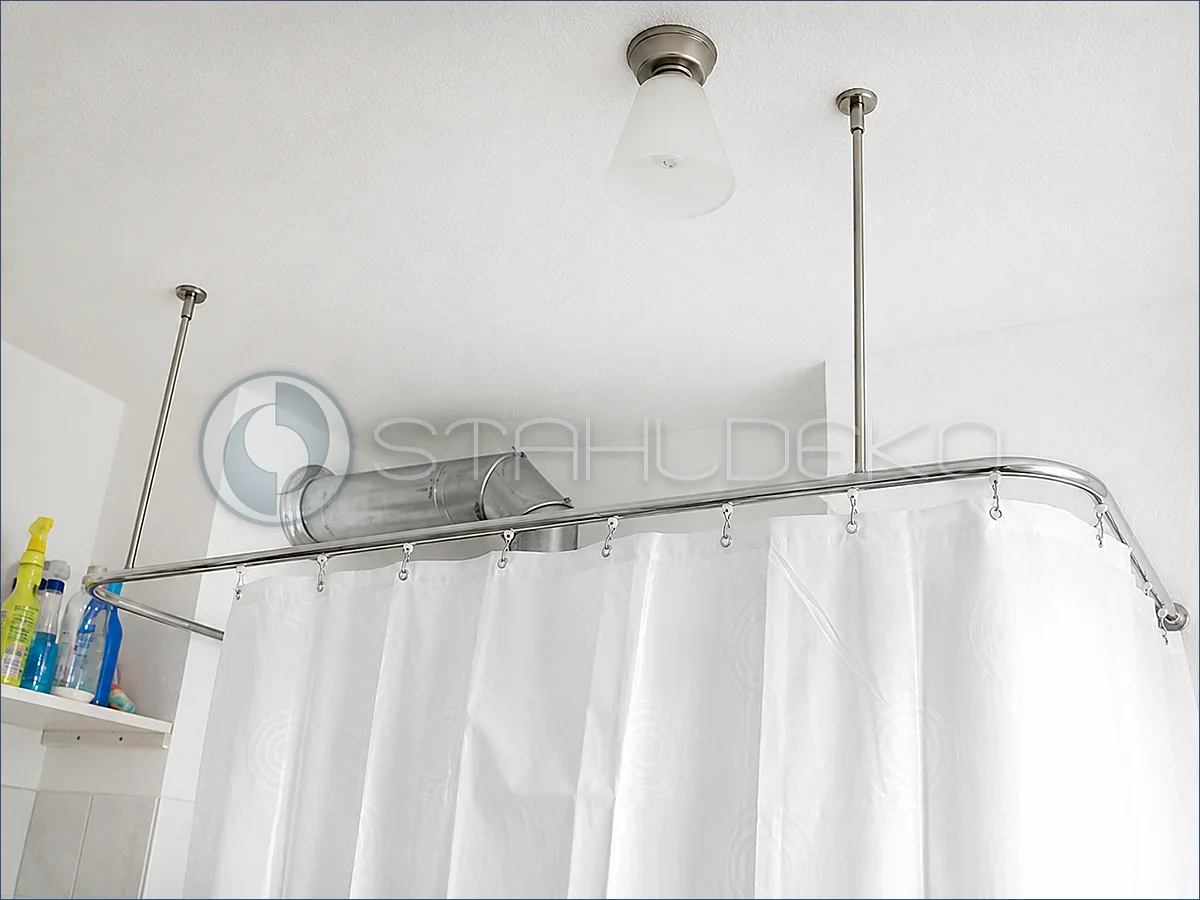

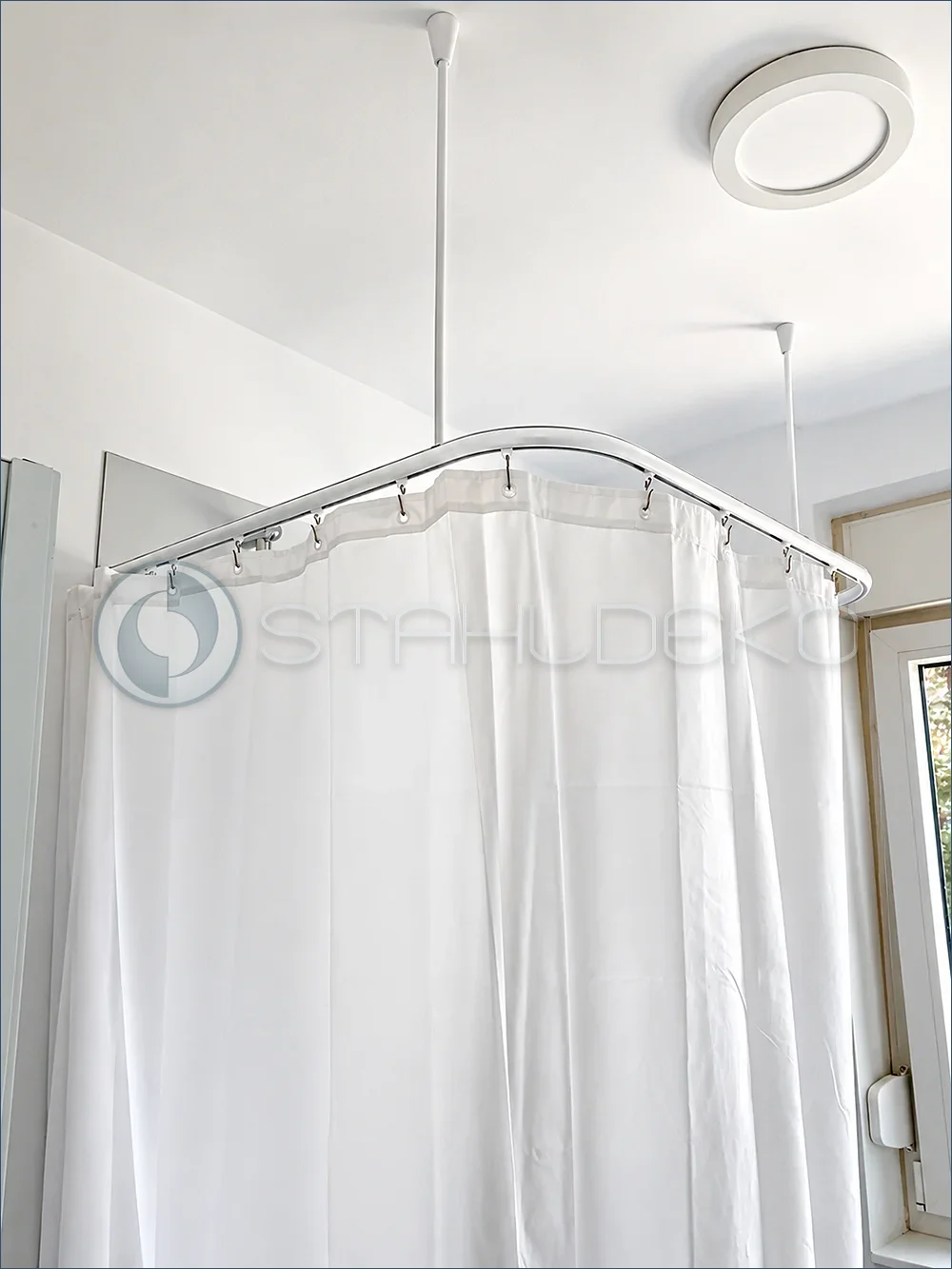

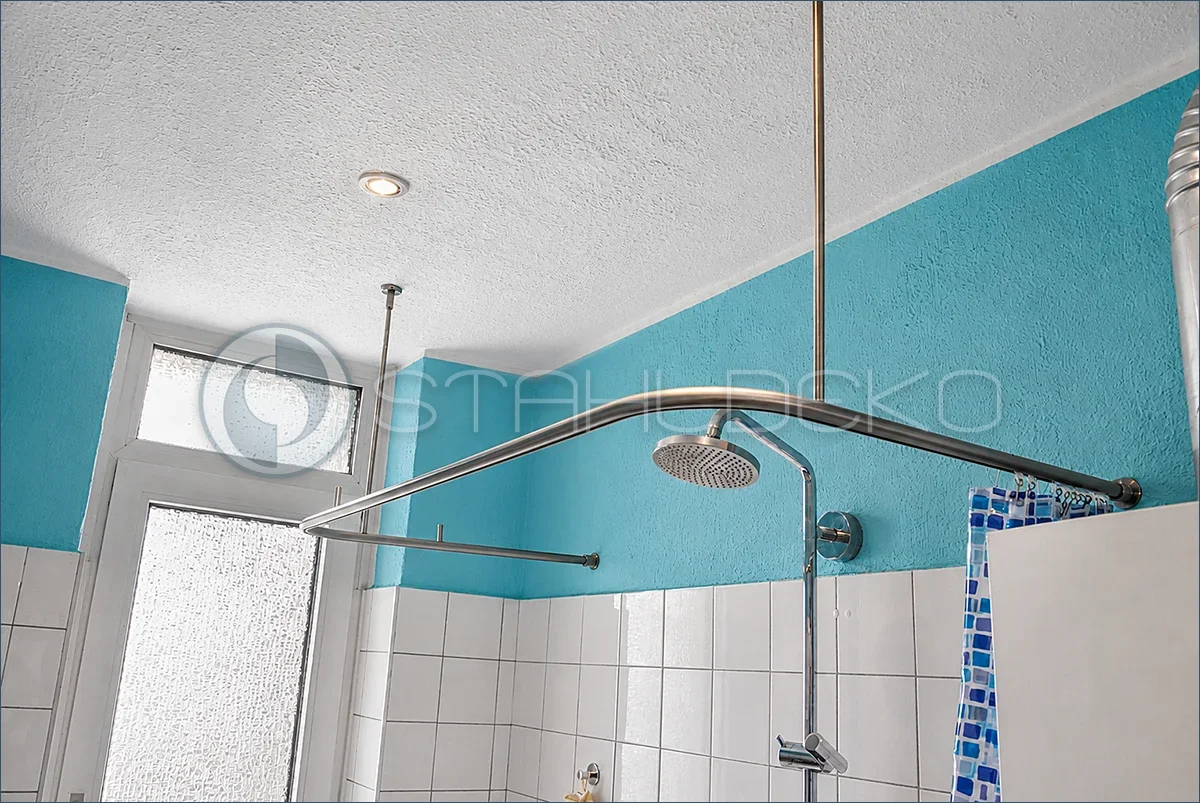

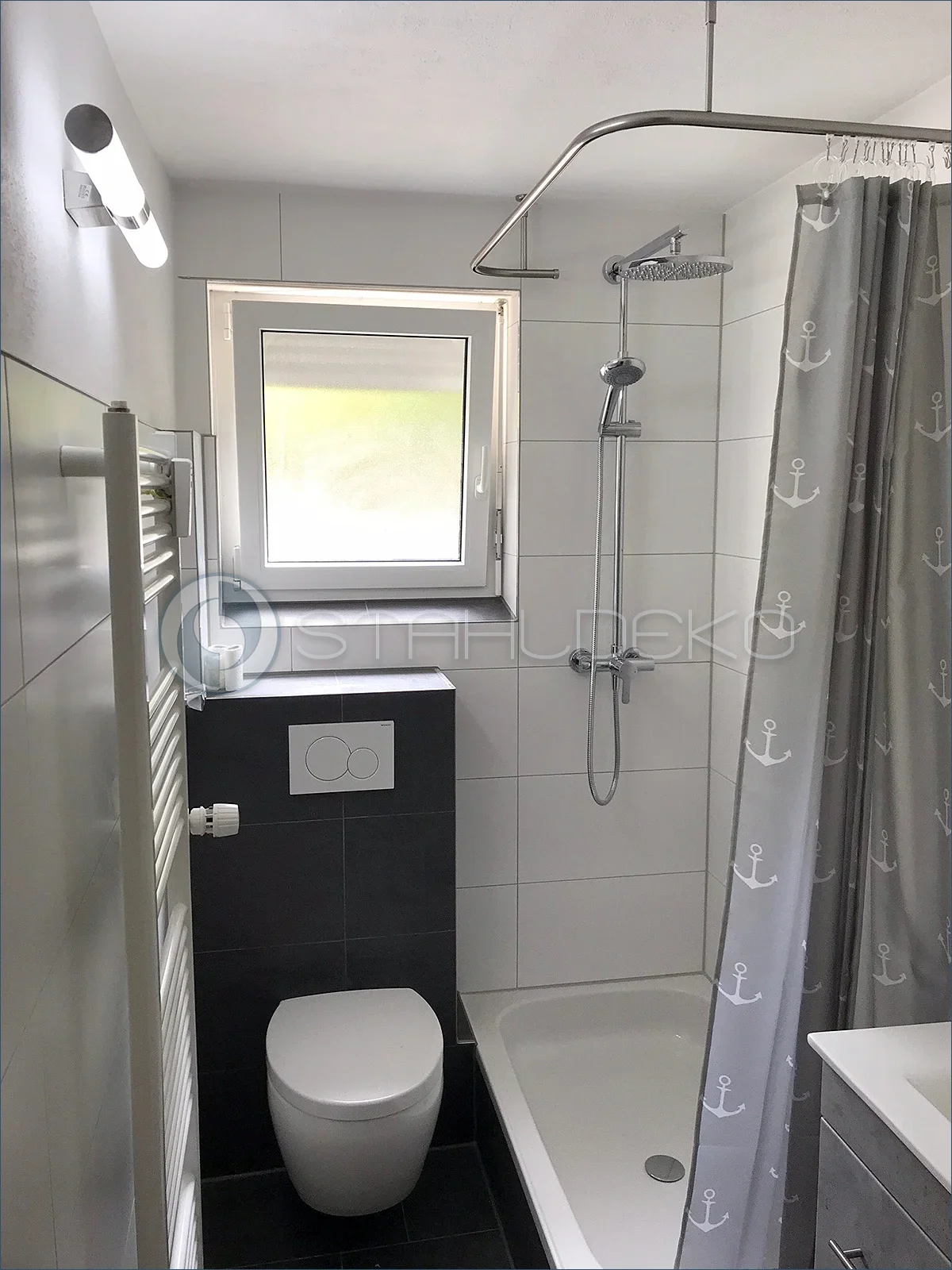

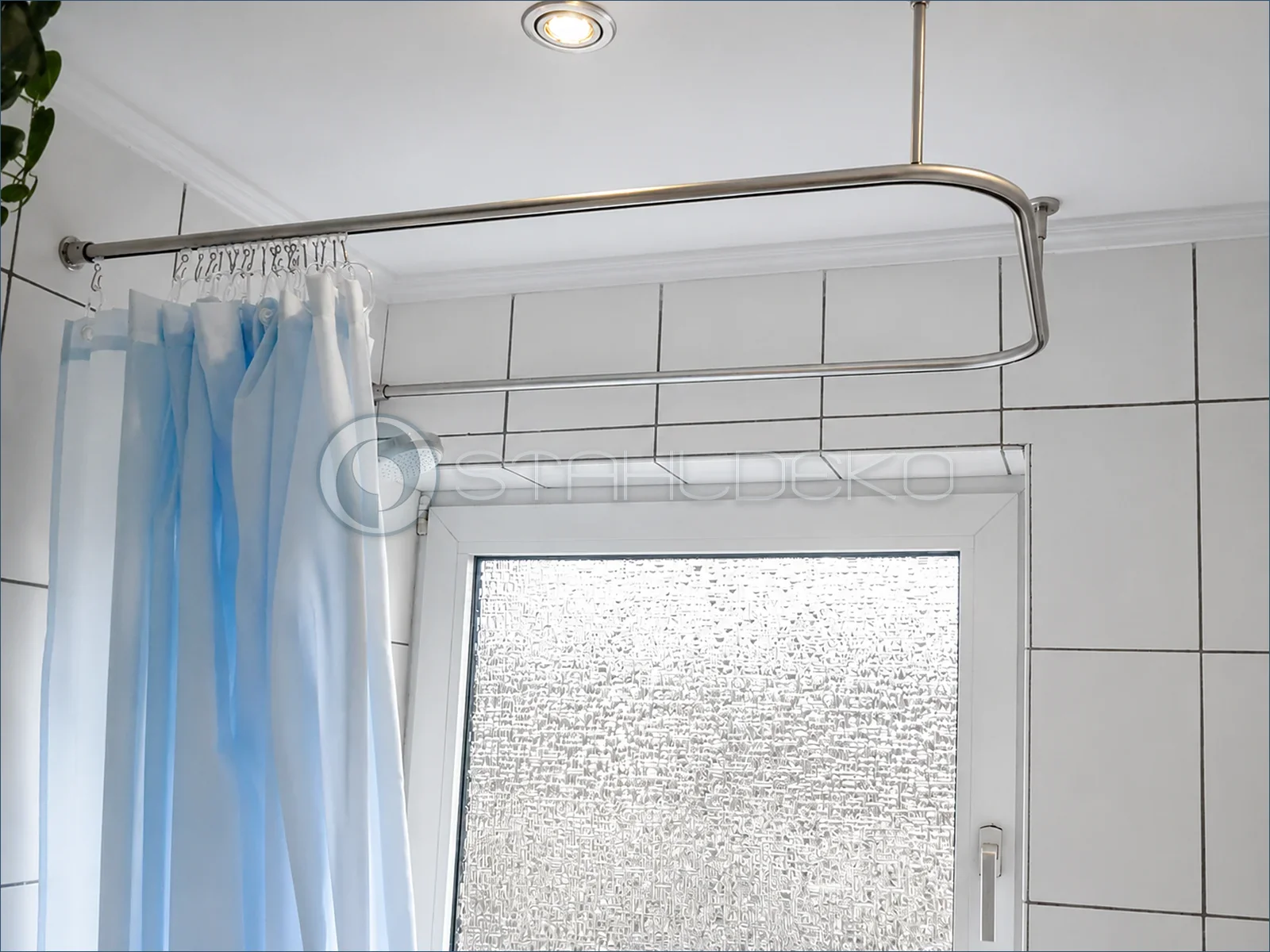

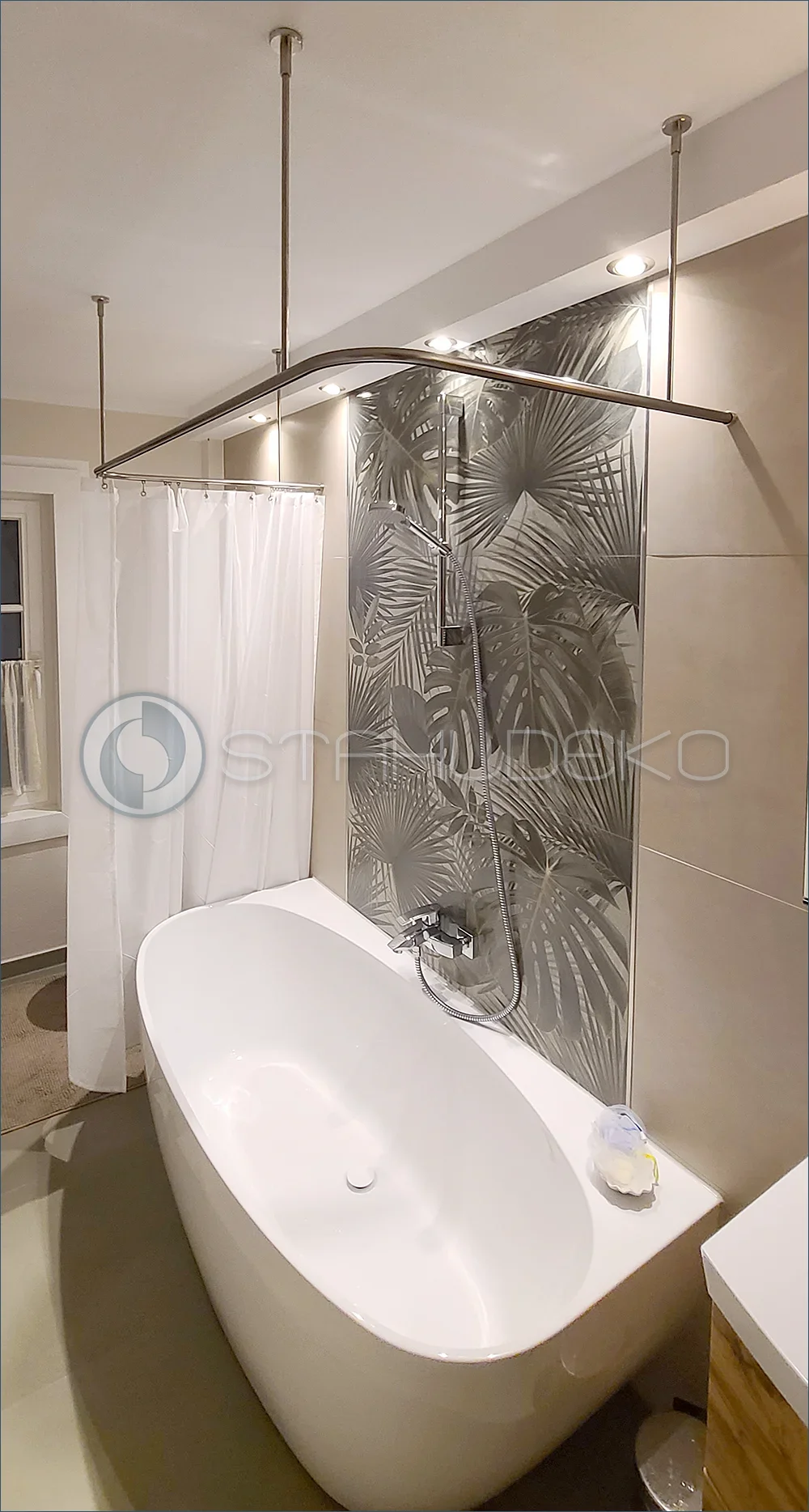

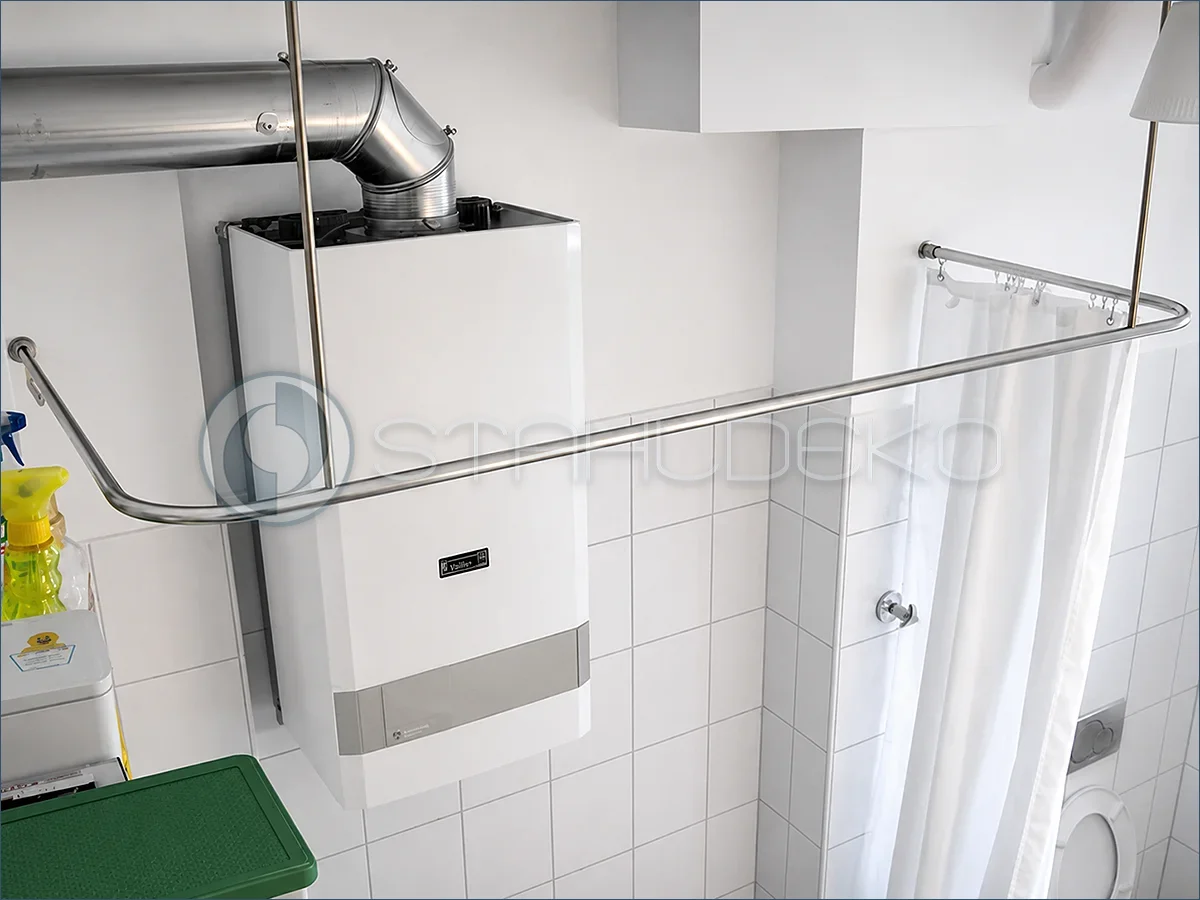

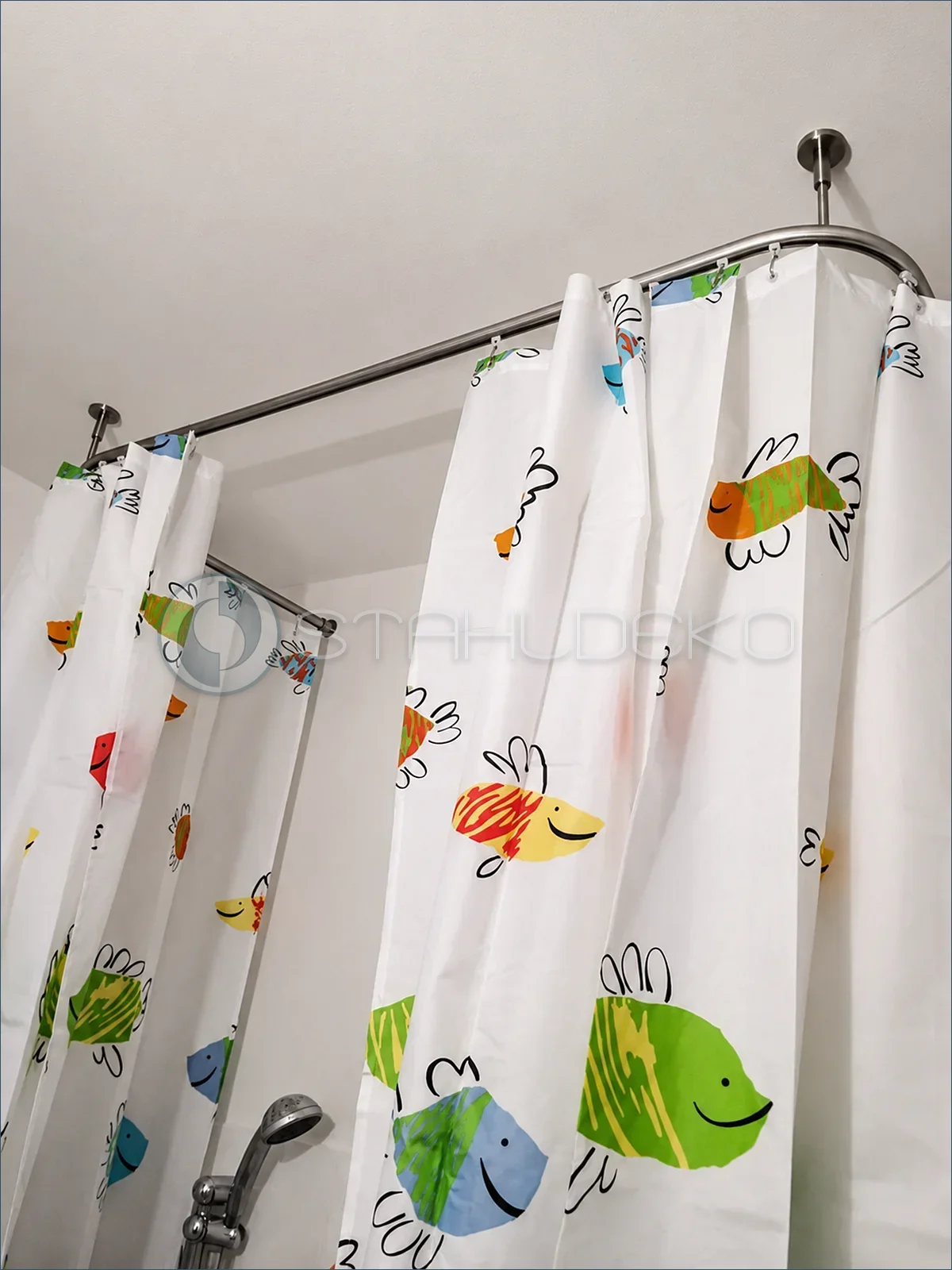

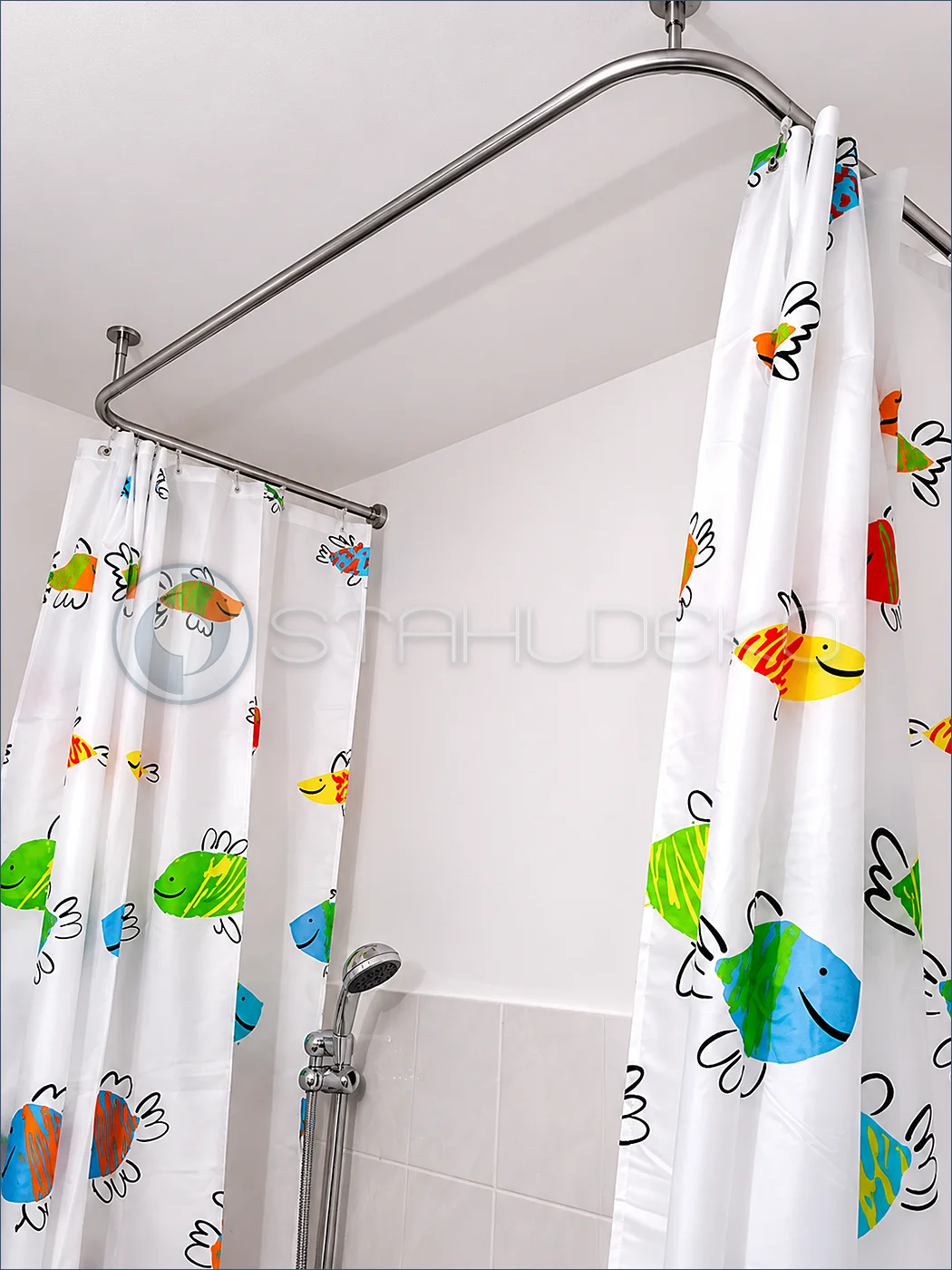

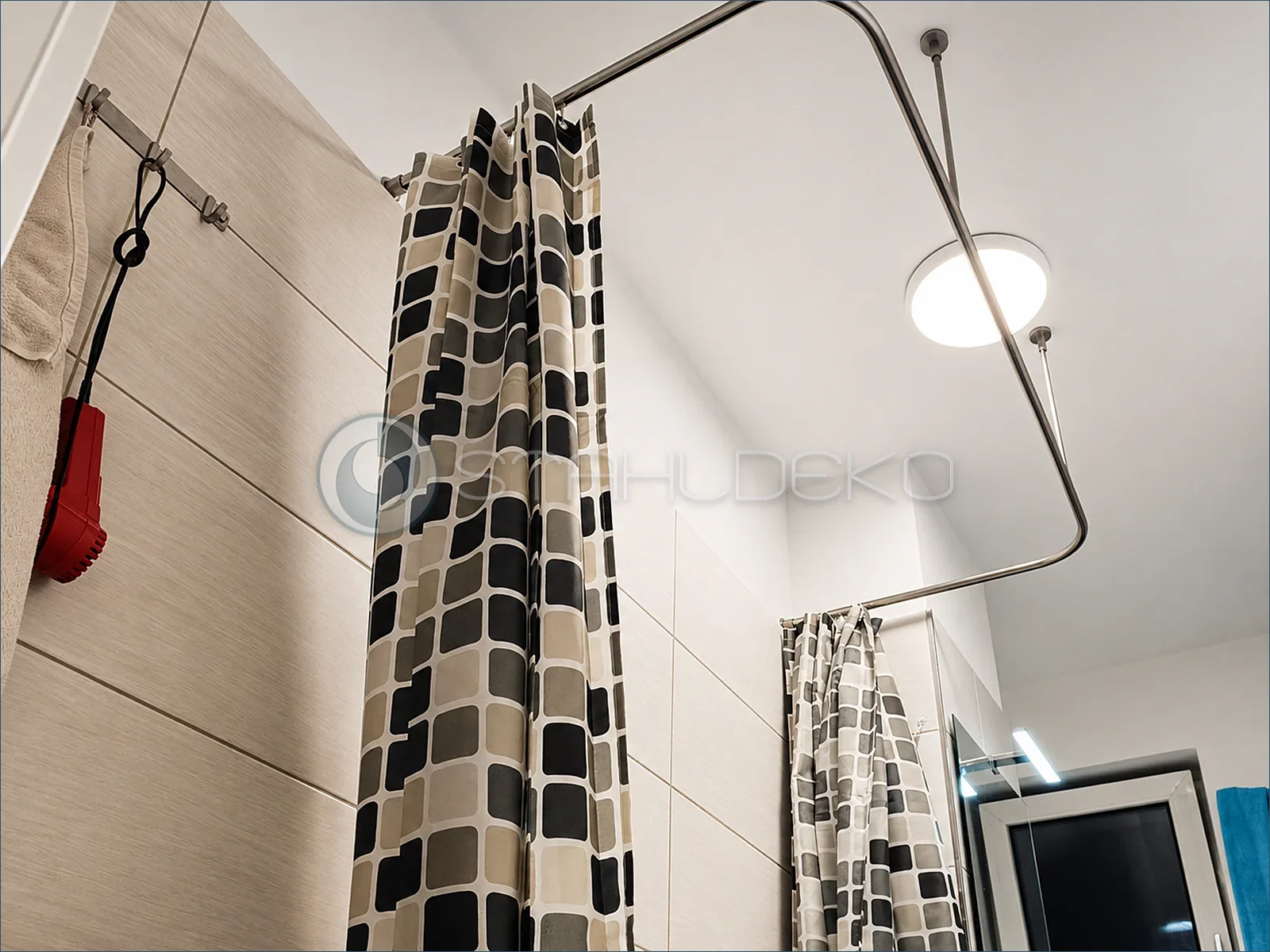

Shower curtain rods U-shape for shower and bathtubs and barrier-free shower area for disabled shower.

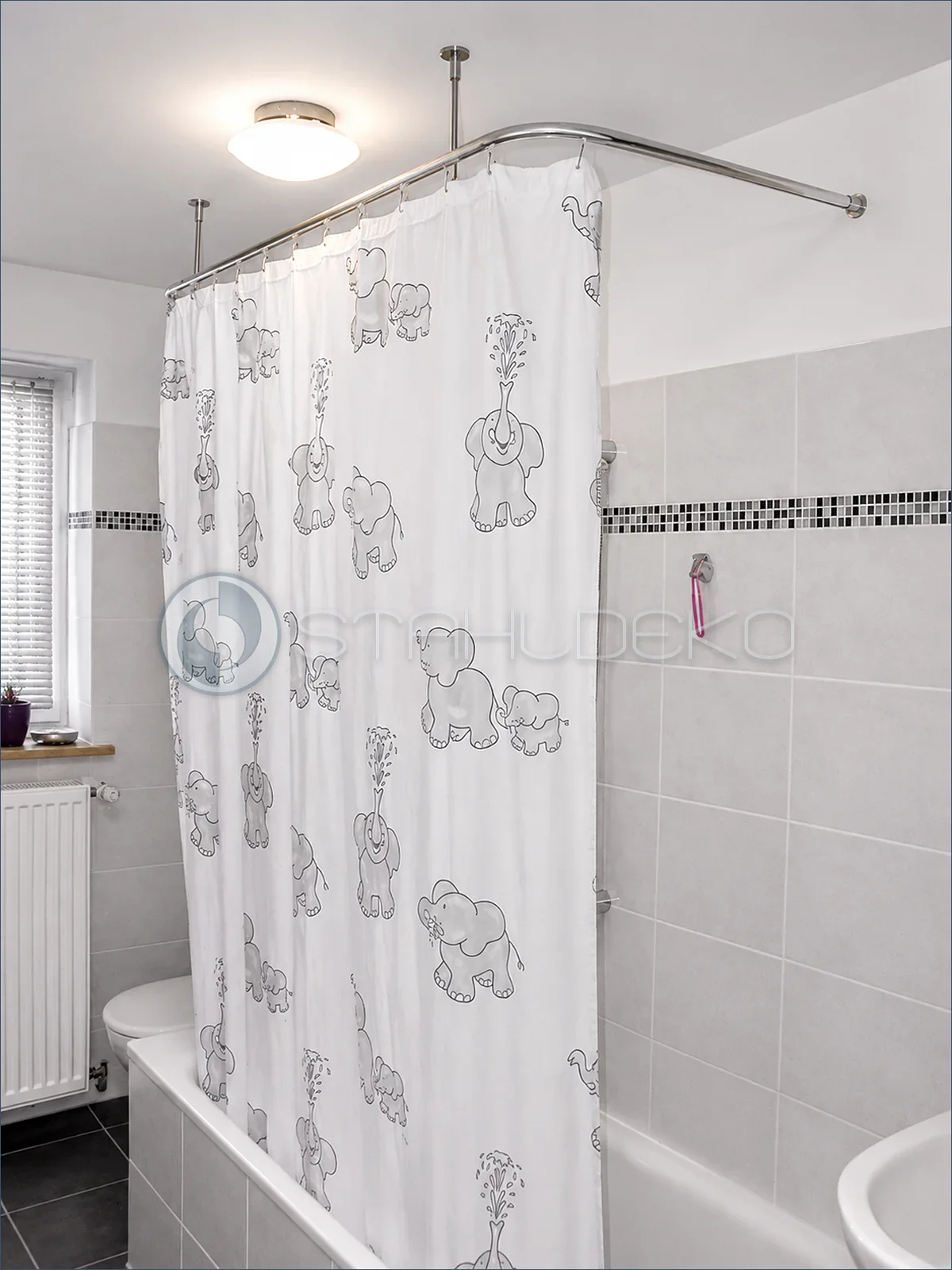

Complete rod for U-shaped shower curtain, with inner tube Ø 20mm made of aluminium, the anodized surface in stainless steel look, black or white powder-coated is absolutely suitable for our supports and end pieces, slider width 6mm. The rod is made in one piece, all-round trouble-free movement of the shower curtain, the corners are bent with R=10cm, including shower curtain gliders with stainless steel hooks.

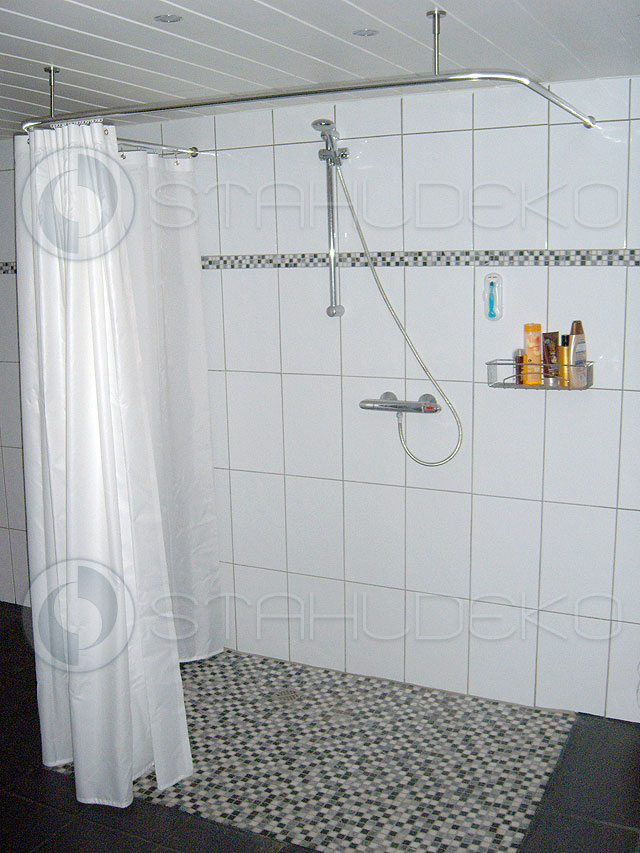

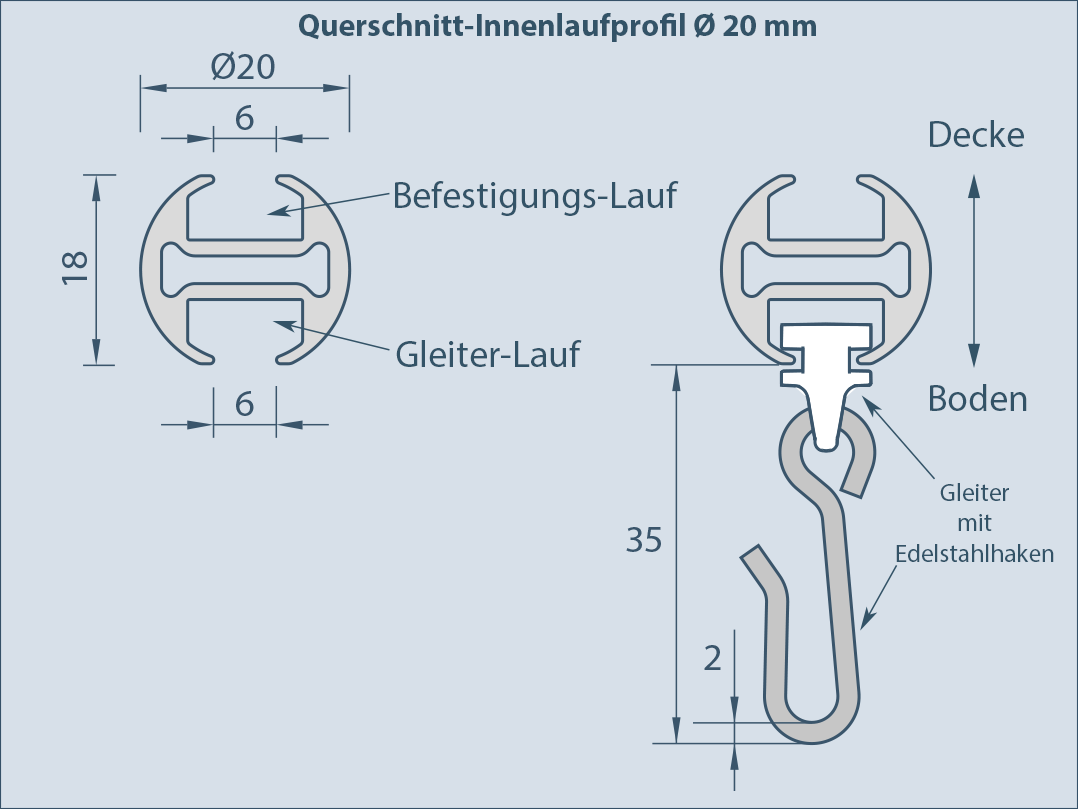

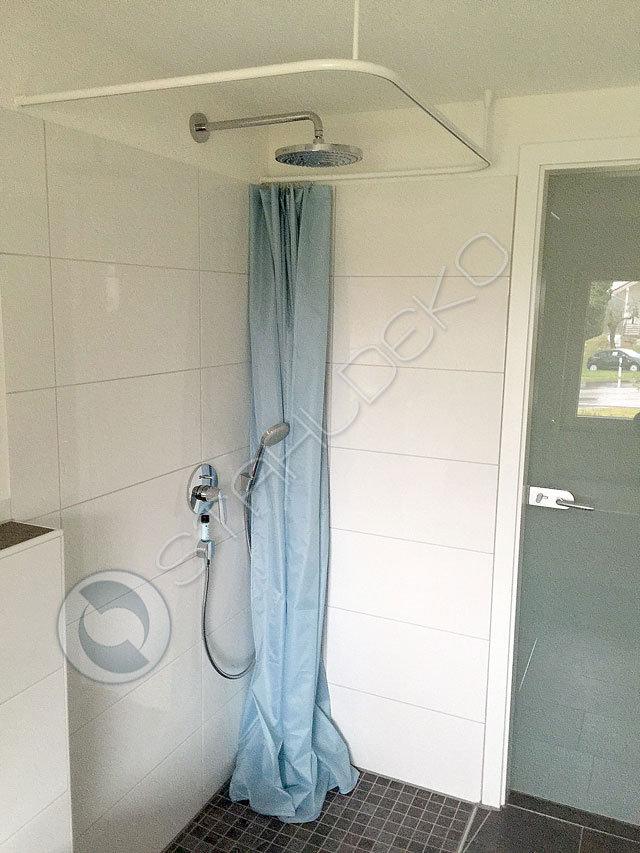

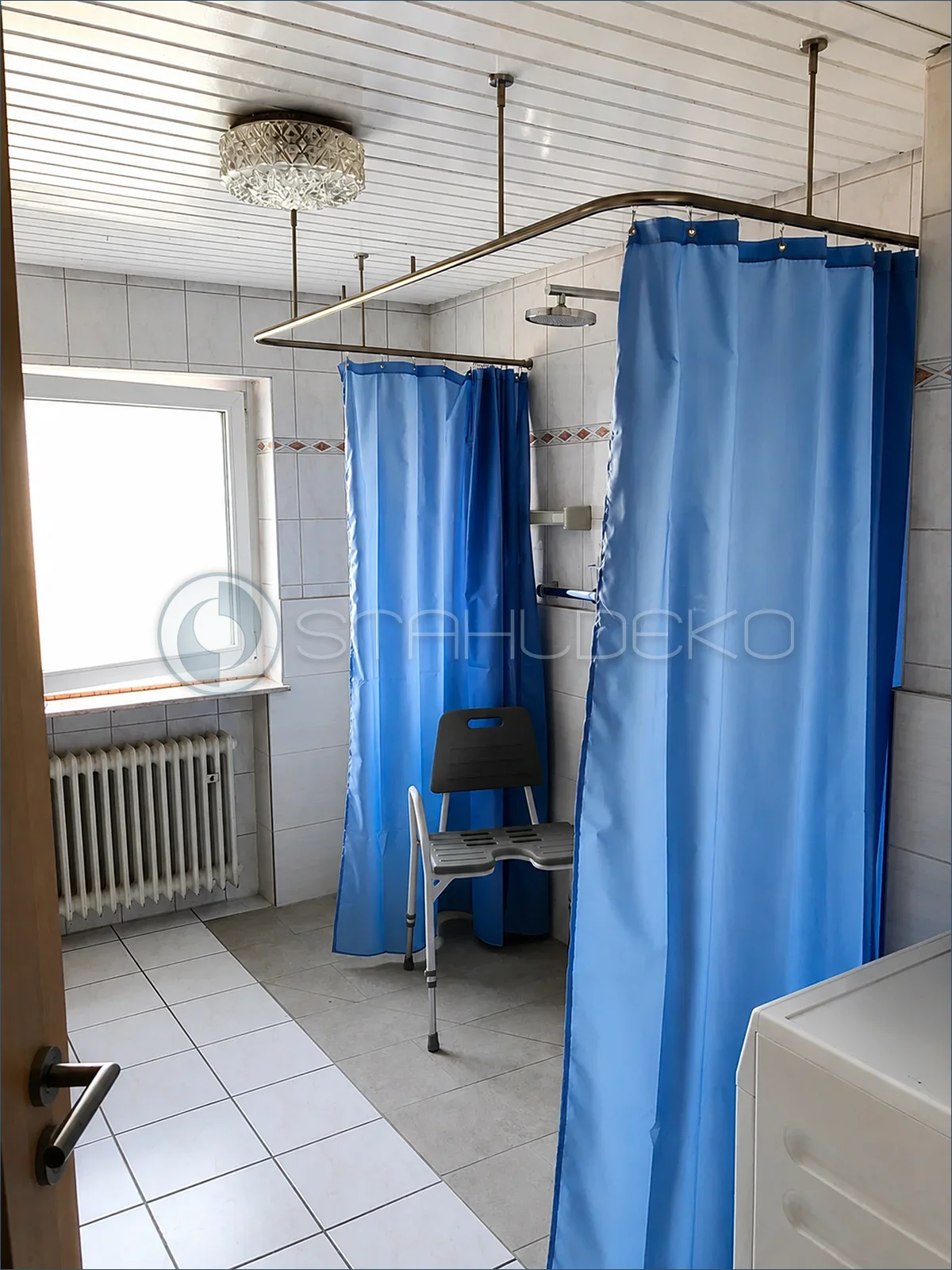

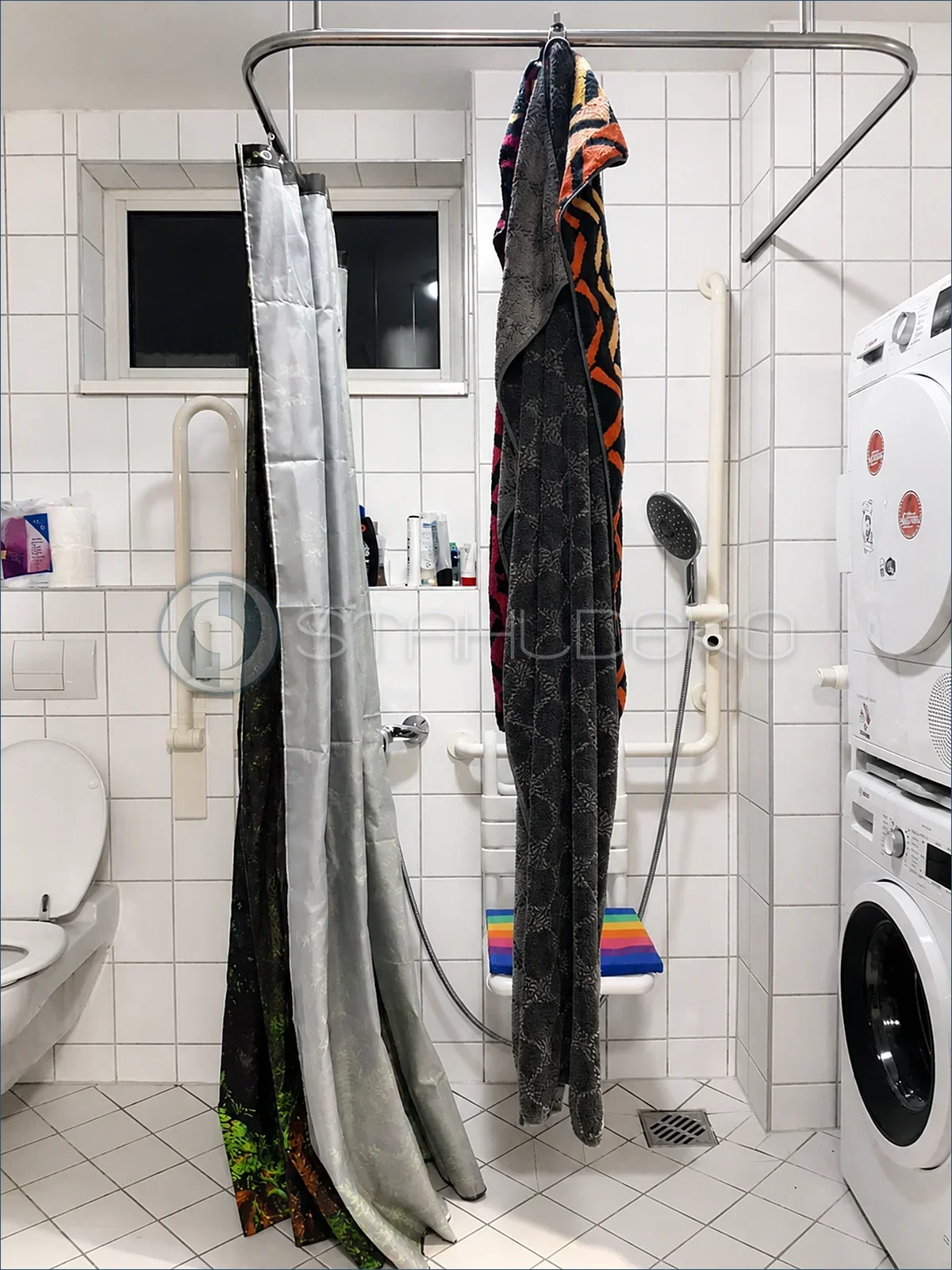

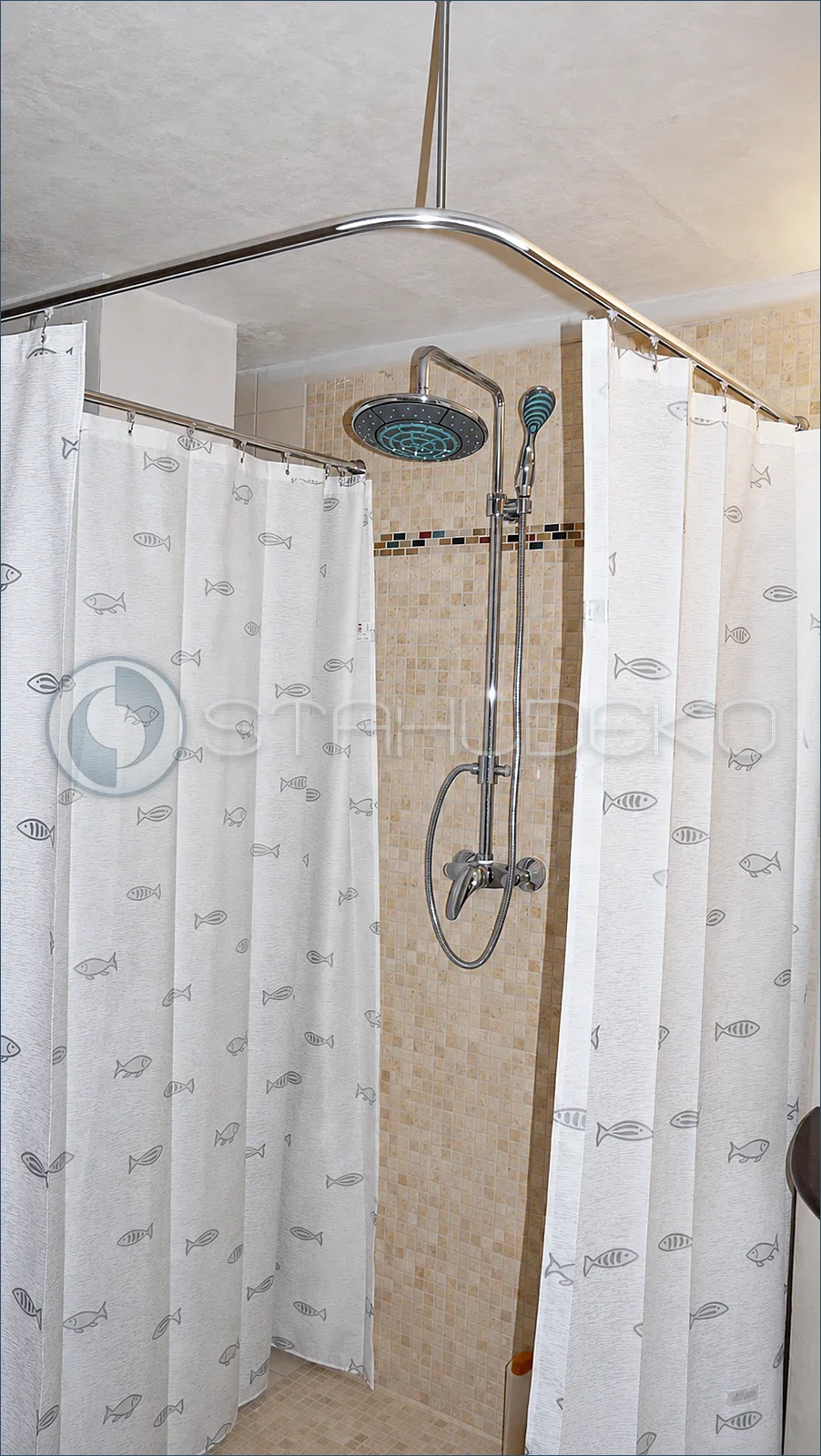

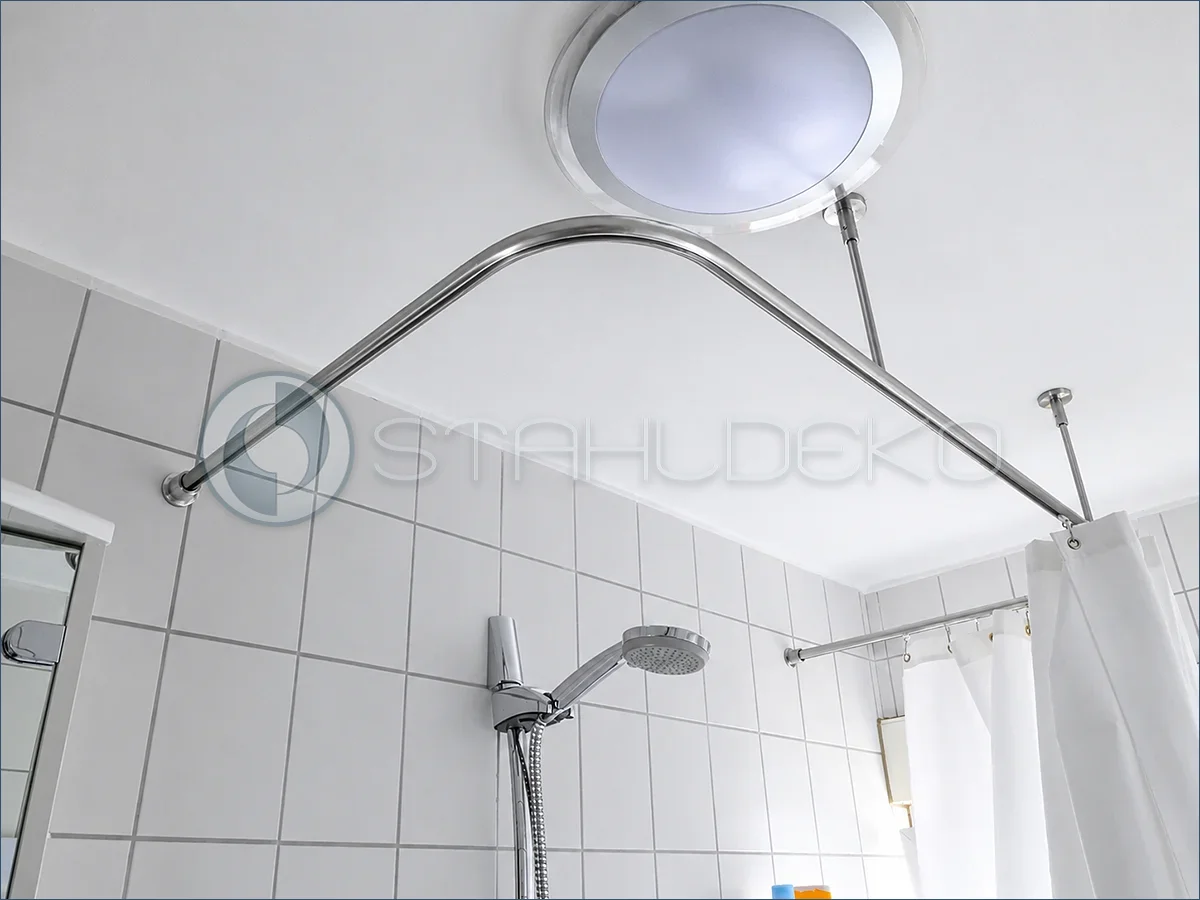

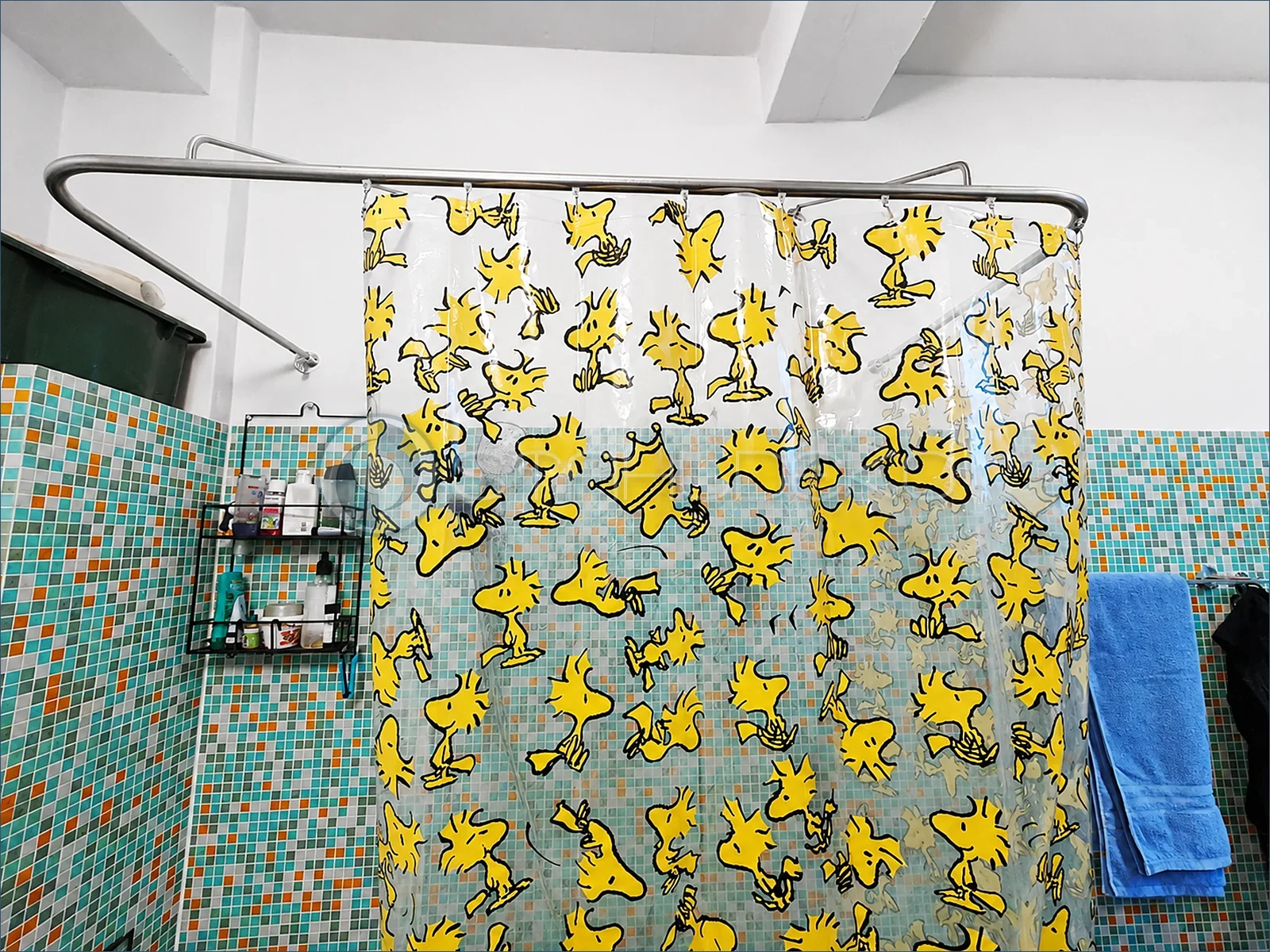

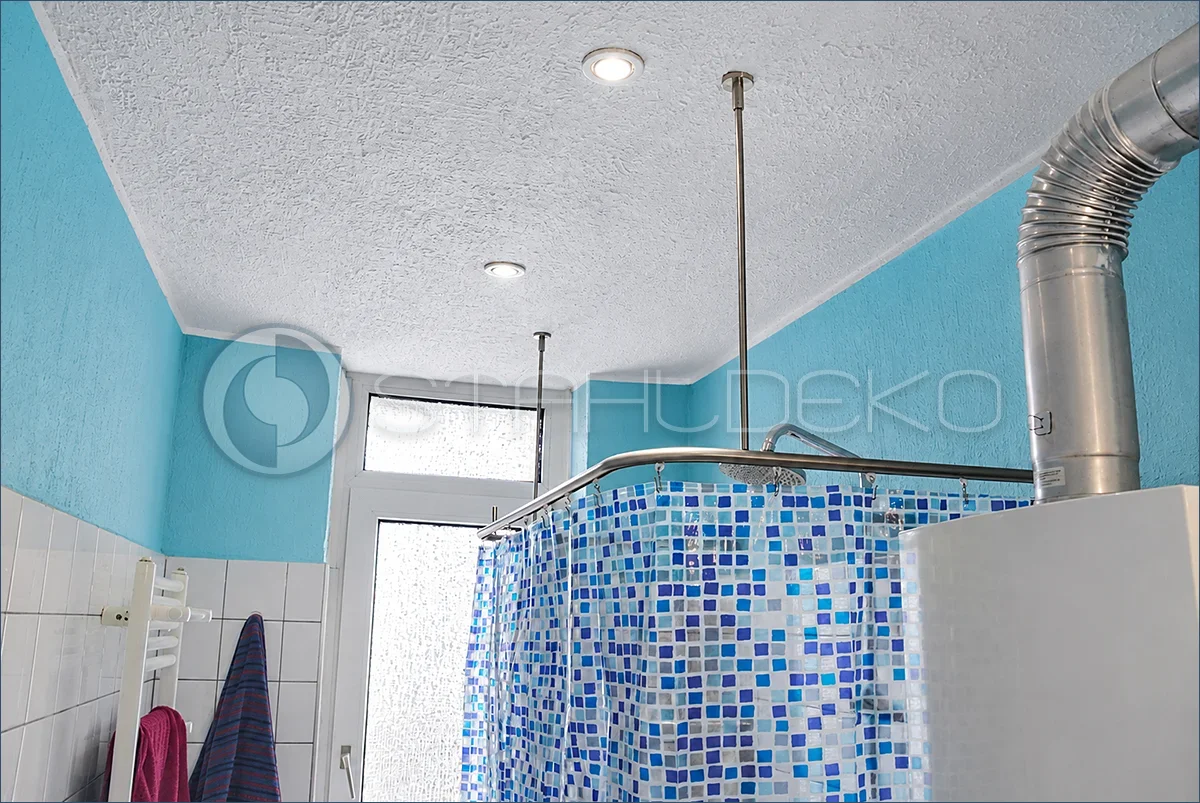

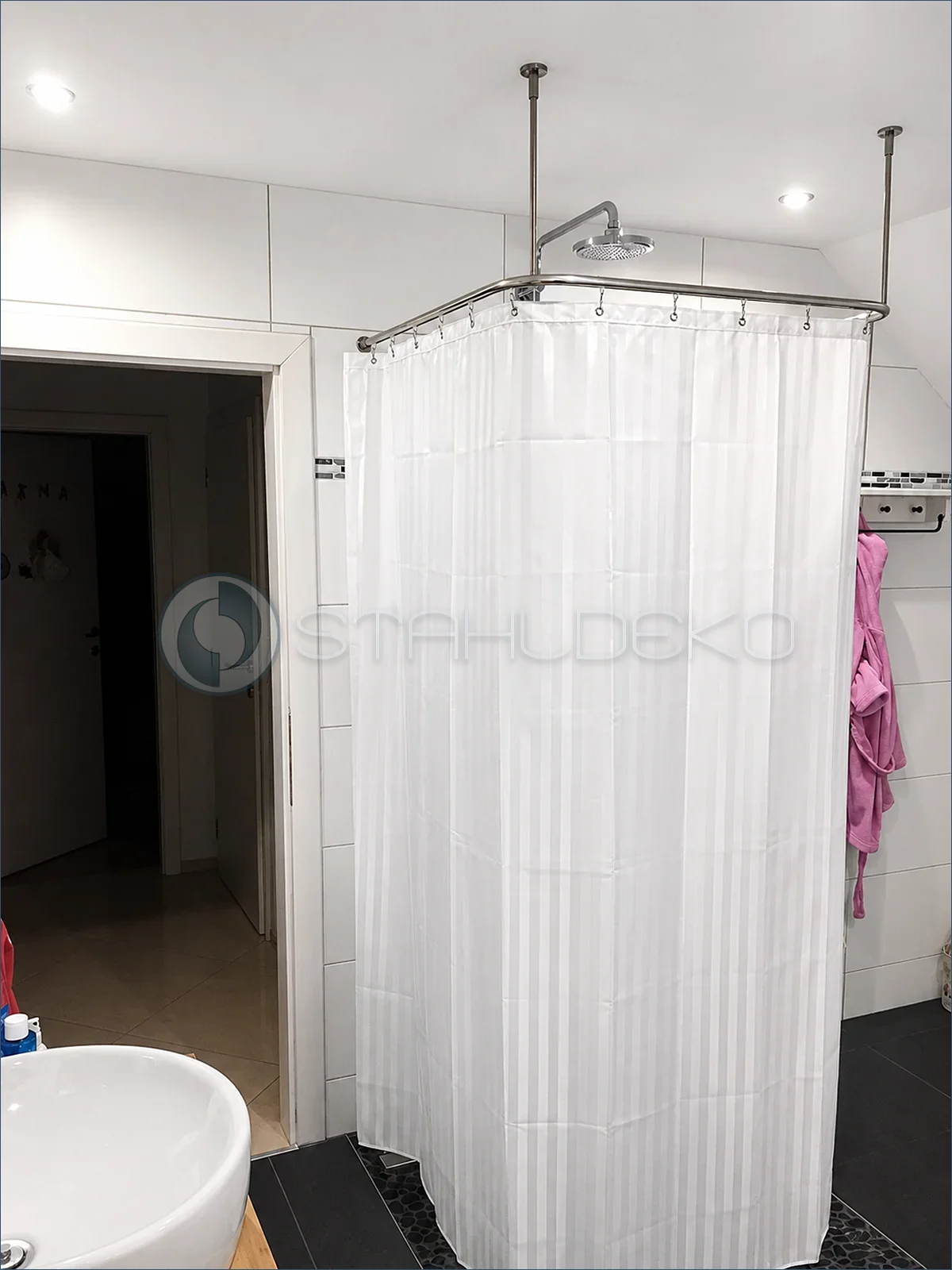

An advantage of the shower curtain rails with inner running profile is the possibility to move the shower curtain absolutely freely along the entire length of the rail. The ceiling supports are installed in the upper run (fastening run) of the inner run profile and always keep the lower run (slider run) free, thus guaranteeing a trouble-free path for the curtain all round. Thus, our shower rails are ideally suited to set up a barrier-free shower area for disabled showers.

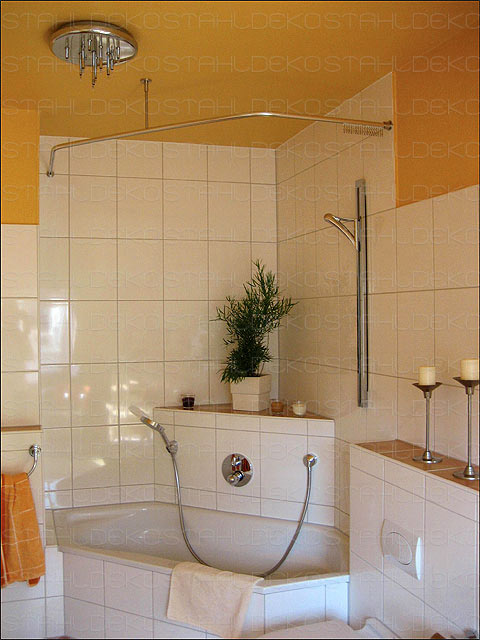

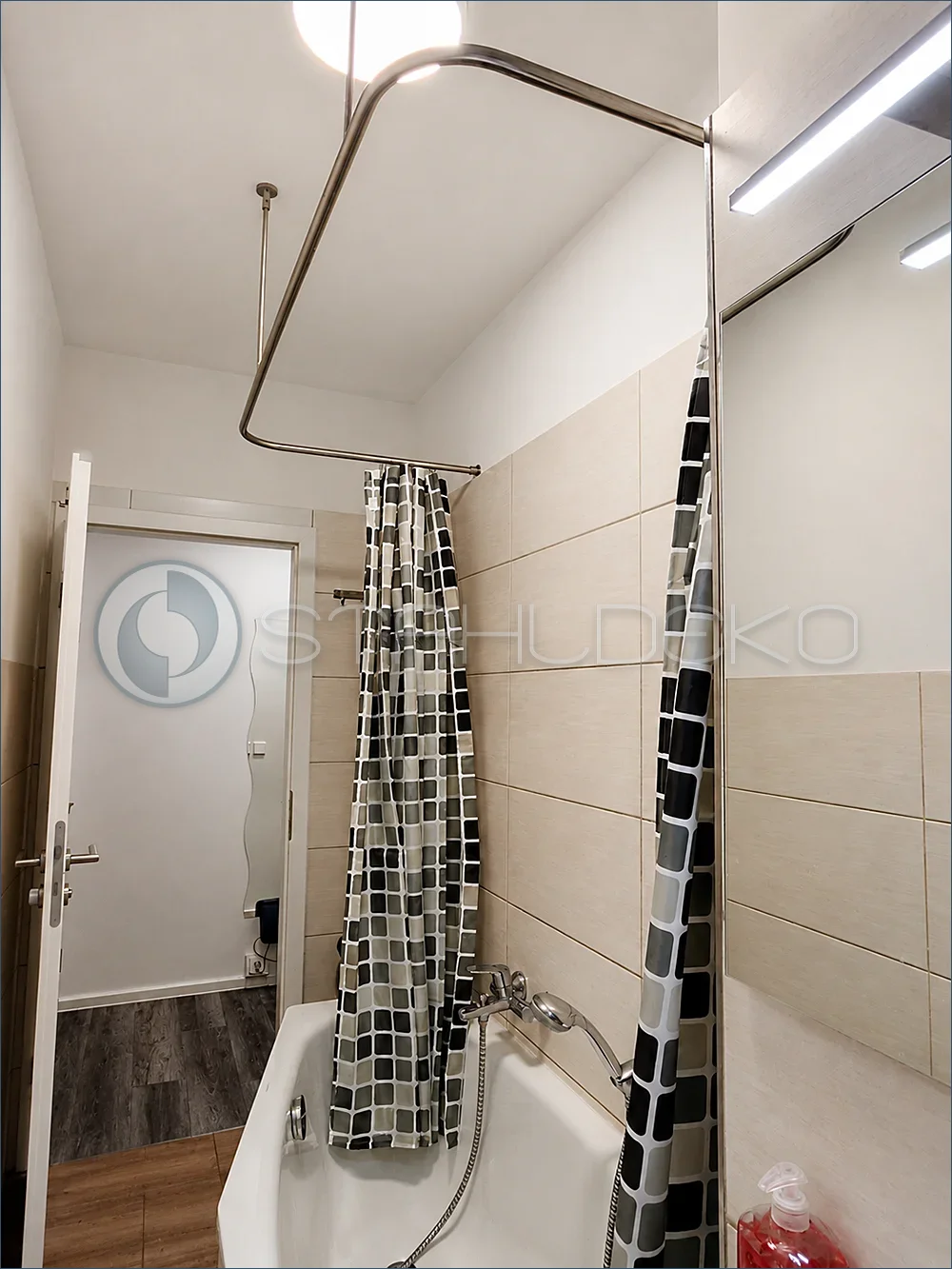

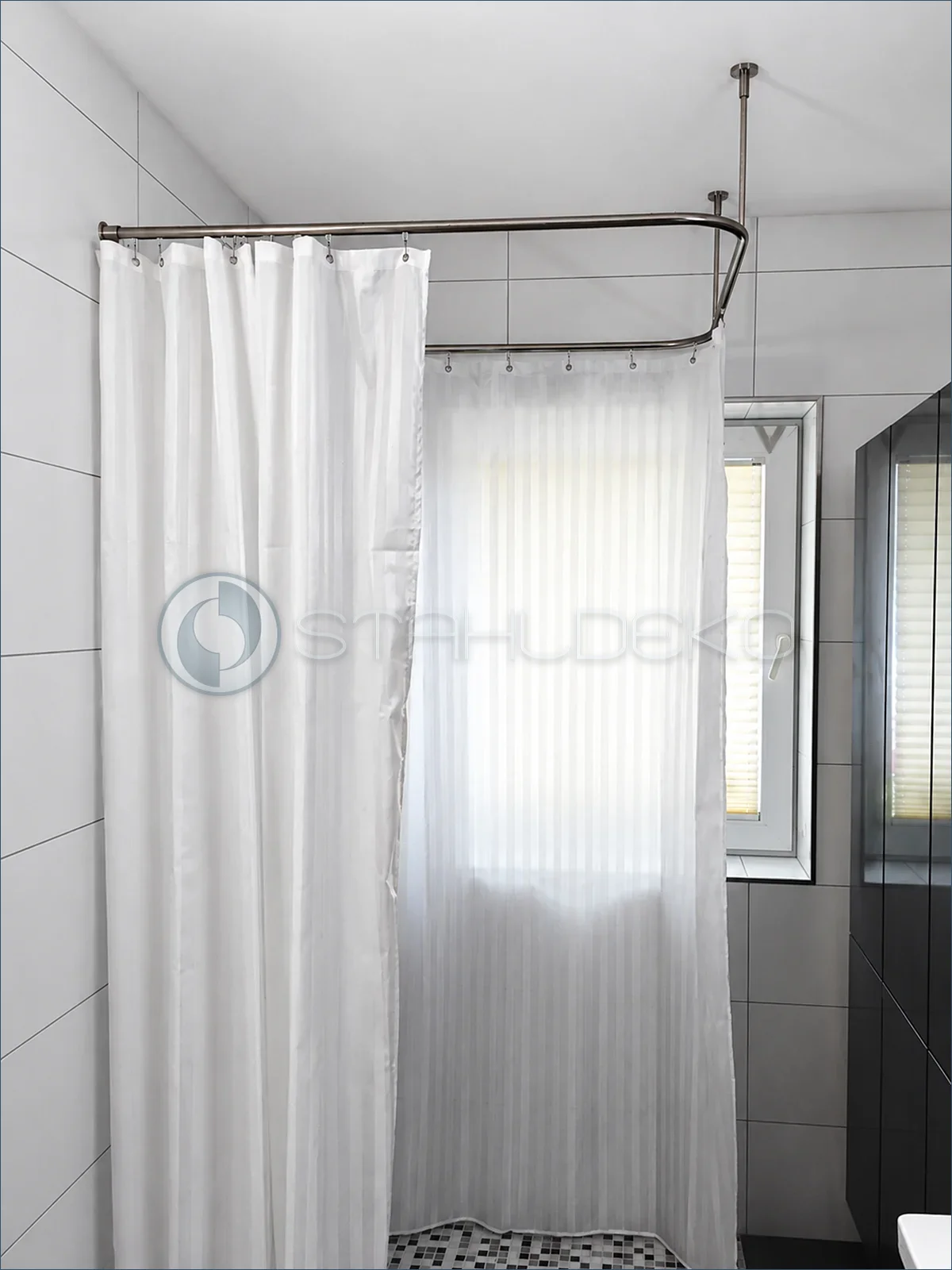

*Custom-made products on request, we also manufacture our rods in any other shape, bent absolutely according to your needs and space situation.

Order shower curtain rod in the right size and design.

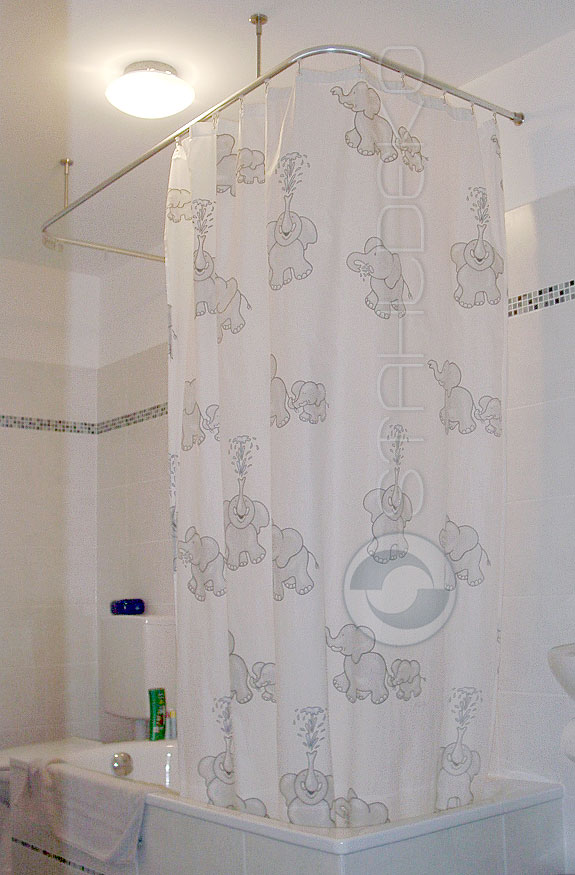

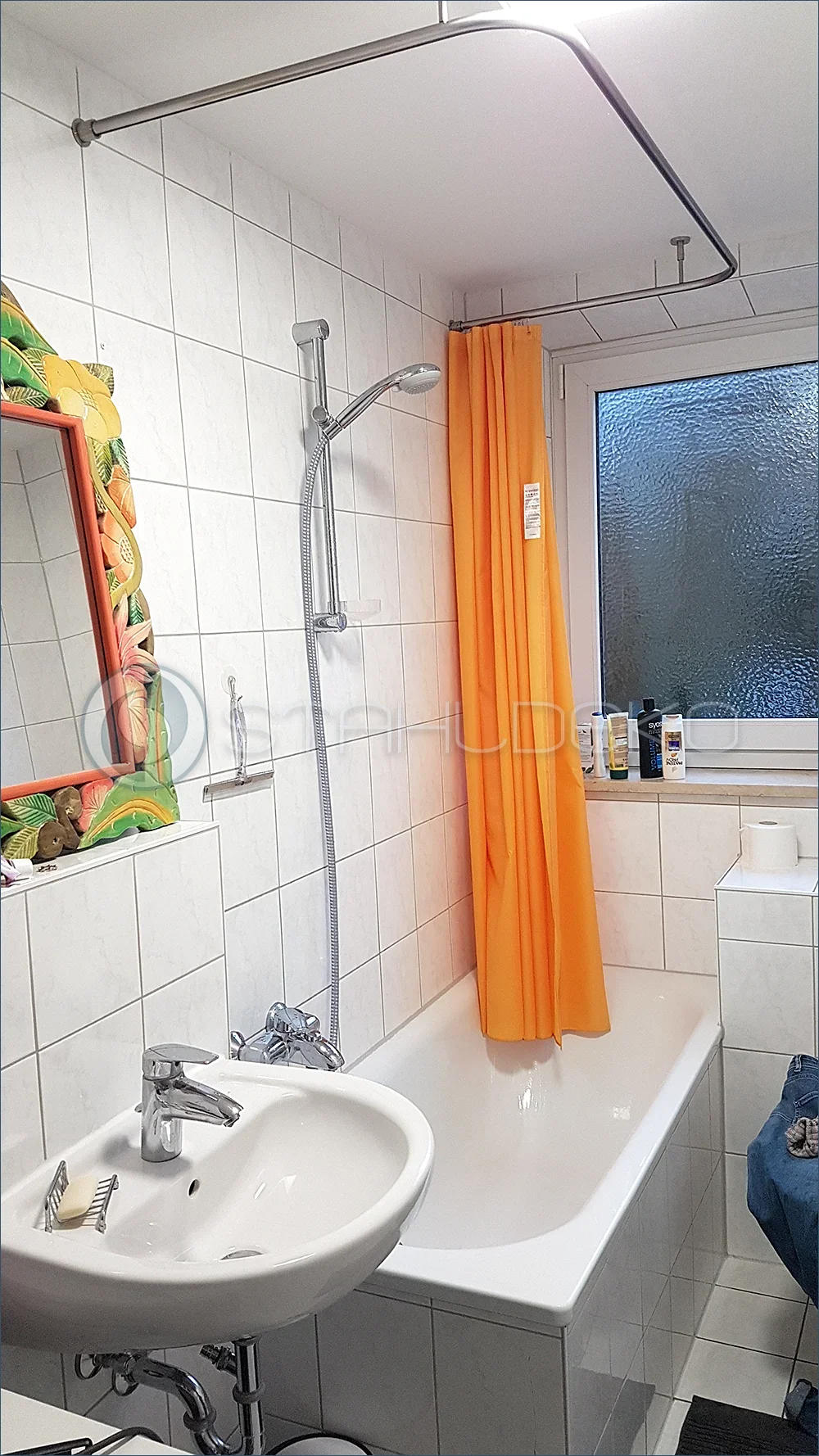

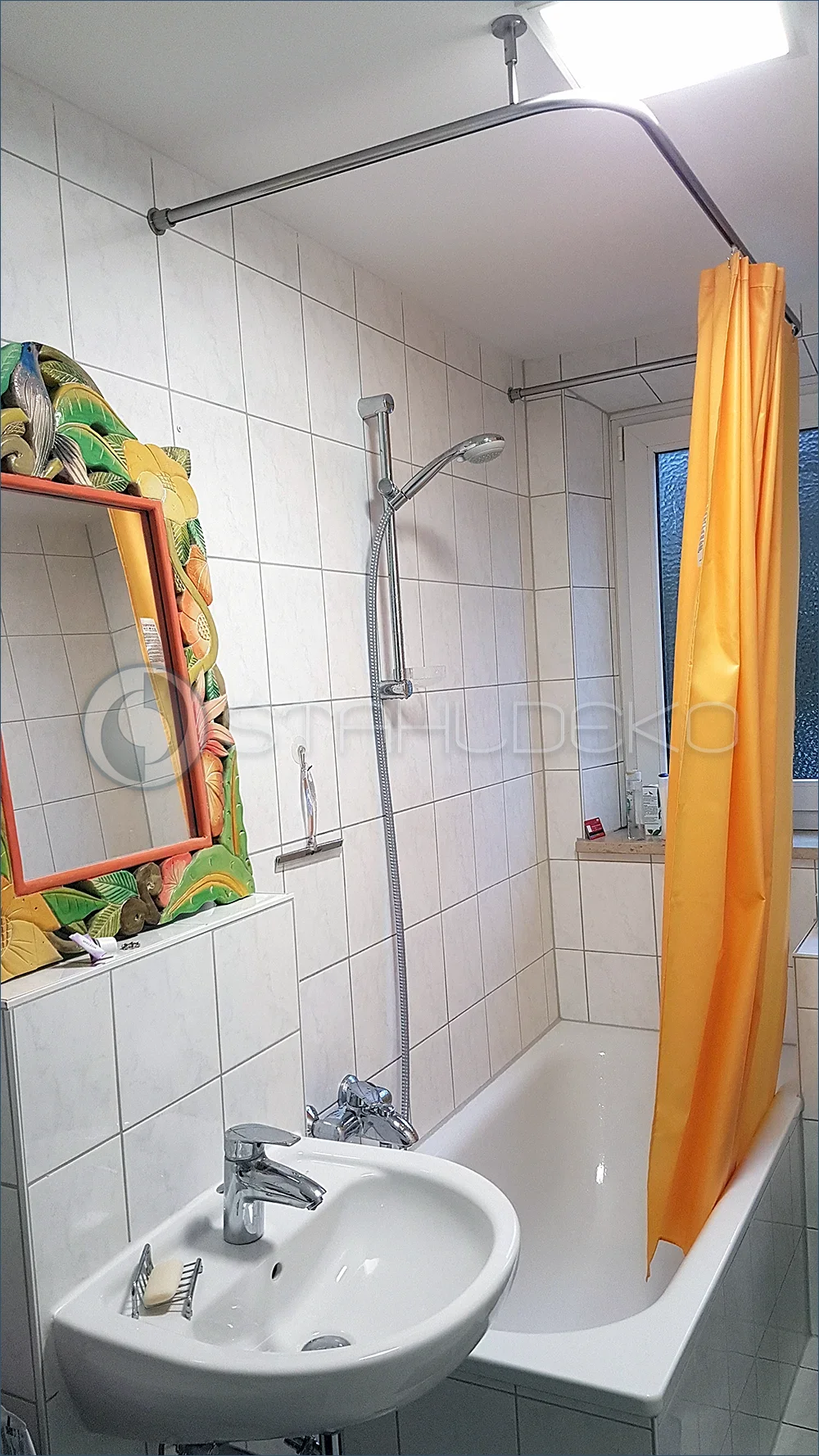

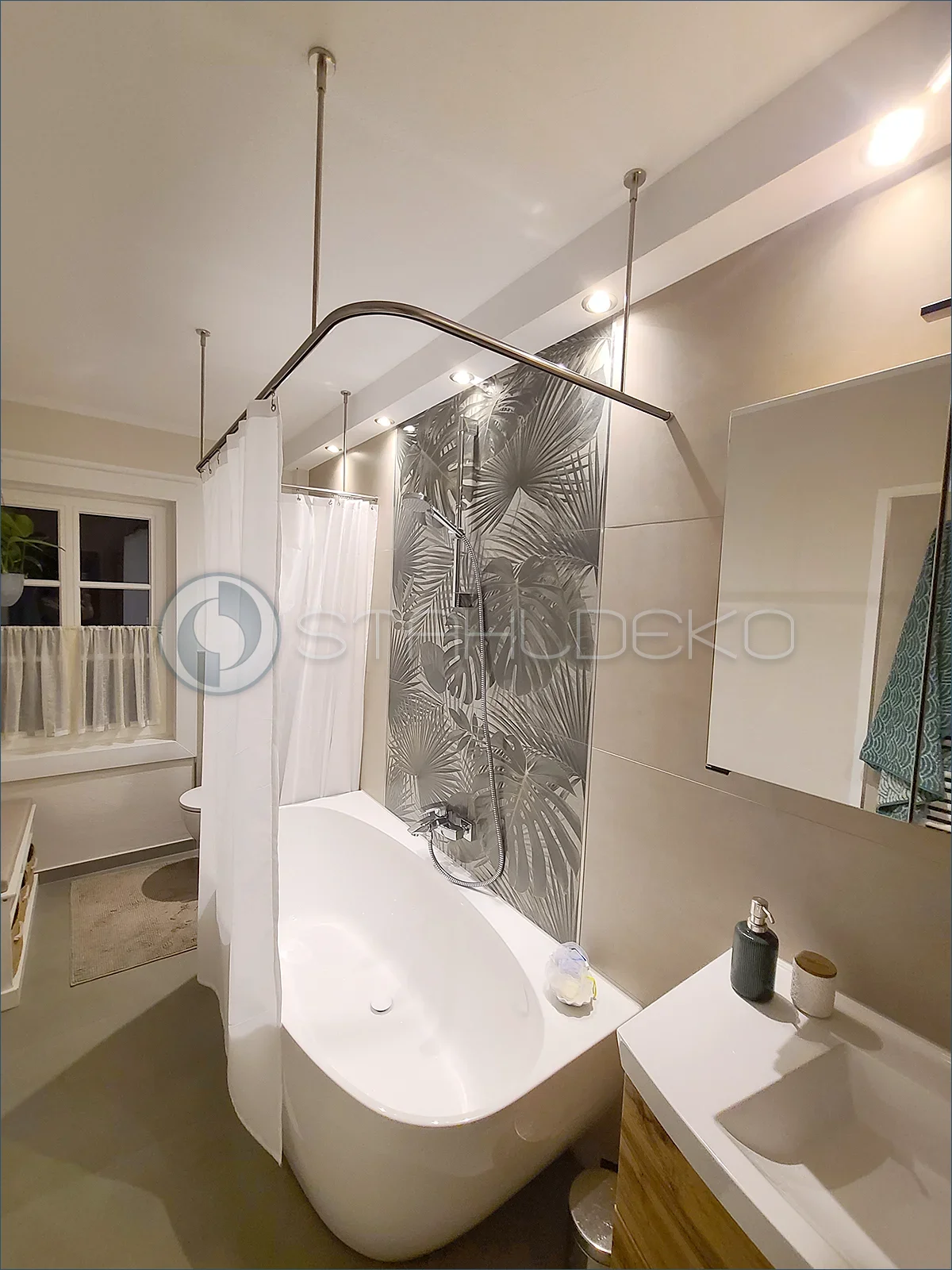

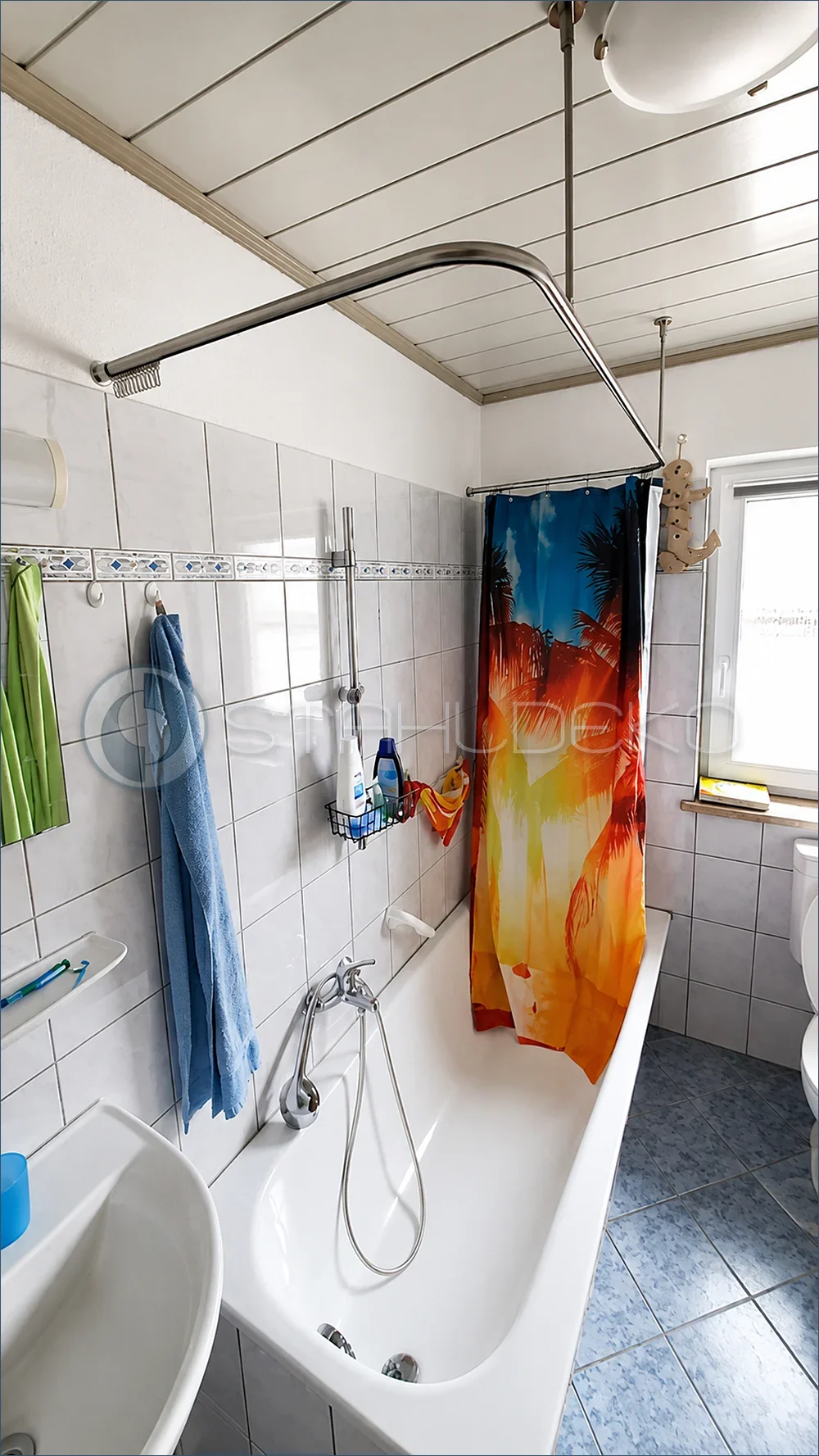

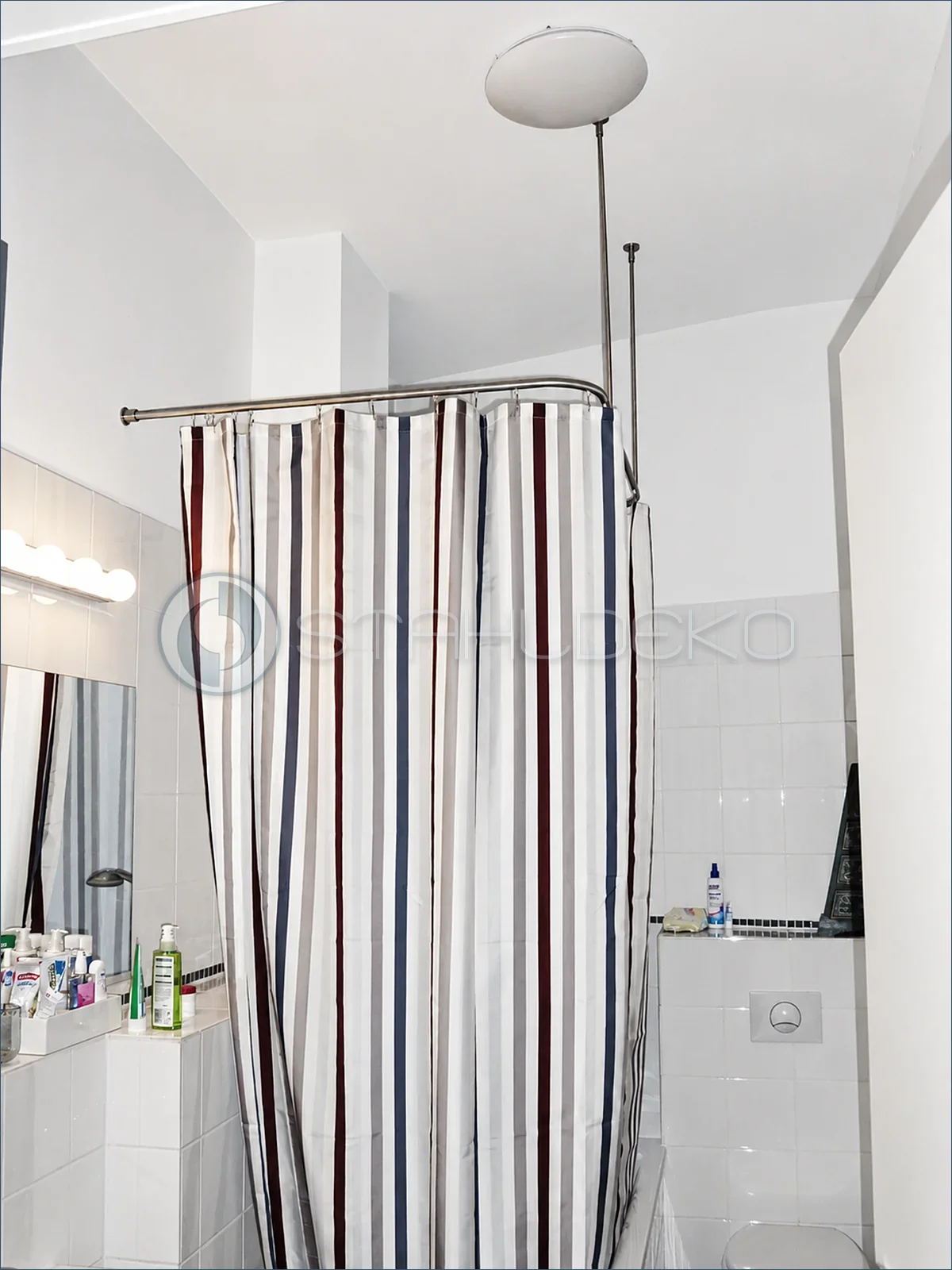

Ordered sizes are outside dimensions of the pole. You can order the rail in shower tray size (all sides are the same) or in bath tub size (the sides are different lengths).
Important for cuts!The shower rod is manufactured and delivered in one piece, but the rod ends can always be shortened. So it is always possible to realize the right size. We can do the shortening for you or you can shorten the rod yourself during assembly. If you want us to shorten the shower curtain rod, please enter the desired dimensions in the "Shorten shower curtain rod" field (Sections are not included!).
Eg : "shorten a and c by 3cm, do not shorten b"

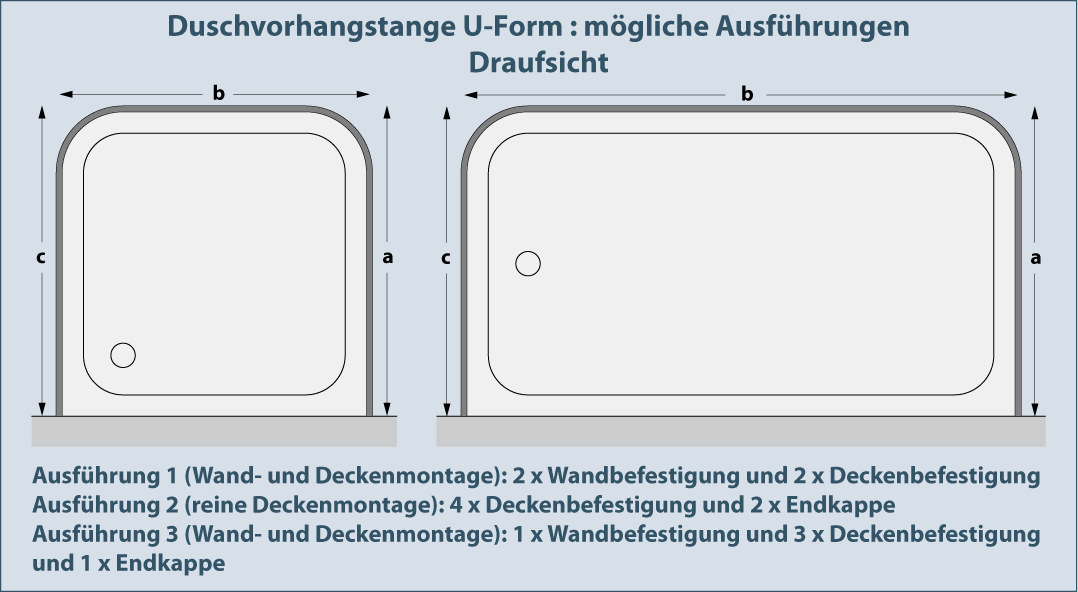

The U-shaped shower curtain sang should be fixed at least 4 points. You can order the following versions:

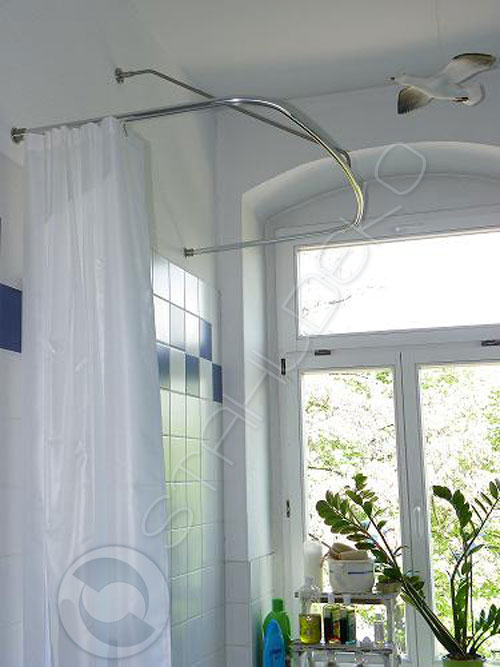

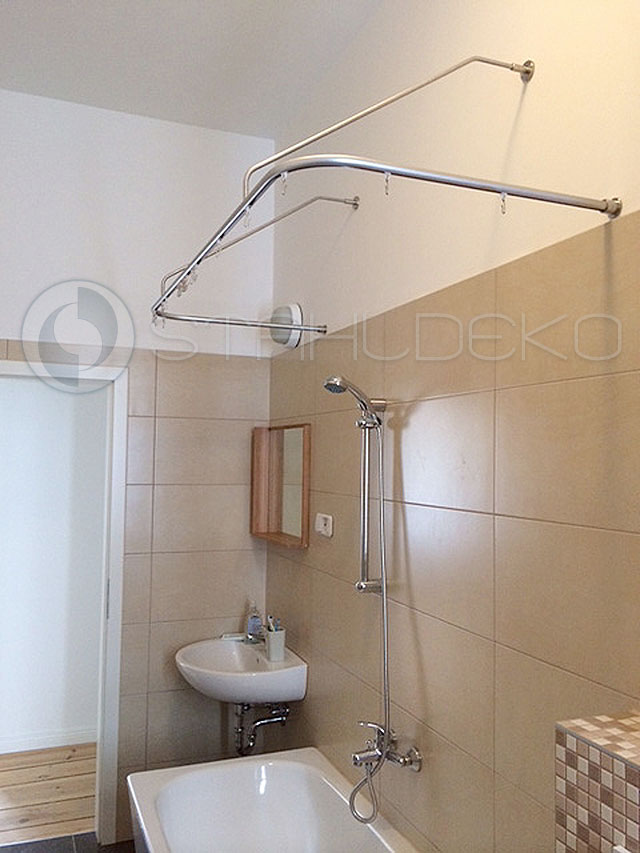

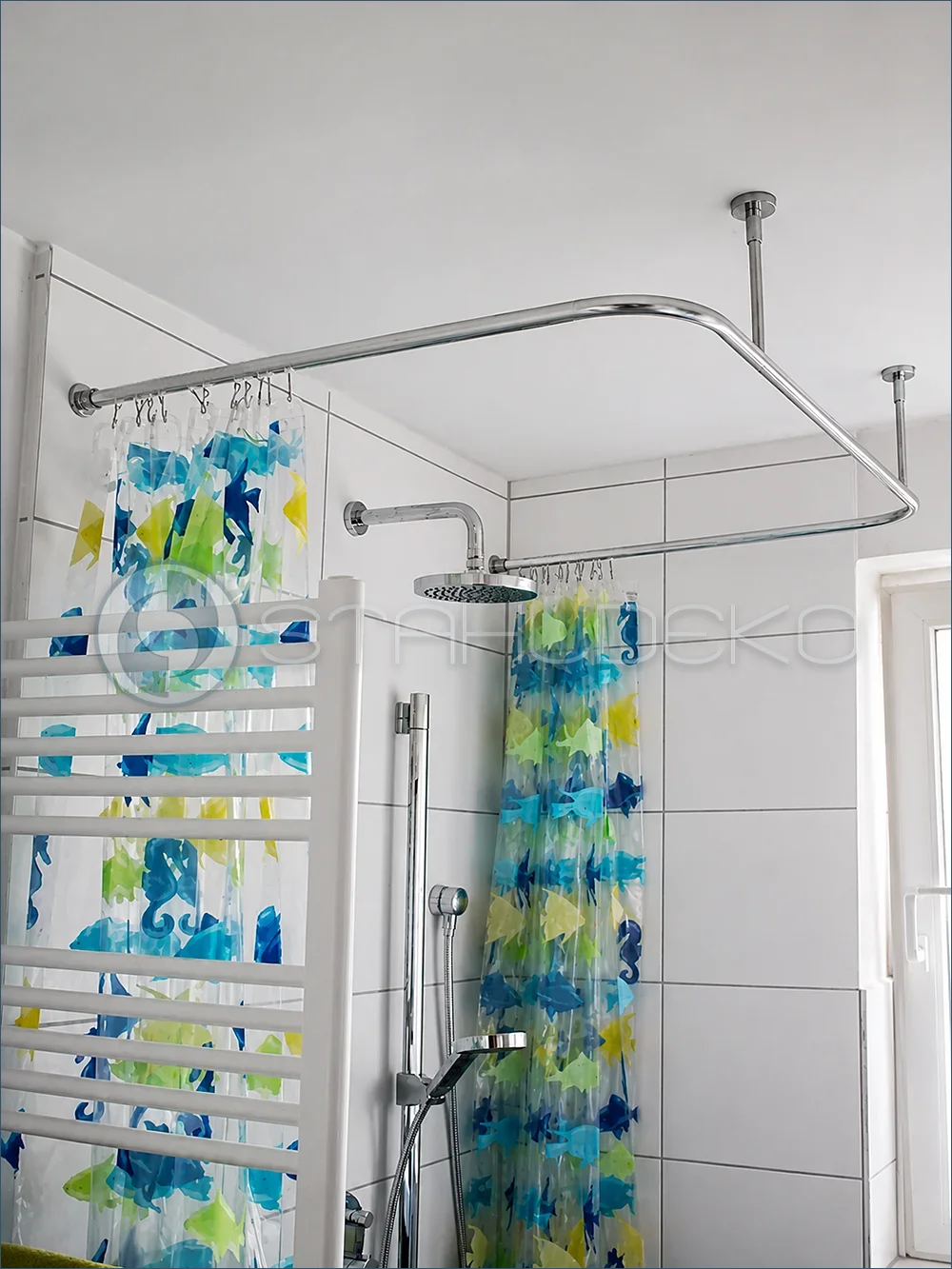

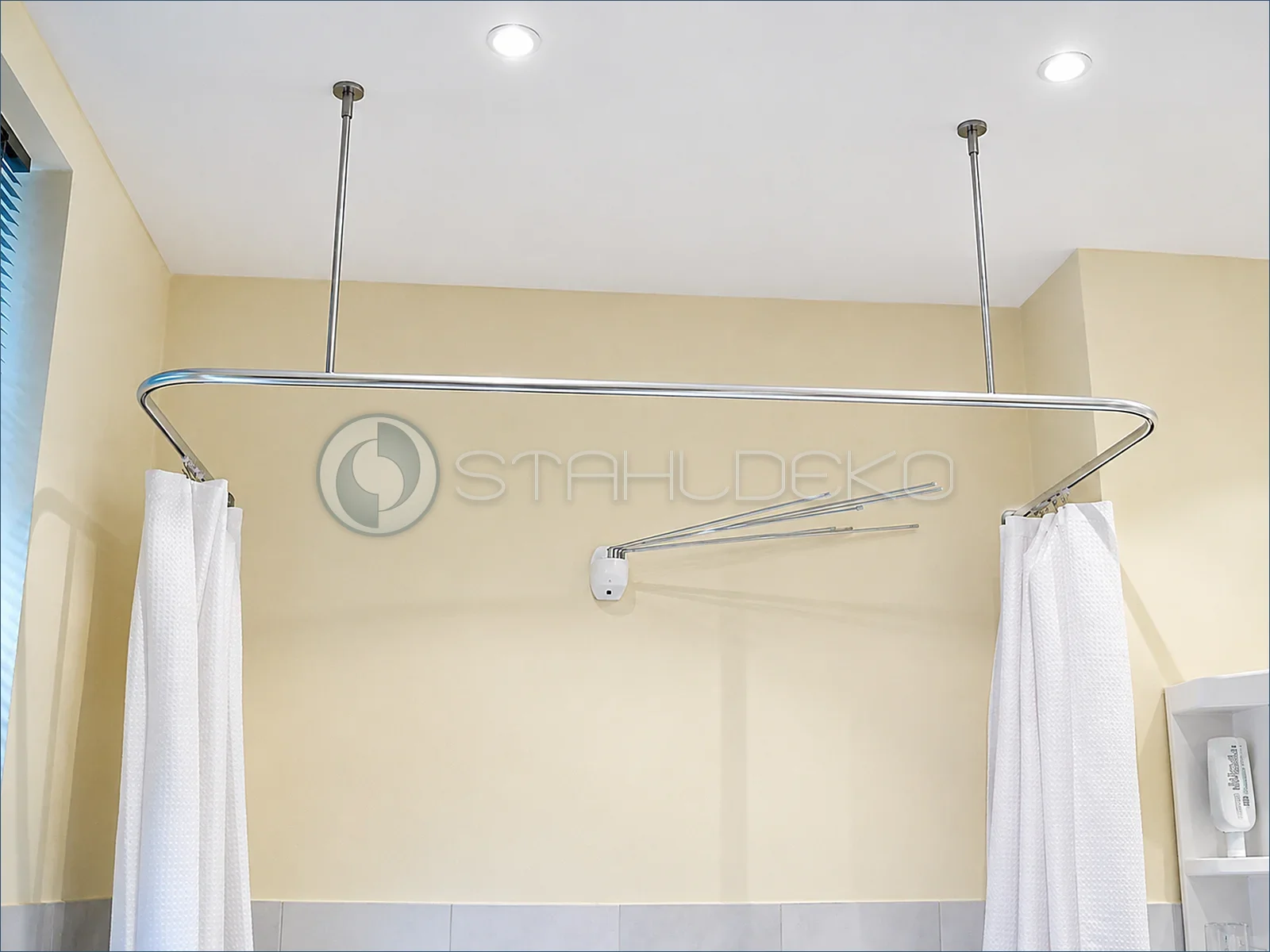

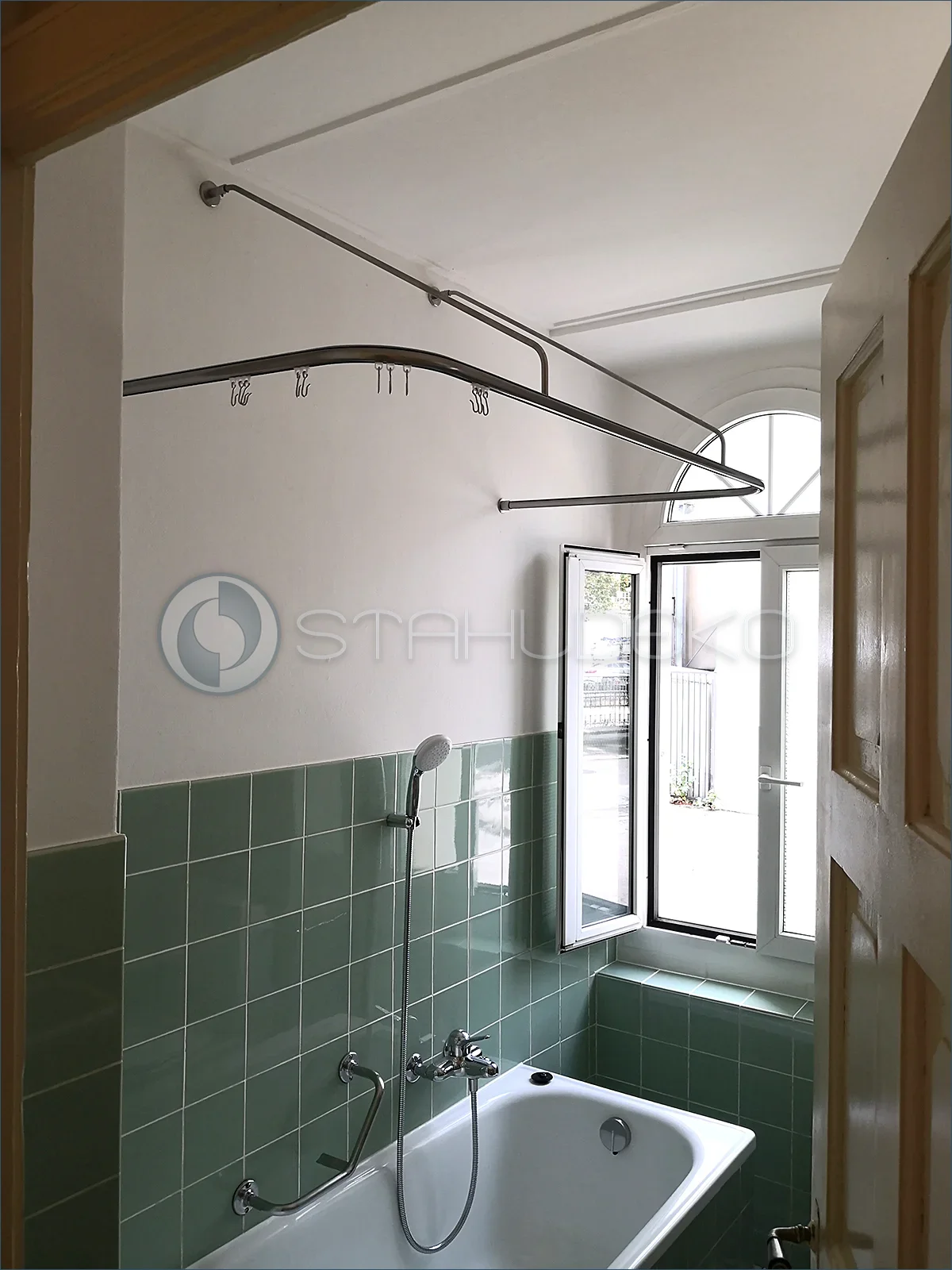

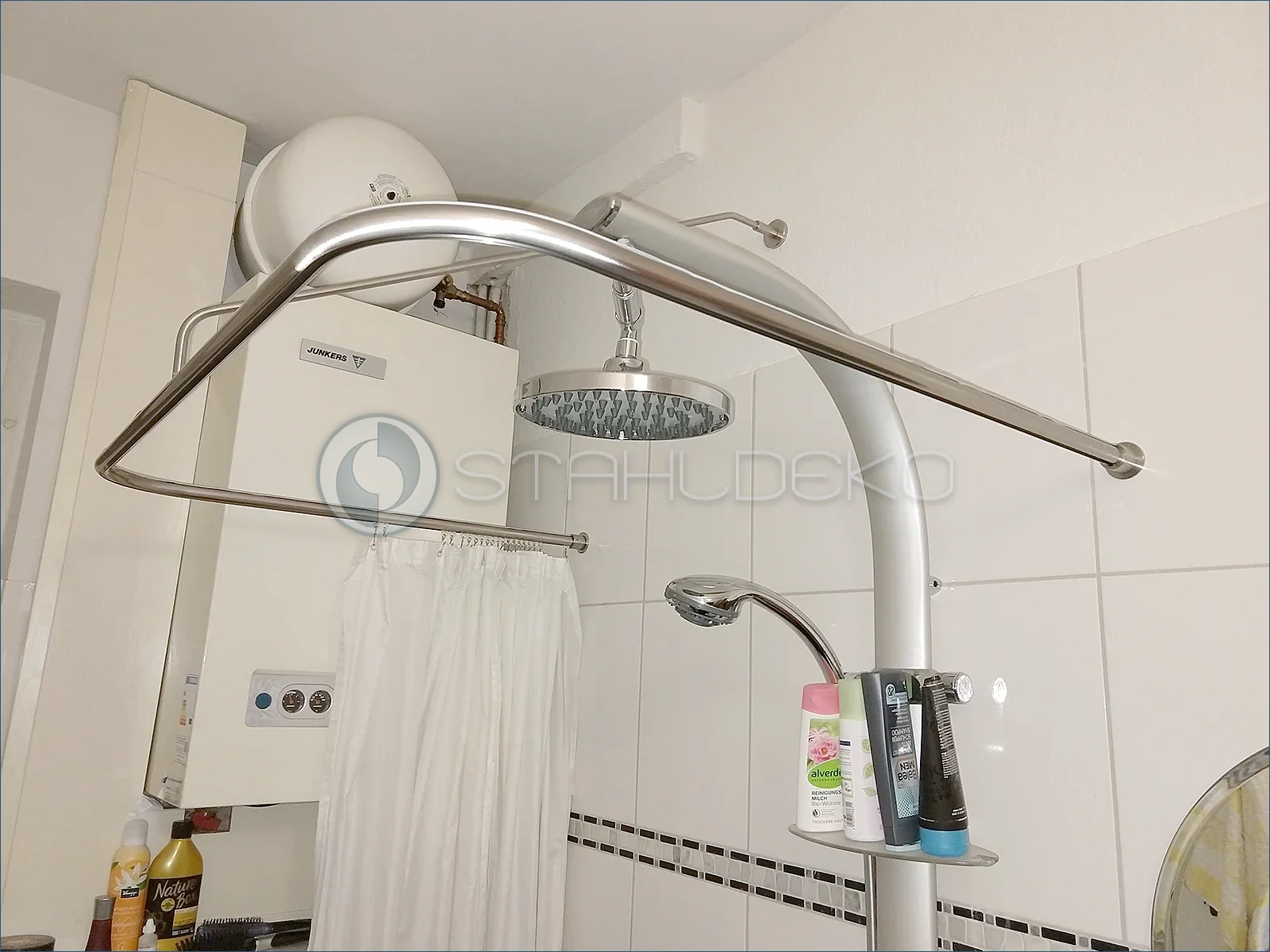

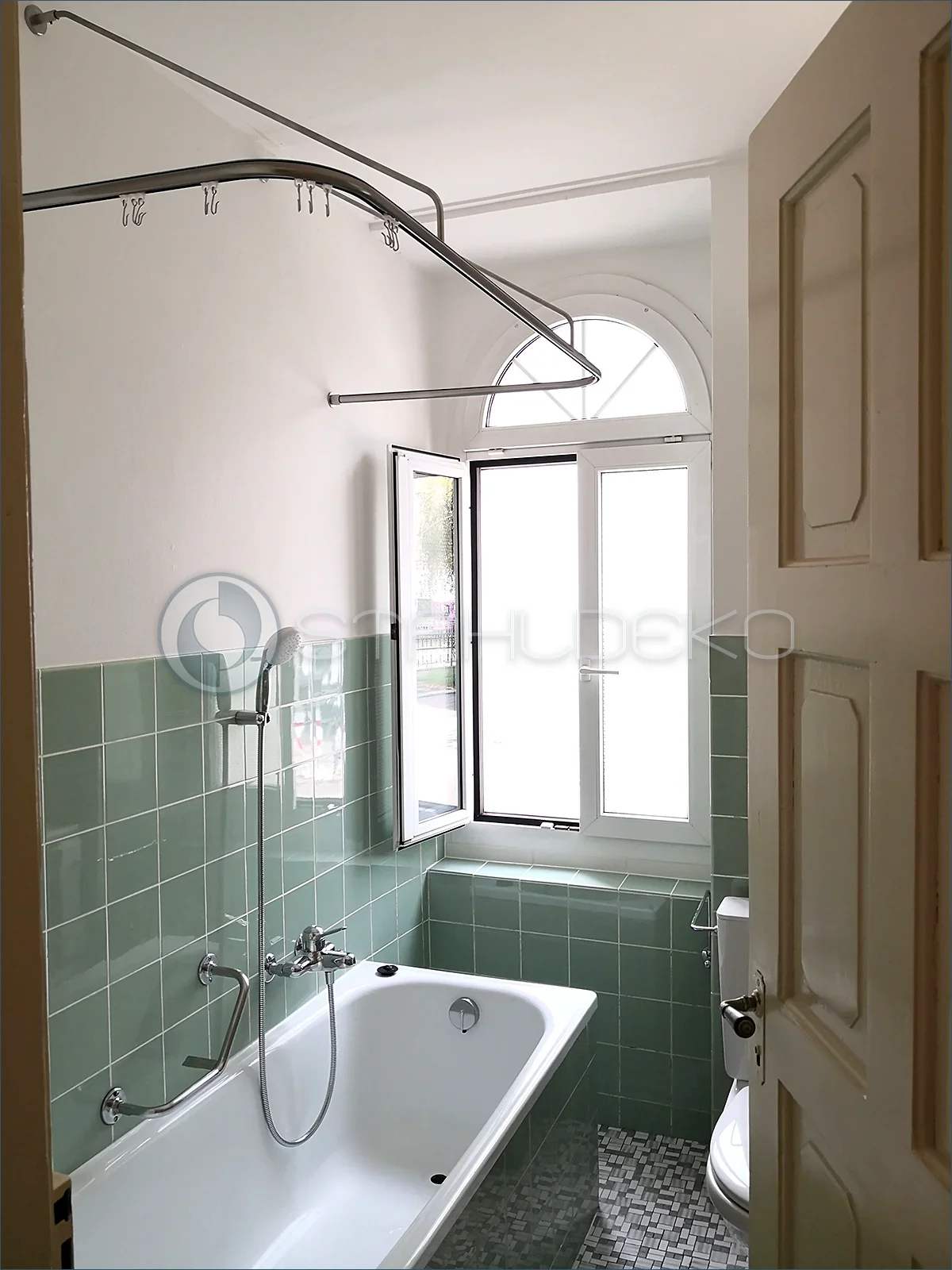

Version 1 (wall and ceiling mounting): 2 x wall mounting (wall bracket) and 2 x ceiling mounting (ceiling bracket).

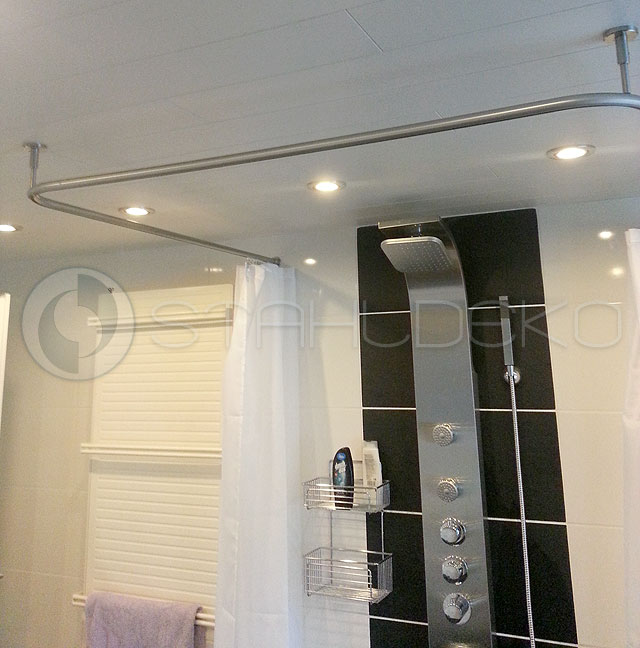

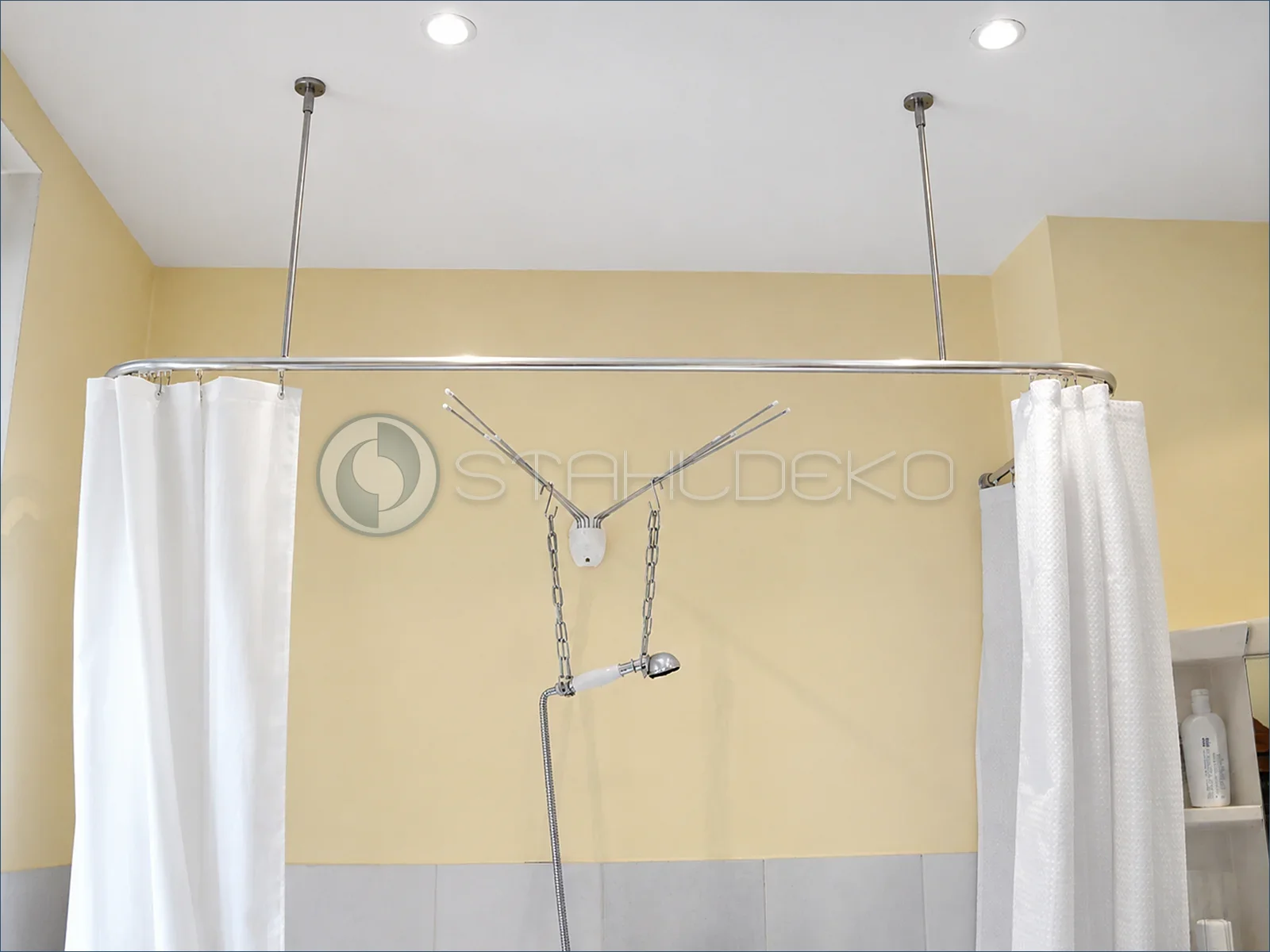

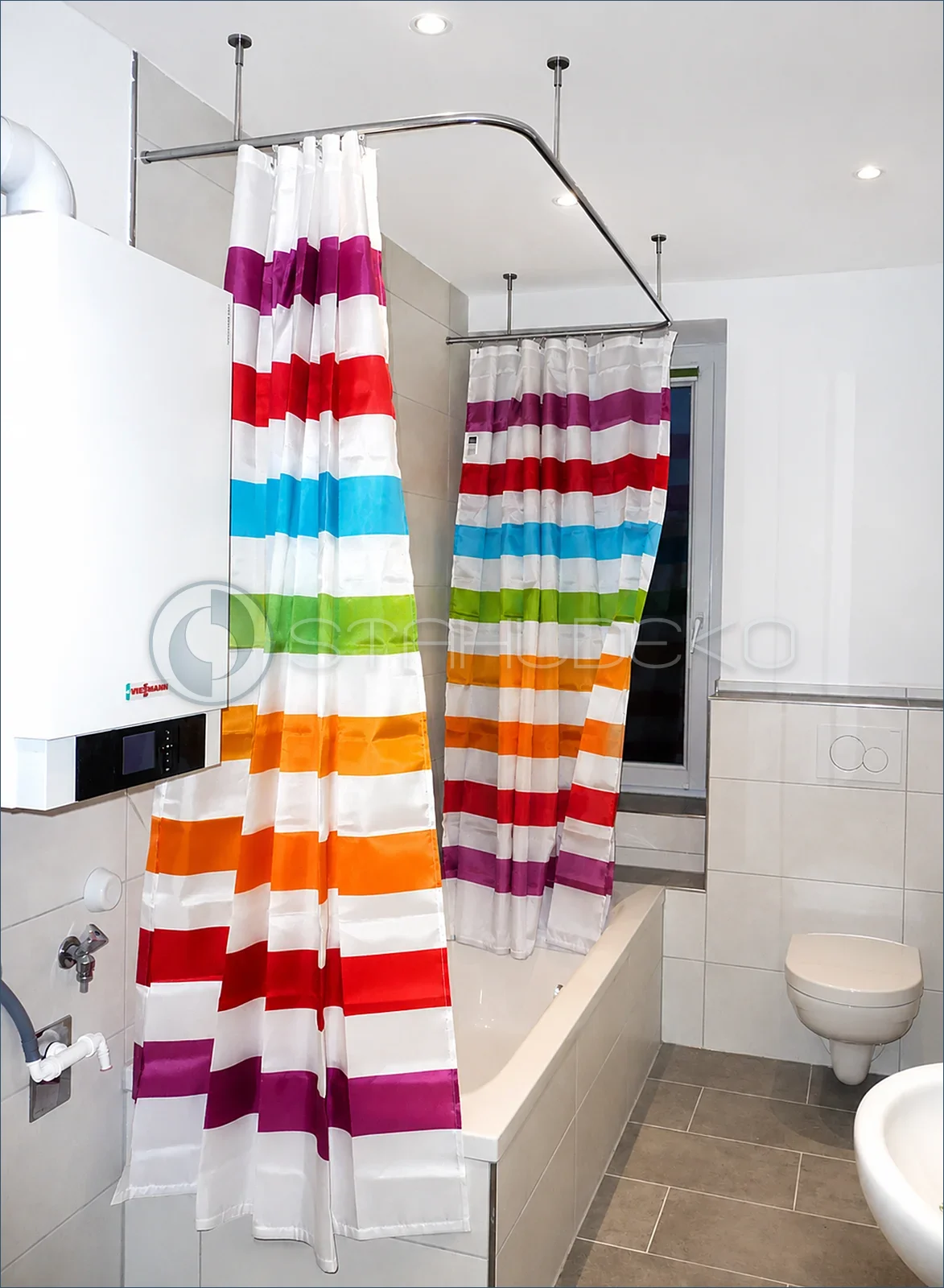

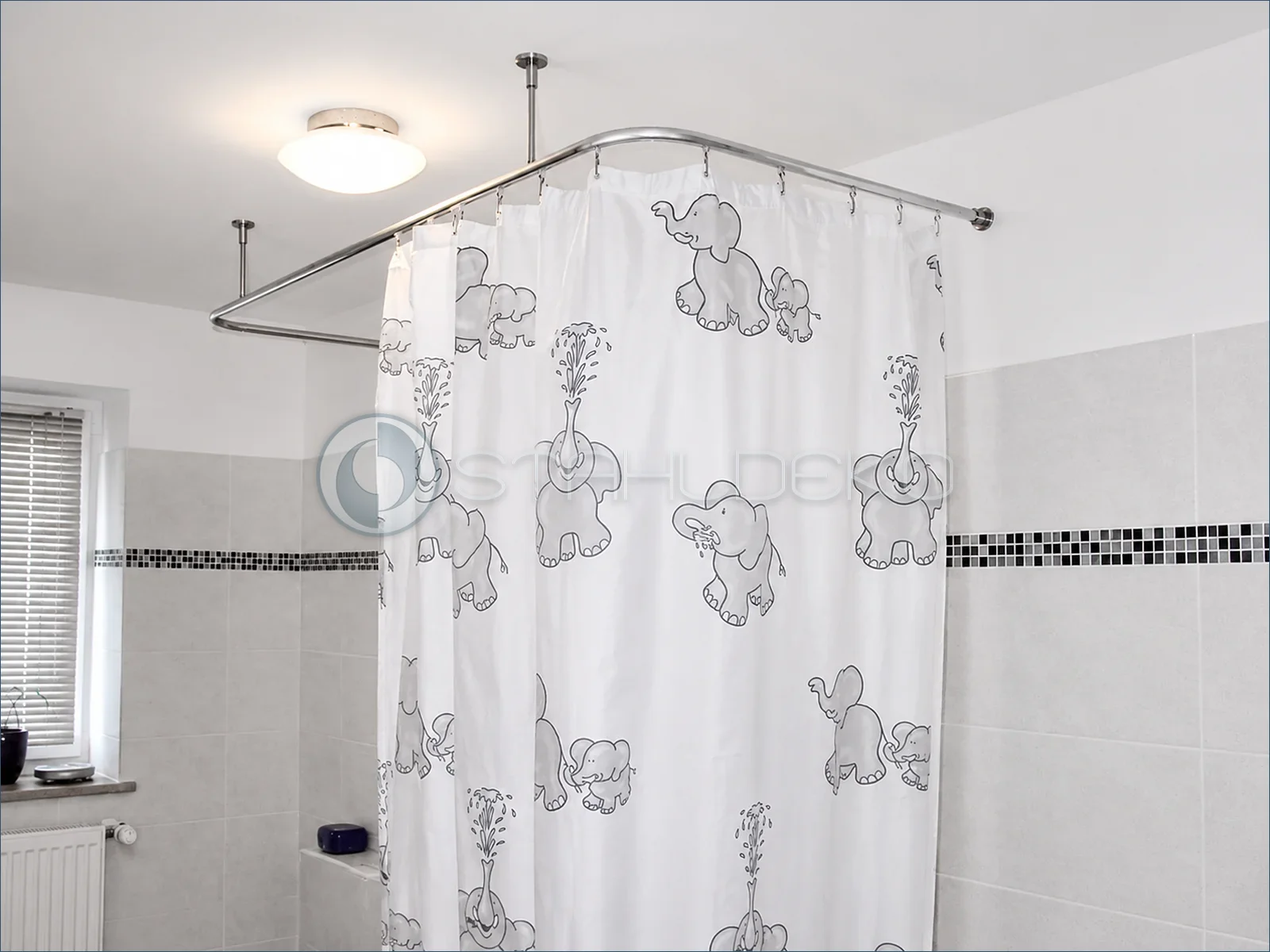

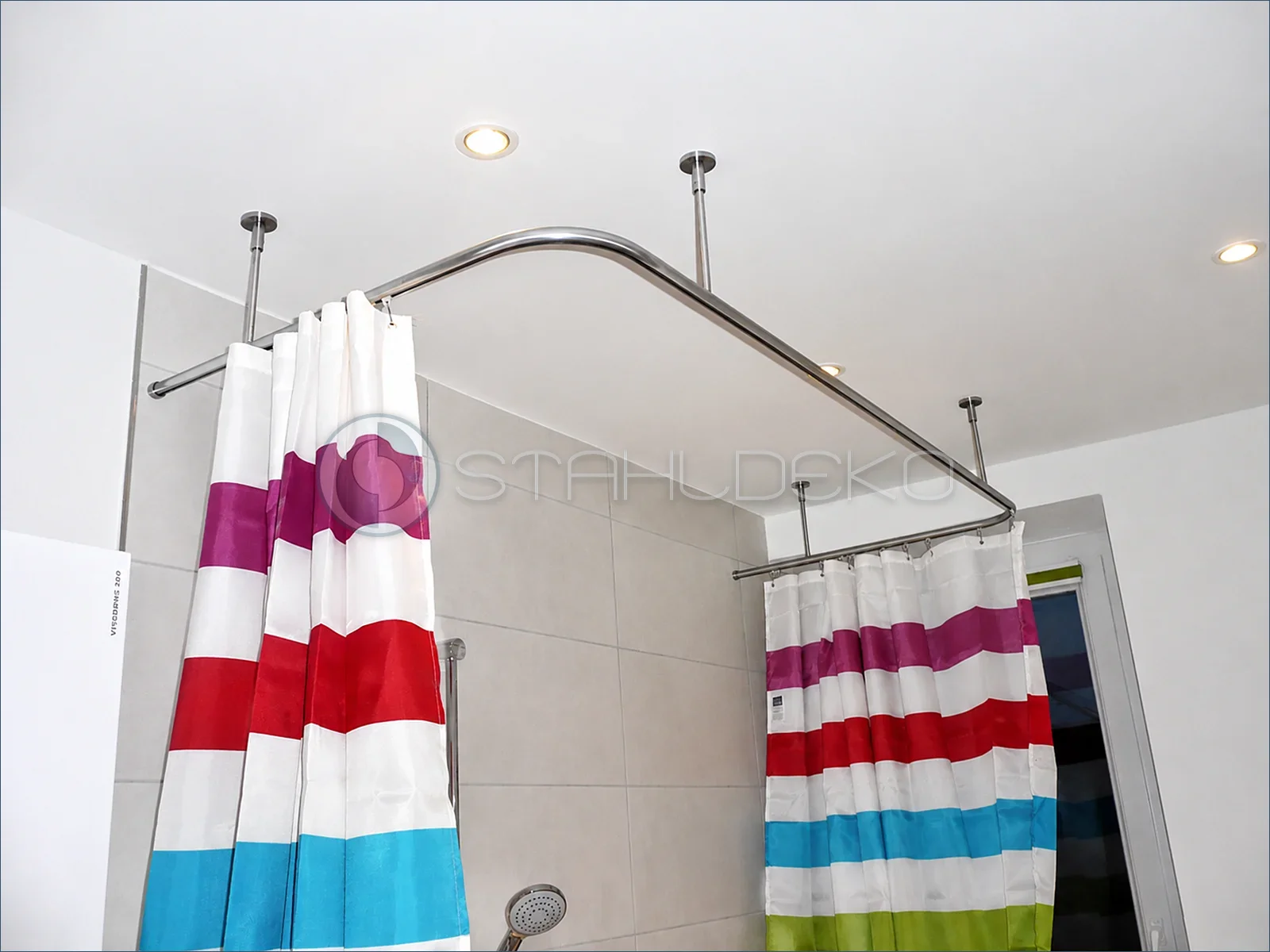

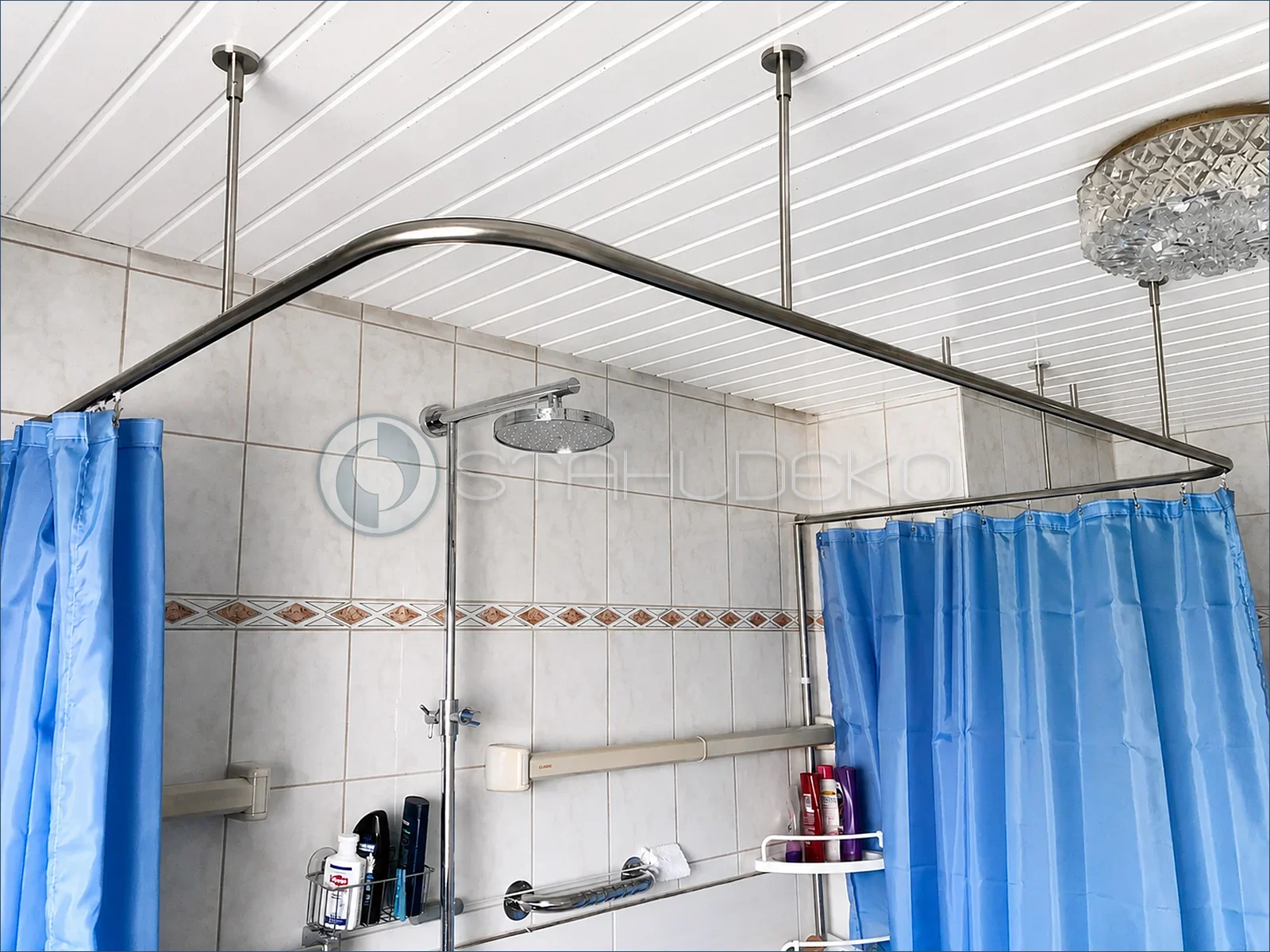

Version 2 (ceiling mounting only): 4 x ceiling mounts (ceiling brackets) and 2 x end caps (for rod ends).

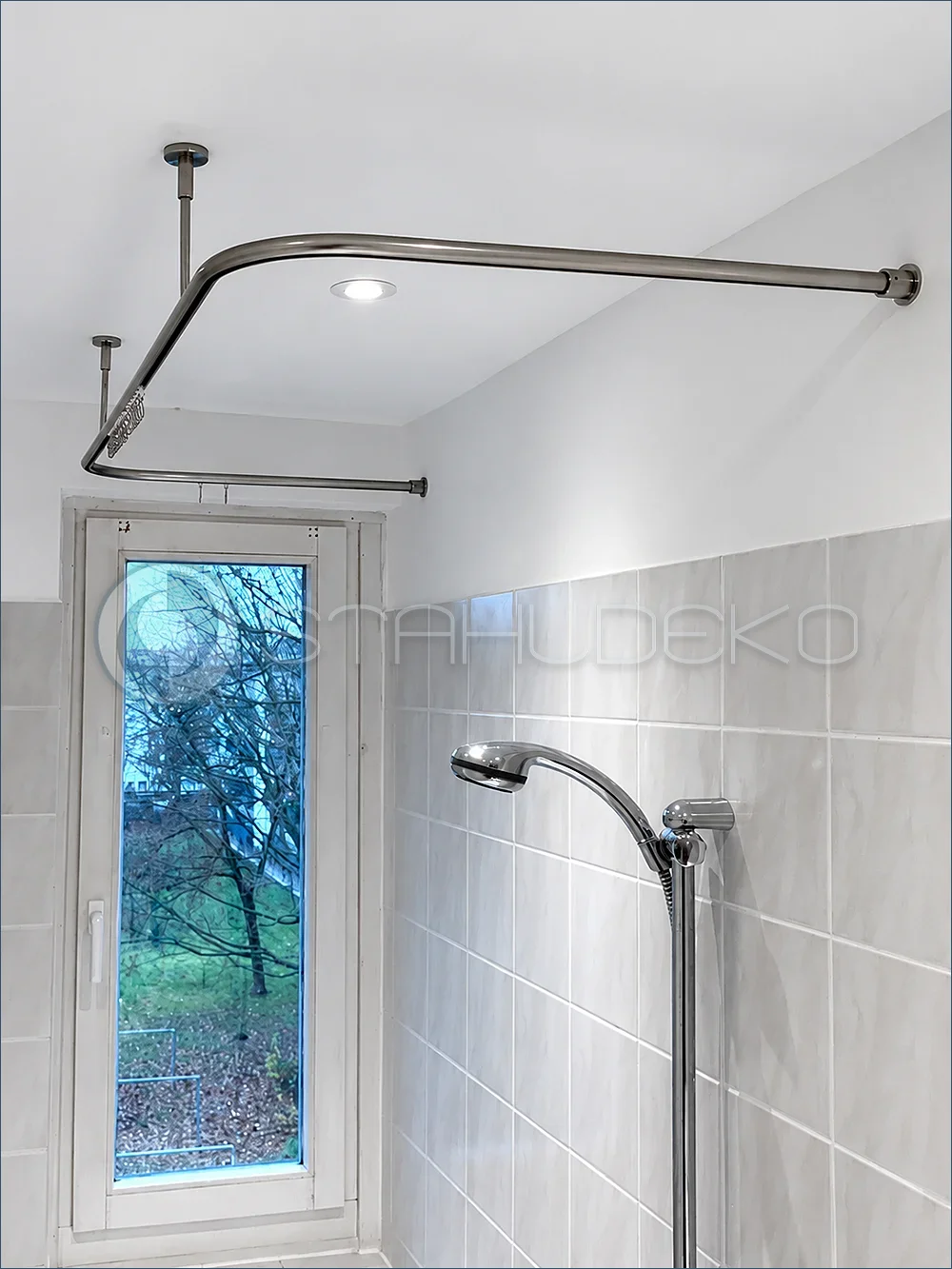

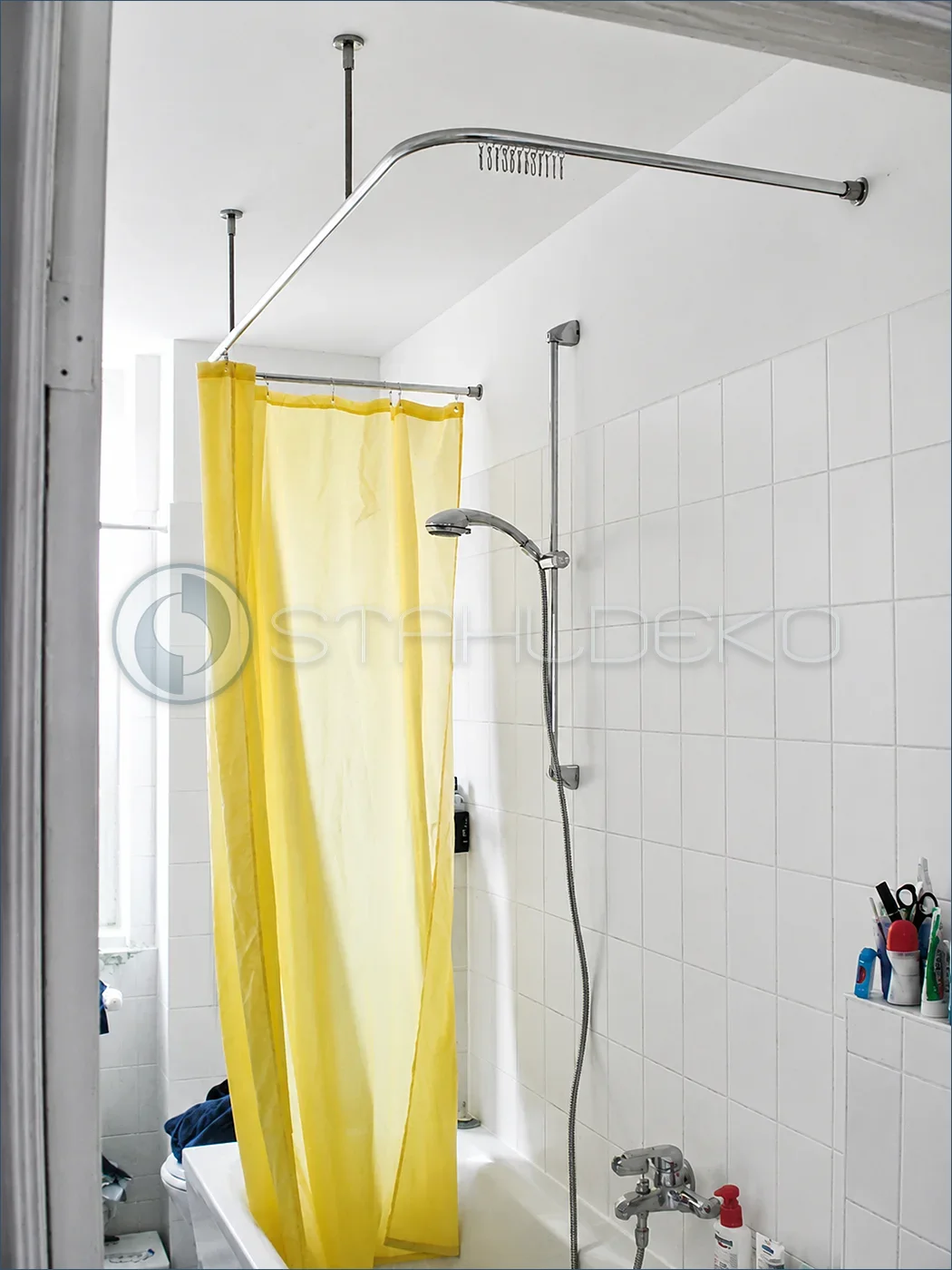

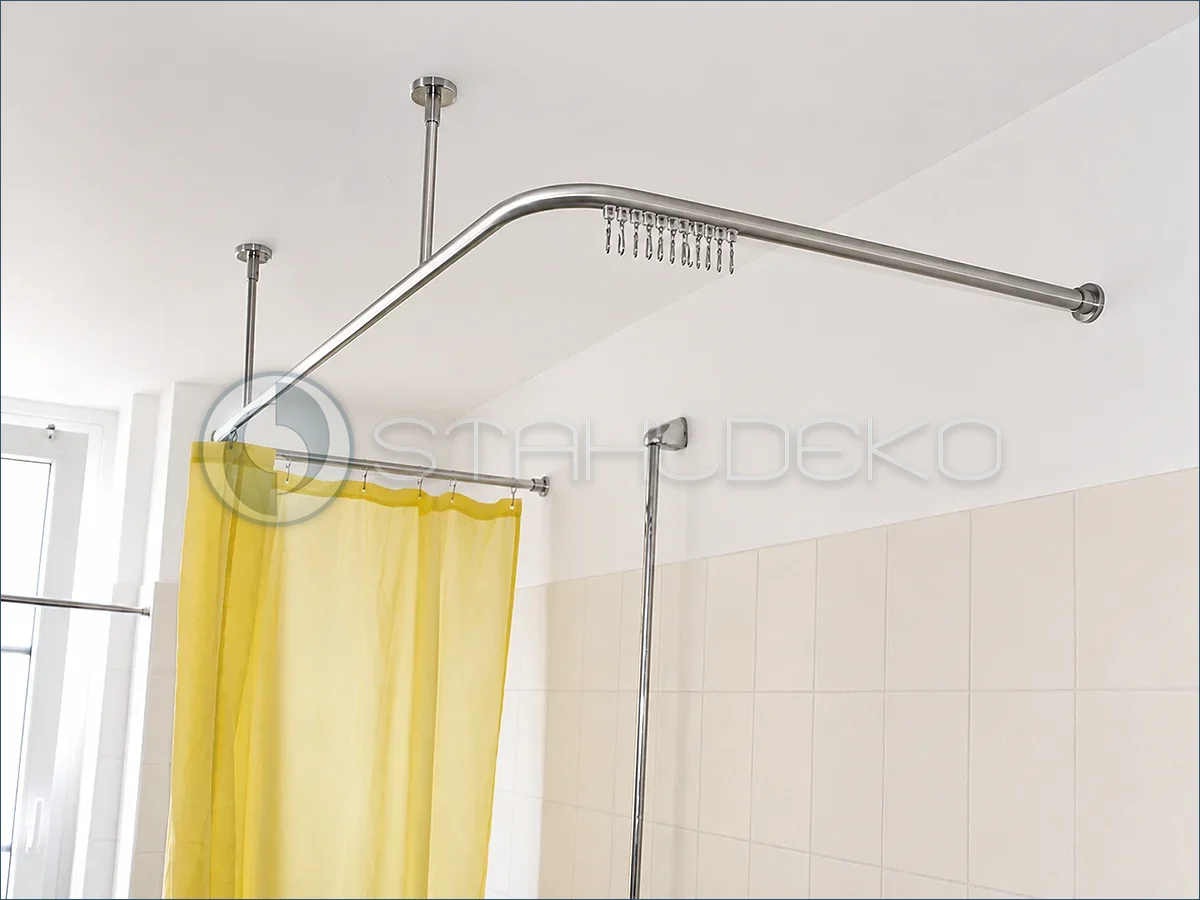

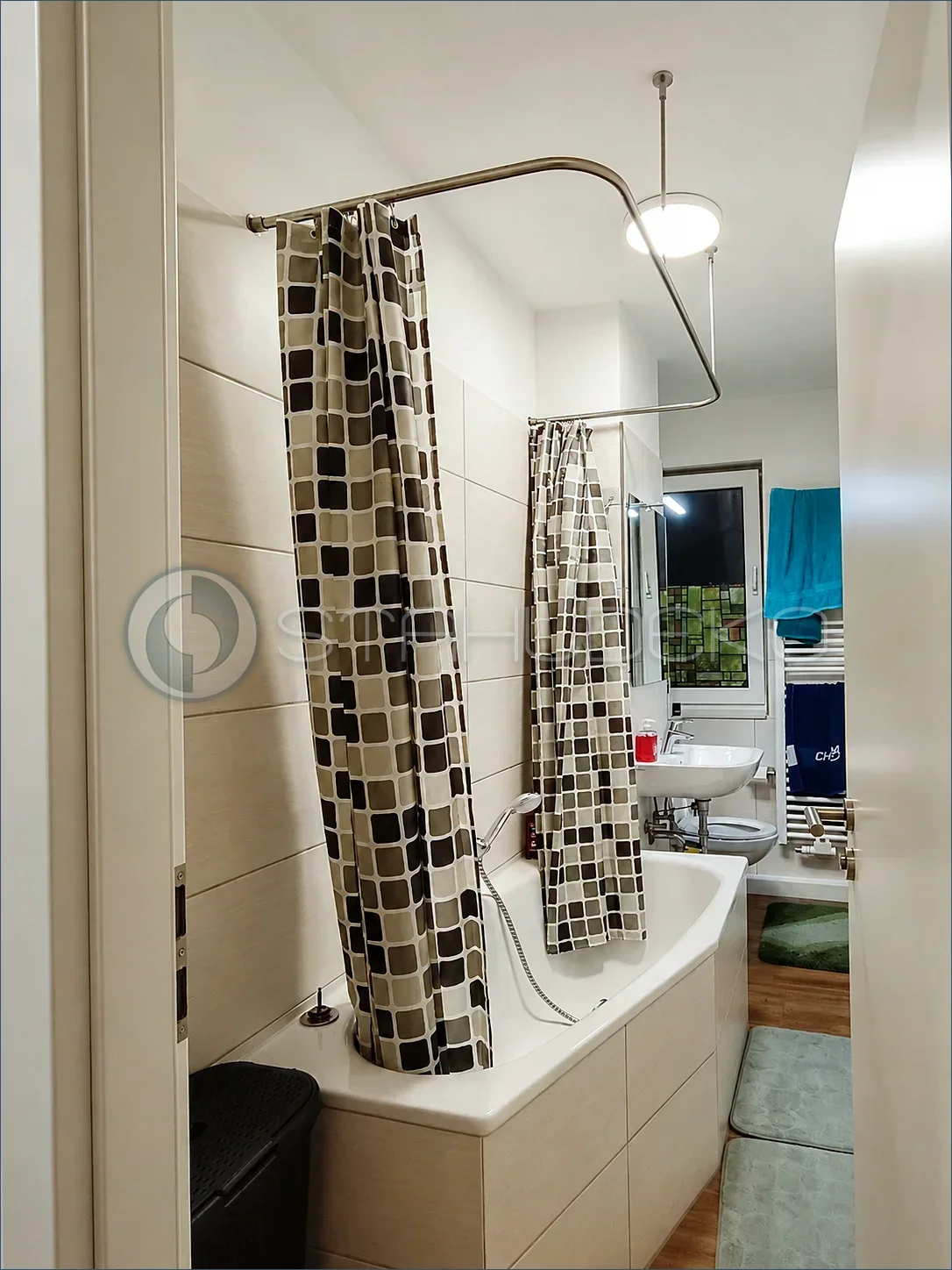

Version 3 (wall and ceiling mounting): 1 x wall mounting (wall bracket) and 3 x ceiling mounting (ceiling bracket) and 1 x end cap (for rod end).

Shower curtain rod colors.
Our shower curtain rods are made from an aluminum inner profile Ø 20mm. You can choose the following surfaces: stainless steel look, glossy white, matt black and glossy black. The accessories - the ceiling brackets, the wall brackets and the end caps can, of course, be ordered in suitable materials such as stainless steel V2A, aluminum white gloss or aluminum black satin finish. Of course it is also possible to combine the colors, e.g. B: Stainless Steel/White, Black/White or Stainless Steel/Black

Wall brackets, ceiling brackets and caps made of stainless steel V2A.
U-shaped curved shower curtain rod with inner profile Ø 20mm made of aluminium, anodised in stainless steel look, is absolutely suitable for our brackets and end pieces made of stainless steel V2A.

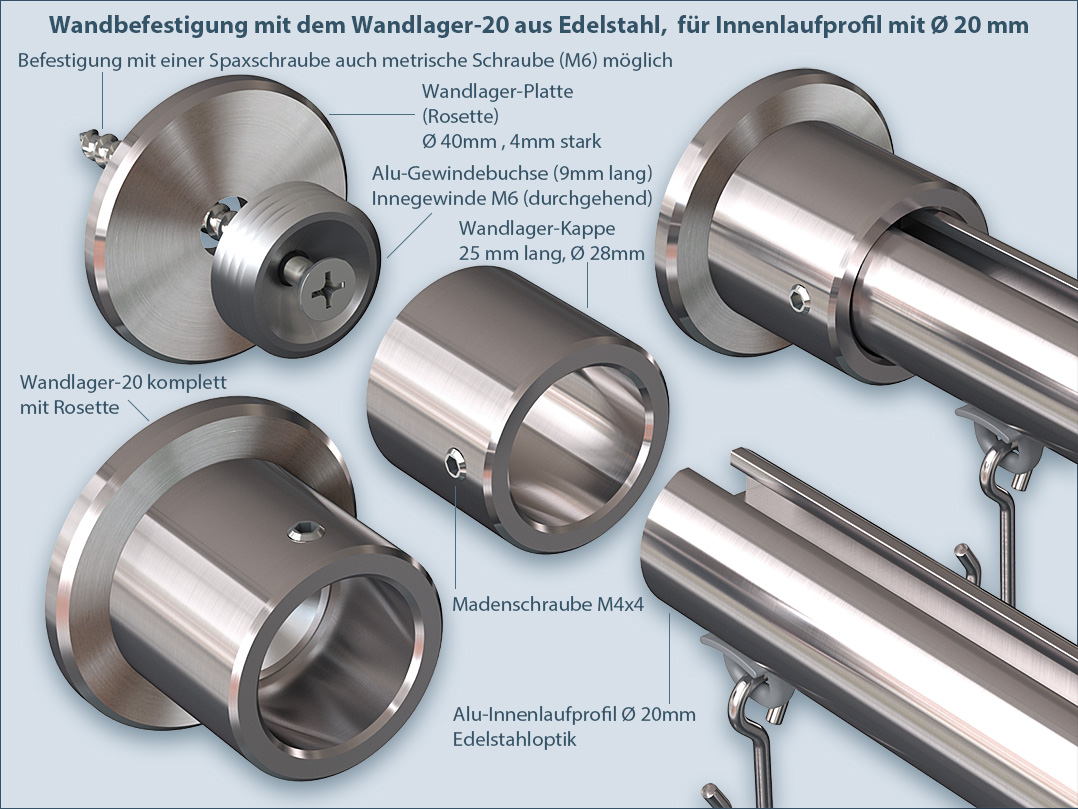

Wall mounting with wall bracket made of stainless steel V2A:

First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

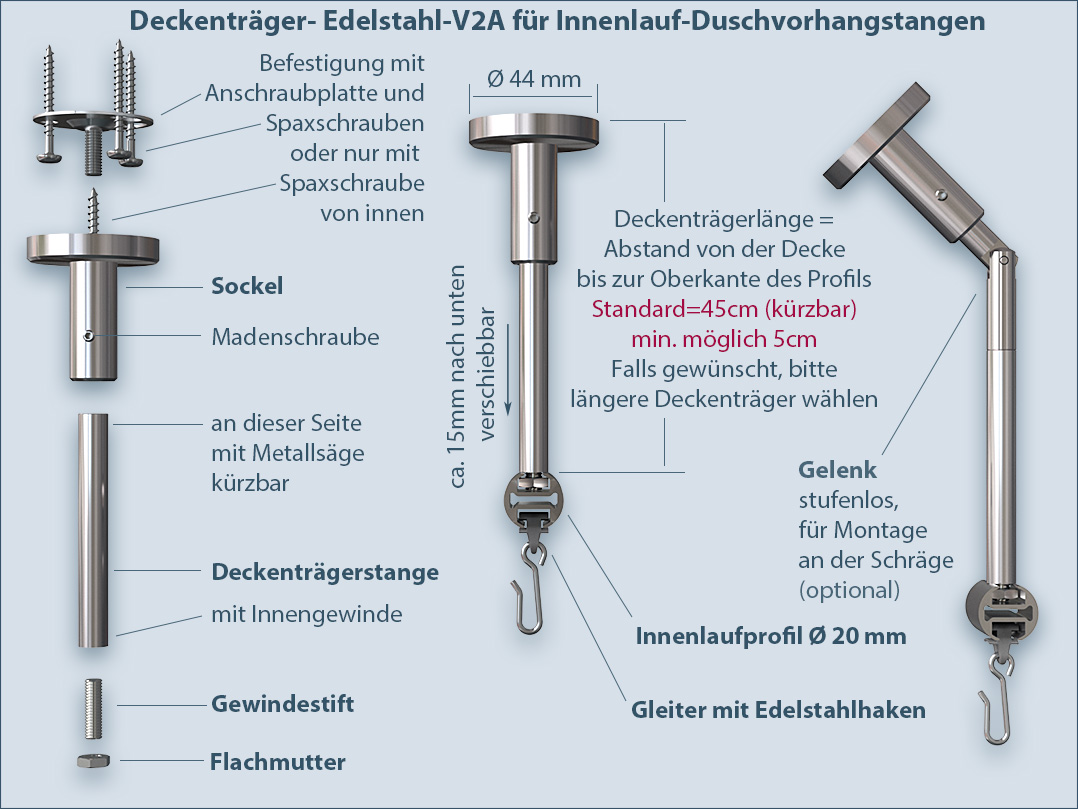

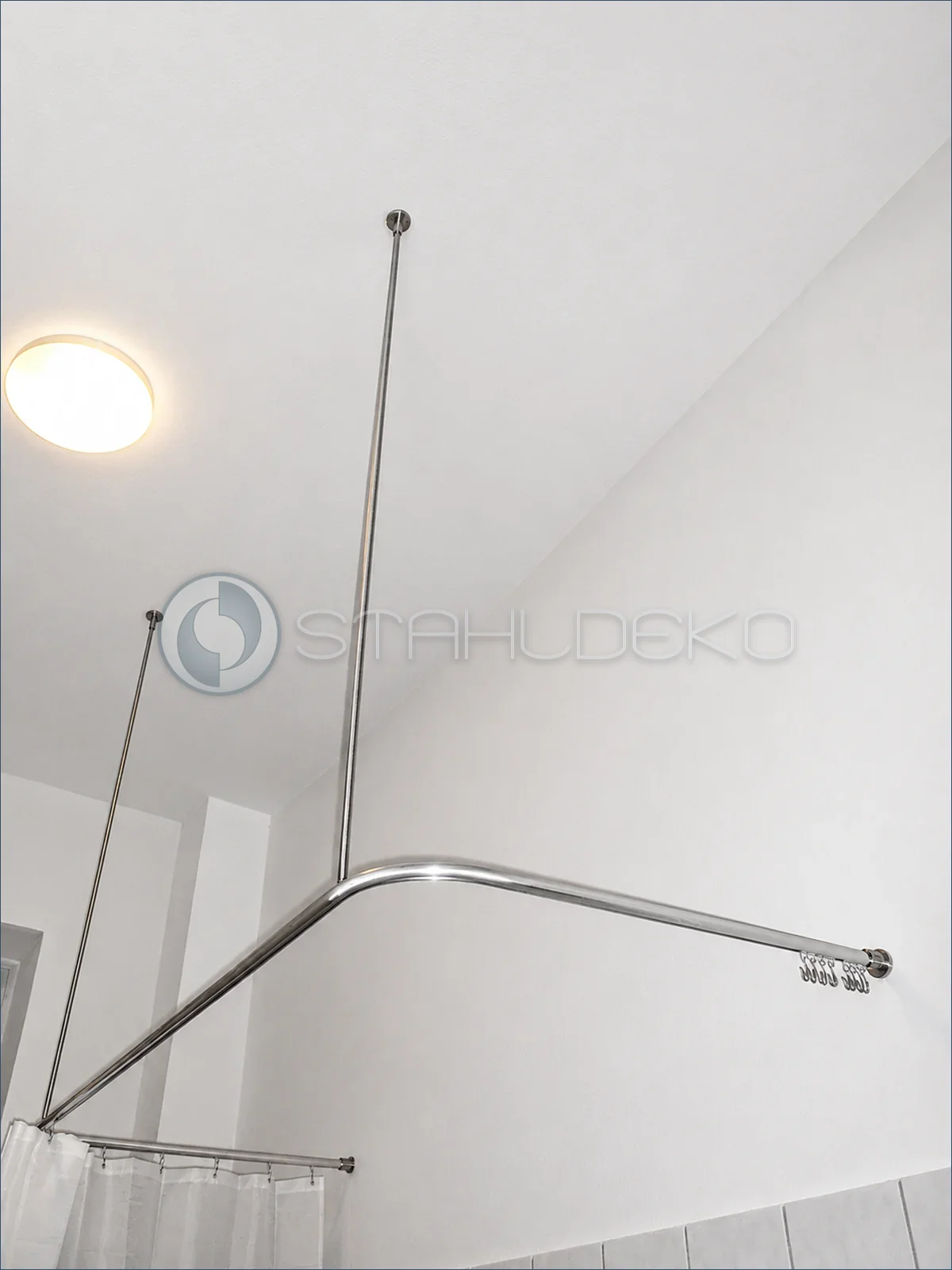

Ceiling mounting with the ceiling bracket made of stainless steel V2A:

You can position the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base using a screw-on plate or screw it on directly with a Spax screw. Then slide the flat nut fastened on the threaded pin into the fastening barrel of the profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the base. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower curtain rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

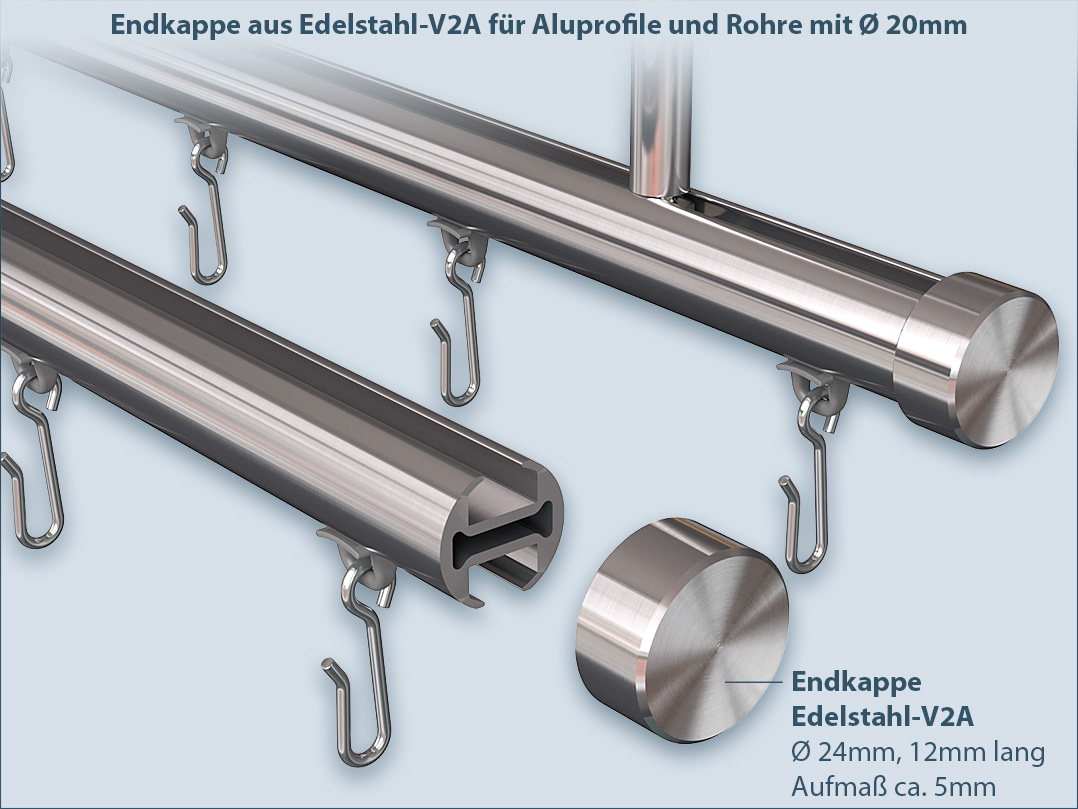

Close shower rail ends with end caps made of stainless steel V2A:

The cap is simply placed on the aluminum profile. The conical bore ensures a very secure hold, but also ensures that the cap can be removed without any problems.

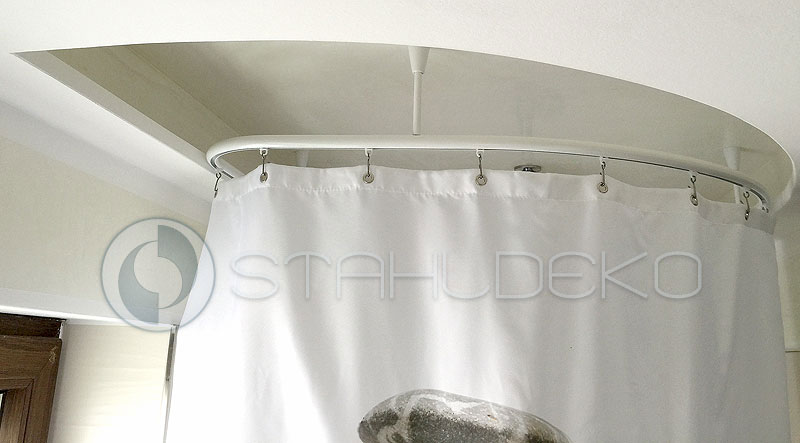

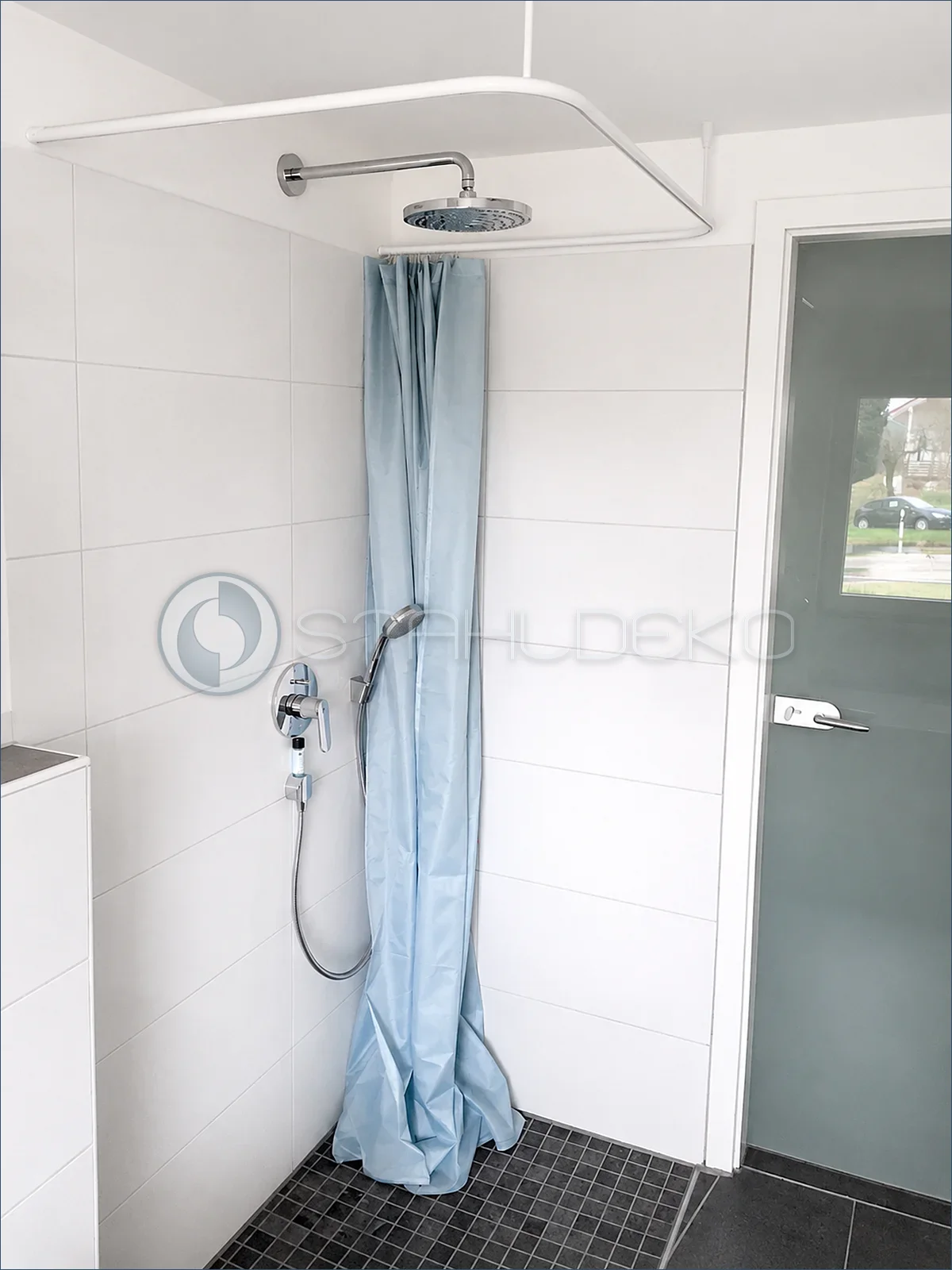

Wall brackets, ceiling brackets and caps made of glossy white aluminium.

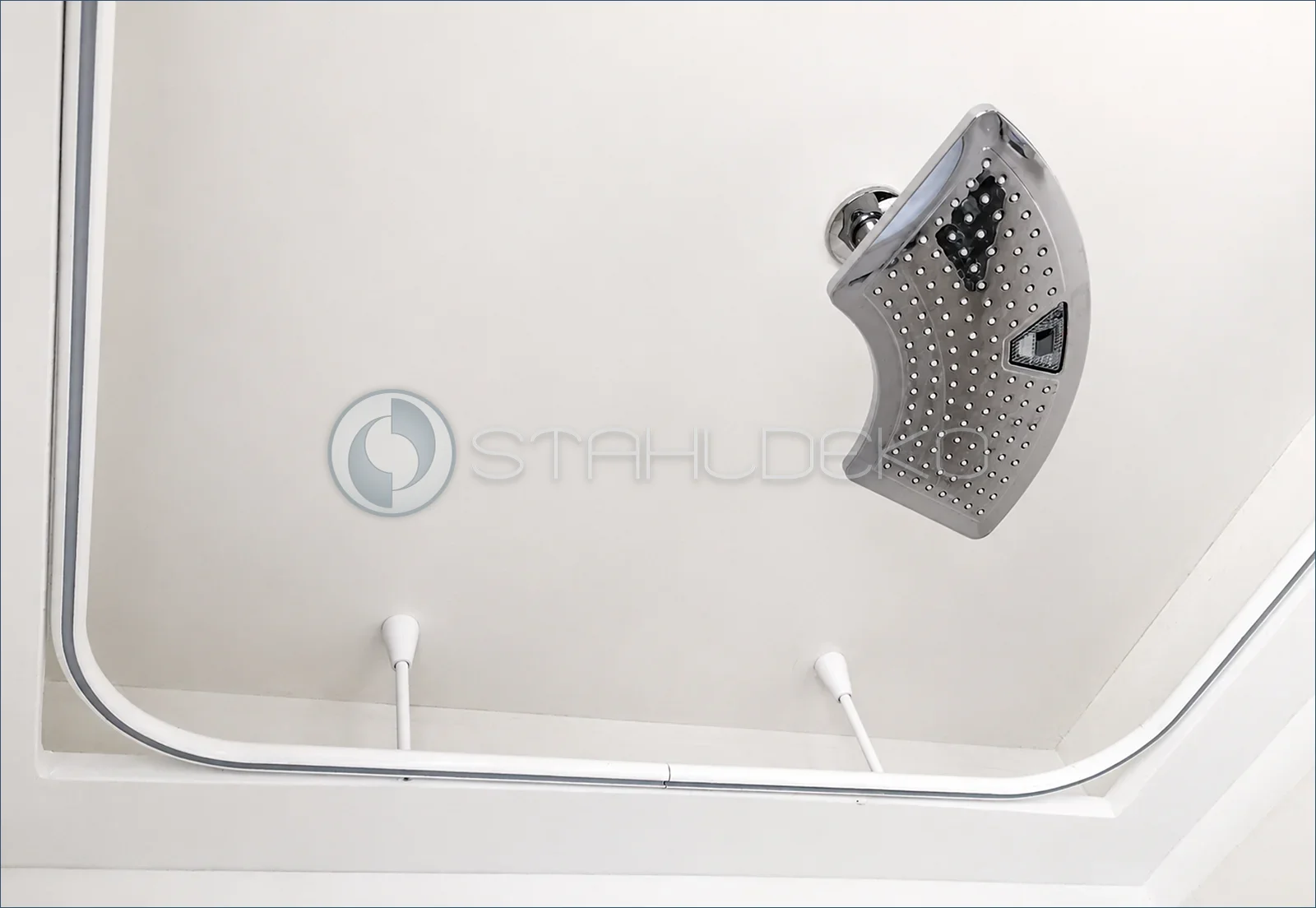

U-shaped curved rod for shower curtains with inner profile Ø 20mm made of aluminium, the white powder-coated surface absolutely matches our brackets and end pieces.

Wall mounting with wall brackets made of aluminum glossy white:

This aluminum support allows stable wall mounting of inner rails perpendicular to the wall. First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

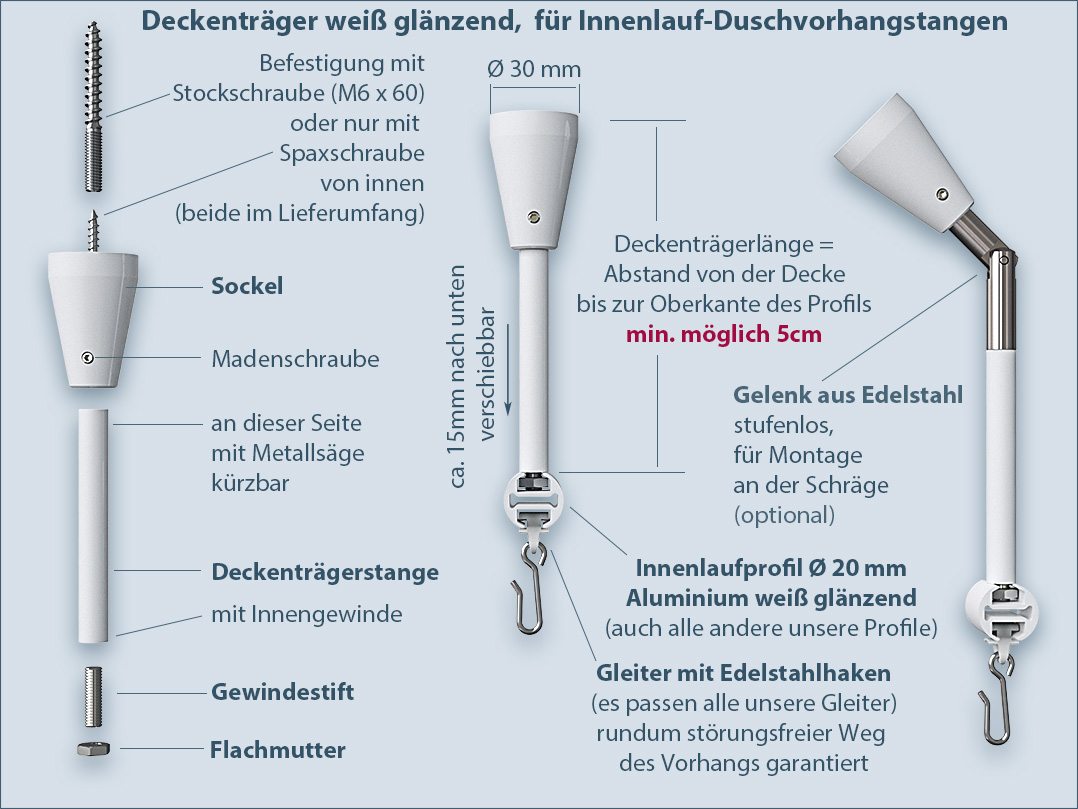

Ceiling attachment with the ceiling support white powder-coated:

You can position the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base with a hanger bolt or screw it directly with a Spax screw. Then slide the flat nut fastened on the threaded pin into the fastening barrel of the profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the base. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

Close the end of the rod with the aluminum end cap, glossy white:

The aluminum cap is simply placed on the aluminum profile. The conical inner shape of the cap ensures a very secure hold, but also ensures that the end cap can be removed without any problems.

Wall brackets, ceiling brackets and caps made of aluminum with a black satin finish.
U-shaped curved rod for shower curtains with inner rail profile Ø 20mm made of aluminium, the black powder-coated surface absolutely matches our brackets and end pieces.

Wall mounting with wall brackets made of aluminum black matt:

This aluminum support allows stable wall mounting of inner rails perpendicular to the wall. First mount the wall bearing plate with threaded bush on the wall. Slide the wall bearing cap onto the rod. Slide the rod onto the threaded bushing. Screw the cap onto the threaded bush. Lock the rod with grub screw.

Ceiling mounting with the ceiling bracket black matt:

You can position the ceiling support absolutely freely on the inner rail. First mount the base on the ceiling according to the desired position. You can either attach the base with a hanger bolt or screw it directly with a Spax screw. Then slide the flat nut fastened on the threaded pin into the fastening run of the profile and position it according to the base already attached. Screw the ceiling support rod onto the grub screw. Slide the construction towards the ceiling and insert the ceiling support rod into the socket. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

Close the end of the rod with the aluminum end cap, matt black:

The aluminum cap is simply placed on the aluminum profile. The conical inner shape of the cap ensures a very secure hold, but also ensures that the end cap can be removed without any problems.

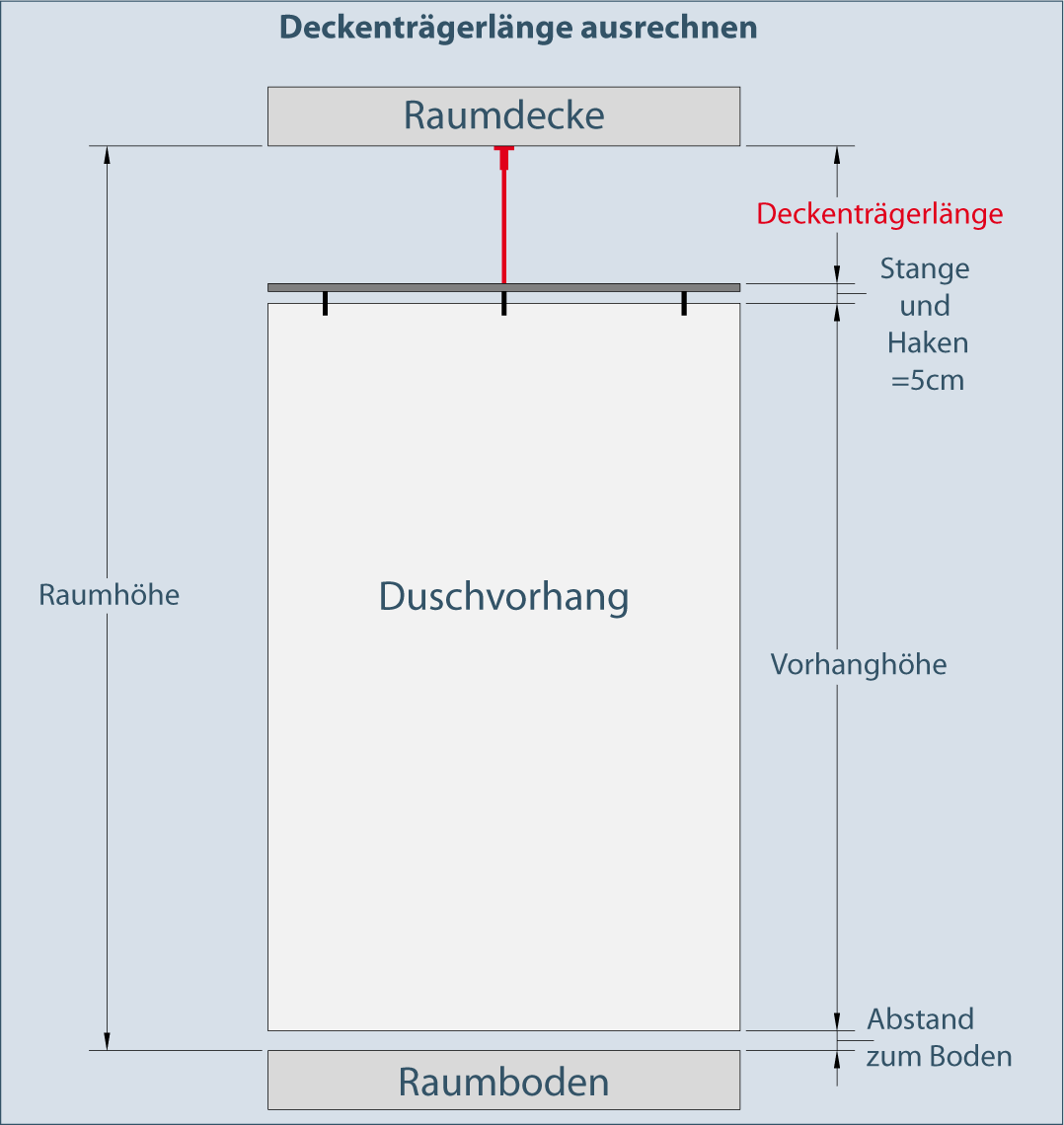

ceiling beam length.
Ceiling support length = room height - curtain height - distance to the floor - rod and hook (5cm)

You can also shorten the ceiling support yourself with a hacksaw. Standard ceiling support length for our shower curtain rods=45cm. Min. possible ceiling support length = 5cm. You can also move the ceiling support approx. 1.5 cm down. We can also supply longer ceiling supports, please select under "longer ceiling supports".

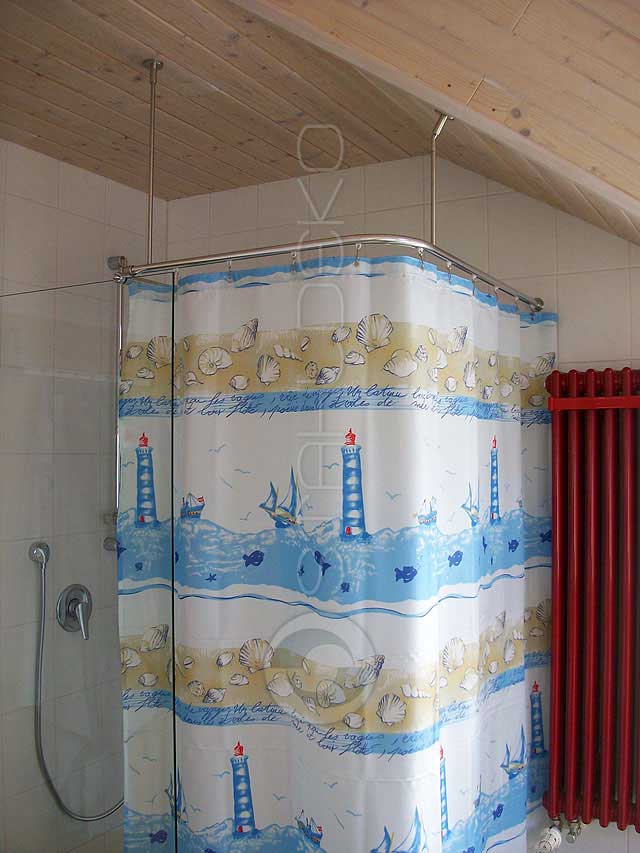

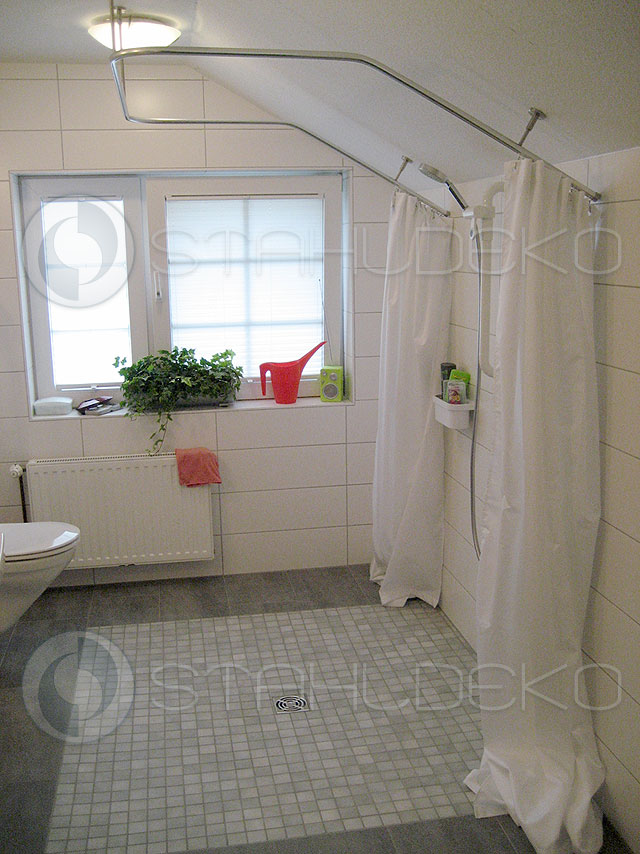

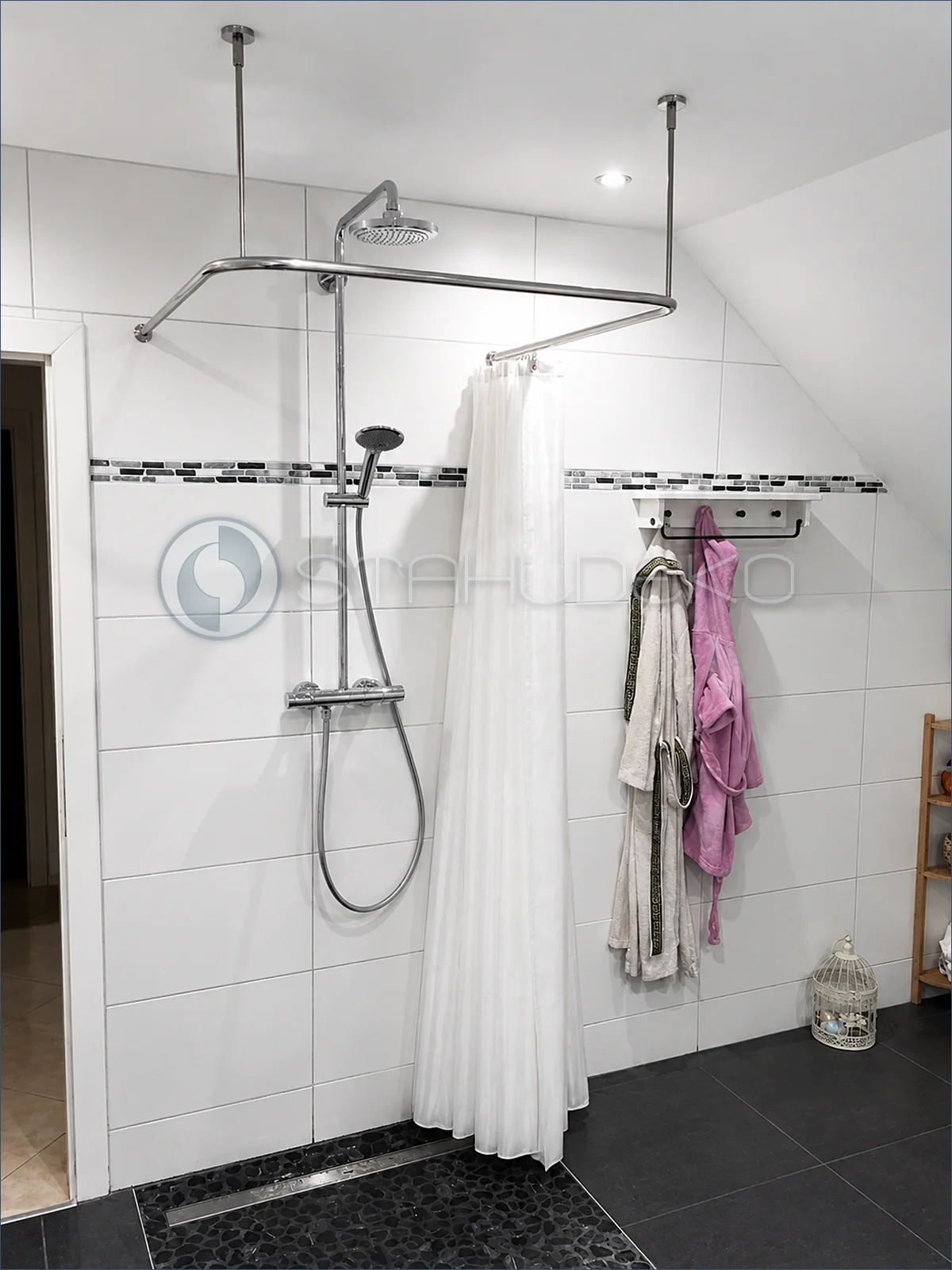

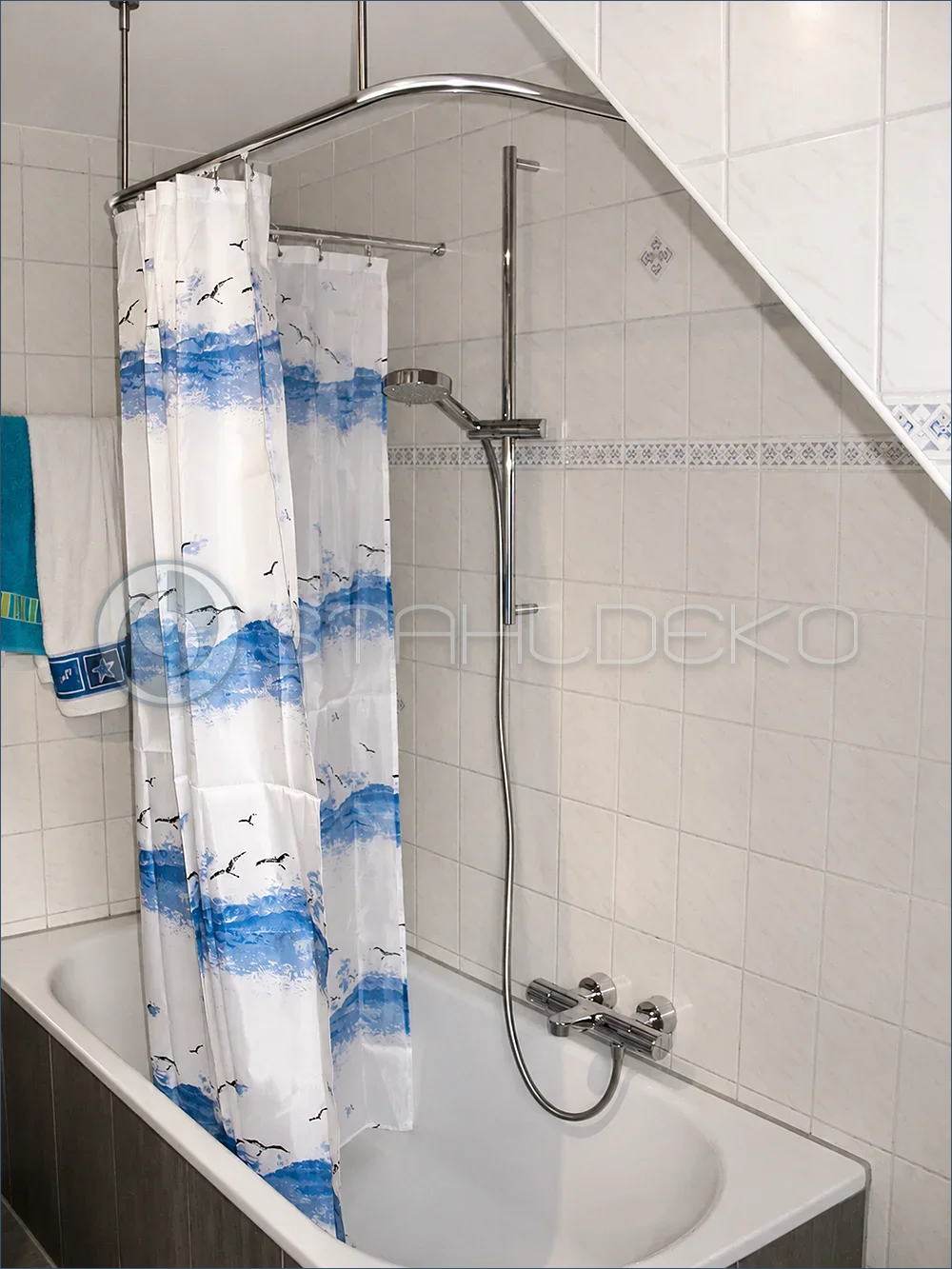

Attach shower rails to a sloping roof or a sloping wall.

If you want to attach the shower curtain rail to a slope, you can order the joints for ceiling brackets. First screw this joint to one side of the ceiling support rod (a set screw and a drive-in nut are supplied), then push the other side of the joint into the base and fix it with a base grub screw. So you can easily mount the ceiling support on the wall or roof slope at any angle. You can, of course, combine the ceiling supports with and without a joint on a shower rail, for example if the rail ends at the side of a sloping wall.

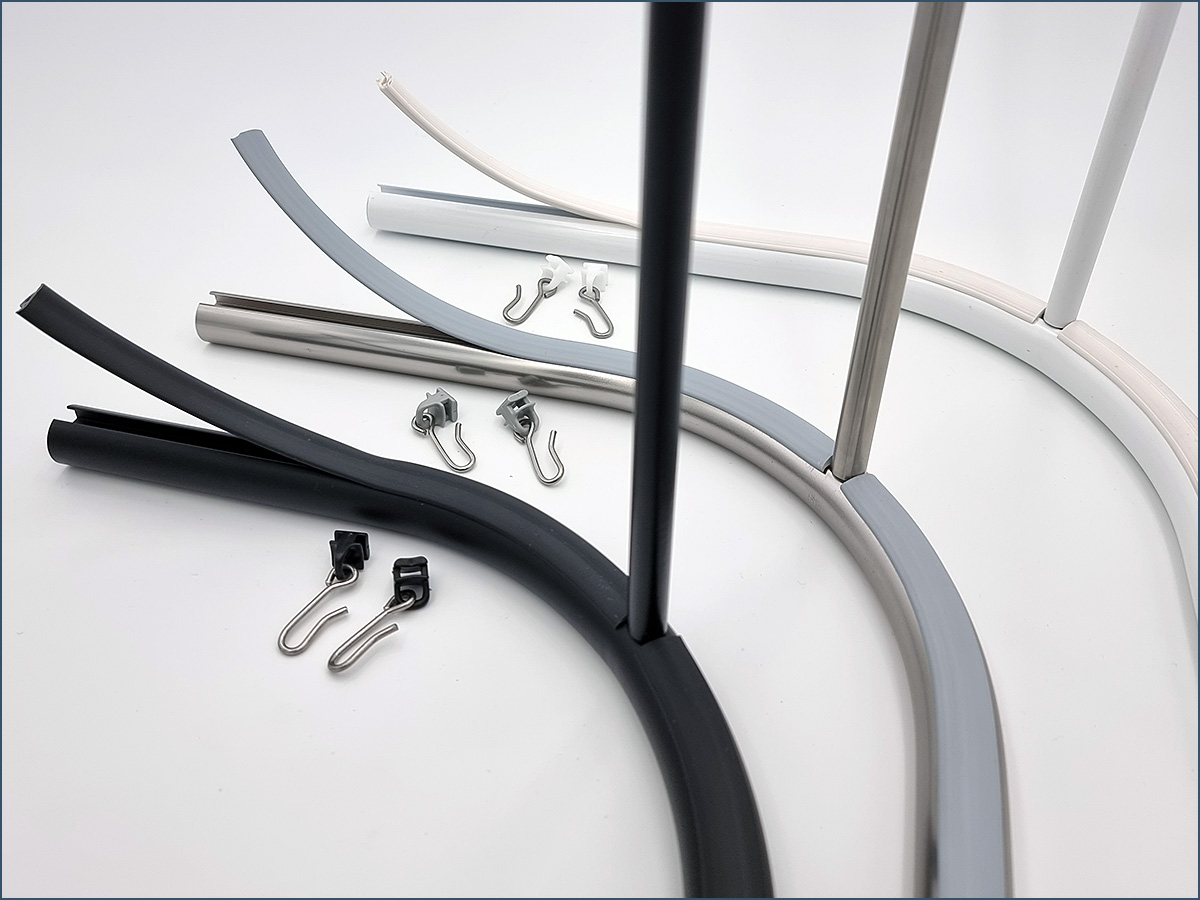

Rubber cover against dirt and dust, for mounting barrel, white, black or light gray.

Elastic rubber band, which you can quickly and easily shorten to the desired length with conventional scissors. Then you can simply press the cover strip into the fastening run of the aluminum profile. This way the water, dirt and dust can no longer accumulate in the upper barrel.

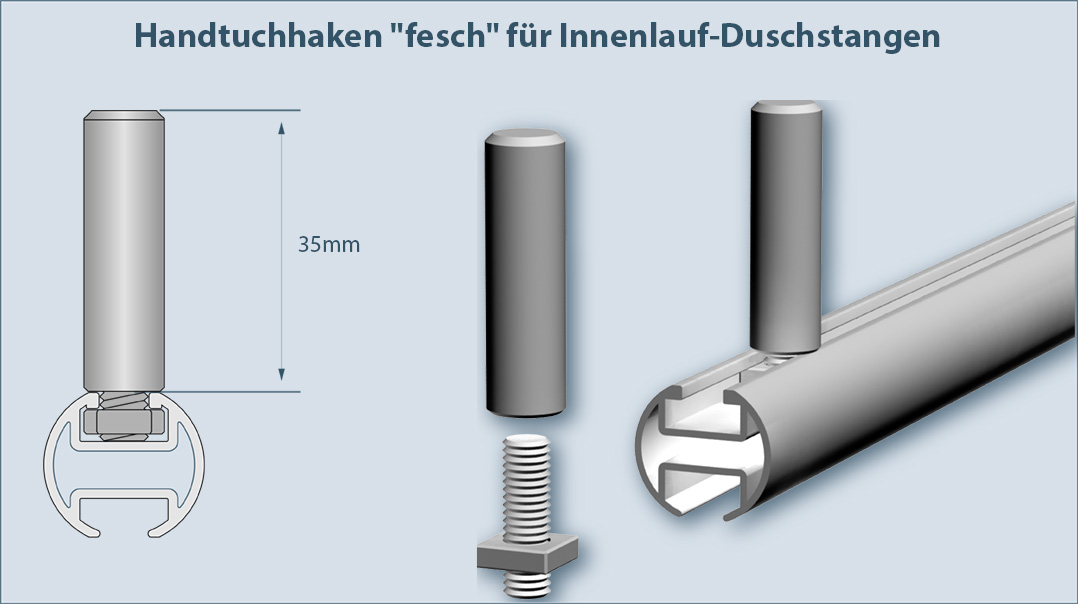

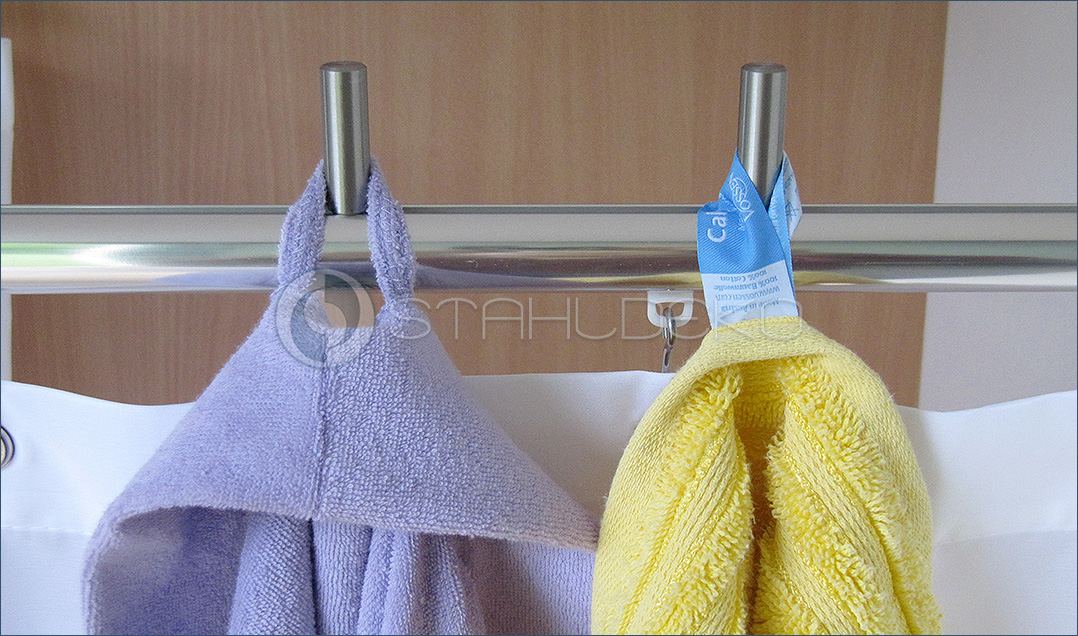

Robe hook or bath towel hook "snazzy", for inside running shower curtain rods.

So your bathrobe and bath towel are always ready to hand when showering. Simply mount these robe hooks in the mounting rail of our inner rail shower rails. These bath towel hooks are made of V2A stainless steel and are absolutely suitable for wet areas. At the same time, the hooks are very flexible and can be attached anywhere on the pole. Simply slide the grub screw with flat nut to the desired position and turn the hook. The stainless steel hook is very robust, but also elegant, attractive and chic, just smart! The hook fits perfectly with our shower curtain rods. This combination looks very classy and guarantees an all-round trouble-free movement of the curtain, even if a bath towel or bathrobe is hanging on the rod. You can also use the shower curtain rail as a towel rail. The dimensions and fastening system can be found in the drawing.
