Primo-20 Garment Rods: Compact Solutions for Vertical Wall Mounting.

Made from high-quality stainless steel V2A, this garment rod with a diameter of 20mm and cylindrical end caps can be perfectly adapted to your spatial conditions through various, individually cuttable lengths. The construction is designed for an evenly distributed load of up to 5kg (11 lbs). Included is an extremely stable wall bracket plate with a support surface diameter of 70mm (2.75 inches), including mounting materials. Without clothes hooks and hangers. Its versatile use in hallways or entryways and installation with stainless steel screws ensure adaptability to any wardrobe depth. Clothes can be hung on hooks available separately.

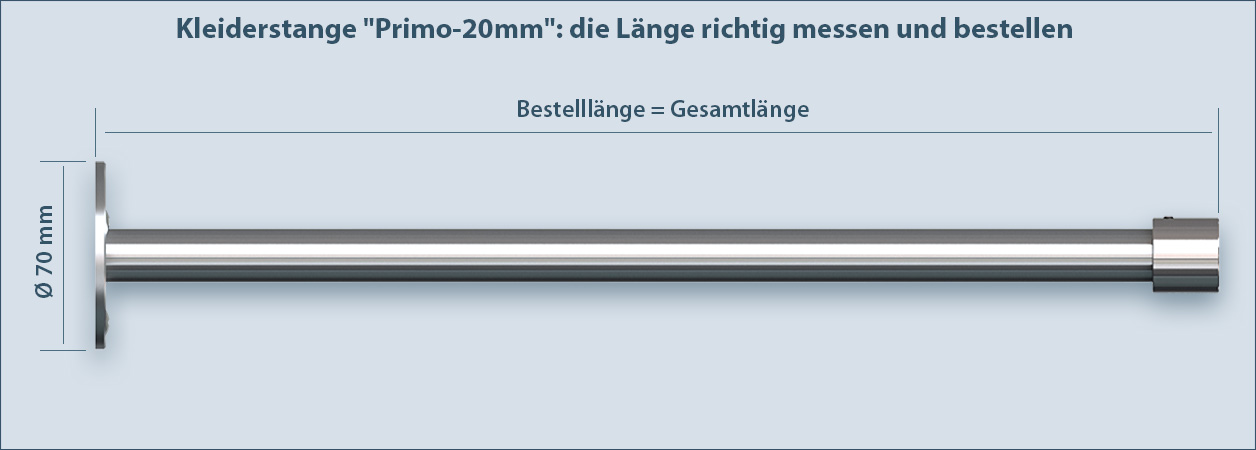

Primo-20mm Garment Rod: Correct Measurement and Ordering of Length.

The order length corresponds to the total length of the garment rod. * To adjust the length, enter the desired shortening in the "cut by" field in cm, and we will cut the rod for you. For example, if you need a rod of exactly 38cm, choose "Length" 40cm and enter 2cm in the "cut by" field.

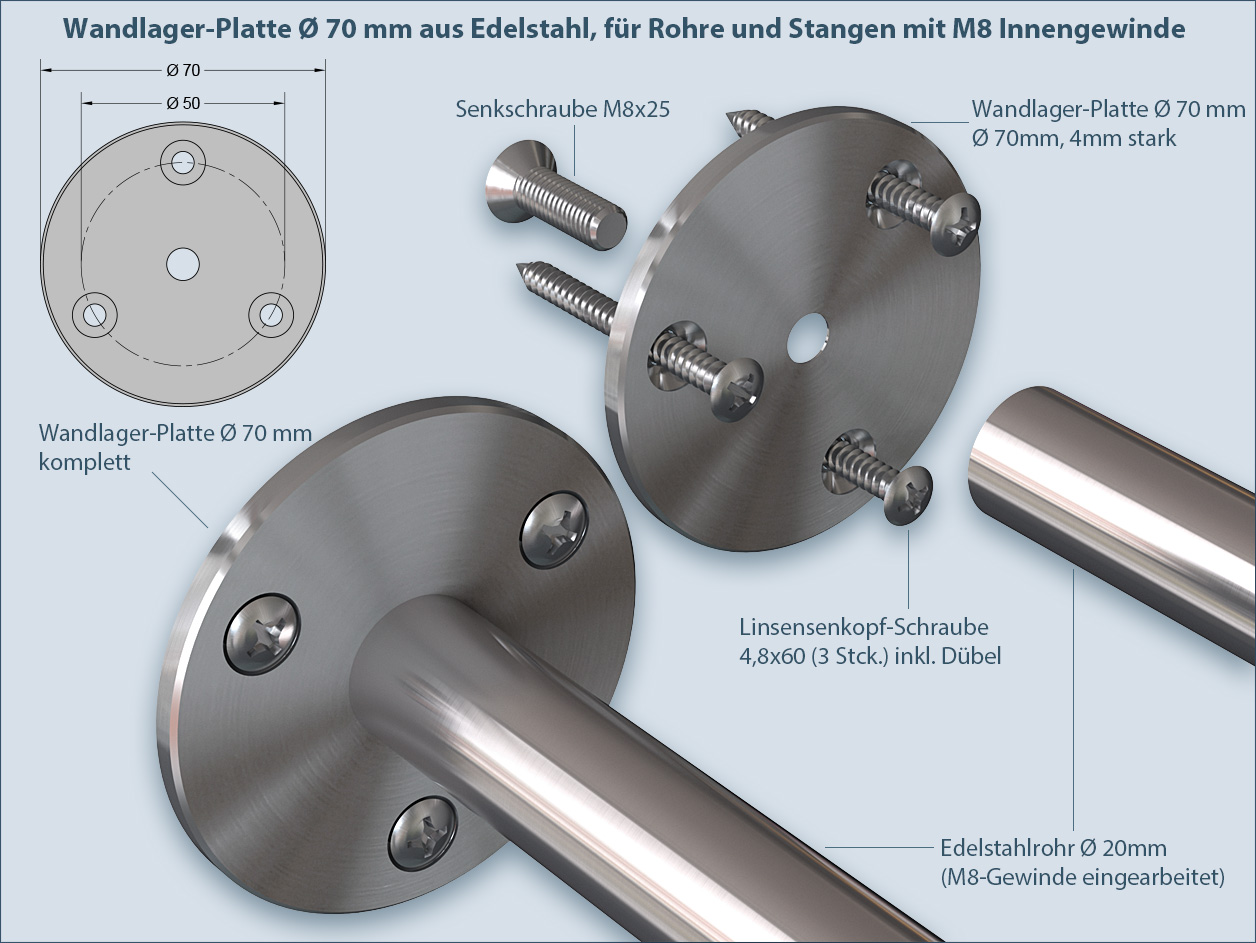

Installation Instructions for the Wall Bracket Plate of the Primo-20 Garment Rod

A key requirement for garment rods is their stability. For a permanently secure installation of the Primo garment rod, considering the load-bearing capacity of the substrate and correct screw installation is essential. We provide the required screws (pan head 4.8 x 60 stainless steel) and anchors (Fischer SX 8x40) for brick wall mounting. For other substrates, different fastening materials may be necessary. All relevant dimensions can be found in the above illustration. First, mark the center of the rod on the wall, use the wall bracket plate as a template for the drilling points, drill holes with an 8mm diameter and about 60mm depth, and insert the anchors. Mount the rod to the wall bracket plate with the flat head screw M8x25 from the back before attaching the rod to the wall.

Tip: Use a lubricant, such as liquid soap, for screw mounting.

Additionally Available: Stainless Steel Wardrobe Hooks for 20mm Pipes

The S-hooks made of V2A stainless steel are robust, yet easy to move and ideal for clothing and accessories in the hallway. With a 19mm opening, they can be easily attached and removed. Dimensional details can be found in the attached drawing.
